2. CHECK “B” TERMINAL CIRCUIT
Check voltage between alternator “B” terminal and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open between alternator and fusible
link.
3. CHECK “B” TERMINAL CONNECTION (VOLTAGE DROP TEST)
1. Start engine, then engine running at idle and warm.
2. Check voltage between battery positive terminal and alternator
“B” terminal.
OK or NG
OK >> Go to SC-22, "Trouble Diagnoses with Starting/Charging
System Tester (Charging)" .
NG >> Check harness between battery and alternator for poor continuity.
Te r m i n a l s
Voltage (Approx.) (+)
(–)
Alternator “B” terminal Terminal
E205 1 Ground Battery voltage
PKIB8809E
Terminals
Voltage
(Approx.)
(+)(–)
Alternator “B” terminal Terminal
Battery positive
terminalE205 1 Less than 0.2 V
PKIB8810E
SC-26
CHARGING SYSTEM
Revision: 2006 November2007 350Z
Removal and Installation NKS0000H
REMOVAL
1. Open the driver and front passenger window, and then disconnect the battery cable from the negative ter-
minal.
CAUTION:
Before disconnecting the battery, lower both the driver and passenger windows. This will prevent
any interference between the window edge and the vehicle when the door is opened/closed. Dur-
ing normal operation, the window slightly raises and lowers automatically to prevent any window
to vehicle interference. The automatic window function will not work with the battery discon-
nected.
2. Remove engine undercover, using power tools.
3. Remove air cleaner assembly and harness clip. Refer to EM-15, "
AIR CLEANER AND AIR DUCT" .
4. Remove radiator cooling fan assembly. Refer to CO-21, "
COOLING FAN" .
5. Remove alternator and power steering oil pump belt. Refer to EM-12, "
Removal and Installation" .
6. Disconnect alternator connector (1).
7. Remove “B” terminal mounting nut (2).
8. Remove the harness bracket bolts (A).

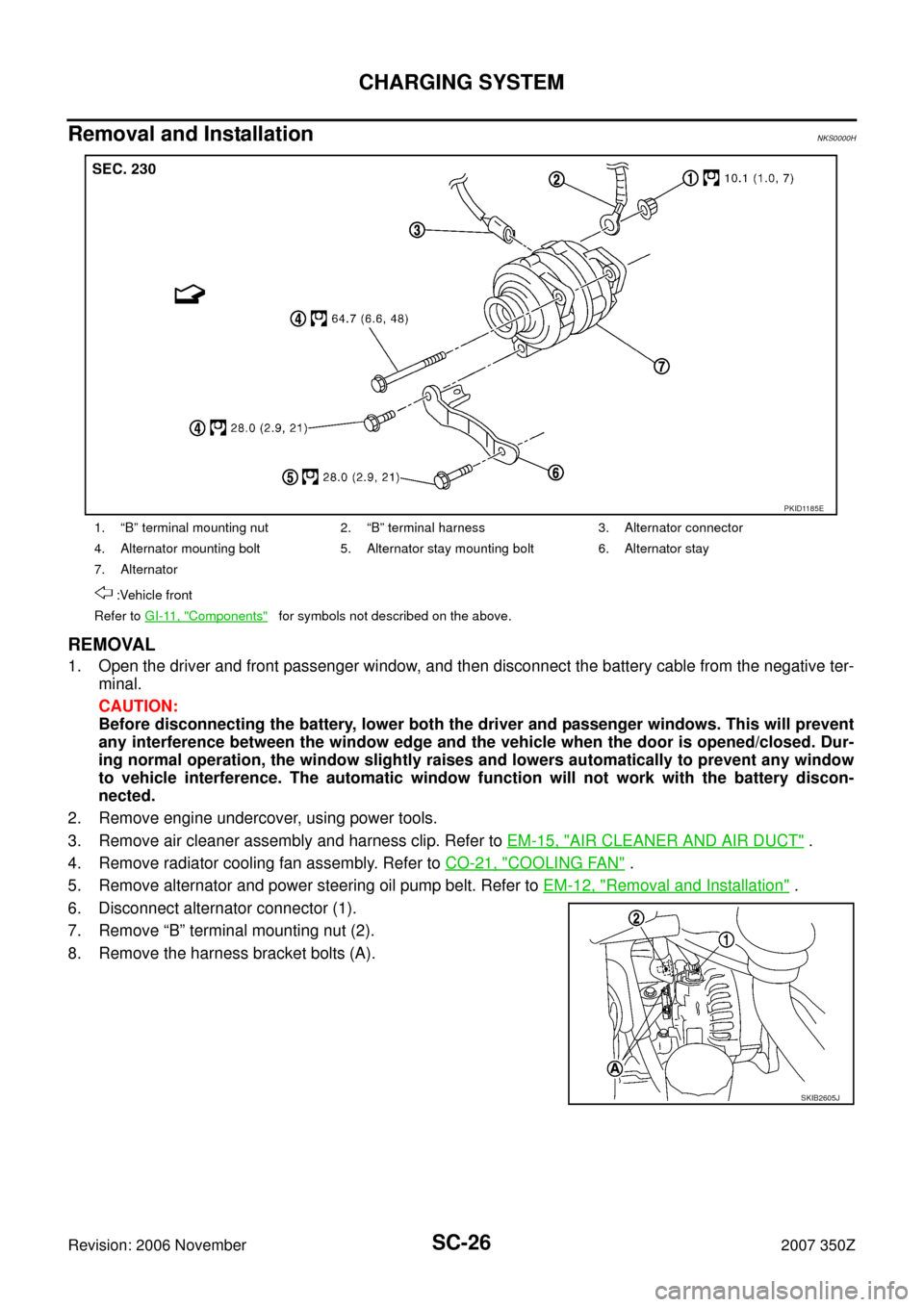

1. “B” terminal mounting nut 2. “B” terminal harness 3. Alternator connector
4. Alternator mounting bolt 5. Alternator stay mounting bolt 6. Alternator stay
7. Alternator
:Vehicle front
Refer to GI-11, "
Components" for symbols not described on the above.
PKID1185E
