2007 NISSAN 350Z Power Steering System Workshop Manual

HYDRAULIC LINE
PS-33
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2006 November2007 350Z

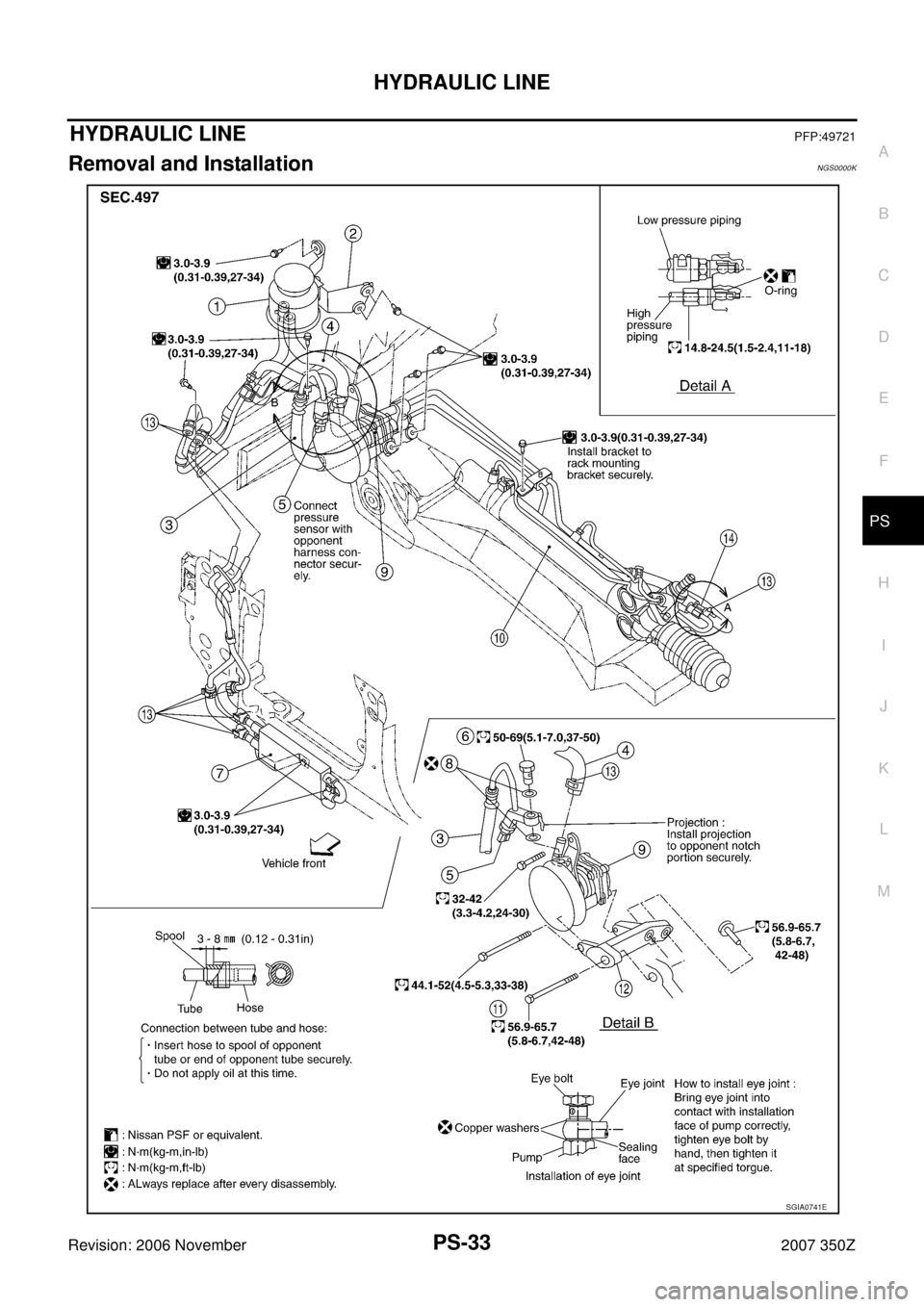

HYDRAULIC LINEPFP:49721
Removal and InstallationNGS0000K
SGIA0741E

PS-34
HYDRAULIC LINE
Revision: 2006 November2007 350Z
1. Reservoir tank 2. Reservoir tank bracket 3. Hose & tube assembly
4. Suction hose 5. Oil pressure sensor 6. Eye bolt
7. Oil cooler 8. Copper washer 9. Power steering oil pump
10. Steering gear assembly 11. Common bolt 12. Oil pump bracket
13. Clip

SERVICE DATA AND SPECIFICATIONS (SDS)
PS-35
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2006 November2007 350Z
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Steering WheelNGS0000L
Steering AngleNGS0000M
Steering ColumnNGS0000N
Steering Outer Socket and Inner SocketNGS0000O
End play of the axle direction for steering wheel 0 mm (0 in)
Steering wheel play on the outer circumference 0 - 35 mm (0 - 1.38 in) or less
Inner wheel
Degree minute (Decimal degree)Minimum 35° 55' (35.9°)
Nominal 38° 55' (38.9°)
Maximum 39° 55' (39.9°)
Outer wheel
Degree minute (Decimal degree)Nominal 30° 40' (30.7°)
Steering column length “L”548 mm (21.57 in)
SGIA0306J
Steering gear typePR26AF
Outer socket ball joint outer socketSwinging torque 0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
Measurement on spring balance

Measuring point: stud cotter pin hole4.42 - 42.7 N (0.5 - 4.4 kg, 1 - 10 lb)
Rotating torque 0.3 - 2.9 N·m (0.03 - 0.29 kg-m, 3 - 25 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Inner socket ball joint inner socketSwinging torque 1.0 - 7.8 N·m (0.11 - 0.79 kg-m, 9 - 69 in-lb)
Measurement on spring balance

Measuring point: L mark see below,
L=48.5 mm (1.91 in).10 - 78 N (1 - 8 kg, 2 - 18 lb)
Axial end play 0.2 mm (0.008 in) or less
SGIA0358E

PS-36
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 November2007 350Z
Steering GearNGS0000P
Oil PumpNGS0000Q
Steering FluidNGS0000R
Inner socket length “L” 106.3 mm (4.19 in)
SGIA0167E
Steering gear modelPR26AF
Rack neutral position, dimension “L” (rack stroke) 64.5 mm (2.539 in)
SGIA0629J
Oil pump relief hydraulic pressure
9,600 - 10,200 kPa (97.9 - 104 kg/cm2 , 1,392 - 1,479 psi)
Fluid capacity
Approx. 1.0 (1-1/8 US qt, 7/8 Imp qt)
