PARKING BRAKE CONTROLPFP:36010
ComponentsNFS0001G
Removal and InstallationNFS0001H
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove adjusting nut from device assembly.
3. Remove exhaust center muffler. Refer to EX-3, "
EXHAUST SYSTEM" .
4. Remove propeller shaft. Refer to PR-5, "
REAR PROPELLER SHAFT" .
CAUTION:
Do not impact or damage propeller shaft tube.
5. Remove rear disc caliper and disc rotors. Refer to BR-44, "
Removal and Installation of Brake Caliper
Assembly (Other than Brembo Calipers)" or BR-45, "Removal and Installation of Brake Caliper Assembly
(With Brembo Calipers)" .
6. Remove parking brake shoe, and remove rear cable from toggle lever. Refer to PB-5, "
Components" .
7. Remove cable mounting nuts and bolts.
8. Remove right and left rear cables.
9. Remove front cable.
10. Remove device assembly mounting bolts and remove device assembly from vehicle.
INSTALLATION
1. Refer to “Component Parts Location” for tightening torque. Install in the reverse order of removal.
CAUTION:
Since the adjusting nut is not a reusable part, do not reuse it.
2. Adjust parking brake. Refer to PB-3, "
ADJUSTMENT" .

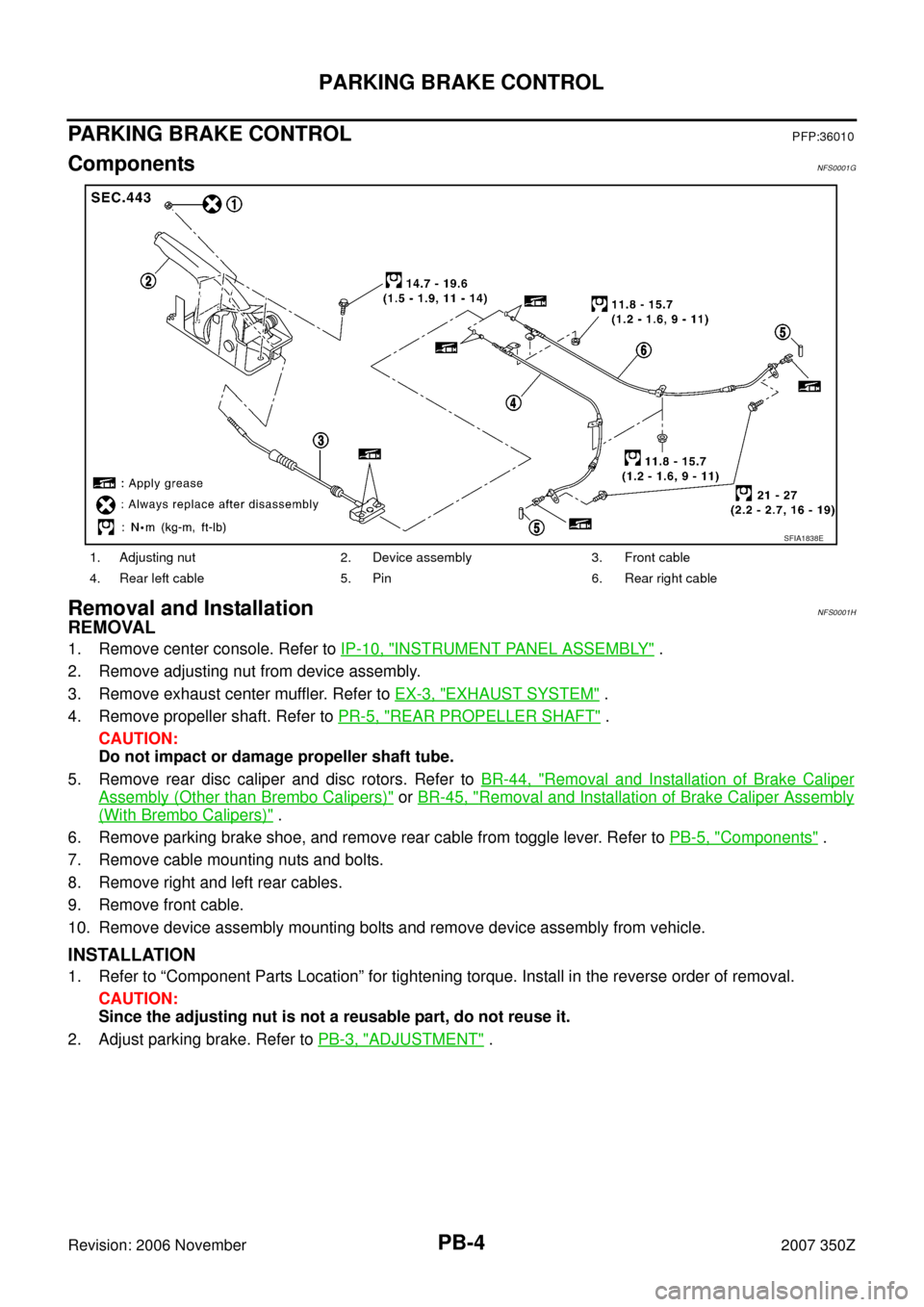

1. Adjusting nut 2. Device assembly 3. Front cable
4. Rear left cable 5. Pin 6. Rear right cable
