Page 70 of 172
LT-70
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 November2007 350Z

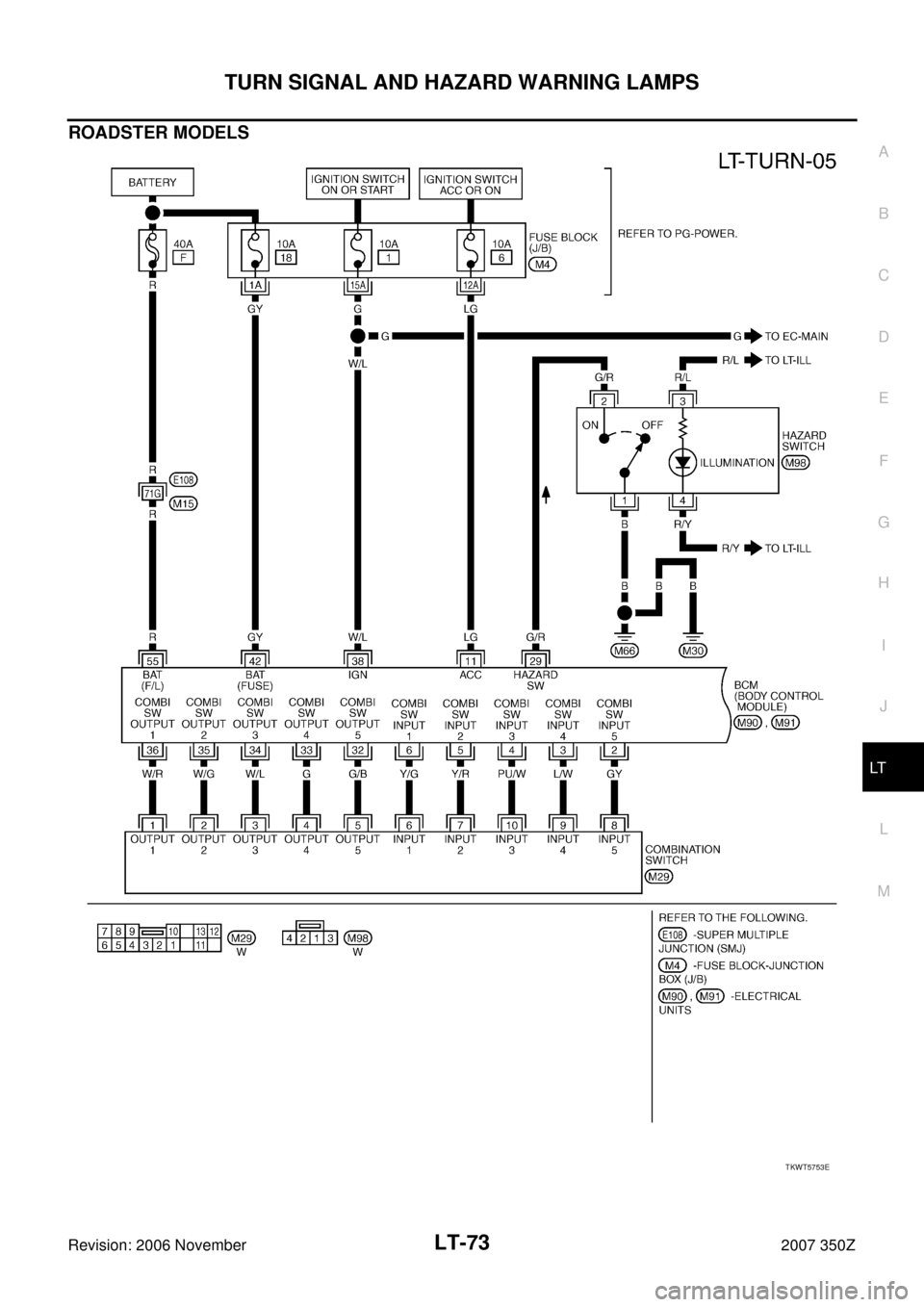

TKWT5752E
Page 71 of 172
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-71
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

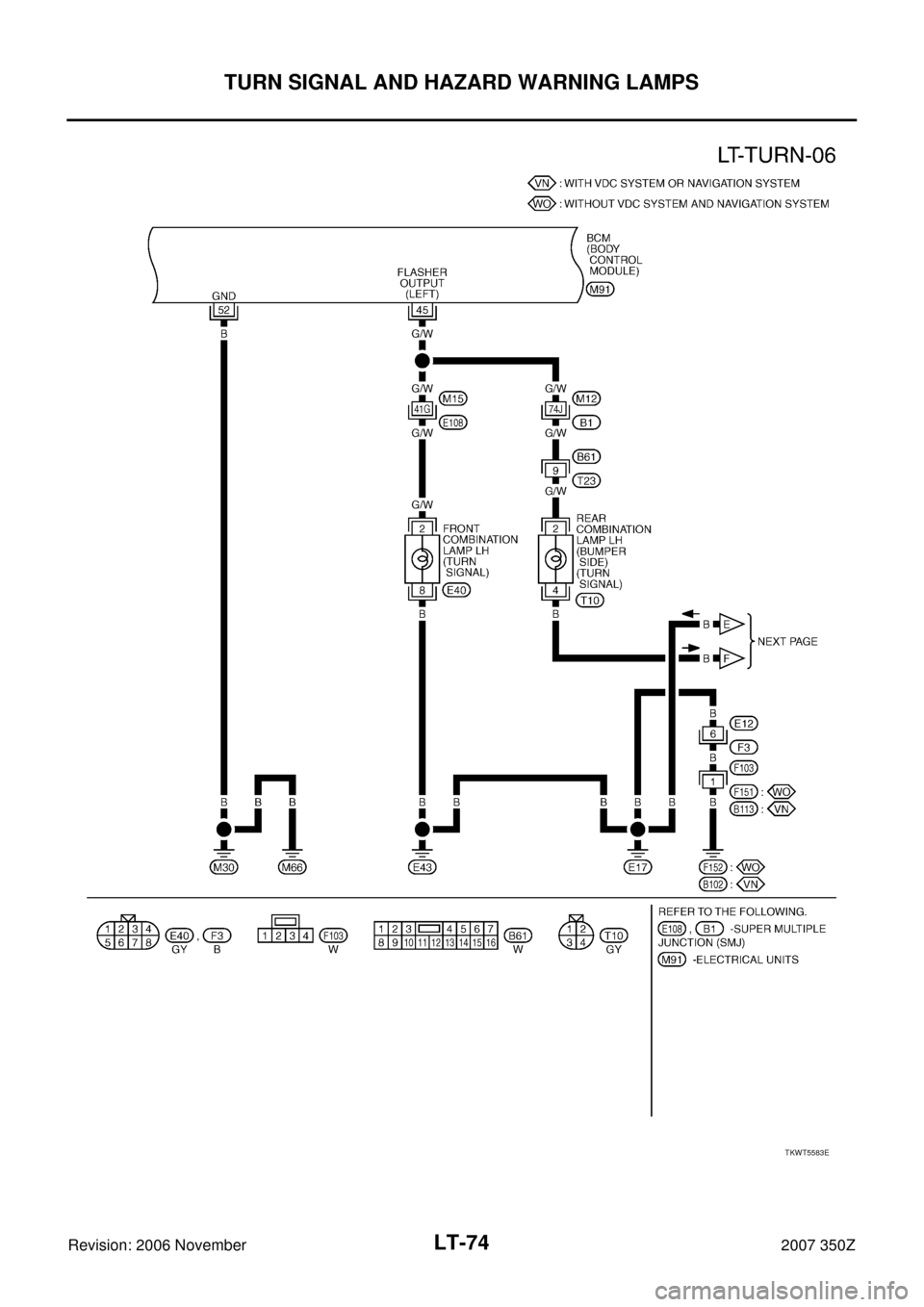

TKWT4032E
Page 72 of 172
LT-72
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 November2007 350Z

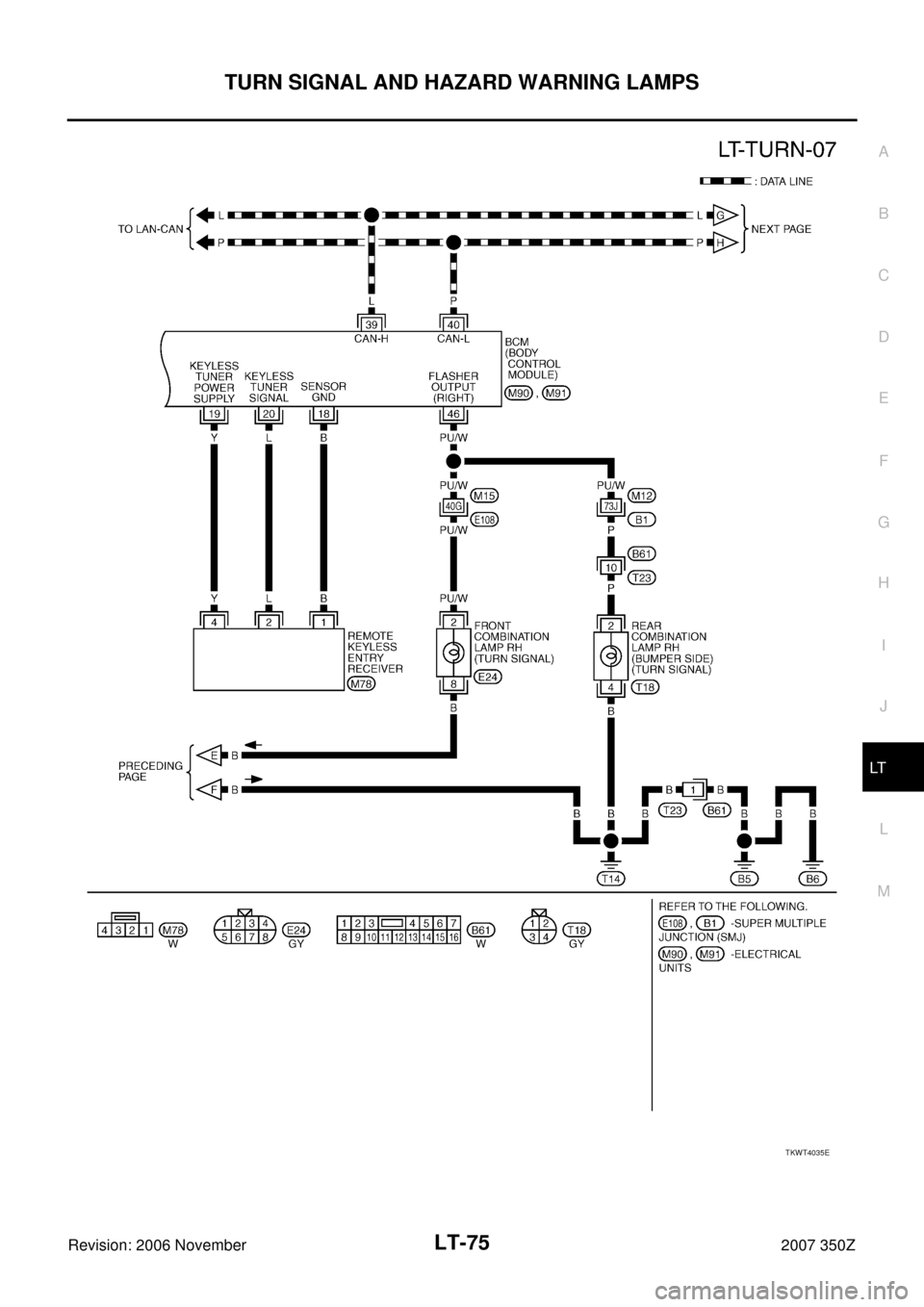

TKWT2281E
Page 73 of 172
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-73
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
ROADSTER MODELS
TKWT5753E
Page 74 of 172
LT-74
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 November2007 350Z

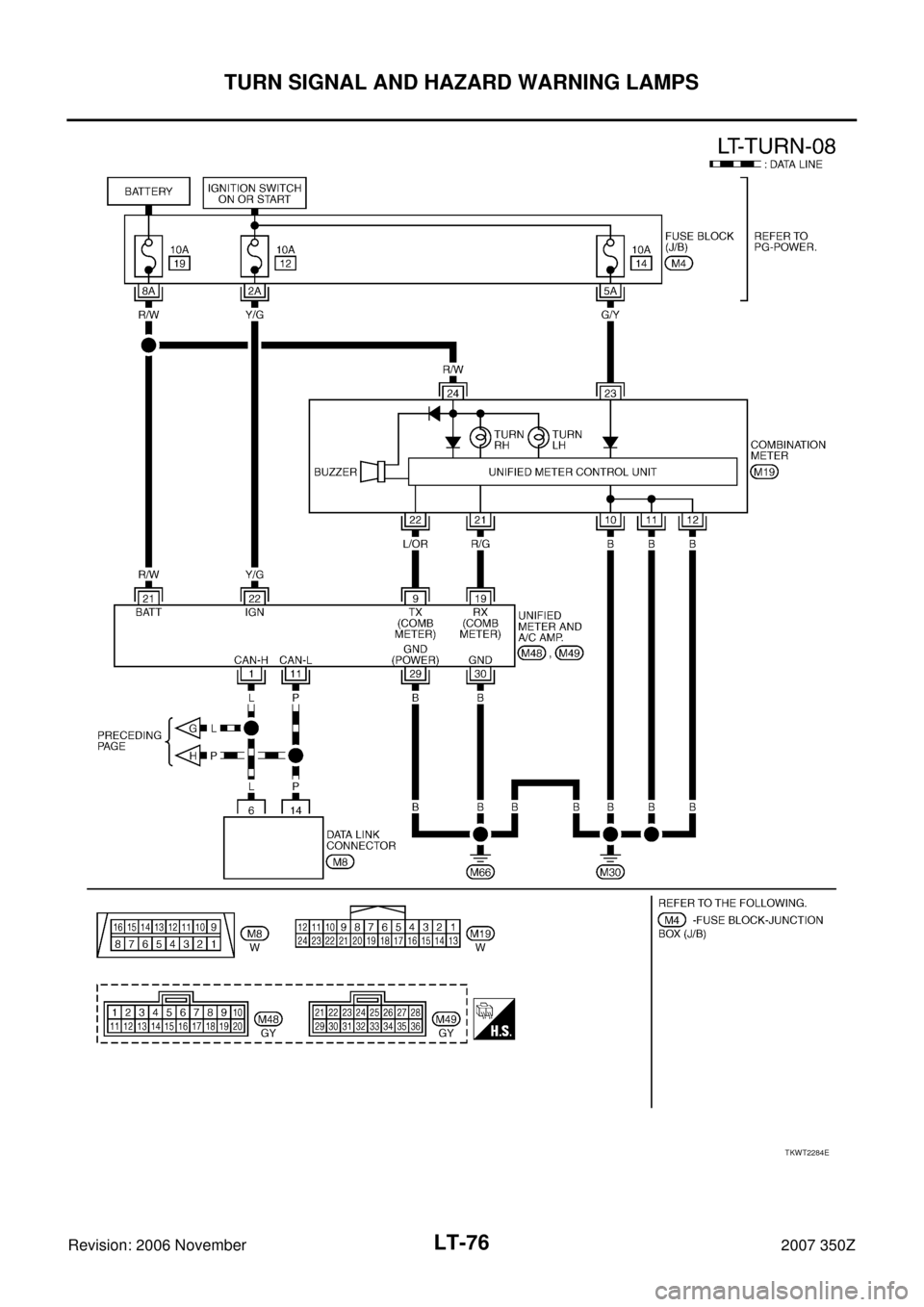

TKWT5583E
Page 75 of 172
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-75
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4035E
Page 76 of 172
LT-76
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2006 November2007 350Z
TKWT2284E
Page 77 of 172
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-77
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z

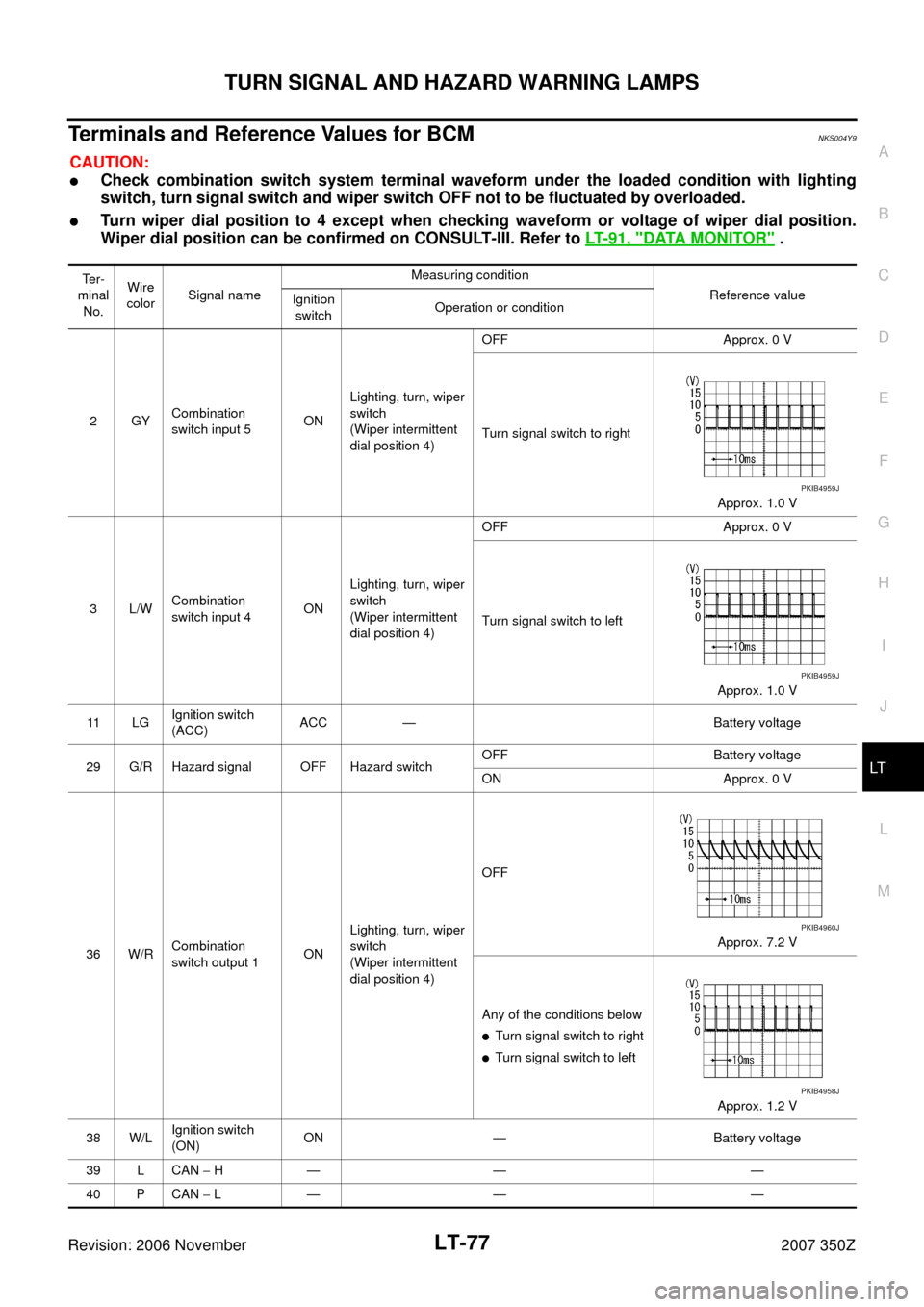

Terminals and Reference Values for BCMNKS004Y9
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-III. Refer to LT- 9 1 , "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2GYCombination
switch input 5ONLighting, turn, wiper
switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Turn signal switch to right
Approx. 1.0 V
3L/WCombination
switch input 4ONLighting, turn, wiper
switch
(Wiper intermittent
dial position 4)OFF Approx. 0 V
Turn signal switch to left
Approx. 1.0 V
11 L GIgnition switch
(ACC)ACC — Battery voltage
29 G/R Hazard signal OFF Hazard switch OFF Battery voltage
ON Approx. 0 V
36 W/RCombination
switch output 1ONLighting, turn, wiper
switch
(Wiper intermittent
dial position 4)OFF
Approx. 7.2 V
Any of the conditions below
Turn signal switch to right
Turn signal switch to left
Approx. 1.2 V
38 W/LIgnition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
PKIB4959J
PKIB4959J
PKIB4960J
PKIB4958J
