TROUBLE DIAGNOSIS
LAN-9
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 November2007 350Z

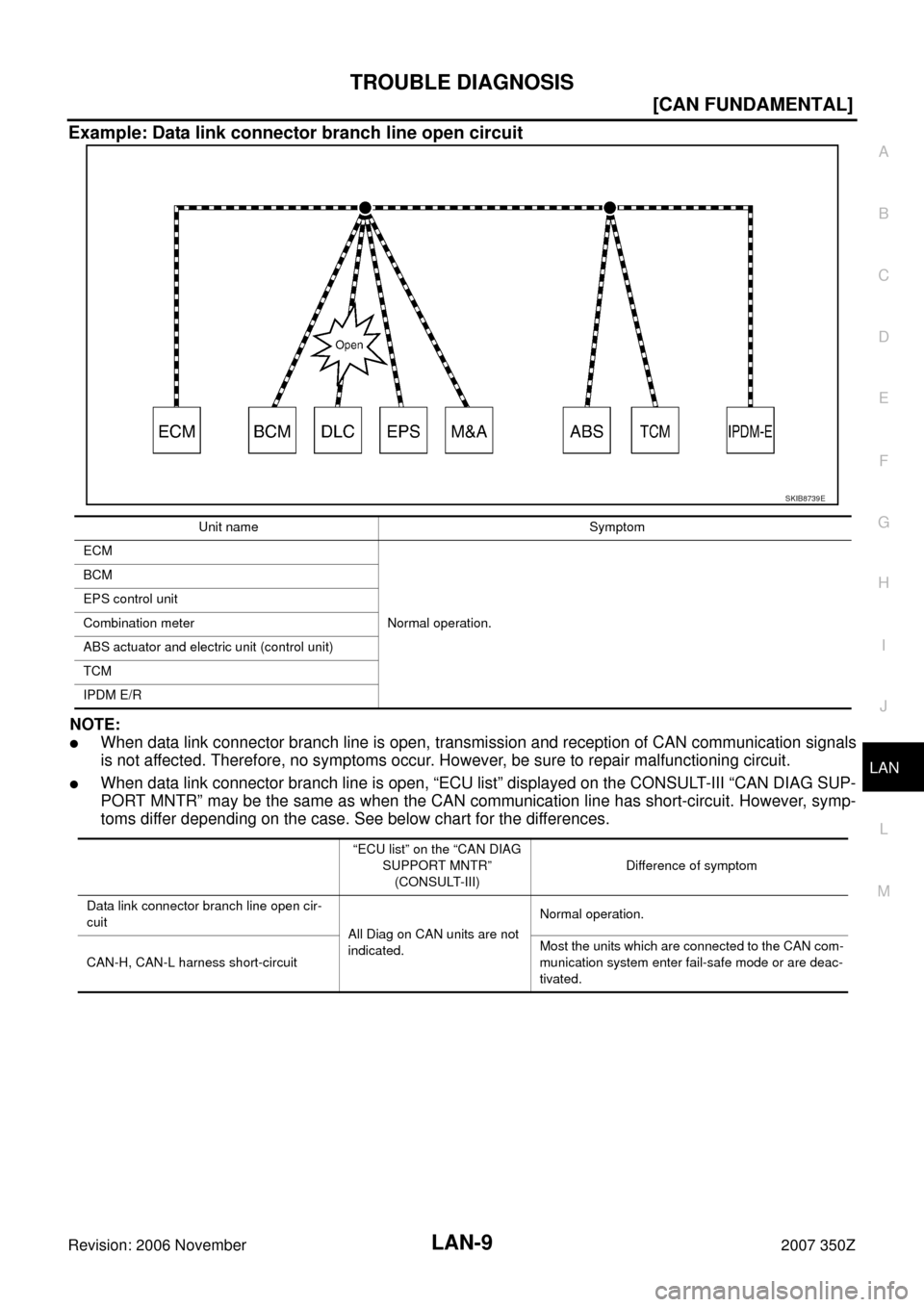

Example: Data link connector branch line open circuit
NOTE:

When data link connector branch line is open, transmission and reception of CAN communication signals
is not affected. Therefore, no symptoms occur. However, be sure to repair malfunctioning circuit.

When data link connector branch line is open, “ECU list” displayed on the CONSULT-III “CAN DIAG SUP-
PORT MNTR” may be the same as when the CAN communication line has short-circuit. However, symp-
toms differ depending on the case. See below chart for the differences.
SKIB8739E
Unit name Symptom
ECM
Normal operation. BCM
EPS control unit
Combination meter
ABS actuator and electric unit (control unit)
TCM
IPDM E/R
“ECU list” on the “CAN DIAG
SUPPORT MNTR”
(CONSULT-III)Difference of symptom
Data link connector branch line open cir-
cuit
All Diag on CAN units are not
indicated.Normal operation.
CAN-H, CAN-L harness short-circuitMost the units which are connected to the CAN com-
munication system enter fail-safe mode or are deac-
tivated.

LAN-14
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
MONITOR ITEM (ON-BOARD DIAGNOSIS)
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III is
not available.)
Example: Vehicle Display
ItemResult indi-
catedError counter Description
CAN_COMM
(Initial diagnosis)OK 0 Normal at present
NG 1 – 50Control unit error
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_1
(Transmission diagnosis)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
CAN_CIRC_2 – 9
(Reception diagnosis of each unit)OK 0 Normal at present
UNKWN 1 – 50Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)
Diagnosis not performed.
No control unit for receiving signals. (No applicable optional
parts)

TROUBLE DIAGNOSES WORK FLOW
LAN-23
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 November2007 350Z

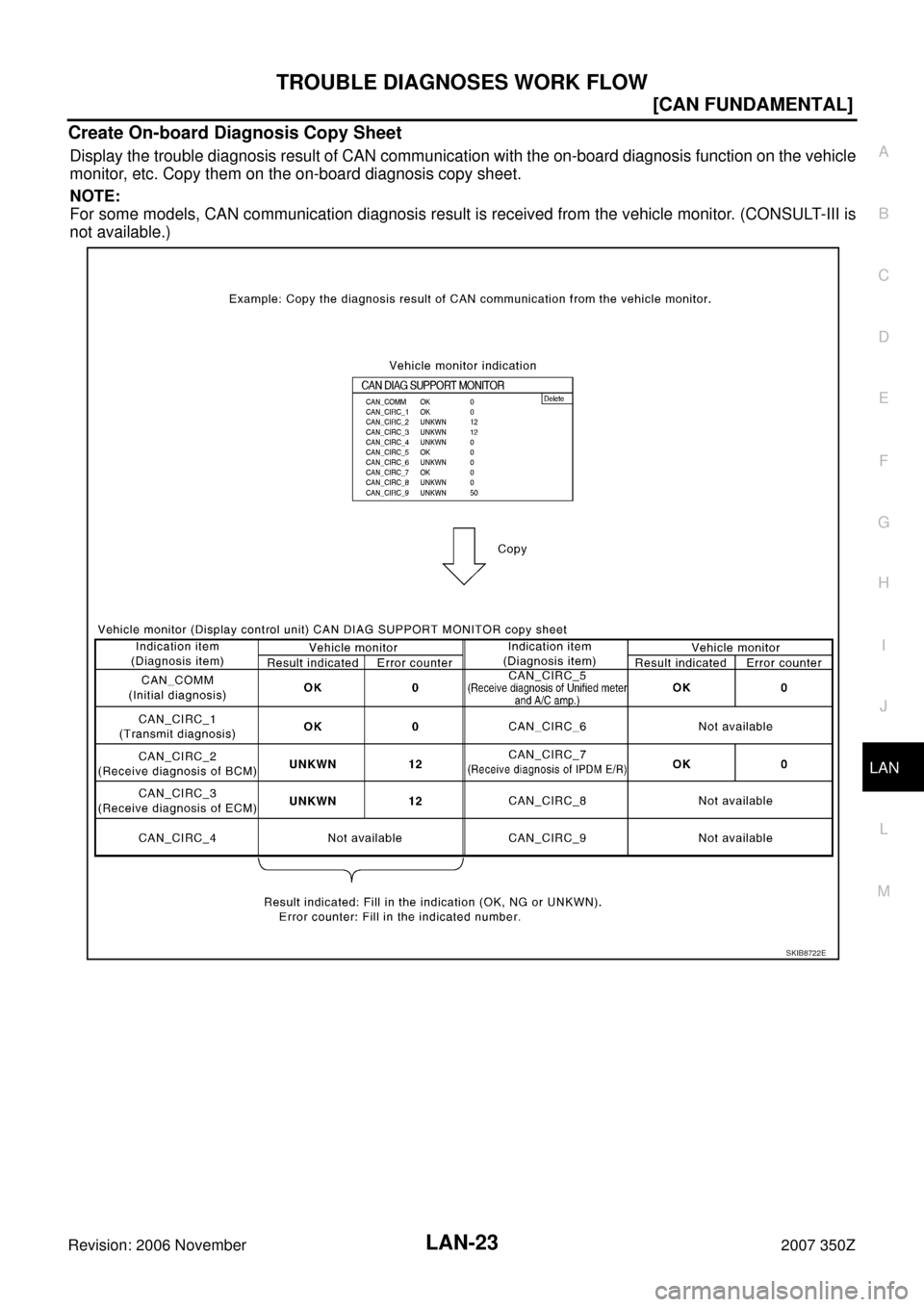

Create On-board Diagnosis Copy Sheet
Display the trouble diagnosis result of CAN communication with the on-board diagnosis function on the vehicle
monitor, etc. Copy them on the on-board diagnosis copy sheet.
NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor. (CONSULT-III is
not available.)
SKIB8722E

LAN-46
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 November2007 350Z
Unified Meter and A/C Amp.
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
ABS Actuator and Electric Unit (Control Unit)
Models with ABS
CAUTION:
Never replace the unit even when “NG” is indicated on the “INITIAL DIAG” at this stage. Follow the trouble diagnosis proce-
dures.
Models with TCS
CAUTION:
Never replace the unit even when “NG” is indicated on the “INITIAL DIAG” at this stage. Follow the trouble diagnosis proce-
dures. ITEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
M&ATRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
TCM Signal receiving status from the TCM
BCM/SEC Signal receiving status from the BCM
VDC/TCS/ABSWith VDC: Signal receiving status from the
VDC/TCS/ABS control unit
Without VDC: Signal receiving status from
the ABS actuator and electric unit (control
unit)
IPDM E/R
Not used even though indicated DISPLAY
I-KEY
EPS
AWD/4WD
e4WD
ICC
LANE KEEP
TIRE-P
ITEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT
ABSINITIAL DIAG Status of CAN controller
OKNG
Caution
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
ITEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT
ABSINITIAL DIAG Status of CAN controller
OKNG
Caution
TRANSMIT DIAG Signal transmission status
UNKWN ECM Signal receiving status from the ECM
TCM Signal receiving status from the TCM
