2007 NISSAN 350Z sensor

EC-660
DTC P2A00, P2A03 A/F SENSOR 1
Revision: 2006 November2007 350Z
DTC Confirmation ProcedureNBS000EH
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-III.
4. Clear the self-learning coefficient by touching “CLEAR”.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Start engine and keep the engine speed between 3,500 and 4,000 rpm for 1 minute under no load.
7. Let engine idle for 1 minute.
8. Keep engine speed between 2,500 and 3,000 rpm for 20 minutes.
9. Check 1st trip DTC.
10. If 1st trip DTC is detected, go to EC-665, "
Diagnostic Procedure" .
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Disconnect mass air flow sensor (bank 1) harness connector.
4. Start engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor (bank 1) harness connector.
6. Select Service $03 with GST and make sure that DTC P0102 is detected.
7. Select Service $04 with GST and erase the DTC P0102.
8. Start engine and keep the engine speed between 3,500 and 4,000 rpm for 1 minute under no load.
9. Let engine idle for 1 minute.
10. Keep engine speed between 2,500 and 3,000 rpm for 20 minutes.
11. Select Service $07 with GST.
If 1st trip DTC is detected, go to EC-665, "
Diagnostic Procedure" .
1. Mass air flow sensor (with intake air
temperature sensor) (bank 1)2. Mass air flow sensor (with intake air
temperature sensor) (bank 2)
PBIB3501E

DTC P2A00, P2A03 A/F SENSOR 1
EC-661
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

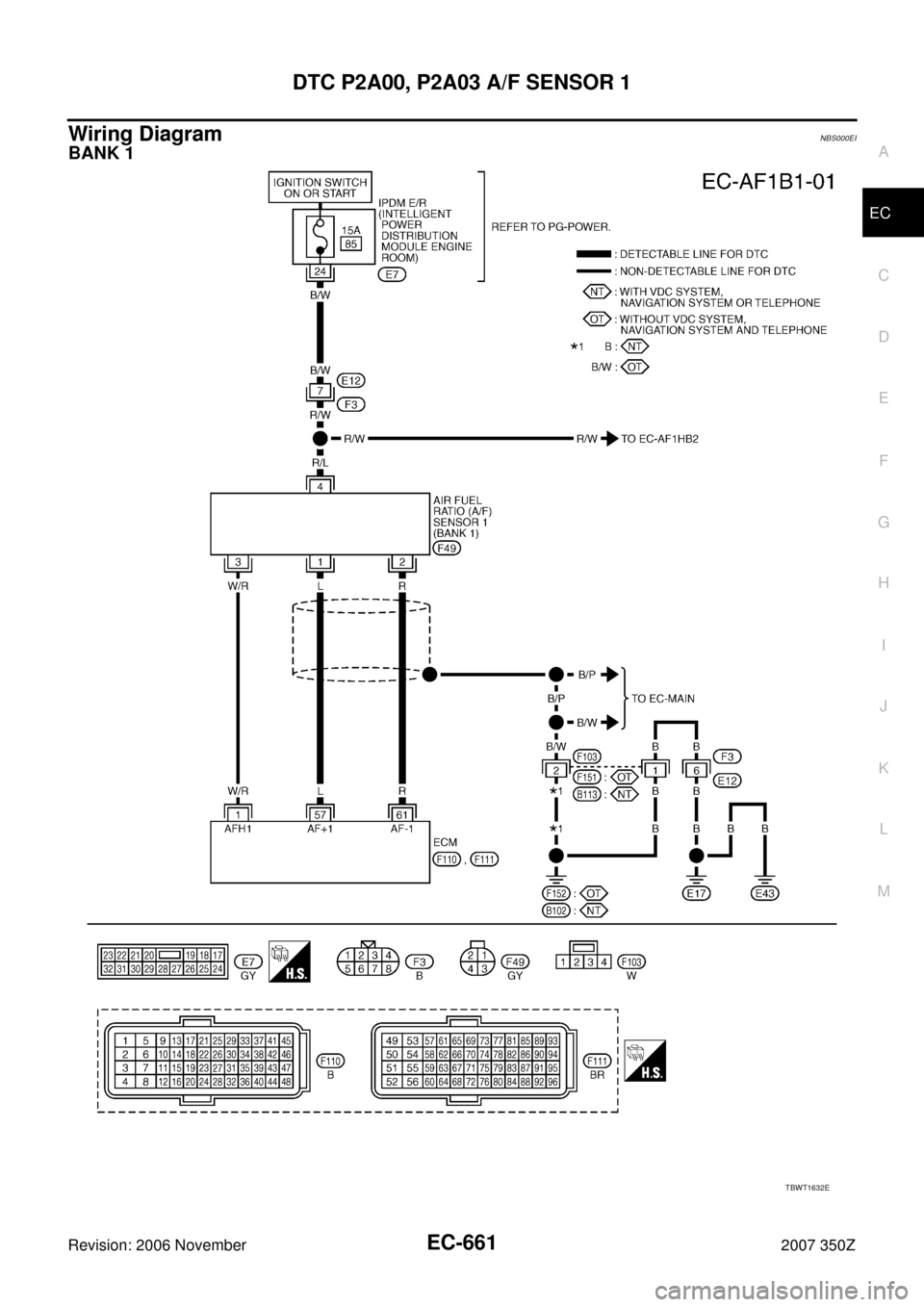

Wiring Diagram NBS000EI
BANK 1
TBWT1632E

EC-662
DTC P2A00, P2A03 A/F SENSOR 1
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1W/RA/F sensor 1 heater
(bank 1)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8V
57 L A/F sensor 1 (bank 1)[Ignition switch: ON]2.2V
61 R A/F sensor 1 (bank 1)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
PBIB3538E

DTC P2A00, P2A03 A/F SENSOR 1
EC-663
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z

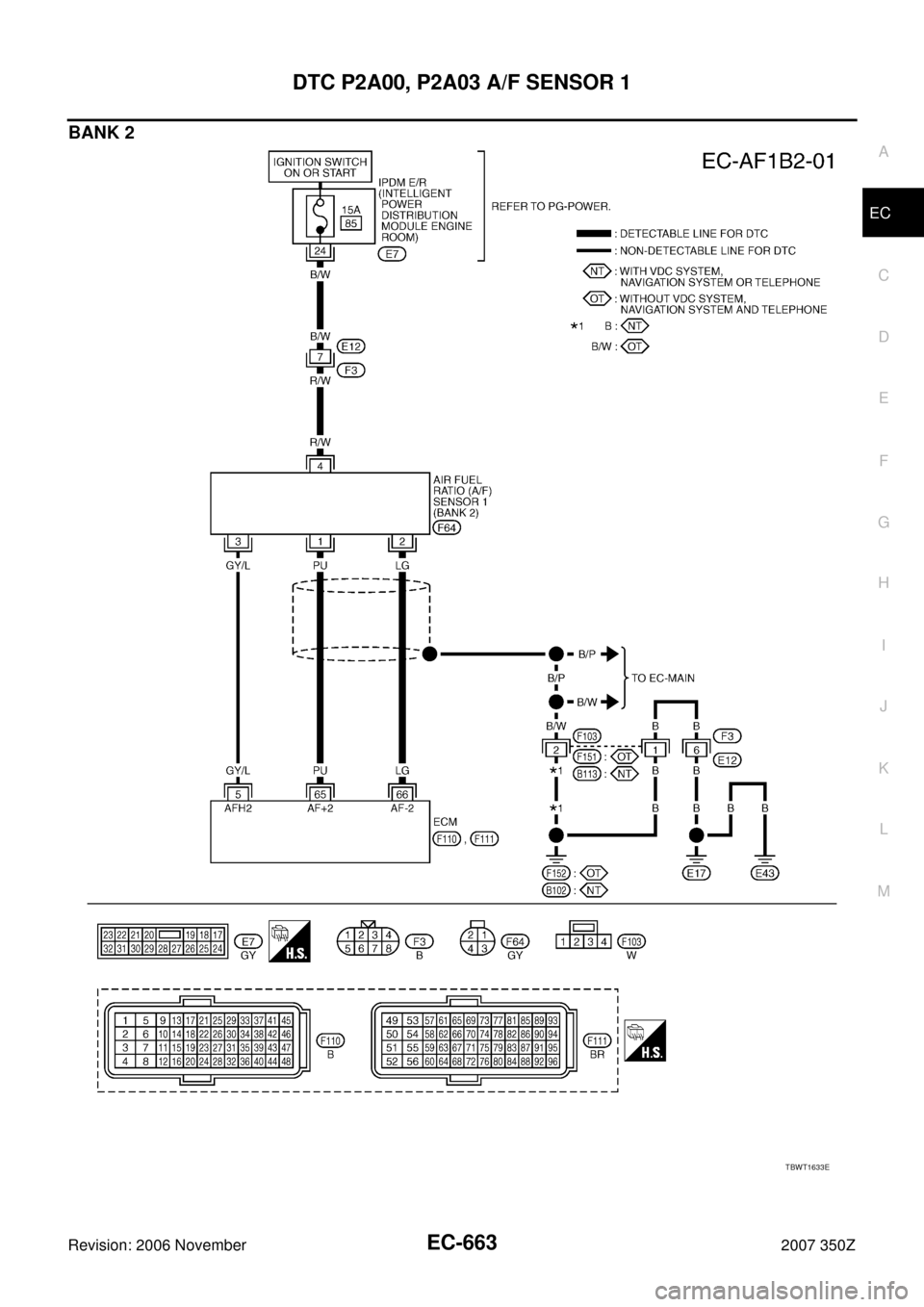

BANK 2
TBWT1633E

EC-664
DTC P2A00, P2A03 A/F SENSOR 1
Revision: 2006 November2007 350Z
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
5GY/LA/F sensor 1 heater
(bank 2)[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)2.9 - 8.8
65 PU A/F sensor 1 (bank 2)[Ignition switch: ON]2.2V
66 LG A/F sensor 1 (bank 2)[Ignition switch: ON]

Warm-up condition

Engine speed: 2,000 rpm1.8V
Output voltage varies with air
fuel ratio.
PBIB3538E

DTC P2A00, P2A03 A/F SENSOR 1
EC-665
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
Diagnostic ProcedureNBS001NX
1. CHECK GROUND CONNECTIONS
Models with VDC system, navigation system or telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
Models without VDC system, navigation system and telephone
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
1. Body ground E17 2. Body ground E43 3. Body ground B102
:Vehicle front
1. Body ground E17 2. Body ground E43 3. Body ground F152
(Passenger side view with dash side
finisher removed)
:Vehicle front
PBIB3560E
PBIB3561E

EC-666
DTC P2A00, P2A03 A/F SENSOR 1
Revision: 2006 November2007 350Z
2. RETIGHTEN AIR FUEL RATIO SENSOR 1
1. Loosen and retighten the air fuel ratio (A/F) sensor 1.
>> GO TO 3.
3. CHECK FOR INTAKE AIR LEAK
1. Start engine and run it at idle.
2. Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace.
1. A/F sensor 1 (bank1) 2. A/F sensor 1 (bank 2)
:Vehicle front
Tightening torque: 50 N-m (5.1 kg-m, 37 ft-lb)
PBIB3517E

DTC P2A00, P2A03 A/F SENSOR 1
EC-667
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 November2007 350Z
4. CLEAR THE SELF-LEARNING DATA
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.
3. Clear the self-learning control coefficient by touching “CLEAR”.
4. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor (bank 1) harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor (bank 1) harness connector.
6. Make sure DTC P0102 is displayed.
7. Erase the DTC memory. Refer to EC-61, "
HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFOR-
MATION" .
8. Make sure DTC P0000 is displayed.
9. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171, P0172, P0174 or P0175 detected?
Is it difficult to start engine?
Ye s o r N o
Yes >> Perform trouble diagnosis for DTC P0171, P0174 or P0172, P0175. Refer to EC-324, "DTC
P0171, P0174 FUEL INJECTION SYSTEM FUNCTION" or EC-334, "DTC P0172, P0175 FUEL
INJECTION SYSTEM FUNCTION" .
No >> GO TO 5.
1. Mass air flow sensor (with intake air
temperature sensor) (bank 1)2. Mass air flow sensor (with intake air
temperature sensor) (bank 2)
PBIB3501E
