BR-8
BRAKE PEDAL
Revision: 2006 November2007 350Z

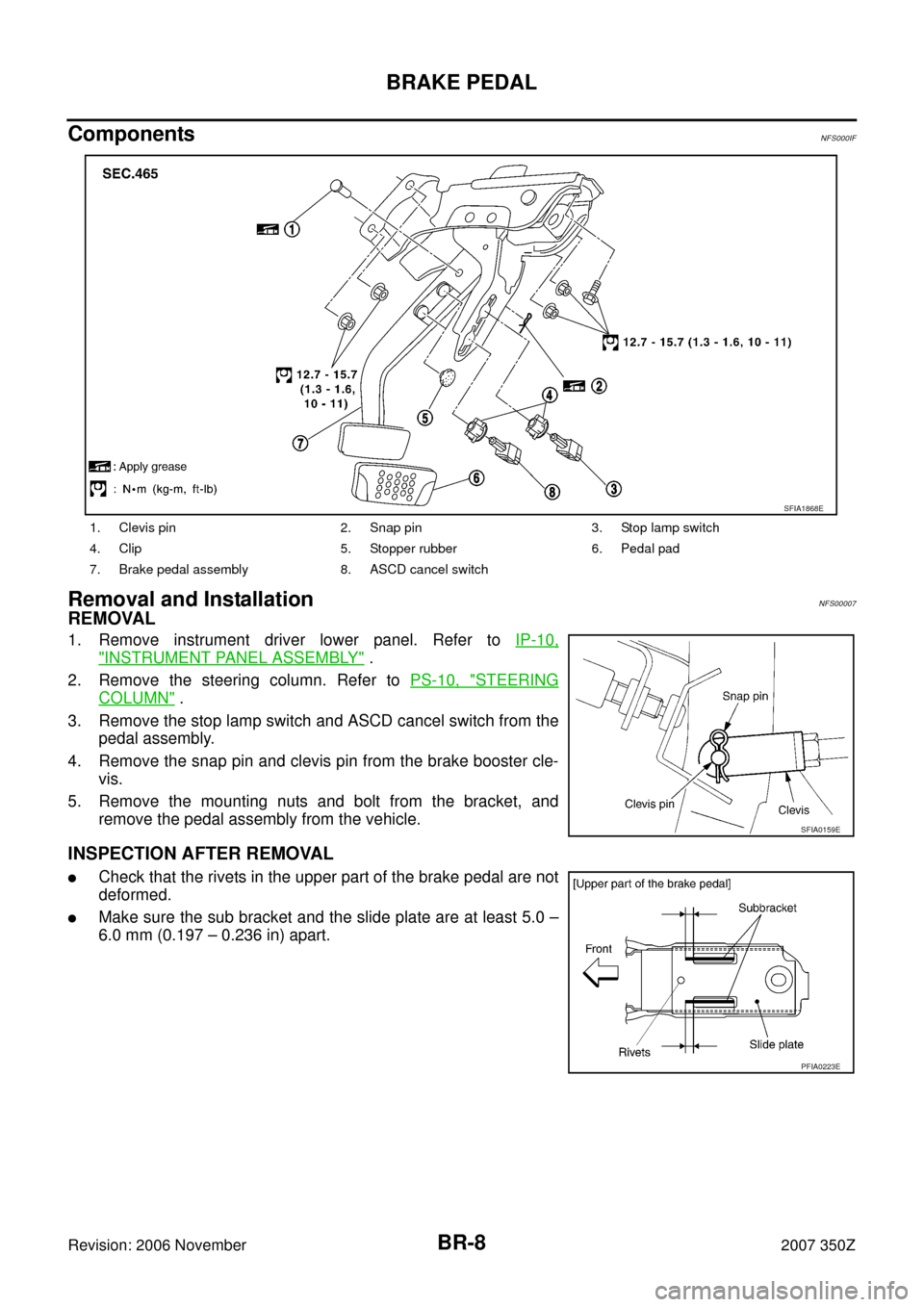

ComponentsNFS000IF
Removal and InstallationNFS00007
REMOVAL
1. Remove instrument driver lower panel. Refer to IP-10,
"INSTRUMENT PANEL ASSEMBLY" .
2. Remove the steering column. Refer to PS-10, "
STEERING
COLUMN" .
3. Remove the stop lamp switch and ASCD cancel switch from the
pedal assembly.
4. Remove the snap pin and clevis pin from the brake booster cle-
vis.
5. Remove the mounting nuts and bolt from the bracket, and
remove the pedal assembly from the vehicle.
INSPECTION AFTER REMOVAL
Check that the rivets in the upper part of the brake pedal are not
deformed.
Make sure the sub bracket and the slide plate are at least 5.0 –
6.0 mm (0.197 – 0.236 in) apart.
1. Clevis pin 2. Snap pin 3. Stop lamp switch
4. Clip 5. Stopper rubber 6. Pedal pad
7. Brake pedal assembly 8. ASCD cancel switch
SFIA1868E
SFIA0159E
PFIA0223E
