2007 NISSAN 350Z display

TROUBLE DIAGNOSIS FOR SYSTEM
BRC-25
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSIS FOR SYSTEMPFP:00000
Wheel Sensor SystemNFS00026
After using the CONSULT-III SELF-DIAG RESULTS to determine the location of the malfunctioning wheel sen-
sor, check all areas to determine the component to be replaced.
CAUTION:

Do not measure the resistance value and also voltage between the sensor terminal with tester etc.,
because the sensor is an active sensor.

Do not expand the terminal of the connector with a/the tester terminal stick, when it does the
inspection with the tester.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK TIRE
Check air pressure, wear, and size.
Are the air pressure, wear, and size within the standard values?
YES >> GO TO 3.
NO >> Adjust air pressure, or replace tire.
3. CHECK SENSOR AND SENSOR ROTOR

Check the condition of the sensor mount (for looseness, etc.).

Check the surface of the front sensor rotor rubber for damage.

Check the rear sensor rotor for damage.
OK or NG
OK >> GO TO 4.
NG >> Repair wheel sensor mount or replace the sensor rotor.
4. CHECK CONNECTOR
1. Disconnect ABS control unit connector and the malfunctioning wheel sensor connector E42 (FR - LH) or
E27 (FR - RH) or T5 (RR - RH, LH). Check the terminal to see if it is deformed, disconnected, loose, etc.,
and replace it if any non-standard condition is found.
2. Reconnect connector, drive at a speed of approximately 30 km/h (19 MPH) or more for approximately 1
minute, and then perform self-diagnosis.
Is the result of self-diagnosis normal?
YES >> The connector terminal contact is loose, damaged, open or shorted.
NO >> GO TO 5.
Self-diagnosis results
FR RH SENSOR -1, -2
FR LH SENSOR -1, -2
RR RH SENSOR -1, -2
RR LH SENSOR -1, -2

TROUBLE DIAGNOSIS FOR SYSTEM
BRC-27
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
ABS Actuator and Electric Unit (Control Unit)NFS00028
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> Replace the ABS actuator and electric unit (control unit). Re-conduct ABS actuator and electric
unit (control unit) self-diagnosis.
NO >> INSPECTION END
ABS Actuator and Electric Unit (Control Unit) Power and Ground SystemsNFS00029
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit (control unit) connector and check terminal for deformation, dis-
connection, looseness, and so on, If there is an error, repair or replace the terminal.
2. Securely reconnect the connector and then perform self-diagnosis.
Is the result of self-diagnosis normal?
YES >> The connector terminal contact is loose, damaged, open or shorted.
NO >> GO TO 3.
Self-diagnosis results
CONTROLLER FAILURE
Self-diagnosis results
BATTERY VOLTAGE [ABNORMAL]

TROUBLE DIAGNOSIS FOR SYSTEM
BRC-29
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
ABS Actuator Relay or ABS Motor Relay Power SystemNFS0002A
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display item?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit (control unit) connector E51, check terminal to see if it is
deformed, disconnected, loose, etc., and if there is an error, repair or replace the terminal.
2. Securely reconnect the connector and then perform self-diagnosis.
Is the result of self-diagnosis normal?
YES >> The connector terminal contact is loose, damaged, open or shorted.
NO >> GO TO 3.
3. CHECK ABS ACTUATOR RELAY OR ABS MOTOR RELAY POWER CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connec-
tor E51.
2. For ABS actuator relay, measure the voltage between the con-
nector terminal 1 and ground. For ABS motor relay, measure the
voltage between connector terminal 15 and ground.
OK or NG
OK >> GO TO 4
NG >> Error in the circuit between battery and ABS actuator and electric unit (control unit). Repair the cir-
cuit.
4. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) connector and ground.
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Open or short in harness. Repair or replace the harness.
Self-diagnosis results
IN ABS SOL
OUT ABS SOL
MAIN RELAY
ABS actuator and electric unit (control unit) Ground Voltage
1, 15 —Battery voltage
(Approx. 12 V)
SFIA1882E
ABS actuator and electric unit (control unit) Ground Continuity
16, 30 — Yes
SFIA1883E

BRC-30
[ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 November2007 350Z
Stop Lamp Switch SystemNFS0002B
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is the above displayed in the self-diagnosis display item?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect ABS actuator and electric unit (control unit) connector E51 and stop lamp switch connector
E112, check the terminal for deformation, disconnection, looseness, and so on. If there is an error, repair
or replace the terminal.
2. Securely reconnect the connector and conduct self-diagnosis.
3. Start engine.
4. Repeat Pumping brake pedal carefully several times, then perform self-diagnosis again.
Is the result of self-diagnosis normal?
YES >> The connector terminal contact is loose, damaged, open or shorted.
NO >> GO TO 3.
3. CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF and disconnect stop lamp switch con-
nector E111.
2. Disconnect stop lamp switch connector
3. Check continuity between stop lamp switch connector terminal 3
and 4.
OK or NG
OK >> GO TO 4.
NG >> Replace stop lamp switch. Refer to BR-8, "
Components" .
Self-diagnosis results
STOP LAMP SW
Stop lamp switch Condition Continuity
3 – 4Release stop lamp switch
(When brake pedal is depressed.)Ye s
Push stop lamp switch
(When brake pedal is released.)No
SFIA3390E

TROUBLE DIAGNOSIS FOR SYSTEM
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z

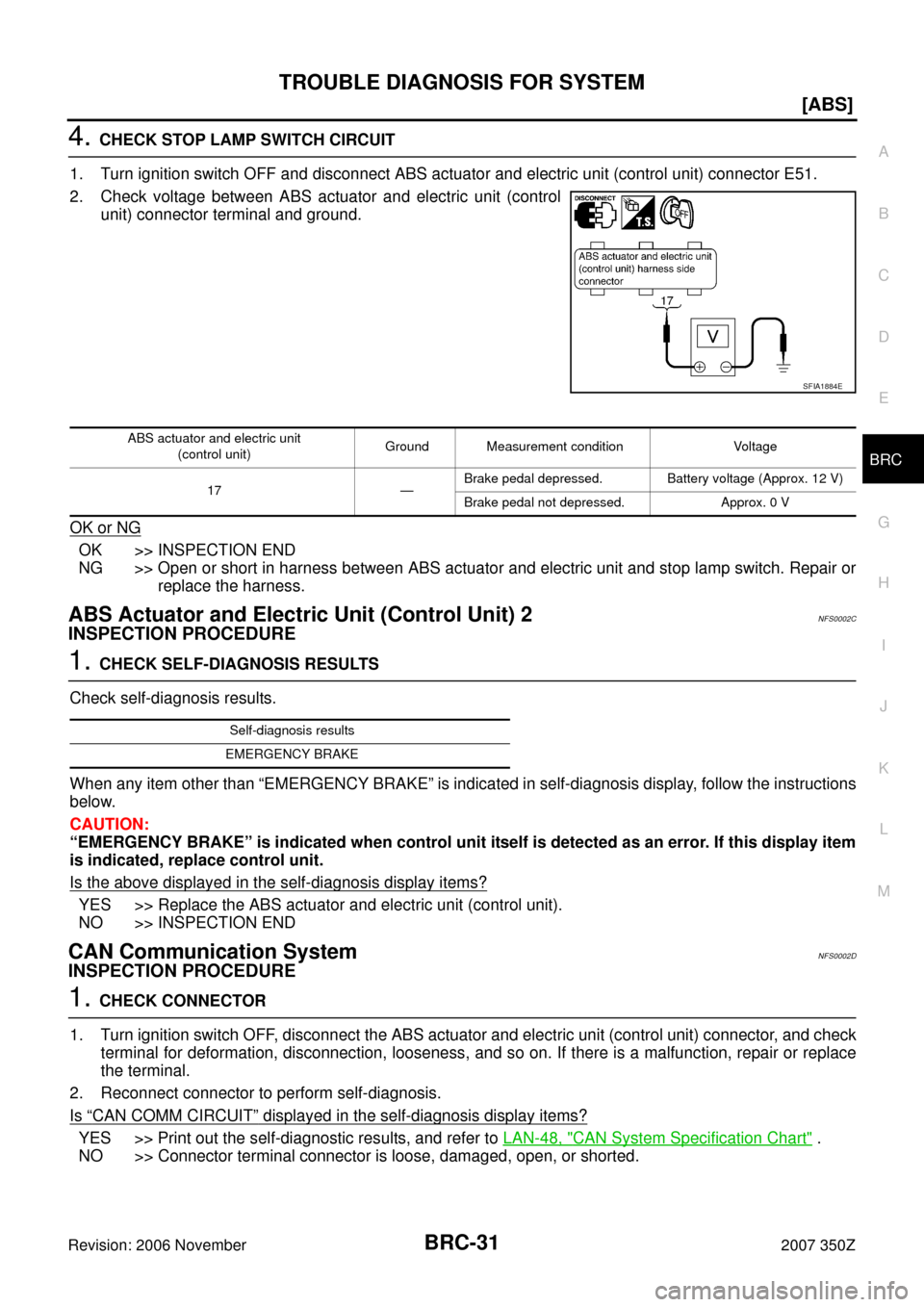

4. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E51.
2. Check voltage between ABS actuator and electric unit (control
unit) connector terminal and ground.
OK or NG
OK >> INSPECTION END
NG >> Open or short in harness between ABS actuator and electric unit and stop lamp switch. Repair or
replace the harness.
ABS Actuator and Electric Unit (Control Unit) 2NFS0002C
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
When any item other than “EMERGENCY BRAKE” is indicated in self-diagnosis display, follow the instructions
below.
CAUTION:
“EMERGENCY BRAKE” is indicated when control unit itself is detected as an error. If this display item
is indicated, replace control unit.
Is the above displayed in the self-diagnosis display items?
YES >> Replace the ABS actuator and electric unit (control unit).
NO >> INSPECTION END
CAN Communication SystemNFS0002D
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF, disconnect the ABS actuator and electric unit (control unit) connector, and check
terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or replace
the terminal.
2. Reconnect connector to perform self-diagnosis.
Is
“CAN COMM CIRCUIT” displayed in the self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer to LAN-48, "CAN System Specification Chart" .
NO >> Connector terminal connector is loose, damaged, open, or shorted.
SFIA1884E
ABS actuator and electric unit
(control unit)Ground Measurement condition Voltage
17 —Brake pedal depressed. Battery voltage (Approx. 12 V)
Brake pedal not depressed. Approx. 0 V
Self-diagnosis results
EMERGENCY BRAKE

BRC-32
[ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 November2007 350Z
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyNFS0002E
1. CHECK START
Check brake force distribution.
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
2. CHECK FRONT AND REAR AXLE
Make sure there is no excessive play in the front and rear axles.
OK or NG
OK >> GO TO 3.
NG >> Repair.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Wheel Sensor Inspection

Wheel sensor mount and damage inspection

Sensor rotor mount and damage inspection

Wheel sensor connector connection inspection

Wheel sensor harness inspection
OK or NG
OK >> GO TO 4.
NG >>

Replace wheel sensor or sensor rotor.

Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 1 second after the ignition switch is turned on or when driv-
ing.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-19, "
OPERATION PROCEDURE" .
Unexpected Pedal ReactionNFS0002F
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke.
Is the stroke too big?
YES >>
Bleed air from the brake piping.

Check brake pedal, brake booster, and master cylinder mount for play, looseness, and brake
system for fluid leaks, etc. If any malfunctions are found, make repairs.
NO >> GO TO 2.
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector, and make sure the braking force is suffi-
cient when the ABS is not operating. After the inspection, reconnect the connector.
OK or NG
OK >> GO TO 3. CHECK WHEEL SENSOR AND SENSOR ROTOR in BRC-32, "Excessive ABS Func-
tion Operation Frequency" .
NG >> Check brake system.

TROUBLE DIAGNOSIS FOR SYMPTOMS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
The Braking Distance is LongNFS0002G
CAUTION:
On slippery road surfaces, the stopping distance might be longer with the ABS operating than when
the ABS is not operating.
1. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. In this condition, check
stopping distance. After inspection, connect connector.
OK or NG
OK >> GO TO 3. CHECK WHEEL SENSOR AND SENSOR ROTOR in BRC-32, "Excessive ABS Func-
tion Operation Frequency" .
NG >>

Bleed air from the brake piping.

Check brake system.
The ABS Function Does Not OperateNFS0002H
CAUTION:
The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 1 second after the ignition switch is turned on or when driv-
ing.
OK or NG
OK >> GO TO 3. CHECK WHEEL SENSOR AND SENSOR ROTOR in BRC-32, "Excessive ABS Func-
tion Operation Frequency" .
NG >> Perform self-diagnosis. Refer to BRC-19, "
OPERATION PROCEDURE" .
Pedal Vibration or ABS Operation Sound OccursNFS0002I
CAUTION:
Under the following conditions, when brake pedal is lightly depressed (just place a foot on it), ABS is
activated and vibration is felt. However, this is normal.

When shifting gears

When driving on slippery road

During cornering at high speed

When passing over bumps or grooves [50 mm (1.97 in) or more]

When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
1. SYMPTOM CHECK 1
Check if pedal vibration or operation sound occurs when the engine is started.
Does the symptom occur?
YES >> GO TO 2.
NO >> Perform self-diagnosis. Refer to BRC-19, "
OPERATION PROCEDURE" .
2. SYMPTOM CHECK 2
Check symptom when electrical component (headlamps, etc.) switches are operated.
Does the symptom occur when the electrical component (head lamp, etc.) switches are operated?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to the control unit (or its wir-
ing), and if there is, move it farther away.
NO >> GO TO 3. CHECK WHEEL SENSOR AND SENSOR ROTOR in BRC-32, "
Excessive ABS Func-
tion Operation Frequency" .

TROUBLE DIAGNOSIS
BRC-51
[TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 November2007 350Z
Control Unit Input/Output Signal StandardNFS00034
REFERENCE VALUE FROM CONSULT-III
CAUTION:
The display shows the control unit calculation data, so a normal value might be displayed even in the
event the output circuit (harness) is open or short - circuited.
Monitor item Display ContentData monitor
ConditionReference values for normal
operation
WHEEL SENSORWheel speed calculated using
signals from all four wheel sen-
sorsVehicle stopped 0 km/h (0 MPH)
While driving (Note 1)Nearly matches the speed-
ometer display (±10% or
less)
IN ABS S/V
OUT ABS S/VOperation status of all solenoidsWhen the actuator solenoid operates or
during a fail-safeON
When the actuator relay operates and
the actuator solenoid does not operateOFF
STOP LAMP SW Brake pedal operationBrake pedal depressed ON
Brake pedal not depressed OFF
MOTOR RELAYMotor and motor relay operation
statusWhen the motor relay and motor are
operatingON
When the motor relay and motor are not
operatingOFF
ACTUATOR RLY Actuator relay operation statusWhen the actuator relay is operating OFF
When the actuator relay is not operat-
ingON
EBD WARN LAMPBrake warning lamp on condition
(Note 2)Brake warning lamp ON ON
Brake warning lamp OFF OFF
ABS WARN LAMPABS warning lamp on condition
(Note 3)ABS warning lamp ON ON
ABS warning lamp OFF OFF
OFF LAMPTCS OFF indicator lamp on con-
dition (Note 4)TCS OFF indicator lamp ON ON
TCS OFF indicator lamp OFF OFF
SLIP LAMPSLIP indicator lamp on condition
(Note 5)SLIP indicator lamp ON ON
SLIP indicator lamp OFF OFF
OFF SW TCS switch ON-OFF statusTCS OFF switch ON
(TCS OFF indicator lamp ON)ON
TCS OFF switch OFF
(TCS OFF indicator lamp OFF)OFF
BATTERY VOLTBattery voltage supplied to TCS/
ABS control unitIgnition switch ON 10 - 16 V
GEARDetermined gear shift position
from the A/T PNP switch signalDriving1 - 5

Differs depending on the
transmission status.
(M/T vehicles are always left
in 1.)
ENGINE RPM Engine runningWith engine stopped 0 rpm
With engine runningAlmost in accordance with
tachometer display
N POSITION SIGNALDetermined gear shift position
from the A/T PNP switch signal
(Note 5)N position ON
Other than N position OFF
