AT-276
REPAIR FOR COMPONENT PARTS
Revision: 2006 November2007 350Z
Front Carrier, Input Clutch, Rear Internal GearNCS0009E

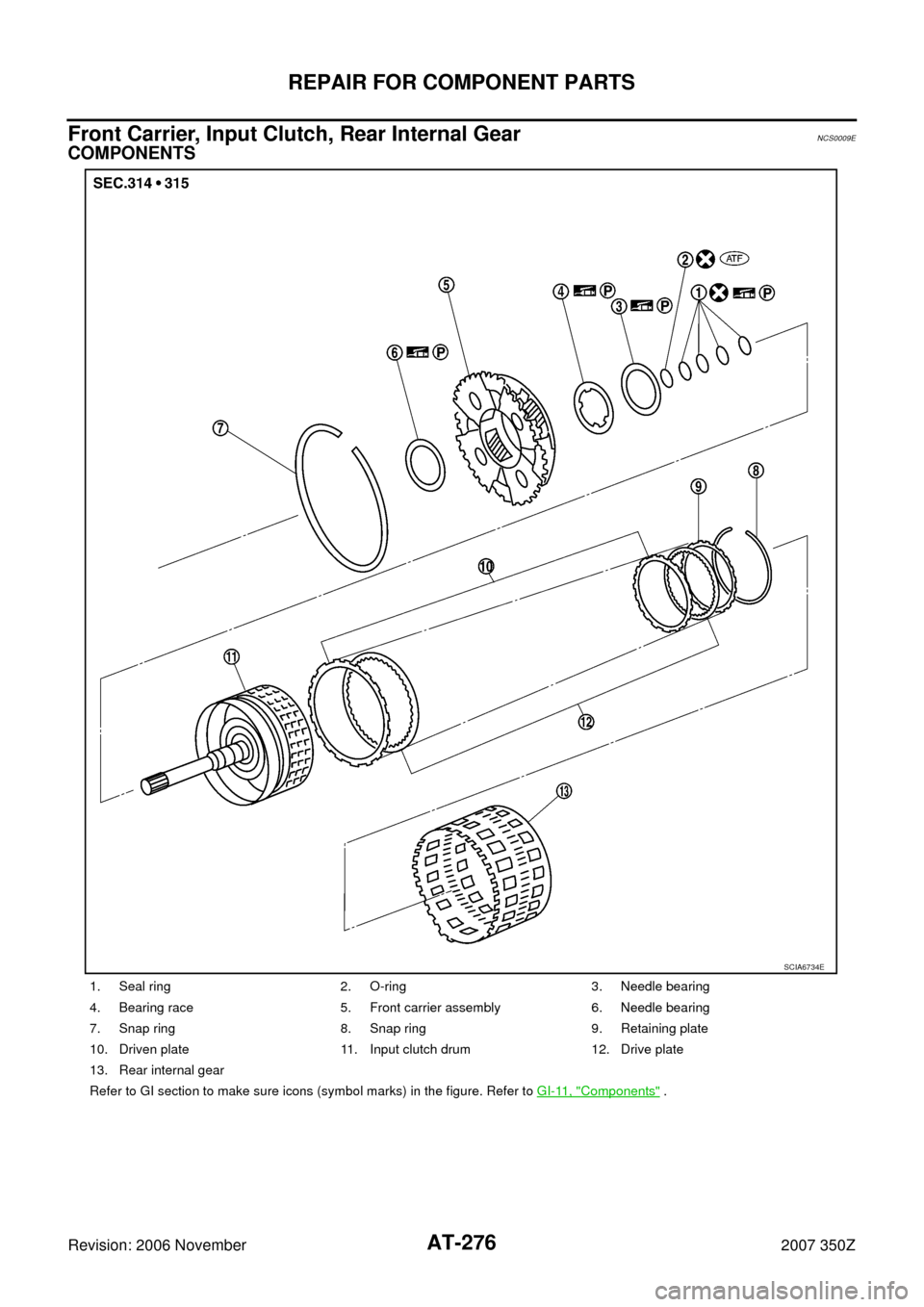

COMPONENTS
1. Seal ring 2. O-ring 3. Needle bearing
4. Bearing race 5. Front carrier assembly 6. Needle bearing
7. Snap ring 8. Snap ring 9. Retaining plate
10. Driven plate 11. Input clutch drum 12. Drive plate
13. Rear internal gear
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
SCIA6734E
