79 Safety and Security
Occupant safety
Enhanced seat belt reminder system
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your pas-
sengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened


and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.
If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
The seat belt telltale< will only go out
if both the driver’s and the front passen-
ger’s seat belt (with the front passenger
seat occupied) are fastened, or the vehicle
is standing still and a front door is opened.
For more information, see “Practical hints”
(
page 421).


Never use a seat belt for more than one
person at time. Do not fasten a seat belt
around a person and another person or
other objects.


Belts should not be worn twisted. In a
crash, you would not have the full width
of the belt to distribute impact forces.
The twisted belt against your body could
cause injuries.


Pregnant women should also use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.


Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.


When using a seat belt to secure infant
or toddler restraints or children in
booster seats, always follow the child
seat manufacturer’s instructions.

344 OperationDriving instructionsChecking weights of vehicle and trailer

To assure that the tow vehicle and trail-
er are in compliance with the maximum
permissible weight limits have the load-
ed rig (tow vehicle including driver, pas-
sengers and cargo, trailer fully loaded)
weighed on a commercial scale.


Check the vehicle’s front and rear
Gross Axle Weight (GAW), the Gross
Trailer Weight (GTW) and Tongue
Weight (TW).
The values as measures must not
exceed the weight limits listed under
“Vehicle and trailer weight and ratings”
(page 343).Attaching a trailerObserve maximum permitted trailer
dimensions (width and length).
Most states and all Canadian provinces
require


safety chains between your tow vehicle
and the trailer.
The chains should be criss-crossed
under the trailer tongue. They must be
attached to the hitch receiver, and not
to the vehicle’s bumper or axle.
Make sure to leave enough slack in the
chains to permit turning corners.


a separate brake system at various
trailer weights.


a break-away switch on trailers with a
separate brake system. Check with
your local state laws for specific
requirements.
The switch activates the trailer brakes
in the possible event that the trailer
might separate from the tow vehicle.
Warning!
G
While you are coupling or decoupling a trail-
er, make sure that you do not

lock or unlock


open or close
a vehicle door or the tailgate.
The vehicle’s level could change and you
could endanger yourself and/or others as a
result.
Make sure that you do not operate the ADS
button* (
page 269) or the vehicle level
control system* (
page 270) when cou-
pling/decoupling the trailer.

385 Operation
Tires and wheels
Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 392)
2DOT, Tire Identification Number (TIN)
(page 389)
3Maximum tire load (
page 391)
4Maximum tire inflation pressure
(
page 391)
5Manufacturer
6Tire ply material (
page 394)
7Tire size designation, load and speed
rating (
page 385)
8Load identification (
page 389)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 536).
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

386 OperationTires and wheelsGeneral:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only.Tire width
The tire width1 (
page 385) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (page 385) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 385) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means diag-
onal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 387).Rim diameter
The rim diameter4 (
page 385) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (page 385) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1 356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 391) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.

392 OperationTires and wheelsAlways follow the recommended tire
inflation pressure (
page 374) for proper
tire inflation.Uniform Tire Quality Grading Standards
(U.S. vehicles)
Tire manufacturers are required to grade
tires based on three performance factors:
treadwear, traction and
temperature resistance.
1Treadwear
2Traction
3Temperature resistanceQuality grades can be found, where appli-
cable, on the tire sidewall between tread
shoulder and maximum section width. For
example:
All passenger car tires must conform to
federal safety requirements in addition to
these grades.
Warning!
G
Never exceed the max. tire inflation
pressure. Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride com-
fort, wear unevenly, increase stopping dis-
tance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road de-
bris, potholes etc.
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
Treadwear
Traction
Temperature
200
AA
A

394 OperationTires and wheels
Tire ply material
1Plies in sidewall
2Plies under tread
This marking tells you about the type of
cord and number of plies in the sidewall
and under the tread.
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.
Warning!
G
The temperature grade for this tire is estab-
lished for a tire that is properly inflated and
not overloaded. Excessive speed, underin-
flation, or excessive loading, either sepa-
rately or in combination, can cause
excessive heat build-up and possible tire
failure.
i
For illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

407 Operation
Vehicle care
Automatic car wash
You can have your car washed in an auto-
matic car wash from the start. Automatic
car washes without brushes are prefera-
ble.
To protect the filter system, switch the
climate control (
page 208) or the au-
tomatic climate control (
page 222)
to air recirculation mode.
If the vehicle is very dirty, prewash it
before running it through the automatic
car wash.Ornamental moldings
For regular cleaning and care of ornamen-
tal moldings, use a damp cloth.
!
Do not clean your vehicle in an automatic
touchless car wash which use caustic spray.
Otherwise the caustic spray will damage the
paint or ornamental moldings.
!
If you want the gear position to remain inN
(for example when the vehicle is pulled through
a car wash)


do not remove the SmartKey from the starter
switch
or, when using KEYLESS-GO*


do not turn off the engine using the
KEYLESS-GO start/stop button* and open
the driver’s door.
Otherwise, the transmission will shift toP and
lock the wheels, preventing the vehicle from be-
ing pulled through a car wash.
!
Make sure that the windshield wiper switch
is set to0 (
page 61). Otherwise, e.g. the rain
sensor could activate and cause the wipers to
move unintentionally. This may lead to vehicle
damage.
Due to the width of the vehicle, fold in exterior
rear view mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
i
After running the vehicle through an auto-
matic car wash, wipe any wax off of the wind-
shield (
page 410). This will prevent smears
and reduce wiping noise which can be caused by
residual wax on the windshield.
When leaving the car wash, make sure that the
mirrors are folded out. Otherwise they may
vibrate.
!
Do not use chrome cleaner on ornamental
moldings. Although ornamental moldings may
have chrome appearance, they could be made of
anodized aluminum that will be damaged when
cleaned with chrome cleaner. Instead, use a
damp cloth to clean those ornamental moldings.
For very dirty ornamental moldings of which you
are sure are chrome-plated, use a chrome clean-
er. If in doubt whether an ornamental molding is
chrome-plated, contact an authorized
Mercedes-Benz Light Truck Center.

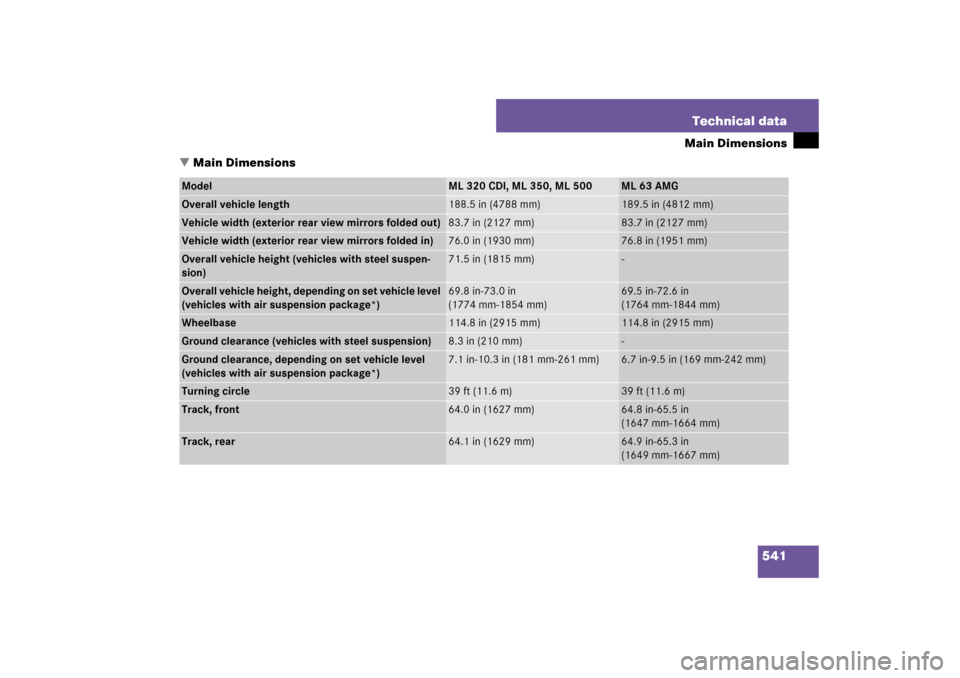

541 Technical data
Main Dimensions
Main Dimensions
Model
ML 320 CDI, ML 350, ML 500
ML 63 AMG
Overall vehicle length
188.5 in (4788 mm)
189.5 in (4812 mm)
Vehicle width (exterior rear view mirrors folded out)
83.7 in (2127 mm)
83.7 in (2127 mm)
Vehicle width (exterior rear view mirrors folded in)
76.0 in (1930 mm)
76.8 in (1951 mm)
Overall vehicle height (vehicles with steel suspen-
sion)
71.5 in (1815 mm)
-
Overall vehicle height, depending on set vehicle level
(vehicles with air suspension package*)
69.8 in-73.0 in
(1774 mm-1854 mm)
69.5 in-72.6 in
(1764 mm-1844 mm)
Wheelbase
114.8 in (2915 mm)
114.8 in (2915 mm)
Ground clearance (vehicles with steel suspension)
8.3 in (210 mm)
-
Ground clearance, depending on set vehicle level
(vehicles with air suspension package*)
7.1 in-10.3 in (181 mm-261 mm)
6.7 in-9.5 in (169 mm-242 mm)
Turning circle
39 ft (11.6 m)
39 ft (11.6 m)
Track, front
64.0 in (1627 mm)
64.8 in-65.5 in
(1647 mm-1664 mm)
Track, rear
64.1 in (1629 mm)
64.9 in-65.3 in
(1649 mm-1667 mm)
