407 Operation
Vehicle care
Automatic car wash
You can have your car washed in an auto-
matic car wash from the start. Automatic
car washes without brushes are prefera-
ble.
To protect the filter system, switch the
climate control (
page 208) or the au-
tomatic climate control (
page 222)
to air recirculation mode.
If the vehicle is very dirty, prewash it
before running it through the automatic
car wash.Ornamental moldings
For regular cleaning and care of ornamen-
tal moldings, use a damp cloth.
!
Do not clean your vehicle in an automatic
touchless car wash which use caustic spray.
Otherwise the caustic spray will damage the
paint or ornamental moldings.
!
If you want the gear position to remain inN
(for example when the vehicle is pulled through
a car wash)


do not remove the SmartKey from the starter
switch
or, when using KEYLESS-GO*


do not turn off the engine using the
KEYLESS-GO start/stop button* and open
the driver’s door.
Otherwise, the transmission will shift toP and
lock the wheels, preventing the vehicle from be-
ing pulled through a car wash.
!
Make sure that the windshield wiper switch
is set to0 (
page 61). Otherwise, e.g. the rain
sensor could activate and cause the wipers to
move unintentionally. This may lead to vehicle
damage.
Due to the width of the vehicle, fold in exterior
rear view mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
i
After running the vehicle through an auto-
matic car wash, wipe any wax off of the wind-
shield (
page 410). This will prevent smears
and reduce wiping noise which can be caused by
residual wax on the windshield.
When leaving the car wash, make sure that the
mirrors are folded out. Otherwise they may
vibrate.
!
Do not use chrome cleaner on ornamental
moldings. Although ornamental moldings may
have chrome appearance, they could be made of
anodized aluminum that will be damaged when
cleaned with chrome cleaner. Instead, use a
damp cloth to clean those ornamental moldings.
For very dirty ornamental moldings of which you
are sure are chrome-plated, use a chrome clean-
er. If in doubt whether an ornamental molding is
chrome-plated, contact an authorized
Mercedes-Benz Light Truck Center.

410 OperationVehicle careCleaning the windows and the wiper
blades
Fold the wiper arms forward until they
engage.

Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light al-
loy wheels.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status
0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.
!
Do not pull on the wiper blade inserts. They
could tear.
!
Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!
To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows and the power
tilt/sliding sunroof* or rear panorama roof with
hard objects such as an ice scraper or ring.
Doing so may damage the windows.
!
Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!
The vehicle should not be parked for an ex-
tended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased
corrosion of the brake disks and brake pads.
Non-approved wheel cleaners may also damage
the wheel paint if the car is not driven after
cleaning. Therefore, the vehicle’s brake system
should always be warmed-up before it is parked
after cleaning. To do so, please drive your vehicle
for several minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.

421 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
<
The red seat belt telltale comes
on for a maximum of 6 seconds
after starting the engine.
The seat belt telltale reminds you and your
passengers to fasten your seat belts before
driving off.

Fasten your seat belts.
Regardless of whether the seat belts
are fastened or not, the seat belt tell-
tale always comes on and remains lit
for 6 seconds after starting the
engine.
<
You hear a warning chime for a
maximum of 6 seconds after
starting the engine.
You have forgotten to fasten your seat belt.

Fasten your seat belts.
The warning chime stops sounding.

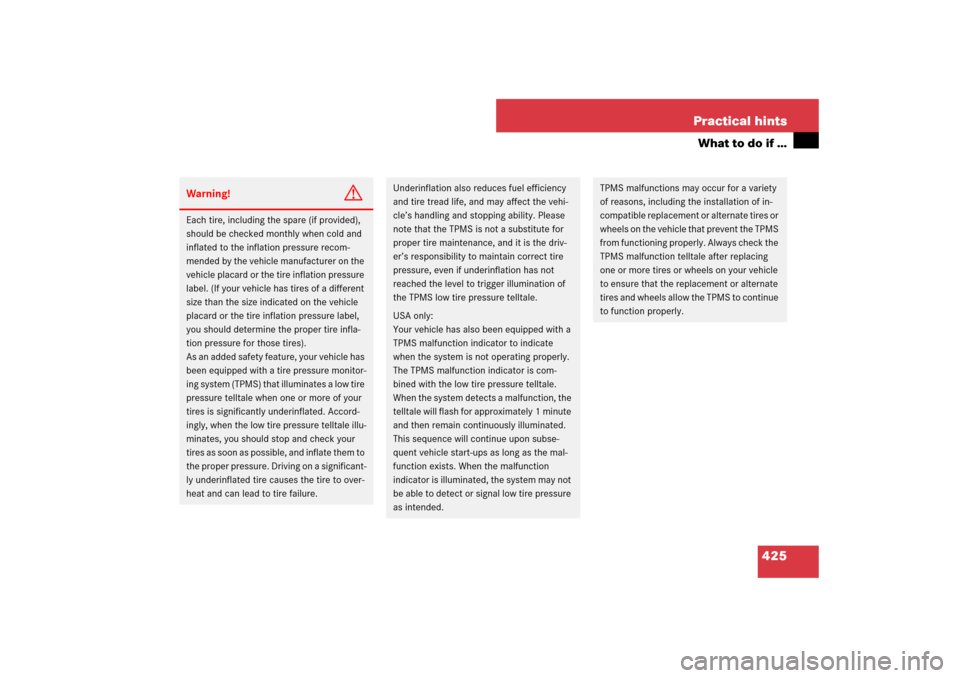

425 Practical hints
What to do if …
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly underinflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly underinflated tire causes the tire to over-
heat and can lead to tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if underinflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
USA only:
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately 1 minute
and then remain continuously illuminated.
This sequence will continue upon subse-
quent vehicle start-ups as long as the mal-
function exists. When the malfunction
indicator is illuminated, the system may not
be able to detect or signal low tire pressure
as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of in-
compatible replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.

438 Practical hintsWhat to do if …Display message
Possible cause/consequence
Possible solution
P
Shift to P
You have started the engine or
switched on the ignition with
KEYLESS-GO* and opened the
driver’s door with the automatic
transmission not set to positionP.

Set the automatic transmission to
positionP.
or

Close the driver’s door.
Shift to P or N
to start engine
You have attempted to start the
engine with the KEYLESS-GO*
start/stop button while the auto-
matic transmission was set to
positionR orD.

Set the automatic transmission to
positionP orN.
Make sure the brake pedal is depressed
when attempting to start the engine
with the KEYLESS-GO* start/stop but-
ton.
Only shift to
Park when
vehicle is stationary
You have tried to shift the auto-
matic transmission into positionP
using the gear selector lever
although the vehicle is still in mo-
tion.

Stop the vehicle.

Apply the parking brake (
page 65).

456 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause/consequence
Possible solution
F
Key
not detected
The SmartKey with
KEYLESS-GO* is not recognized
while the engine is running
because

the SmartKey with
KEYLESS-GO* is not in the
vehicle


there is strong
radio-frequency interference

Stop the vehicle in a safe location or as
soon as it is safe to do so.

Apply the parking brake (
page 65).

Search for the SmartKey with
KEYLESS-GO*.
Otherwise the vehicle cannot be centrally
locked nor can the engine be started
again after the engine is stopped.
The SmartKey with
KEYLESS-GO* is momentarily
not recognized.

Change the position of the SmartKey with
KEYLESS-GO* in the vehicle.

Operate the vehicle with the SmartKey in
the starter switch if necessary.
Key
not detected
The SmartKey with
KEYLESS-GO* is not recognized
while the ignition is switched on
(page 40) and a door is
opened or closed and the
SmartKey with KEYLESS-GO* is
not in the vehicle.

Search for the SmartKey with
KEYLESS-GO*.
Otherwise the vehicle cannot be locked
nor can the engine be started.

Change the position of the SmartKey with
KEYLESS-GO* in the vehicle.

475 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or KEYLESS-GO*, open the driv-
er’s door using the mechanical key.Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of
arrow.
The mechanical key2 comes out.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking
2Mechanical key

Insert mechanical key2 into the
driver’s door lock until it stops.

Turn mechanical key2 counterclock-
wise to position1 and hold it there.

Pull the door handle until the locking
knob moves up (
page 118).
The driver’s door is unlocked.

Pull the door handle once more to open
the driver’s door.
i
Unlocking the driver’s door with the
mechanical key will trigger the anti-theft alarm
system.
To cancel the alarm:


Press buttonŒ or‹on the
SmartKey.


Insert the SmartKey in the starter switch.
Vehicles with KEYLESS-GO*:


Grasp an outside door handle.
The SmartKey with KEYLESS-GO must be
within 3 ft (1 m) of the vehicle.


Press the KEYLESS-GO* start/stop button
(page 41).
The SmartKey with KEYLESS-GO must be
inside the vehicle.

477 Practical hints
Unlocking/locking in an emergency
Fuel filler flap
Open the tailgate (
page 119).
The fuel filler flap release is located behind
a cover in the right side trim panel of the
cargo compartment.
1Lock
2Cover

Insert a suitable object such as a coin
into the slot of lock1.

Turn lock1 counterclockwise by 90°
in direction of arrow.

Remove cover2.3Fuel filler flap release

Pull red fuel filler flap release3 in
direction of arrow.
The fuel filler flap is unlocked.

Open the fuel filler flap (
page 352).
!
Always make sure there is sufficient over-
head clearance.
i
If the vehicle has previously been locked
from the outside using the SmartKey or
SmartKey with KEYLESS-GO*, opening the tail-
gate from the inside will trigger the anti-theft
alarm system.
To cancel the alarm, do one of the following:
With the SmartKey:


Press button
Œ
or
‹
on the
SmartKey.


Insert the SmartKey in the starter switch.
With KEYLESS-GO*:


Grasp an outside door handle.
The SmartKey with KEYLESS-GO must be
within 3 ft (1 m) of the vehicle.
or


Press the KEYLESS-GO start/stop button.
The SmartKey with KEYLESS-GO must be in-
side the vehicle.
