2007 MERCEDES-BENZ E63AMG Owner's Manual

104 Safety and SecurityDriving safety systemsThe switch is located on the center con-
sole.
1ESP
® switch

With the engine running, press ESP
®
switch1 until the ESP
® warning
lampv in the instrument cluster
comes on.
The ESP
® is switched off.Switching on the ESP
®

Press ESP
® switch1 until the ESP
®
warning lamp v in the instrument
cluster goes out.
You are now again in normal driving
mode with the ESP
® switched on.
Warning!
G
When the ESP
® warning lamp v is
illuminated continuously, the ESP
® is
switched off or is not operational due to a
malfunction. Vehicle stability in standard
driving maneuvers is reduced.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP
®.
!
Avoid spinning of a drive wheel for an ex-
tended period with the ESP
® switched off. This
may cause serious damage to the drivetrain
which is not covered by the Mercedes-Benz
Limited Warranty.

105 Safety and Security
Driving safety systems
Four wheel electronic traction system (4MATIC) with the ESP
®
Models with all-wheel-drive only.
The 4MATIC improves the vehicle’s ability
to use available traction, e.g. during winter
operation in mountains under slippery road
conditions, by applying power to all four
wheels.Warning!
G
If you see the ESP
® warning lampv
flashing in the instrument cluster, proceed
as follows:


While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP
® cannot prevent accidents result-
ing from excessive speed.
!
Do not tow with one axle raised.
Otherwise the transfer case can be damaged,
which is not covered by the Mercedes-Benz
Limited Warranty.
!
Performance testing must only be conduct-
ed on a two-axle dynamometer.
Otherwise the transfer case can be damaged,
which is not covered by the Mercedes-Benz
Limited Warranty.
!
Because the ESP
® operates automatically,
the engine and the ignition must be shut off
(SmartKey in starter switch position0 or 1 or
KEYLESS-GO start/stop button* in position0
or1) when the parking brake is being tested on a
brake test dynamometer.
Active braking action through the ESP
® may oth-
erwise seriously damage the brake system.
Operational tests with the engine running can
only be conducted on a two-axle dynamometer.

106 Safety and SecurityAnti-theft systemsImmobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
With KEYLESS-GO*

Turn off the engine by means of the
start/stop button on the gear selector
lever.

Open the driver’s door.Deactivating
With the SmartKey

Switch on the ignition (
page 38).
With KEYLESS-GO*

Start the engine by means of the
start/stop button on the gear selector
lever.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens:

a door


the trunk


the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when


the vehicle is opened using the
mechanical key


someone opens a door from the inside
i
In case the engine cannot be started (yet the
vehicle’s battery is charged), the system is not
operational. Contact an authorized
Mercedes-Benz Center or call
1-800-FOR-MERCedes (in the USA), or
1-800-387-0100 (in Canada).
i
If the alarm stays on for more than
30 seconds, a call to the Response Center is ini-
tiated automatically by the Tele Aid system*
(
page 294) provided Tele Aid service was sub-
scribed to and properly activated, and that nec-
essary cellular service and GPS coverage are
available.

107 Safety and Security
Anti-theft systems
Arming the alarm system
The indicator lamp located in the central
locking switch in the center console.
1Indicator lamp
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
armed. The indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.Disarming the alarm system

Unlock the vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press button Œ or ‹ on the
SmartKey.
With KEYLESS-GO*

Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 39).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
i
If the turn signal lamps do not flash three
times, one of the following elements may not be
properly closed:


a door


the trunk
Close the respective element and lock the vehi-
cle again.
i
The alarm system will rearm automatically
after approximately 40 seconds if neither a door
nor the trunk was opened.

108

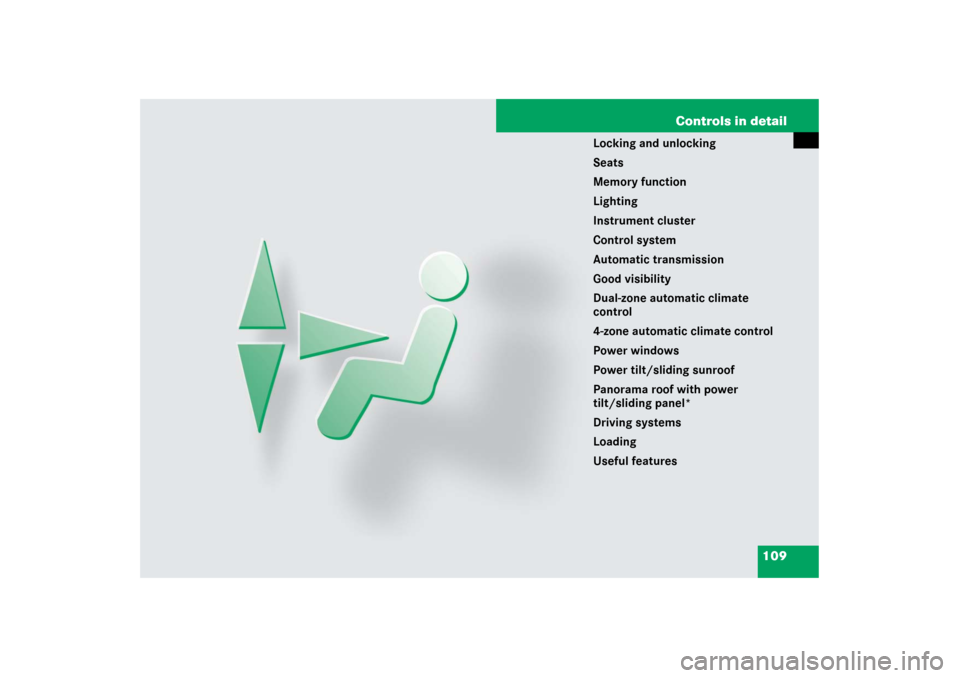

109 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate
control
4-zone automatic climate control
Power windows
Power tilt/sliding sunroof
Panorama roof with power
tilt/sliding panel*
Driving systems
Loading
Useful features

110 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.Locking and unlocking
For more information on locking and
unlocking, see “Getting started”
(page 36) and (
page 64).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys are a differ-
ent color to help distinguish each
SmartKey unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk lid


the fuel filler flap
SmartKey with remote control1
‹
Lock button
2
Š
Opening button for trunk
(page 121)
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6ÂPanic button (
page 96)
!
To prevent possible malfunction, avoid ex-
posing the SmartKey to high levels of electro-
magnetic radiation.

111 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a looked door from the
inside, which could result in an accident
and/or serious personal injury.i
USA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interfer-
ence, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
Canada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference re-
ceived, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
i
You can also open and close the windows
and tilt/sliding sunroof or tilt/sliding panel* us-
ing the SmartKey (
page 239).
!
If you can no longer lock or unlock the vehi-
cle with the SmartKey, then the batteries in the
SmartKey are discharged, the SmartKey is mal-
functioning or the vehicle battery is drained.


Check the batteries in the SmartKey and re-
place them if necessary (
page 441).


Use the mechanical key to unlock the
driver’s door (
page 436) and the trunk
(
page 437).


Use the mechanical key to lock the driver’s
door (
page 437) and the trunk
(
page 126).


Have the vehicle battery checked by an
authorized Mercedes-Benz Center.
If the SmartKey is malfunctioning, contact an
authorized Mercedes-Benz Center.
