2007 MERCEDES-BENZ CL600 Owner's Manual

336 Controls in detail
Starter switch positions
SmartKey
Starter switch
0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 566).
3Starting position
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 379).
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iWhen you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
!If you turn off the engine using the
SmartKey and

remove the SmartKey from the starter
switch
or

open a door
the transmission will shift to park positionP
automatically.
Keep in mind that turning off the engine with the
SmartKey alone only will automatically shift the
transmission to neutral positionN.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.

Check the battery and charge it if necessary
(
page 655).

Get a jump start (page 660).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

337 Controls in detail
Starter switch positions
SmartKey with KEYLESS-GO*
Vehicles equipped with the KEYLESS-GO
feature are supplied with a SmartKey with
integrated KEYLESS-GO function and a re-
movable KEYLESS-GO start/stop button.
With the KEYLESS-GO start/stop button
inserted and the SmartKey with
KEYLESS-GO present in the vehicle, press-
ing the KEYLESS-GO start/stop button

without the brake pedal depressed
corresponds to the various starter
switch positions (
page 338)

with the brake pedal firmly depressed
will start the engine (
page 379)
If you wish or should there be a need to in-
sert the SmartKey with KEYLESS-GO in the
starter switch, the KEYLESS-GO start/stop
button can be easily removed by pulling it
out of the starter switch.1KEYLESS-GO start/stop button
2Starter switch
Insert KEYLESS-GO start/stop
button1 into starter switch 2 (if not
inserted already).The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the automatic transmission
is set toP.
Do not depress the brake pedal.
KEYLESS-GO start/stop button
1USA only
2Canada onlyiThe function of the SmartKey overrules the
KEYLESS-GO function.
iThe KEYLESS-GO start/stop button does
not need to be removed from the starter switch
when you leave the vehicle. However, always
take the SmartKey with KEYLESS-GO with you
when you leave the vehicle. As long as the
S m a r t K e y w i t h K E Y L E S S - G O i s i n t h e v e h i c l e , t h e
vehicle’s electrical systems can be switched on
or the engine can be started using the
KEYLESS-GO start/stop button.iWhen you switch from SmartKey mode back
to KEYLESS-GO mode, the system requires
2 seconds of detection time before you can use
the KEYLESS-GO button as usual.

338 Controls in detail
Starter switch positions
Position 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status 0 (as with
SmartKey removed).
Position 1
Press the KEYLESS-GO start/stop but-
ton once.
This supplies power for some electrical
consumers, such as seat adjustment.
Ignition (or position 2)
Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power for all electrical
consumers.All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 566).For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 379).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2) is
switched on

twice, the power supply is again switched off
iIf you now press the KEYLESS-GO
start/stop button once, the power supply is
again switched off.
iWhen you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
!If you turn off the engine using the
KEYLESS-GO start/stop button and open the
driver’s or passenger door, the transmission will
shift to park positionP automatically.
Keep in mind that turning off the engine using
the KEYLESS-GO start/stop button alone only
will automatically shift the transmission to
neutral positionN.

339 Controls in detail
Seats

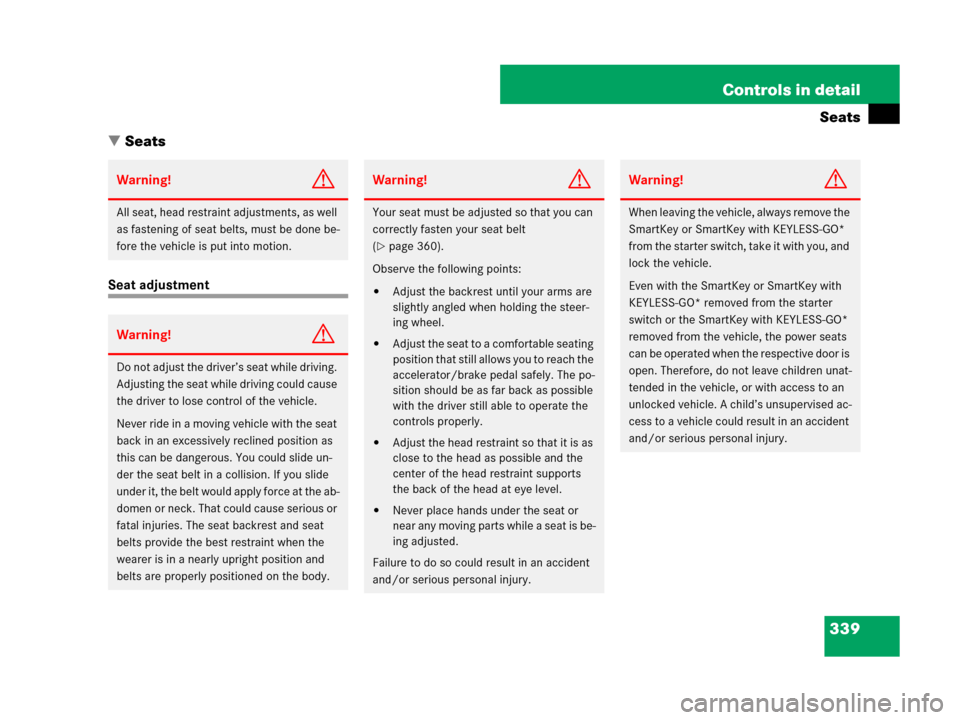

Seats
Seat adjustment
Warning!G
All seat, head restraint adjustments, as well
as fastening of seat belts, must be done be-
fore the vehicle is put into motion.
Warning!G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Warning!G
Your seat must be adjusted so that you can
correctly fasten your seat belt
(
page 360).
Observe the following points:

Adjust the backrest until your arms are
slightly angled when holding the steer-
ing wheel.

Adjust the seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The po-
sition should be as far back as possible
with the driver still able to operate the
controls properly.

Adjust the head restraint so that it is as
close to the head as possible and the
center of the head restraint supports
the back of the head at eye level.

Never place hands under the seat or
near any moving parts while a seat is be-
ing adjusted.
Failure to do so could result in an accident
and/or serious personal injury.
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.

340 Controls in detail
Seats
You can adjust the lumbar support
(CL 550) for driver and front passenger, or
operate the drive-dynamic multicontour
front seats* using COMAND (

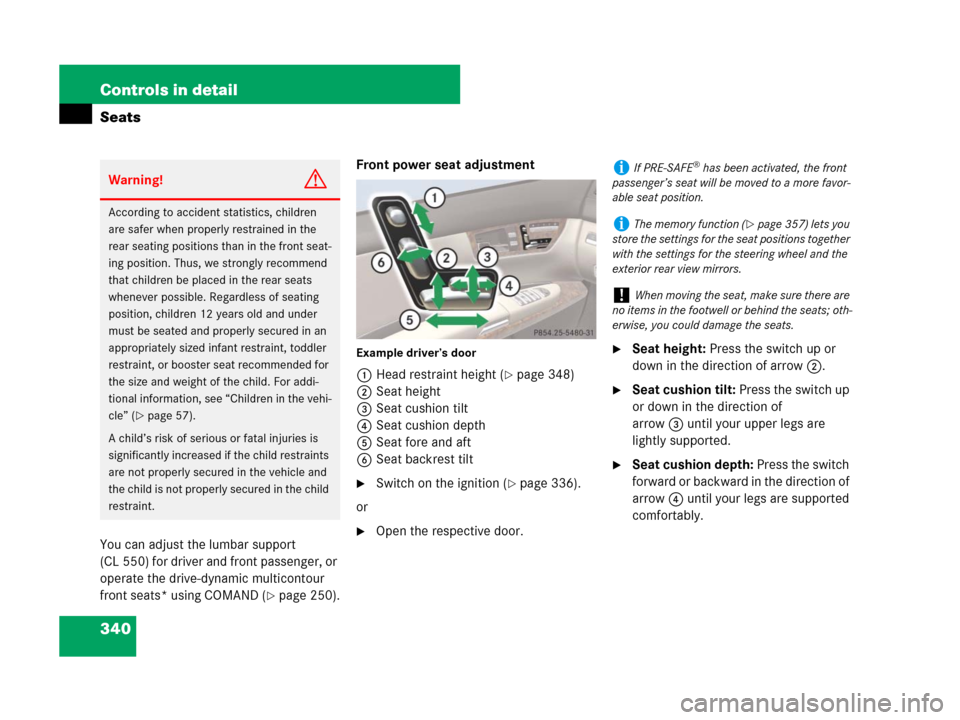

page 250).Front power seat adjustment
Example driver’s door
1Head restraint height (page 348)
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft
6Seat backrest tilt
Switch on the ignition (page 336).
or
Open the respective door.
Seat height: Press the switch up or
down in the direction of arrow2.
Seat cushion tilt: Press the switch up
or down in the direction of
arrow3until your upper legs are
lightly supported.
Seat cushion depth: Press the switch
forward or backward in the direction of
arrow4 until your legs are supported
comfortably.
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriately sized infant restraint, toddler
restraint, or booster seat recommended for
the size and weight of the child. For addi-
tional information, see “Children in the vehi-
cle” (
page 57).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iIf PRE-SAFE® has been activated, the front
passenger’s seat will be moved to a more favor-
able seat position.
iThe memory function (page 357) lets you
store the settings for the seat positions together
with the settings for the steering wheel and the
exterior rear view mirrors.
!When moving the seat, make sure there are
no items in the footwell or behind the seats; oth-
erwise, you could damage the seats.

341 Controls in detail
Seats
Seat fore and aft: Press the switch for-
ward or backward in the direction of
arrow5.
Seat backrest tilt: Press the switch
forward or backward in the direction of

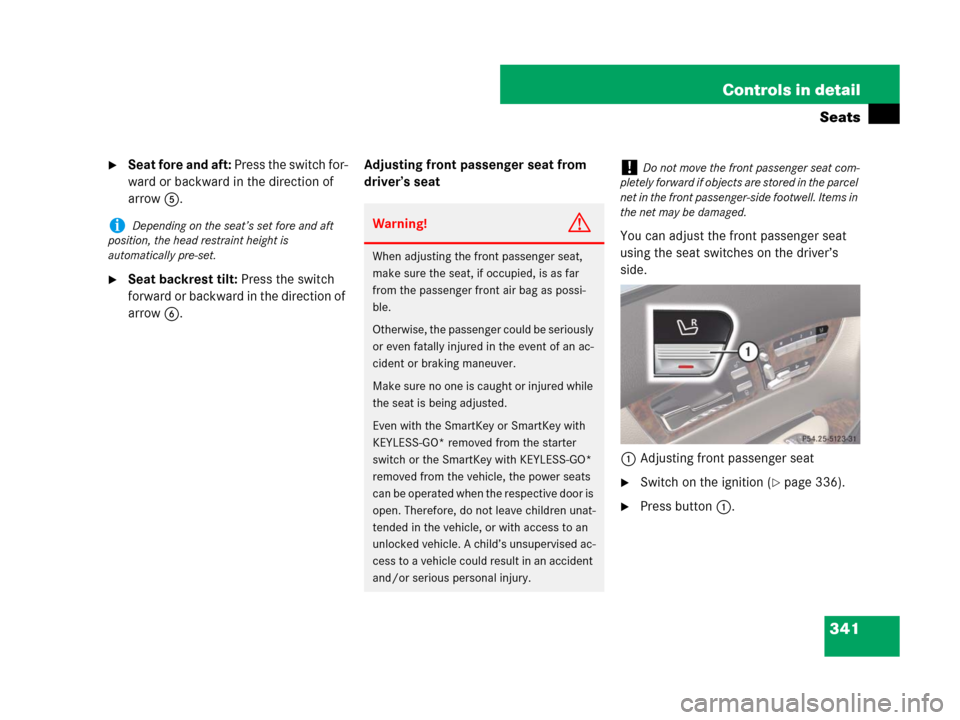

arrow6.Adjusting front passenger seat from
driver’s seat
You can adjust the front passenger seat
using the seat switches on the driver’s
side.
1Adjusting front passenger seat
Switch on the ignition (page 336).
Press button1.
i Depending on the seat’s set fore and aft
position, the head restraint height is
automatically pre-set.Warning!G
When adjusting the front passenger seat,
make sure the seat, if occupied, is as far
from the passenger front air bag as possi-
ble.
Otherwise, the passenger could be seriously
or even fatally injured in the event of an ac-
cident or braking maneuver.
Make sure no one is caught or injured while
the seat is being adjusted.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
!Do not move the front passenger seat com-
pletely forward if objects are stored in the parcel
net in the front passenger-side footwell. Items in
the net may be damaged.

342 Controls in detail
Seats
When the indicator lamp on button1 is
on, you can operate the following features
of the front passenger seat:

seat adjustment

seat heating/ventilation*

memory function

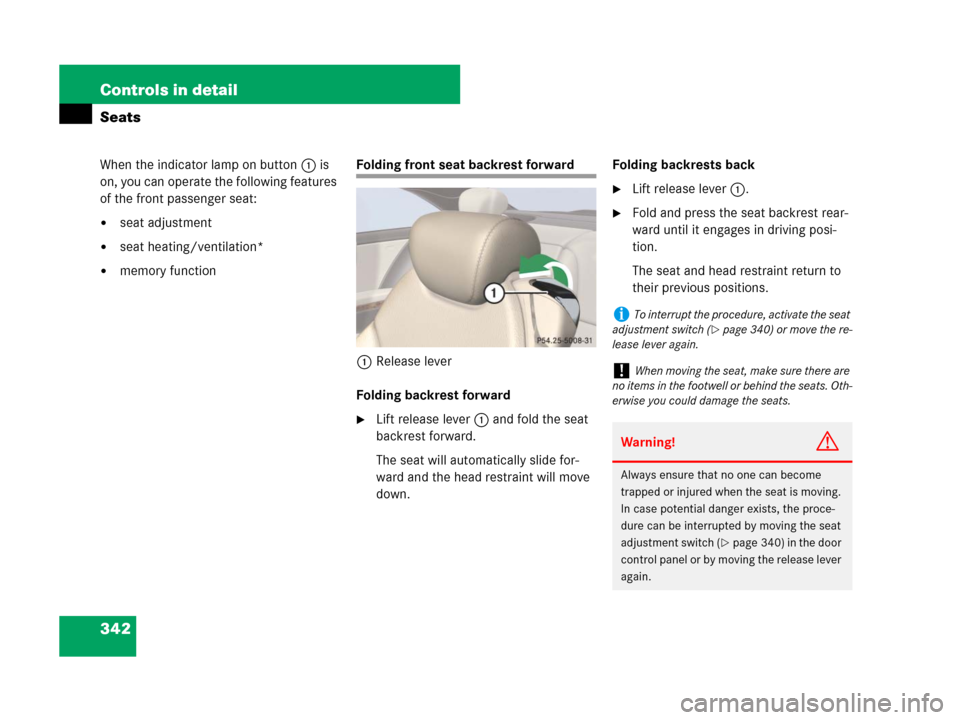

Folding front seat backrest forward
1Release lever
Folding backrest forward
Lift release lever1 and fold the seat
backrest forward.
The seat will automatically slide for-
ward and the head restraint will move
down.Folding backrests back
Lift release lever1.
Fold and press the seat backrest rear-
ward until it engages in driving posi-
tion.
The seat and head restraint return to
their previous positions.
iTo interrupt the procedure, activate the seat
adjustment switch (
page 340) or move the re-
lease lever again.
!When moving the seat, make sure there are
no items in the footwell or behind the seats. Oth-
erwise you could damage the seats.
Warning!G
Always ensure that no one can become
trapped or injured when the seat is moving.
In case potential danger exists, the proce-
dure can be interrupted by moving the seat
adjustment switch (
page 340) in the door
control panel or by moving the release lever
again.

343 Controls in detail
Seats
For information on additional convenience
features permitting easy entry and exit,
see “Easy-entry/exit feature”
(
page 344).
Warning!G
The seat belts provide protection only with
the backrest locked in place. Therefore, the
backrest must be locked in place with the
vehicle in motion. Do not drive the vehicle
when the backrest is not locked in place.
If the warning message:
Seat backrest,
Front Right
not locked
or
Seat backrest,
Front Left
not locked
is displayed in the multifunction display,
then the respective backrest is not engaged
in its lock. Carefully slow down, and drive
with caution to an area which is in a safe dis-
tance from the roadway. Always provide suf-
ficient room behind the backrest and fold
the backrest all the way back until it locks in
place.
The warning message is no longer displayed
as soon as the backrest is locked in place. If
both backrests are locked in place and the
warning message is still displayed, have the
system checked at an authorized
Mercedes-Benz Center immediately.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle or
with access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could re-
sult in an accident and/or serious personal
injury.
Never place hands under seat or near any
moving parts during a seat adjustment pro-
cedure.!The automatic seat slide is provided with a
safety feature.
The automatic process is interrupted if the back-
rest of the sliding seat is pushed against an oc-
cupant or object. The seat will slide forward and
stop.
Investigate and correct the cause of interruption.
Now use memory button (
page 358) or seat
adjustment switch (
page 340) to bring the
seat into the desired position.
When folding the backrest forward from a re-
clined position, and then folding it back, the
backrest stops in a more upright position for the
safety of any rear-seat passenger. Adjust the
backrest until your arms are slightly angled when
holding the steering wheel (
page 340).
