2007 MAZDA MODEL 6 WAGON Emergency

Black plate (5,1)
Mazda6_8W89-EA-06K_Edition1 Page5
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K
Table of Contents
Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.2
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.3
Before Driving Your Mazda
Important information about driving your Mazda.4
Driving Your Mazda
Explanation of instruments and controls.5
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.6
In Case of an Emergency
Helpful information on what to do in an emergency.7
Maintenance and Care
How to keep your Mazda in top condition.8
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on equipment.9
Specifications
Technical information about your Mazda.10
Index11
Navigation System

Black plate (30,1)

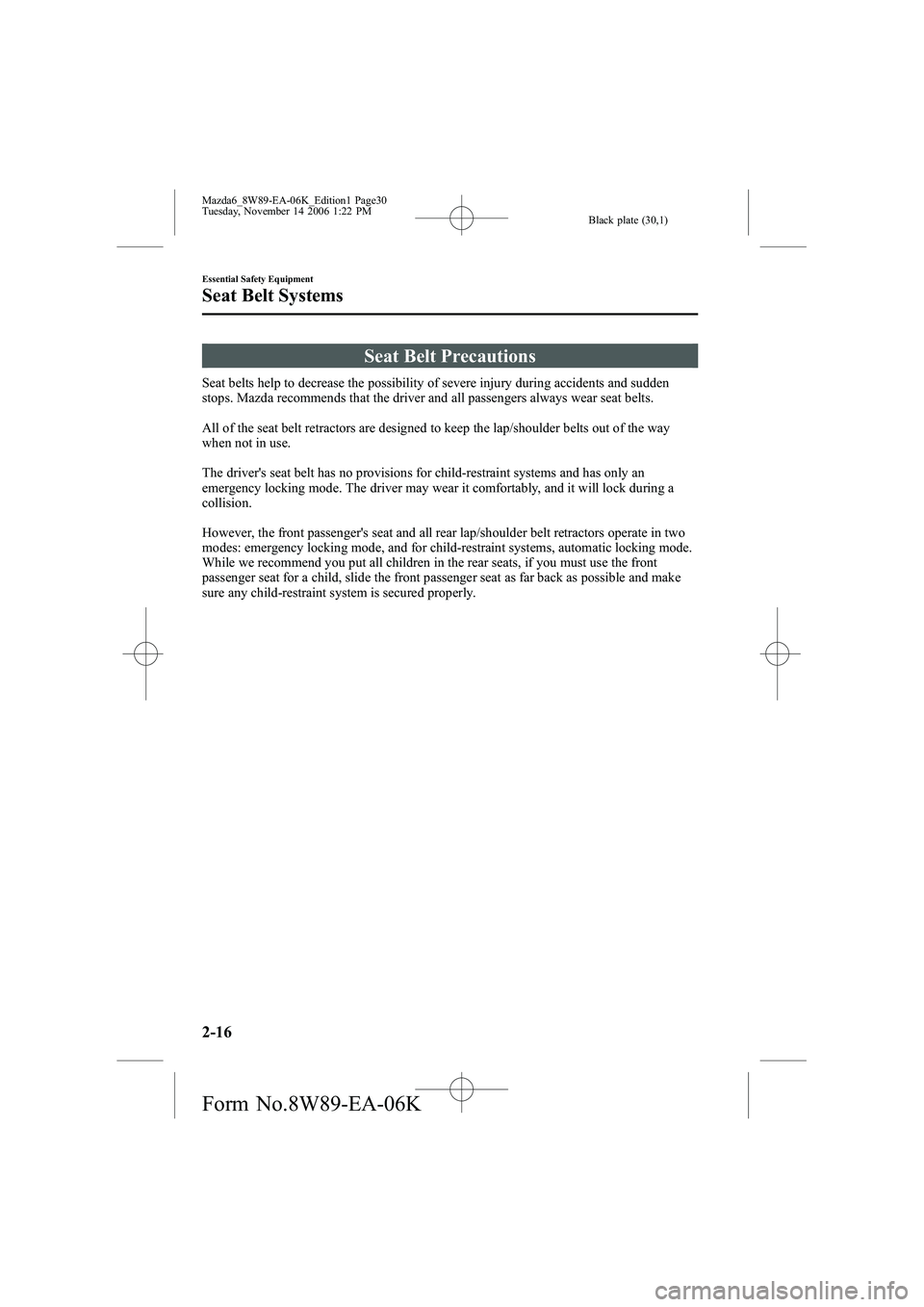

Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
2-16
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page30
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (32,1)

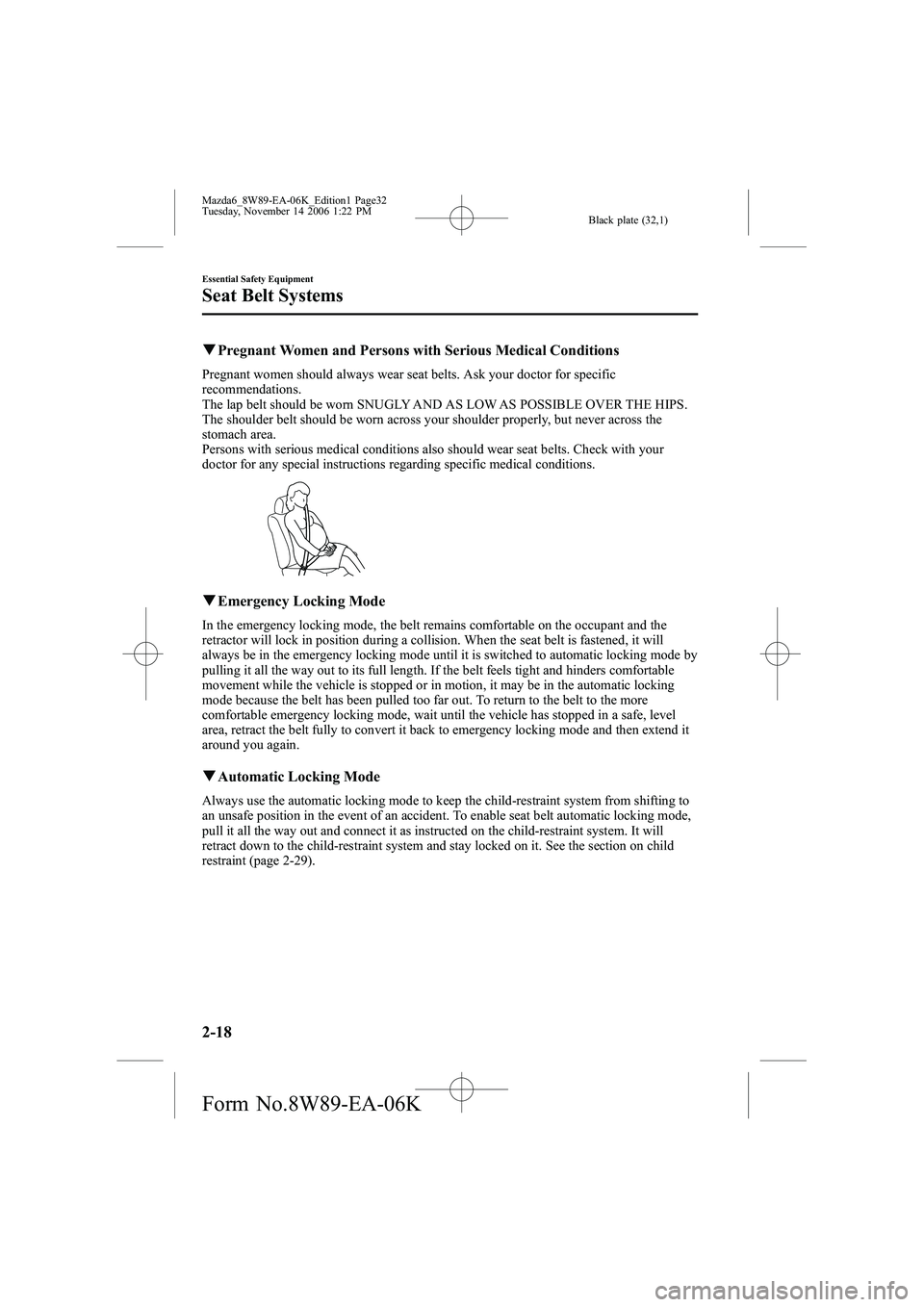

qPregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.
qEmergency Locking Mode
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return to the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
qAutomatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-29).
2-18
Essential Safety Equipment
Seat Belt Systems
Mazda6_8W89-EA-06K_Edition1 Page32
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (48,1)
1. Make sure the seatback is securelylatched by pushing it back until it is
fully locked.
2. Secure the child-restraint system with the lap portion of the lap/shoulder belt.
See the manufacturer's instructions on
the child-restraint system for belt
routing instructions.
3. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.4. Push the child-restraint system firmlyinto the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in the
automatic locking mode. If the belt
does not lock the seat down tight,
repeat this step.
NOTE
Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt out
of the retractor while the system is in
the automatic locking mode. When you
remove the child-restraint system, be
sure the belt fully retracts to return the
system to emergency locking mode
before occupants use the seat belts.
5. If your child-restraint system requires the use of a tether strap, refer to the
manufacturer's instructions to hook and
tighten the tether strap after raising the
head restraint (5-Door/Sport Wagon).
2-34
Essential Safety Equipment
Child Restraint
Mazda6_8W89-EA-06K_Edition1 Page48
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (53,1)
qFront Passenger's Seat Child-
Restraint System Installation
1. Slide the seat as far back as possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the manufacturer's instructions on
the child-restraint system for belt
routing instructions.
3. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
4. Push the child-restraint system firmly into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat the previous
step and also this one.
NOTE
lInspect this function before each use
of the child-restraint system. You
should not be able to pull the
shoulder belt out of the retractor
while the system is in the automatic
locking mode. When you remove the
child-restraint system, be sure the
belt fully retracts to return the system
to emergency locking mode before
occupants use the seat belts.
lFollow the child-restraint system
manufacturer's instructions carefully.
Depending on the type of child-
restraint system, it may not employ
seat belts which are in automatic
locking mode.
5. Make sure the front passenger air bag deactivation indicator light illuminates
after installing a child-restraint system
on the front passenger seat.
Refer to Front passenger air bag
deactivation indicator light on page
2-53.
Essential Safety Equipment
Child Restraint
2-39
Mazda6_8W89-EA-06K_Edition1 Page53
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (90,1)
Hatch (5-Door)
WARNING
Never allow a person to ride in thehatch area:
Allowing a person to ride in the hatch
area is dangerous. The person in the
hatch area could be seriously injured
or killed during sudden braking or a
collision.
Keep the hatch closed when driving:
Exhaust gas entering the cabin of a
vehicle through an open hatch is
dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death.
qLocking, Unlocking with Key
The hatch can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-10).
qLocking, Unlocking with Transmitter
The hatch can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-3).
qLocking, Unlocking with Door-
Lock Switch
The hatch can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-10).
qOpening and Closing the Hatch
To open the hatch, pull up on the handle.
NOTE
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the hatch cannot be unlocked,
perform the following manual
procedure as an emergency measure to
unlock it:
1. Remove the cap on the interior
surface of the hatch with a flathead
screwdriver.
Cap
3-12
Knowing Your Mazda
Doors and Locks
Mazda6_8W89-EA-06K_Edition1 Page90
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (91,1)
NOTE
2. Turn the lever to the right to unlockthe hatch.
Lever
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
To close, use both hands to push the hatch
down until the lock snaps shut. Do not
slam it. Pull up on the hatch to make sure
it is secure.
q Luggage Strap
The luggage compartment can be
accessed by opening the hatch when the
straps are attached to the sides of the
hatch.
Strap
qLuggage Compartment Cover
WARNING
Don't place anything on top of thecover:
Placing luggage or other cargo on top
of the luggage compartment cover is
dangerous. During sudden braking or
a collision, the cargo could become a
projectile that could hit and injure
someone.
This cover can be removed for more
room. To do this, just unfasten the straps;
then lift and pull it out.
Knowing Your Mazda
Doors and Locks
3-13
Mazda6_8W89-EA-06K_Edition1 Page91
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (93,1)
NOTE
If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked,
perform the following procedure as an
emergency measure to unlock it:
1. Remove the cap on the interiorsurface of the liftgate with a flathead
screwdriver.
Cap
2. Turn the lever to the right to unlockthe liftgate.
Lever
After performing this emergency
measure, have the vehicle inspected at
an Authorized Mazda Dealer as soon as
possible.
Closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qLuggage Compartment Cover
Use the luggage compartment cover to
conceal cargo or luggage.
WARNING
Do not place anything on top of theluggage compartment cover:
Placing luggage or other cargo on top
of the luggage compartment cover is
dangerous. During sudden braking or
a collision, the cargo could become a
projectile that could hit and injure
someone.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Installing the cover
1. Set the left end of the retainer bar into
the notch on the left side of the luggage
compartment.
Retainer bar
Notch
Knowing Your Mazda
Doors and Locks
3-15
