2007 MAZDA MODEL 6 WAGON towing

Black plate (39,1)

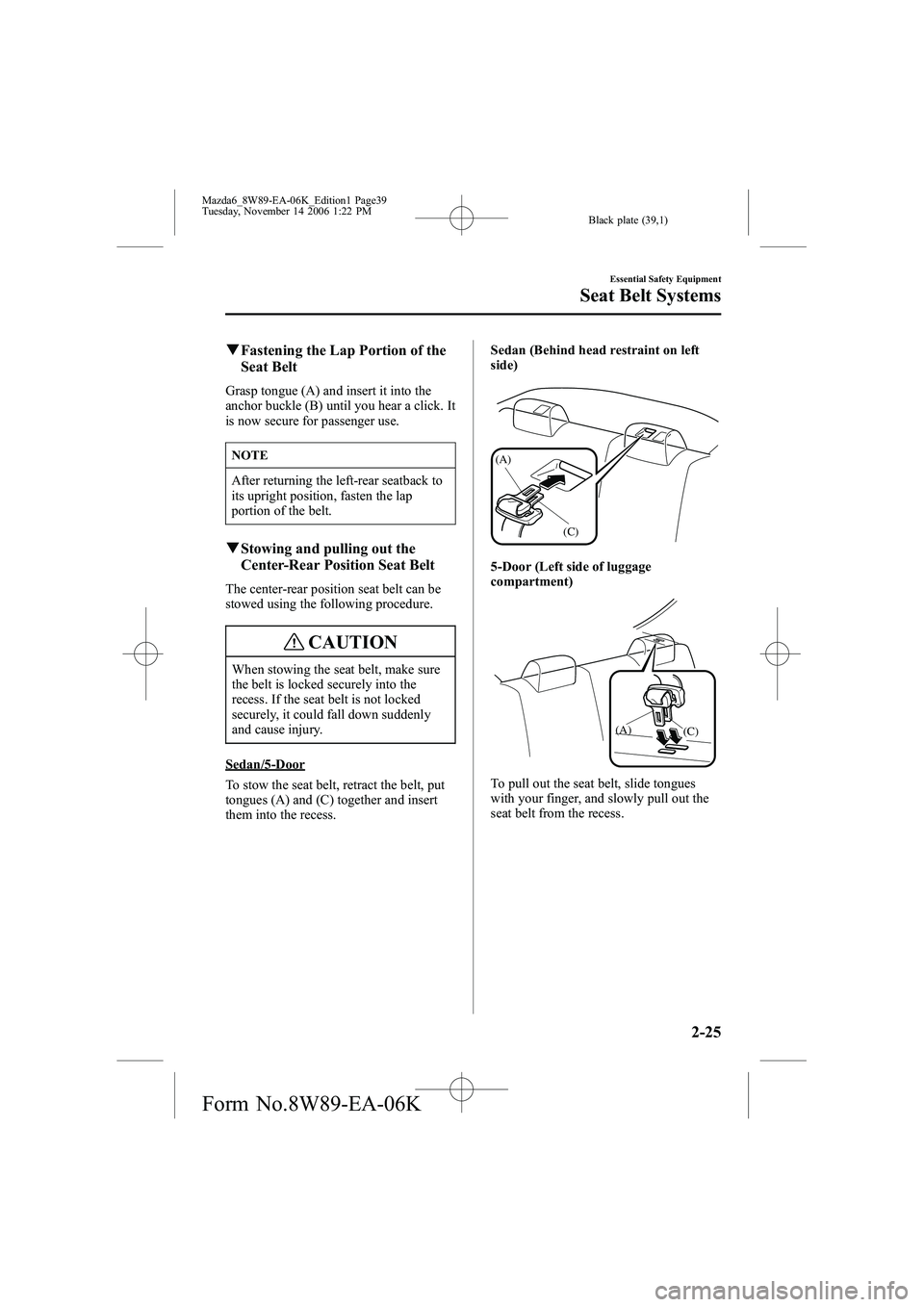

qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
NOTE
After returning the left-rear seatback to
its upright position, fasten the lap
portion of the belt.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make sure
the belt is locked securely into the
recess. If the seat belt is not locked
securely, it could fall down suddenly
and cause injury.
Sedan/5-Door
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess. Sedan (Behind head restraint on left
side)
(A)
(C)
5-Door (Left side of luggage
compartment)
(A)(C)
To pull out the seat belt, slide tongues
with your finger, and slowly pull out the
seat belt from the recess.
Essential Safety Equipment
Seat Belt Systems
2-25
Mazda6_8W89-EA-06K_Edition1 Page39
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (121,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6 Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7 Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Rocking the Vehicle .................................................................. 4-9
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-10
Overloading ............................................................................. 4-11
Towing ......................................................................................... 4-12 Trailer Towing ......................................................................... 4-12
4-1
Mazda6_8W89-EA-06K_Edition1 Page121
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (132,1)
Trailer Towing
The Mazda6 is not designed for towing.
Never tow a trailer with your Mazda6.
4-12
Before Driving Your Mazda
Towing
Mazda6_8W89-EA-06K_Edition1 Page132
Tuesday, November 14 2006 1:23 PM
Form No.8W89-EA-06K

Black plate (243,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3 Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-15 Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17 Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-20
Emergency Towing ..................................................................... 7-21 Towing Description ................................................................. 7-21
Recreational Towing ............................................................... 7-22
7-1
Mazda6_8W89-EA-06K_Edition1 Page243
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (262,1)
Push-Starting
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
You can't start a vehicle with an automatic
transaxle by pushing it.
CAUTION
Do not push-start a vehicle that has a
manual transaxle. It can damage the
emission control system.
7-20
In Case of an Emergency
Emergency Starting
Mazda6_8W89-EA-06K_Edition1 Page262
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (263,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Don't tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-21
Mazda6_8W89-EA-06K_Edition1 Page263
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (264,1)
CAUTION
Do not use the hooks under the rear
bumper for towing and tying down, as
they cannot hold the load and it will
damage the bumper.
Hooks
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-21) and
carefully follow the instructions.
7-22
In Case of an Emergency
Emergency Towing
Mazda6_8W89-EA-06K_Edition1 Page264
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (360,1)
SAMPLE
CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed ”value on the tire
label.
9-36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda6_8W89-EA-06K_Edition1 Page360
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K
