Table of Contents
Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.1
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.2
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.3
Before Driving Your Mazda
Important information about driving your Mazda.4
Driving Your Mazda
Explanation of instruments and controls.5
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.6
In Case of an Emergency
Helpful information on what to do in an emergency.7
Maintenance and Care
How to keep your Mazda in top condition.8
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on equipment.9
Specifications
Technical information about your Mazda.10
Index11
Navigation System

Black plate (8,1)
The equipment and installation position varies by model.
*Refer to Navigation System at the end of the manual (if equipped).
Power window lock switch ................................................................................ page 3-28
Power window switches .................................................................................... page 3-24
Power door lock switch ..................................................................................... page 3-10
1-2
Your Vehicle at a Glance
Dashboard and Interior Overview
Mazda6_8W89-EA-06K_Edition1 Page8
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (227,1)

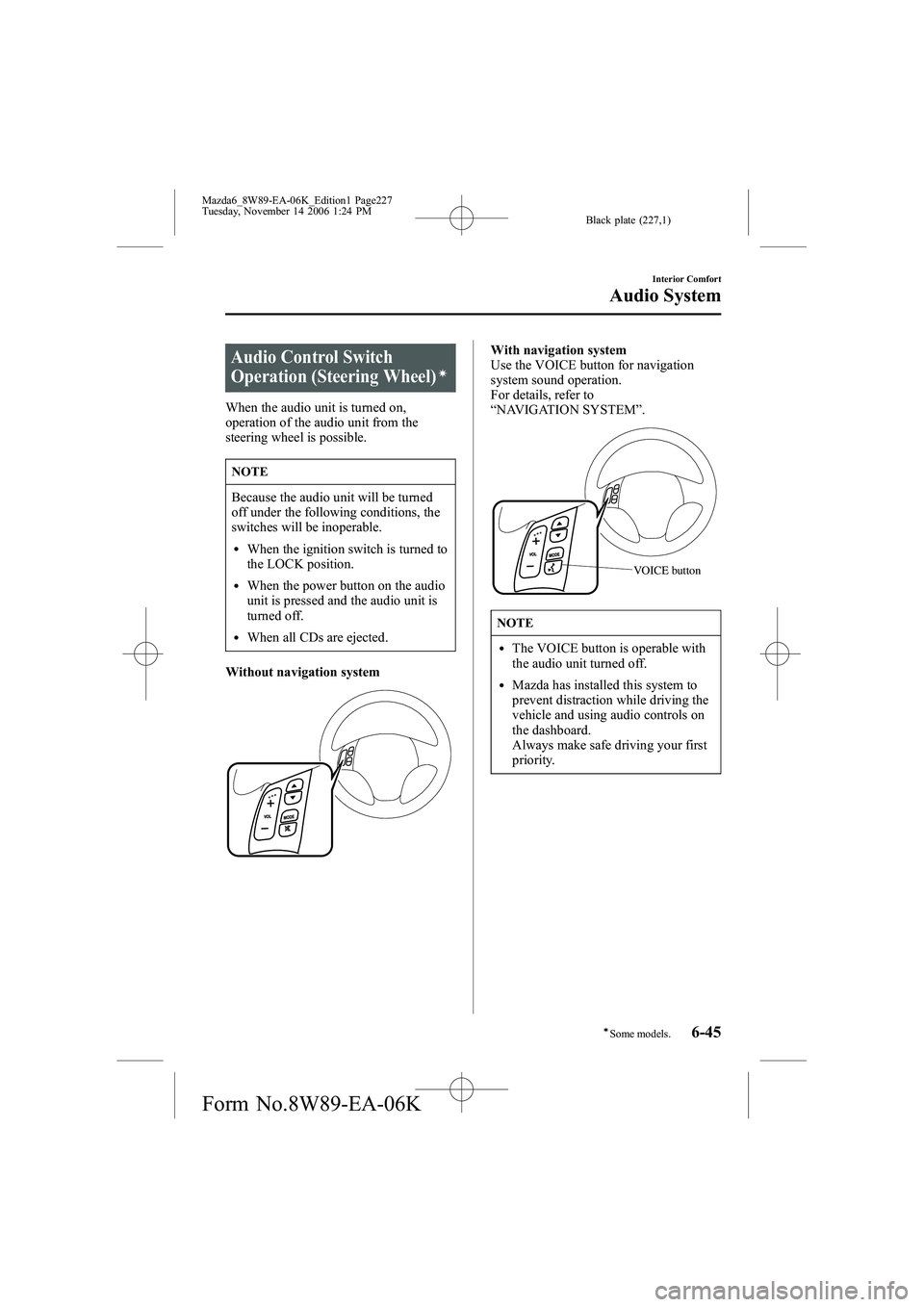

Audio Control Switch
Operation (Steering Wheel)í
When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.
NOTE
Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.
lWhen the ignition switch is turned to
the LOCK position.
lWhen the power button on the audio
unit is pressed and the audio unit is
turned off.
lWhen all CDs are ejected.
Without navigation system
With navigation system
Use the VOICE button for navigation
system sound operation.
For details, refer to
“ NAVIGATION SYSTEM ”.
VOICE button
NOTE
lThe VOICE button is operable with
the audio unit turned off.
lMazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on
the dashboard.
Always make safe driving your first
priority.
Interior Comfort
Audio System
6-45íSome models.
Mazda6_8W89-EA-06K_Edition1 Page227
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (234,1)
Information Display
OPEN/CLOSE switch (with navigation system)
AMB switch (with outside temperature display )
TILT switch (with navigation system)
CLOCK/CLK switch
SET switch
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)
lClimate Control Display
lAudio Display
6-52
Interior Comfort
Interior Equipment
Mazda6_8W89-EA-06K_Edition1 Page234
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (238,1)
Storage Compartments
WARNING
Keep storage boxes closed whendriving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qStorage Pocket
To open, push the release catch down and
pull the lid downward.
qCenter Box with Lid (Without
Navigation System)
To use, pull the knob, and the lid opens
automatically.
Knob
6-56
Interior Comfort
Interior Equipment
Mazda6_8W89-EA-06K_Edition1 Page238
Tuesday, November 14 2006 1:24 PM
Form No.8W89-EA-06K

Black plate (341,1)
Cell Phones Warning
WARNING
Use of Cell Phones and Other Devices by Driver:
Use of any electrical devices such as cell phones, computers, portable radios, vehicle
navigation or other devices by the driver while the vehicle is moving is dangerous.
Dialing a number on a cell phone while driving also ties-up the driver's hands. Use of
these devices will cause the driver to be distracted and could lead to a serious accident.
If a passenger is unable to use the device, pull off the right-of-way to a safe area
before use. If use of a cell phone is necessary despite this warning, use a hands-free
system to at least leave the hands free to drive the vehicle. Never use a cell phone or
other electrical devices while the vehicle is moving and, instead, concentrate on the
full-time job of driving.
Please comply with the legal regulations concerning the use of communication
equipment in vehicles in your country.
Customer Information and Reporting Safety Defects
Cell Phones
9-17
