2007 MAZDA MODEL 6 Owners Manual (in English)

Black plate (369,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
10-1
Mazda6_8W89-EA-06K_Edition1 Page369
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (370,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard Label
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
Mazda6_8W89-EA-06K_Edition1 Page370
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (371,1)
qEngine Number
2.3-liter engine
Forward
3.0-liter engine
Forward
Identification Numbers
10-3
Mazda6_8W89-EA-06K_Edition1 Page371
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (372,1)
Specifications
qEngine
ItemSpecification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
qElectrical System
Item Classification
Battery 12V-50AH/5HR
Spark-plug number2.3-liter engineLFG1 18 110
*1
L3Y2 18 110
3.0-liter engine AJ57 18 110*1*2
Spark-plug gap2.3-liter engine 1.25―1.35 mm (0.050―0.053 in)
3.0-liter engine 1.29―1.45 mm (0.051―0.057 in)
*1 ex factory
*2 Verify the spark plug type from the spark plug itself. If the spark plug type cannot be determined, consult an
Authorized Mazda Dealer.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda6_8W89-EA-06K_Edition1 Page372
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (373,1)
qLubricant Quality
Lubricant Classification
Engine oilRefer to the recommended SAE viscosity numbers
on page 8-18.
Manual transaxle oil2.3-liter engineAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F)API Service GL-4 or GL-5
SAE 80W-90
3.0-liter engineAPI Service GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid2.3-liter engine ATF M-V
3.0-liter engine JWS3309
Power steering fluid ATF M-V, or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.3-liter engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
3.0-liter engineWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.2 L (5.5 US qt, 4.6 Imp qt)
Coolant2.3-liter engine 7.0 L (7.4 US qt, 6.2 Imp qt)
3.0-liter engine 8.5 L (9.0 US qt, 7.5 Imp qt)
Manual transaxle oil2.3-liter engine 2.87 L (3.03 US qt, 2.53 Imp qt)
3.0-liter engine 2.3 L (2.4 US qt, 2.0 Imp qt)
Automatic transaxle fluid2.3-liter engine 8.14 L (8.60 US qt, 7.16 Imp qt)
3.0-liter engine 7.0 L (7.4 US qt, 6.1 Imp qt)
Fuel tank 68.0 L (18.0 US gal, 15.0 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
Specifications
10-5
Mazda6_8W89-EA-06K_Edition1 Page373
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (374,1)
qDimensions
Item Specification
Overall lengthSedan 4,745 mm*3(186.8 in), 4,765 mm*4(187.6 in)
5-Door 4,745 mm*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall heightSedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Track, front 1,540 mm
*1(60.6 in), 1,530 mm*2(60.2 in)
Track, rear 1,540 mm*1(60.6 in), 1,530 mm*2(60.2 in)
Wheelbase 2,675 mm (105.3 in)
*1 16-inch wheel vehicle
*2 17-inch/18-inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
qWeights
Specification Item Weight
2.3-liter engineGVWR (Gross Vehicle Weight Rating) 1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating)Front 1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engineGVWR (Gross Vehicle Weight Rating) 2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating)Front 1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda6_8W89-EA-06K_Edition1 Page374
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

Black plate (375,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 55 H1 (―)
Low beamHalogen 55 H1 (―)
Xenon fusion 35 D2S (―)
Front turn signal lights 27―(#2357A)
Parking lights 5 W5W (―)
Fog lights
í55 H11 (H11)
Side-marker lights 5―(―)
High-mount brake lightSedanNon-LED bulb 18.4 W16W (#921)
LED bulb
*24―(―)
5-Door 21 W21W (#7440)
Sport WagonNon-LED bulb 21 W21W (#7440)
LED bulb
*24―(―)
Rear turn signal lightsSedan/5-Door 21 WY21W (―)
Sport wagon 21 W21W (#7440)
Brake lights/Taillights 21/5 W21/5W (#7443)
Taillights 5
*1W21/5W (#7443)
Reverse lights 18.4 W16W (#921)
License plate lights 5 W5W (―)
*1 Use a 21/5W type bulb.
*2 Bulb replacement is not possible because it is built into the unit. Replace the unit.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (Sedan) 3―
Overhead light/Map lights 5 W5W
Courtesy lights 5 W5W
Vanity mirror lights
*Type A 1.2―
Type B 3―
Luggage compartment light5-Door 5―
Sport Wagon 10―
* Vanity mirror lights
Specifications
10-7íSome models. Mazda6_8W89-EA-06K_Edition1 Page375
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K

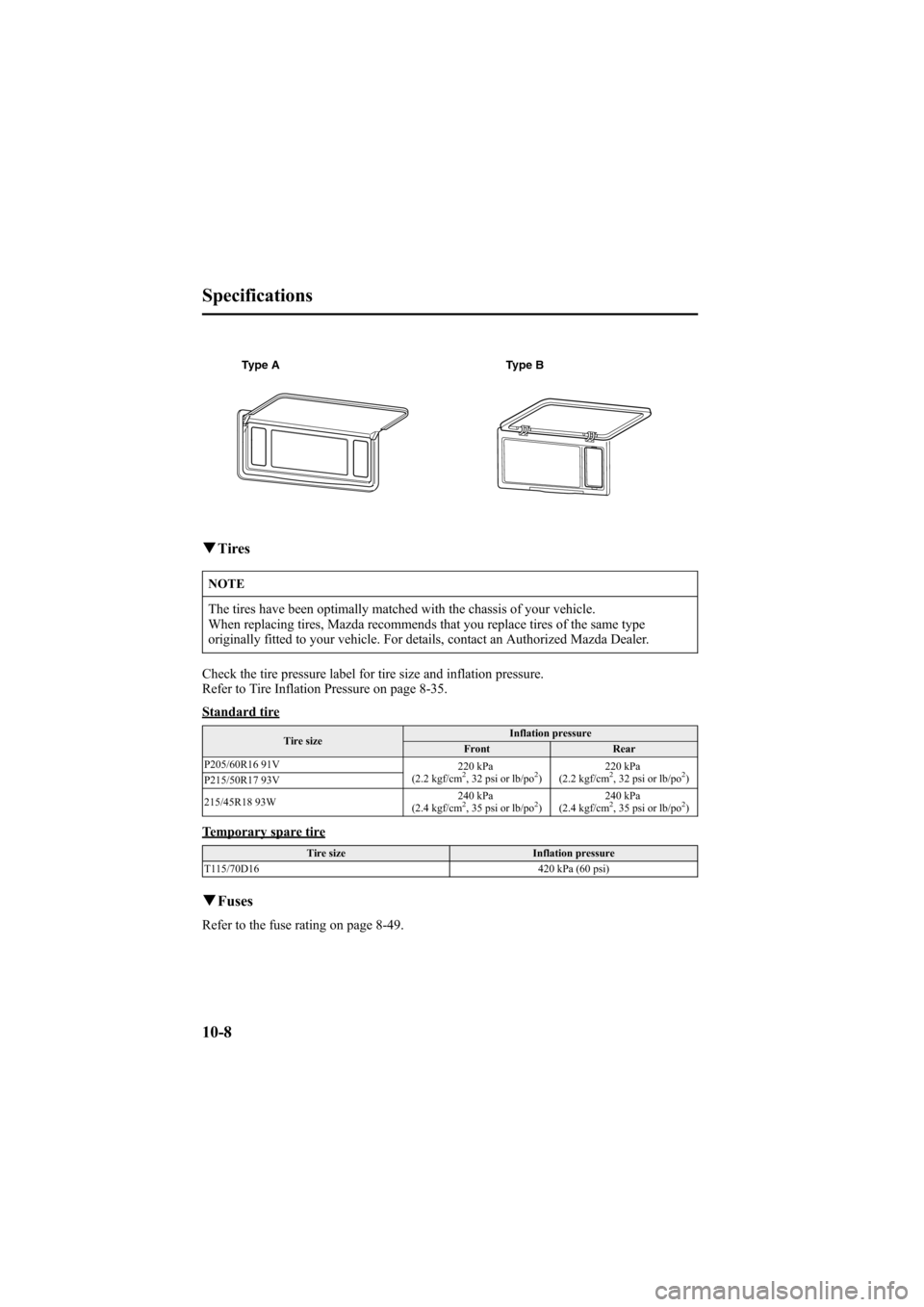

Black plate (376,1)
Type B Type A
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire sizeInflation pressure
Front Rear
P205/60R16 91V
220 kPa
(2.2 kgf/cm
2, 32 psi or lb/po2)220 kPa
(2.2 kgf/cm2, 32 psi or lb/po2)
P215/50R17 93V
215/45R18 93W240 kPa
(2.4 kgf/cm
2, 35 psi or lb/po2)240 kPa
(2.4 kgf/cm2, 35 psi or lb/po2)
Temporary spare tire
Tire size Inflation pressure
T115/70D16 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-49.
10-8
Specifications
Mazda6_8W89-EA-06K_Edition1 Page376
Tuesday, November 14 2006 1:25 PM
Form No.8W89-EA-06K
