2007 MAZDA MODEL 6 Owners Manual (in English)

Black plate (17,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a passenger seat properlywith the seatback upright and feet onthe floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
WARNING
Do not drive with the seatbackunlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda6_8W89-EA-06K_Edition1 Page17
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (18,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qHead Restraint
WARNING
Always drive with the head restraintsinstalled when seats are being usedand make sure they are properlyadjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda6_8W89-EA-06K_Edition1 Page18
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (19,1)

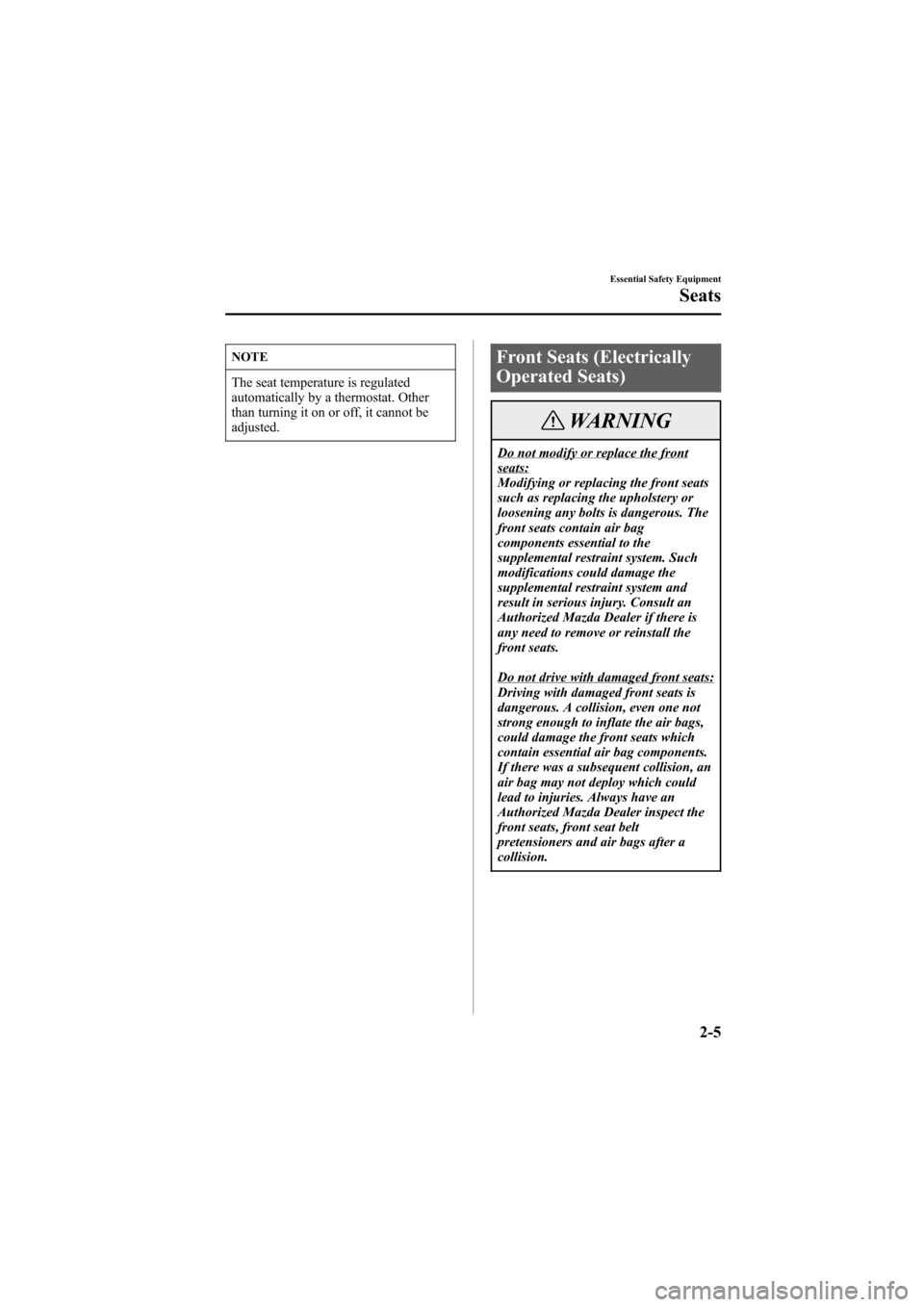

NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the frontseats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, an
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
Essential Safety Equipment
Seats
2-5
Mazda6_8W89-EA-06K_Edition1 Page19
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (20,1)
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide (Driver's Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline (Driver's Seat)
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a front passenger seatproperly with the seatback upright andfeet on the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
2-6
Essential Safety Equipment
Seats
Mazda6_8W89-EA-06K_Edition1 Page20
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (21,1)
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
Front of seat bottom
To adjust the front height of the seat
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear of seat bottom
Raise or lower the back of the switch to
adjust the rear height of the seat bottom.
Whole seat
Raise the seat by pulling up on the center
of the switch. Release the switch at the
desired position.
Lower the seat by pressing down on the
center of the switch. Release the switch at
the desired position.
Essential Safety Equipment
Seats
2-7
Mazda6_8W89-EA-06K_Edition1 Page21
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (22,1)
qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraintsinstalled when seats are being usedand make sure they are properlyadjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8W89-EA-06K_Edition1 Page22
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (23,1)
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Do not stack cargo higher than theseatbacks or place articles on the rearpackage tray or on the luggagecompartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers.
Make sure luggage and cargo issecured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable componentsof a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Essential Safety Equipment
Seats
2-9
Mazda6_8W89-EA-06K_Edition1 Page23
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K

Black plate (24,1)
WARNING
Do not drive with the seatbackunlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Never allow a passenger to sit or standon the folded seatback while thevehicle is moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury.
Never give the car keys to children anddo not allow them to play in thevehicle:
Playing with the folding rear seats is
dangerous. Once the seatbacks are
back up, a child in the trunk would
not be able to get out the way they had
entered. If you have small children,
keep the seatbacks locked (sedan).
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
qSplit-Folding Rear Seatback (Sedan)
The seatbacks can be folded down to
provide more space in the trunk.
To fold the seatbacks
WARNING
Always remove the child-restraintsystem from the rear seat beforeoperating the remote handle levers forthe rear seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Make sure there is nobody in the rearseat area before operating the remotehandle levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward.
2-10
Essential Safety Equipment
Seats
Mazda6_8W89-EA-06K_Edition1 Page24
Tuesday, November 14 2006 1:22 PM
Form No.8W89-EA-06K
