2007 MAZDA MODEL 5 display

Black plate (200,1)
MP3 CD
Folder number/Track
numberDisc number/File
number/Elapsed
time display
Disc tray number
File name
Folder name
Album name (ID3 Tag) Song name (ID3 Tag)
Artist name (ID3 Tag)
NOTE
(MP3 CD)l“ NO TITLE ”will be displayed when the
display is switched for a file without a file,
track or other name input.
lThis unit can only read English (including
numerals) one-byte characters. If any other
character is included, “NO TITLE ”will be
displayed. Depending on the CD writing
software used, proper display may not be
possible.
Display scroll (Music CD/MP3 CD
player)
Only 12 characters can be displayed at
one time. To display the rest of the
characters of a long title, turn the display
feed dial (
) to the right. Hidden
titles can be scrolled into the display one
character at a time. NOTE
The displayable number of characters is
limited. If the number of characters, including
the file extension (.mp3), exceeds 32
characters, it may not be fully displayed.
Message display
If
“CHECK CD ”is displayed, it means
that there is some CD malfunction. Check
for damage, dirt, or smudges on the CD,
and then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
6-40
Interior Comfort
Audio System
Mazda5_8X91-EA-07E_Edition1 Page200
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (201,1)
qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK CD CD is inserted upside down
Insert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CD is defective Insert another CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
Interior Comfort
Audio System
6-41
Mazda5_8X91-EA-07E_Edition1 Page201
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (208,1)
Information Display
Climate control display/
Ambient temperature display
Clock Audio display
q
Information Display Functions
The information display has the following functions:lClocklAmbient Temperature Display (Outside Temperature Display, Fully Automatic Type)lClimate Control Display (Fully Automatic Type)lAudio Display
6-48
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page208
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (209,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK switch until a beep
sounds, and “12Hr ”and “24Hr ”will be
displayed.
2. Press the SET switch to switch between “12Hr ”and “24Hr ”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK switch again while
the preferred setting is flashing.
3. “Hr. ADJUST ”will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLOCK switch.
4. “Min. ADJUST ”will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the
CLOCK switch.
Time resetting
While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example) 12:01
―12:29 →12:00
12:30 ―12:59 →1:00
NOTE
When the SET switch is released, the seconds
are reset to “00 ”.
q Ambient Temperature Display
(Fully Automatic Type)
When the ignition switch is in the ON
position, press the AMB switch (page
6-10) to display the ambient temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the AMB switch 2 seconds or more to
switch the display from Fahrenheit to
Centigrade or vice versa.
lPress the AMB switch again to switch the
display from ambient temperature to the
temperature set for the air conditioner.
Interior Comfort
Interior Equipment
6-49
Mazda5_8X91-EA-07E_Edition1 Page209
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

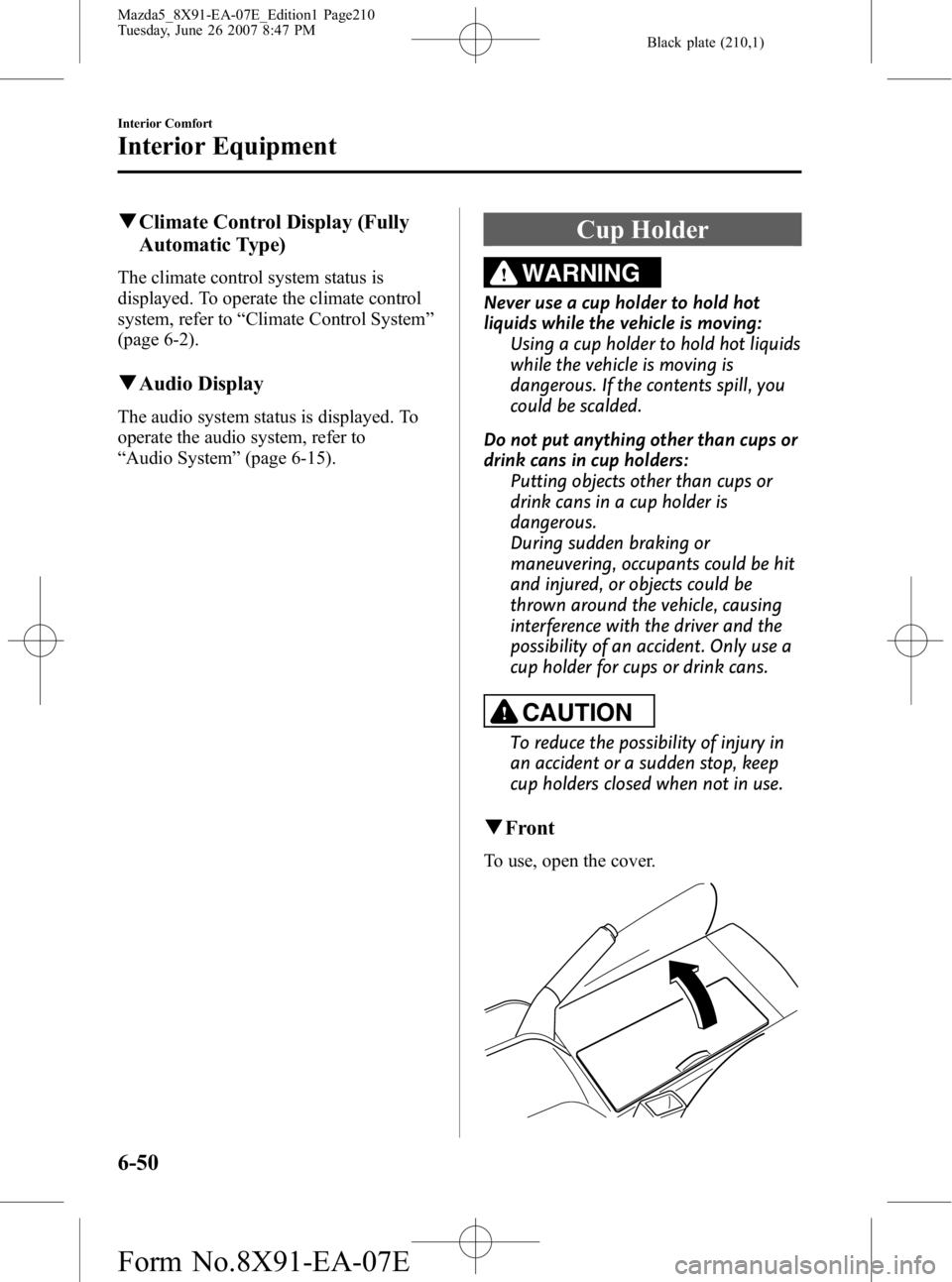

Black plate (210,1)
qClimate Control Display (Fully
Automatic Type)
The climate control system status is
displayed. To operate the climate control
system, refer to “Climate Control System ”
(page 6-2).
q Audio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System ”(page 6-15).
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders: Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
qFront
To use, open the cover.
6-50
Interior Comfort
Interior Equipment
Mazda5_8X91-EA-07E_Edition1 Page210
Tuesday, June 26 2007 8:47 PM
Form No.8X91-EA-07E

Black plate (348,1)
A
Accessory Socket .............................. 6-56
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-39
Ambient Temperature Display .......... 6-49
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-7
Appearance Care ............................... 8-48
Audio System ................................... 6-15 Audio control switch .................. 6-42
Audio set .................................... 6-25
Operating tips for audio
system ........................................ 6-15
Safety certification ..................... 6-45
Automatic Transaxle Driving tips ................................ 5-16
Fluid ........................................... 8-23
Manual shift mode ..................... 5-13
Shift-lock override ..................... 5-13
Shift-lock system ....................... 5-13
Transaxle ranges ........................ 5-12
B
BatteryEmergency starting .................... 7-15
Maintenance ............................... 8-30
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-42
Lights-on reminder ..................... 5-42
Seat belt warning beep ............... 5-42
Tire inflation pressure warning
beep ............................................ 5-42
Before Starting the Engine .................. 4-5 After getting in ............................. 4-5
Before getting in .......................... 4-5
B
Body Lubrication .............................. 8-26
Bottle Holder ..................................... 6-52
Brake/Clutch
Fluid ........................................... 8-22
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-8
Foot brake .................................... 5-4
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-6
Bulb Replacement ............................. 8-36
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-4
Cargo Securing Loops ...................... 6-55
Cargo Sub-Compartment .................. 6-55
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Console .................................. 6-53
Child Restraint Child restraint precautions ......... 2-26
LATCH child-restraint
systems ....................................... 2-36
Child Safety Locks for Rear Doors ... 3-10
Climate Control System ...................... 6-2 Gas specifications ...................... 10-5
Clock ................................................. 6-49
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-50
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-30
Daytime Running Lights ................... 5-46
11-2
Index
Mazda5_8X91-EA-07E_Edition1 Page348
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

Black plate (350,1)
I
IgnitionKeys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-46
Immobilizer System .......................... 3-19
Indicator Lights ................................. 5-31 Cruise Main ................................ 5-41
Cruise set .................................... 5-41
Headlight high-beam .................. 5-40
Power steering malfunction ........ 5-41
Security ...................................... 5-40
Shift position .............................. 5-40
Turn-signal/hazard warning ....... 5-41
Information Display .......................... 6-48 Ambient temperature display ..... 6-49
Audio display ............................. 6-50
Climate control display .............. 6-50
Clock .......................................... 6-49
Information display functions .... 6-48
Instrument Cluster ............................. 5-27
Interior Care ...................................... 8-53
Interior Lights ................................... 6-46
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-46
Liftgate .............................................. 3-11
L
Light Bulbs Replacement ............................... 8-36
Specifications ............................. 10-6
Lighting Control ............................... 5-43
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-47
M
Maintenance Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-47
Mirrors Outside mirrors .......................... 3-23
Rearview mirror ......................... 3-24
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-17
O
Odometer and Trip Meter .................. 5-28
Outside Mirrors ................................. 3-23
Overhead Lights ................................ 6-47
Overheating ....................................... 7-13
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-48
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-8
11-4
Index
Mazda5_8X91-EA-07E_Edition1 Page350
Tuesday, June 26 2007 8:48 PM
Form No.8X91-EA-07E

4
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Contents
Preparation
nBefore Use
Accessories ........................................................................\
................ 2
Laser products: ........................................................................\
.......... 2
Contents ........................................................................\
..................... 4
Safety Information ........................................................................\
...... 6
Introduction ........................................................................\
................ 8
(Use This Product Safety), (Navigation System), (Screens),
(LCD (Liquid crystal display))
Names and Functions ...................................................................... 10
Immediate use
nGetting startedlActivation........................................................................\
............... 12(Removing the Map Disc), (Buttons on the screen)
l
Menu ........................................................................\
..................... 14lSet Clock ........................................................................\
............... 15lNavigation Set Up ........................................................................\
. 16(User Setting), (Quick POI Selection), (Language), (Map Configuration),
(Calibration), (Restore System Defaults)
l
Screen Names and Functions....................................................... 25(Screens Before Setting Route), (Screens During Route Guidance),
(Screen adjustments and settings)
l
Screen change ........................................................................\
...... 27(Changing the Map Orientation/Scale)
n
RoutinglDestination Entry and Route Search............................................. 28(Change (Change Search Area)), (Address), (Point of interest),
(Emergency), (Memory Point), (Home), (Preset Destination),
(Previous Destination), (Intersection), (Freeway On/Off Ramp),
(Coordinates), (Select from map)
l
Quick POI ........................................................................\
.............. 36(Displaying POI(s) on a Map), (Local Search), (Deleting POI Markers),
(Showing POI Data)
l
Character Entry ........................................................................\
..... 37(To enter the street name, city name, and other.),
(To enter the house phone number, and other.)
l
Direct Destination Input................................................................. 38(Direct Destination Input), (Selecting Route)
l
POI Icons on Maps / Delete Destination ....................................... 39(POI (Point of Interest) Icons), (Delete destination)
l
Route Options ........................................................................\
....... 40(Route Preferences), (Modification of Destination or Way Point Positions),
(Deletion of Destination or Way Points), (Detour), (Turn List),
(Display Preview), (Route Preview)
1%>(%C2%:-C)%FSSO4EKI*VMHE]%TVMP41
