2007 MAZDA MODEL 3 HATCHBACK Owner's Manual (in English)

Black plate (17,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
Mazda3_8V66-EA-06F_Edition3 Page17
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (18,1)
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
qHeight Adjustment (Driver's Seat)í
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qLumbar Support Adjustment
(Driver's Seat)í
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda3_8V66-EA-06F_Edition3 Page18
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (19,1)
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
NOTE
The seat temperature is regulated
automatically by a thermostat. Other
than turning it on or off, it cannot be
adjusted.
Rear Seat
WARNING
Do not stack cargo higher than the
seatbacks or place articles on the rear
package tray or on the luggage
compartment cover:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Essential Safety Equipment
Seats
2-5íSome models. Mazda3_8V66-EA-06F_Edition3 Page19
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (20,1)
WARNING
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After returning the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child in the baggage area
could be thrown into other occupants
and cause serious injury.
WARNING
Never give the car keys to children and
do not allow them to play in the
vehicle:
Playing with the folding rear seats is
dangerous. The folding rear seatbacks
cannot be folded down from inside the
trunk. Once the seatbacks are back up,
a child in the trunk would not be able
to get out the way they had entered. If
you have small children, keep the
seatbacks locked (sedan).
Always leave your car locked and keep
the car keys safely away from
children:
Leaving your car unlocked or the keys
in reach of children is dangerous.
Children who find their way into the
trunk through an unlocked rear
seatback or an open trunk can become
accidentally locked in the trunk. This
could result in death or brain damage
from heat prostration, particularly in
the summer. Always lock the doors
and the trunk, and as an added
measure, keep the rear seatbacks
locked, whether you have children in
your home or not.
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls out and retracts.
2-6
Essential Safety Equipment
Seats
Mazda3_8V66-EA-06F_Edition3 Page20
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (21,1)
qSplit-Folding Rear Seatback
To fold the seatbacks
CAUTION
When operating the rear seatback knob,
make sure you support the seatback
with your hand. If the seatback is not
supported with your hand, it will flip
forward suddenly and could cause
injury to the finger that pushes the rear
seatback knob down.
1. Unfasten the lap portion of the center-
rear seat belt (page 2-18).
CAUTION
Always unfasten the lap portion of the
belt before folding the rear-left
seatback. Leaving the lap portion of the
belt fastened could cause damage to the
seat belt, buckle and seatback.
2. Position the outboard seat belts to the
side when folding the seatbacks down.
3. Support the seatback with your hand.
4. Push the rear seatback knob down.
To return the seatbacks to the upright
position
1. Position the outboard seat belts to the
side.
2. Lift the seatbacks upright.
3. Make sure the seat belts are fully
pulled out from under the seatbacks.
4. Pull on the top of the seatbacks from
inside the vehicle to make sure they are
locked.
5. Fasten the center-rear lap/shoulder belt
and check that all seat belts are routed
properly for passenger use (page 2-18).
WARNING
Always make sure the seat belts are
fully pulled out from under the
seatbacks:
A seat belt caught under a seatback
after the seatback is returned to its
upright position is dangerous. In a
collision or sudden stop, the seat belt
cannot provide adequate protection.
Essential Safety Equipment
Seats
2-7
Mazda3_8V66-EA-06F_Edition3 Page21
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (22,1)
WARNING
When returning the seatback to the
upright position, make sure there is no
red indication:
A rear seatback not fully returned and
locked in the upright position is
dangerous. Sudden stops or
maneuvering could cause a seatback
to flip forward suddenly resulting in
injury. If the red indicator is visible on
the back of the rear seatback knob, the
seatback is not locked in the upright
position.
Locked position
Unlocked position
Red indicator
qRear Seatback Lock (4 Door)
To lock or unlock a seatback, move the
lever.
NOTE
The seatback locks are part of the trunk
security system (page 3-16).
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.
2-8
Essential Safety Equipment
Seats
Mazda3_8V66-EA-06F_Edition3 Page22
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (23,1)

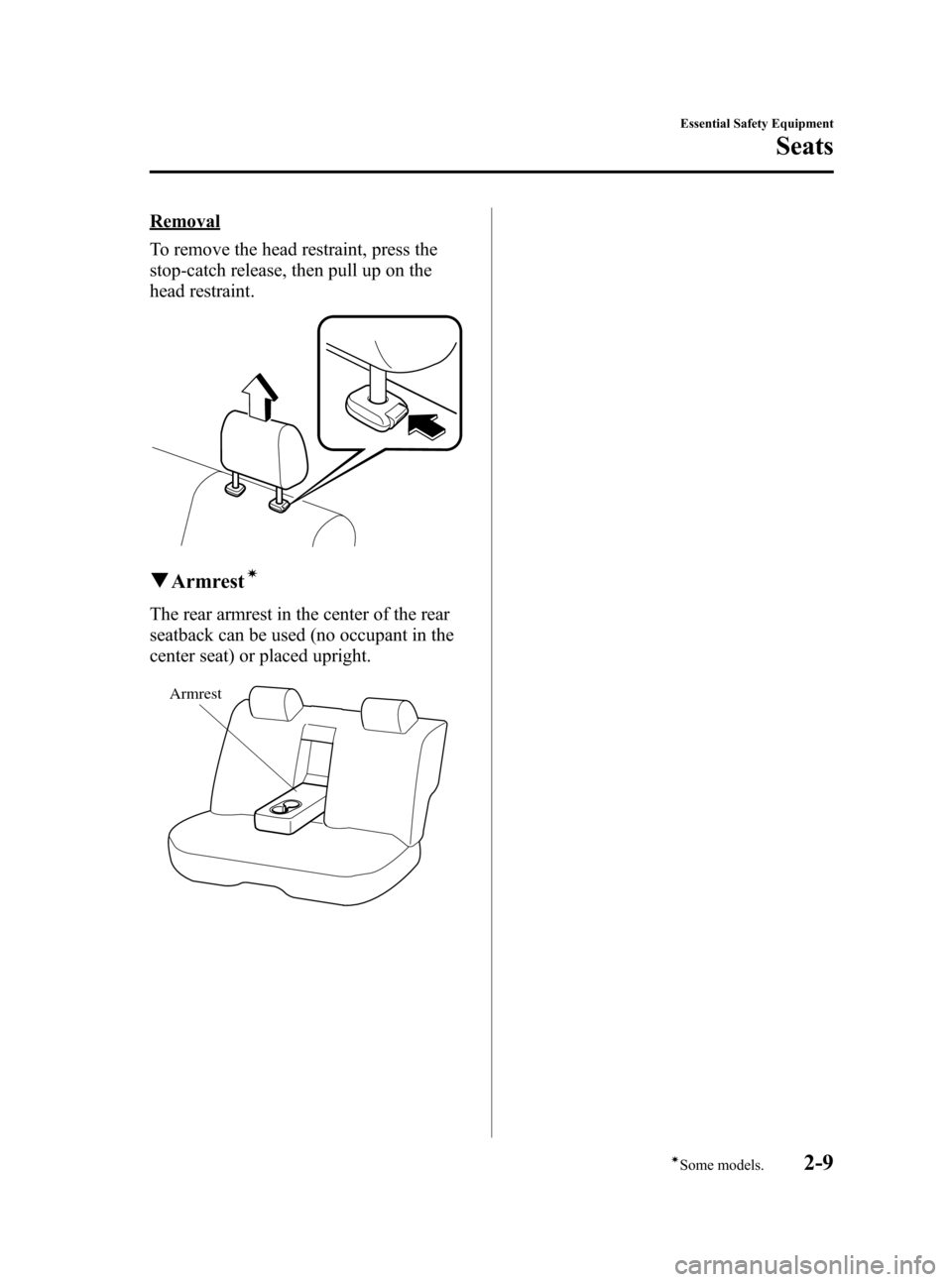

Removal
To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.
qArmrestí
The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Armrest
Essential Safety Equipment
Seats
2-9íSome models. Mazda3_8V66-EA-06F_Edition3 Page23
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F

Black plate (24,1)
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown out
of the vehicle. They could be seriously injured or even killed. In the same collision,
occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way cannot spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time and always operate the vehicle with each occupant properly
restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
2-10
Essential Safety Equipment
Seat Belt Systems
Mazda3_8V66-EA-06F_Edition3 Page24
Wednesday, August 23 2006 11:18 AM
Form No.8V66-EA-06F
