Black plate (249,1)

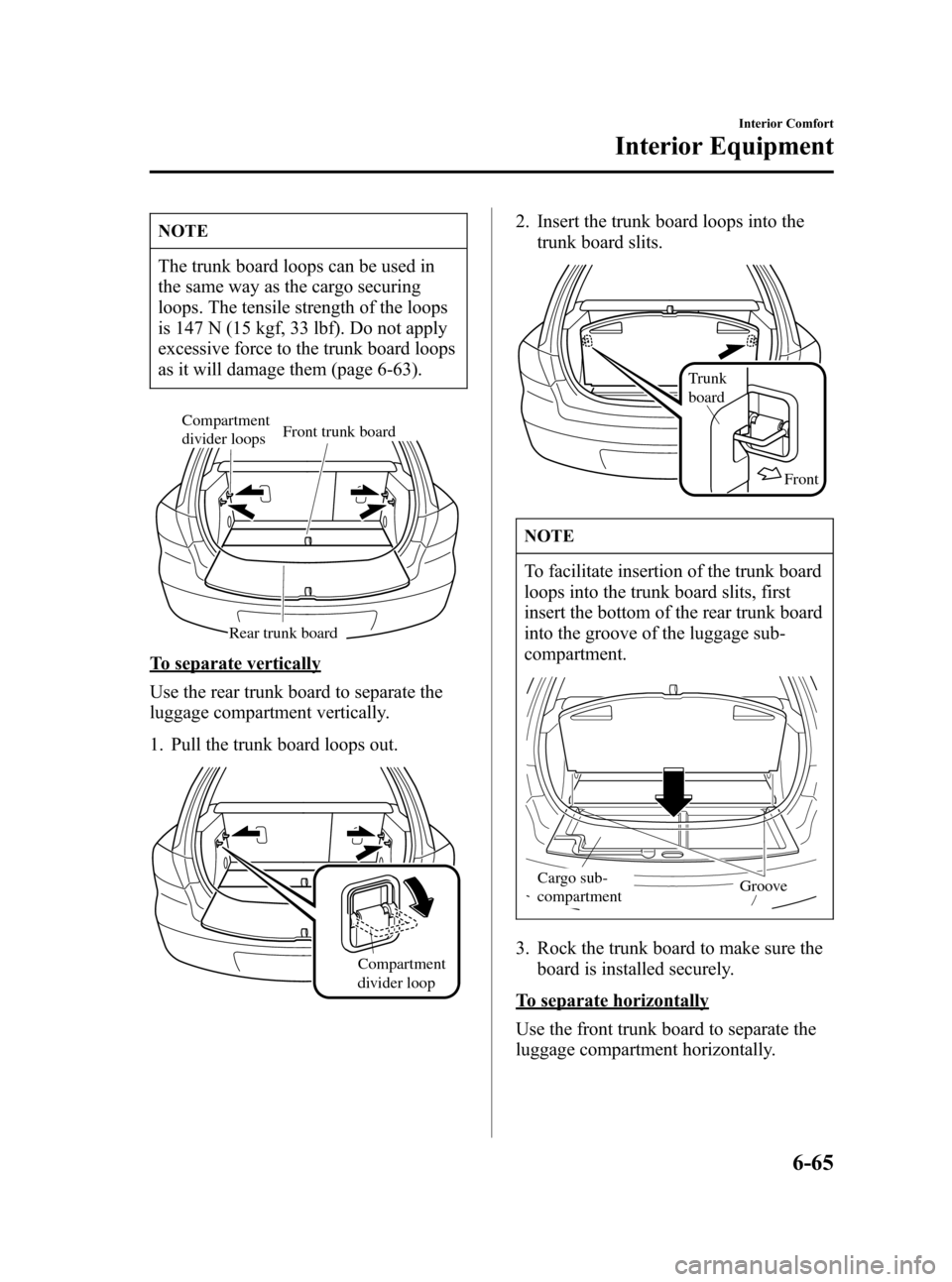

NOTE
The trunk board loops can be used in
the same way as the cargo securing
loops. The tensile strength of the loops
is 147 N (15 kgf, 33 lbf). Do not apply
excessive force to the trunk board loops
as it will damage them (page 6-63).
Compartment
divider loops
Rear trunk boardFront trunk board
To separate vertically
Use the rear trunk board to separate the
luggage compartment vertically.
1. Pull the trunk board loops out.
Compartment
divider loop
2. Insert the trunk board loops into the
trunk board slits.
Front
Trunk
board
NOTE
To facilitate insertion of the trunk board
loops into the trunk board slits, first
insert the bottom of the rear trunk board
into the groove of the luggage sub-
compartment.
GrooveCargo sub-
compartment
3. Rock the trunk board to make sure the
board is installed securely.
To separate horizontally
Use the front trunk board to separate the
luggage compartment horizontally.
Interior Comfort
Interior Equipment
6-65
Mazda3_8V66-EA-06F_Edition3 Page249
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (250,1)
CAUTION
lDo not place heavy objects on the
trunk board or apply excessive force
as they could damage the trunk
board. The permissible weight is
about 5 kg (11 lb).
lDo not use the rear trunk board to
separate the luggage compartment
horizontally. The rear trunk board
cannot be locked to the trunk board
loops and it could move and cause
injury while the vehicle is moving.
1. Pull the trunk board loops out.
Compartment
divider loop
2. Insert the trunk board loop into slit A.
Slit A
3. Insert the other trunk board loop into
slit B until a click sound is heard.
Slit B
4. Rock the trunk board to make sure the
board is installed securely.
CAUTION
Do not place or remove luggage via the
rear passenger seat area while the
vehicle is moving. The trunk board or
luggage could move and cause injury.
6-66
Interior Comfort
Interior Equipment
Mazda3_8V66-EA-06F_Edition3 Page250
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (251,1)
Accessory Socketsí
The ignition switch must be in the ACC
or ON position to prevent the battery from
discharging.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 7 A).
CAUTION
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
lDon't use accessories that require
more than 120 W (DC 12 V, 7 A).
lDon't use accessories that are not
genuine Mazda accessories or the
equivalent.
lClose the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
lCorrectly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery, don't
use the socket for long periods with the
engine off or idling.
When placing an electrical device (e.g.
cellular phone) in the tray which is
connected to the accessory socket, pass
the connection plug cord through the slot
in the cap.
Cap slot, closed
Cap slot, opened
1. Open the lid by pulling the upper
release catch.
2. Remove the tray mat.
3. Using a coin, turn the cap
counterclockwise (about 45° from the
closed position) and remove it.
NOTE
Do NOT discard the cap.
Interior Comfort
Interior Equipment
6-67íSome models. Mazda3_8V66-EA-06F_Edition3 Page251
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (252,1)
4. Open the tray by pulling the lower
release catch.
5. Pass the connection plug cord through
the hole of the tray and insert the plug
in the socket.
Plug
6. Make sure the connection plug cord is
running through the cap slot; reinstall
the cap and turn it clockwise (about
45° to the opened position).
Connection plug
cord
7. Pass the connection plug cord through
the slit in the tray mat and then set the
tray mat in place.
6-68
Interior Comfort
Interior Equipment
Mazda3_8V66-EA-06F_Edition3 Page252
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (253,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-7
Overheating ................................................................................. 7-13
Overheating ............................................................................. 7-13
Emergency Starting .................................................................... 7-15
Starting a Flooded Engine ....................................................... 7-15
Jump-Starting .......................................................................... 7-16
Push-Starting ........................................................................... 7-19
Emergency Towing ..................................................................... 7-20
Towing Description ................................................................. 7-20
Tiedown Hook ........................................................................ 7-21
Recreational Towing ............................................................... 7-22
7-1
Mazda3_8V66-EA-06F_Edition3 Page253
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (254,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8V66-EA-06F_Edition3 Page254
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (255,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Lug wrenchJack handleTiedown eyelet
Jack
Spare tire 4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8V66-EA-06F_Edition3 Page255
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (256,1)
Jack
Jack handle
Spare tire Lug wrench
5 Door
Jack handle
Jack
Spare tire Lug wrenchTiedown eyelet (Type A)
(Type B)
Tiedown eyelet
7-4
In Case of an Emergency
Flat Tire
Mazda3_8V66-EA-06F_Edition3 Page256
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F
