2007 LEXUS LX470 engine

TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors......................................... 3
Wireless remote control ................. 3
Side doors ............................................. 5
Back door .............................................. 9
1-3. Adjustable components ............. 12 Front seats ........................................... 12
Rear seats ............................................ 14
Driving position memory system ................................................ 21
Head restraints................................. 23
Seat belts ............................................ 24
Steering wheel................................. 30
Inside rear view mirror ................... 31
Outside rear view mirrors ........... 32
Roof luggage carrier ..................... 34
1-4. Opening and closing the windows and moon roof .......... 37
Power windows................................ 37
Power quarter windows ............... 40
Moon roof ........................................... 41
1-5. Refueling ........................................ 44 Opening the fuel tank cap ........... 44 1-6. Anti-theft system ......................... 47
Engine immobilizer system ......... 47
Alarm.................................................... 49
Theft prevention labels (U.S.A.) .............................................. 51
1-7. Safety information ....................... 52 Correct driving posture ............... 52
SRS airbags ....................................... 54
Front passenger occupant classification system .................... 67
Child restraint sy stems ................. 72
Installing child restraints ............... 75
2-1. Driving procedures.................... 88 Driving the vehicle ......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever............................. 102
Parking brake ................................. 103
2-2. Instrument cluster ..................... 104 Gauges and meters ..................... 104
Indicators and warning lights................................................. 107
Trip information display ............... 110
1Before driving
2When driving

TABLE OF CONTENTSIndex
iv
3-5. Other interior features............ 221Sun visors.......................................... 221
Vanity mirror .................................. 222
Clock ................................................. 223
Outside temperature display ............................................ 224
Ashtrays ........................................... 225
Cigarette lighter ........................... 227
Power outlet ................................... 228
Seat heaters ................................... 230
Coat hooks ..................................... 232
Armrest ............................................ 233
Floor mats........................................ 234
Luggage compartment features .......................................... 235
Garage door opener .................. 237
Compass........................................... 242
Lexus Link System ....................... 246
4-1. Maintenance and care............ 260 Cleaning and protecting the vehicle exterior ......................... 260
Cleaning and protecting the vehicle interior............................ 262 4-2. Maintenance.............................. 265
Maintenance requirements ..... 265
General maintena nce ................ 267
Emission inspection and maintenance (I/M)
programs ...................................... 270
4-3. Do-it-yourself maintenance ... 271 Do-it-yourself service precautions .................................... 271
Hood.................................................. 275
Engine compartment.................. 276
Tires ................................................... 292
Tire inflation pressure................ 302
Wheels............................................. 306
Air conditioning filter................. 308
Wireless remote control battery ........................................... 309
Checking and replacing fuses ................................................... 311
Light bulbs ...................................... 320
5-1. Essential information .............. 328 If your vehicle needs to be towed............................................. 328
If you think something is wrong ............................................. 333
Fuel pump shut off system ........ 334
Event data recorder ................... 335
4Maintenance and care
5When trouble arises

1
2
3
4
5
6
7
v
5-2. Steps to take in an emergency .............................. 337
If a warning light turns on or a warning buzzer sounds...
............. 337
If you have a flat tire..................... 346
If the engine will not start .......... 357
If the shift lever cannot be shifted from P ............................. 358
If you lose your keys .................... 359
If the battery is discharged ...... 360
If your vehicle overheats ........... 363
If the vehicle becomes stuck................................................ 366
6-1. Specifications............................ 368 Maintenance data ....................... 368
Fuel information ............................ 378
Tire information.............................. 381
6-2. Customization .......................... 389 Customizable features ............. 389
6-3. Initialization ............................... 393 Items to initialize ........................... 393
Reporting safety defects for U.S.A. owners ............................. 396 Alphabetical index................... 398
What to do if............................... 406
6Vehicle specifications
7For US owners
Index

xvii

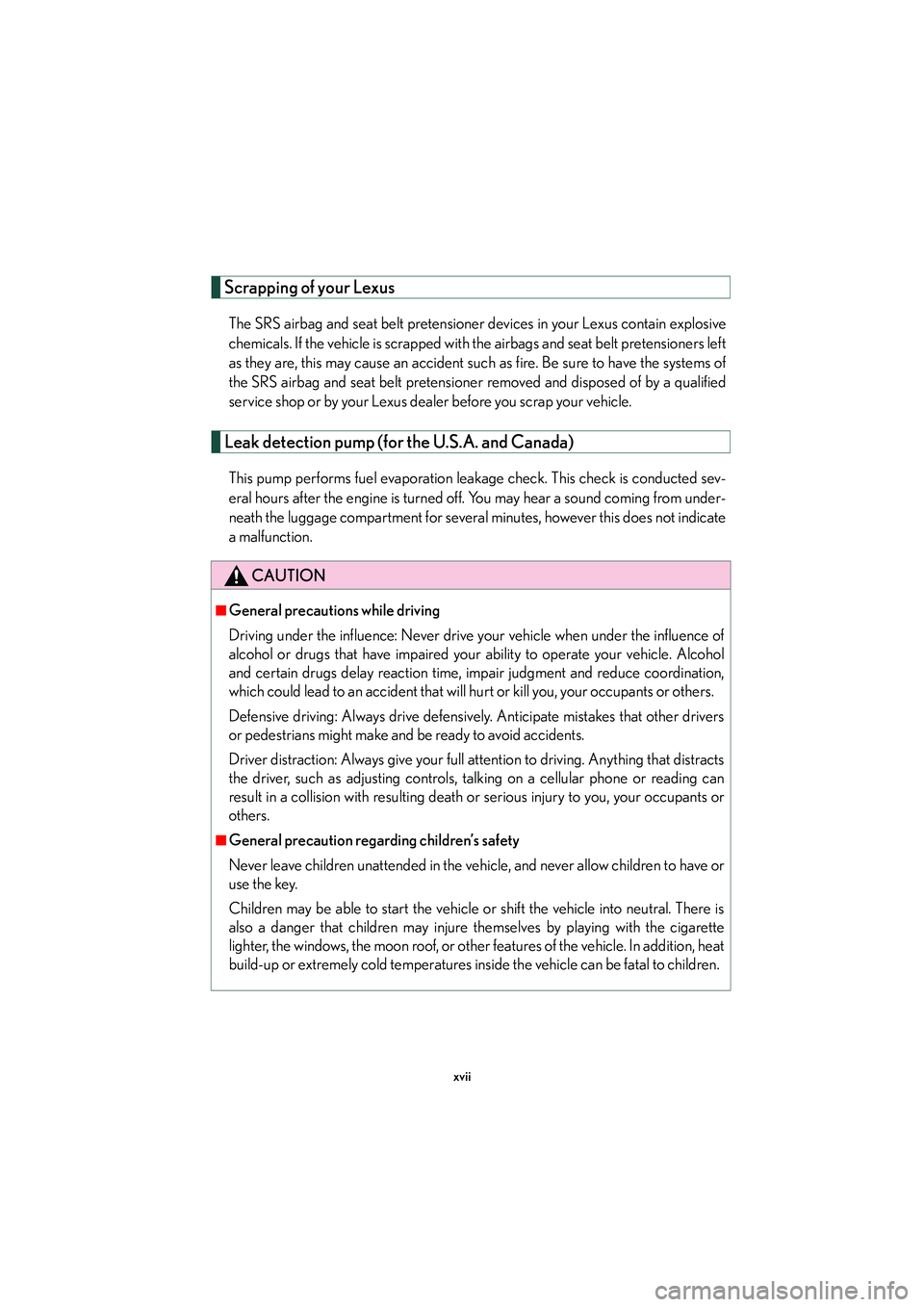

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
Leak detection pump (for the U.S.A. and Canada)
This pump performs fuel evaporation leakage check. This check is conducted sev-
eral hours after the engine is turned off. You may hear a sound coming from under-
neath the luggage compartment for several minutes, however this does not indicate
a malfunction.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or othe r features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Before driving1
1
1-1. Key information ............................ 2Keys....................................................... 2
1-2. Opening, closing and locking the doors ..................................... 3
Wireless remote control............... 3
Side doors .......................................... 5
Back door ........................................... 9
1-3. Adjustable components ........... 12 Front seats ........................................ 12
Rear seats ......................................... 14
Driving position memory system ............................................. 21
Head restraints .............................. 23
Seat belts ......................................... 24
Steering wheel............................... 30
Inside rear view mirror ................ 31
Outside rear view mirrors ........ 32
Roof luggage carrier................... 34 1-4. Opening and closing the
windows and moon roof ....... 37
Power windows ............................. 37
Power quarter windows ............ 40
Moon roof ......................................... 41
1-5. Refueling ..................................... 44 Opening the fuel tank cap ....... 44
1-6. Anti-theft system ...................... 47 Engine immobilizer system ....... 47
Alarm ................................................ 49
Theft prevention labels (U.S.A.) ............................................ 51
1-7. Safety information.................... 52 Correct driving posture ............ 52
SRS airbags .................................... 54
Front passenger occupant classification system.................. 67
Child restraint systems ............... 72
Installing child restraints ............ 75

44
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
Stop the engine and ensure that all the doors and windows are
closed.
■ Opening the fuel tank cap
Pull the lever.
Turn the fuel tank cap slowly to
open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3

47
1
Before driving
1-6. Anti-theft system
Engine immobilizer system
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■Certifications for the engine immobilizer system For vehicles sold in the U.S.A.
FCC ID: MOZRI-20BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For vehicles sold in Canada
This device complies with RSS-210 of Indu stry Canada. Operation is subject to the
following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, incl uding interference that may cause undes-
ired operation of the device.
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
The indicator light flashes after
the key has been removed from
the ignition switch to indicate
that the system is operating.

48
1-6. Anti-theft system
CAUTION
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■For proper system operation
Do not modify, remove or disable the engine immobilizer system. If any unautho-
rized changes or modifications are made, the proper operation of the system can-
not be guaranteed.
