2007 LEXUS LX470 engine

291
4-3. Do-it-yourself maintenance
4
Maintenance and care
Washer fluidIf any washer does not work or the
low washer fluid warning light
come on the washer tank may be
empty. Add washer fluid.
NOTICE
■When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accesso-
ries are turned off.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.

311
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the ignition key to the “LOCK” position.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Push the tab in and lift the lid off.STEP1
STEP2

314
4-3. Do-it-yourself maintenance

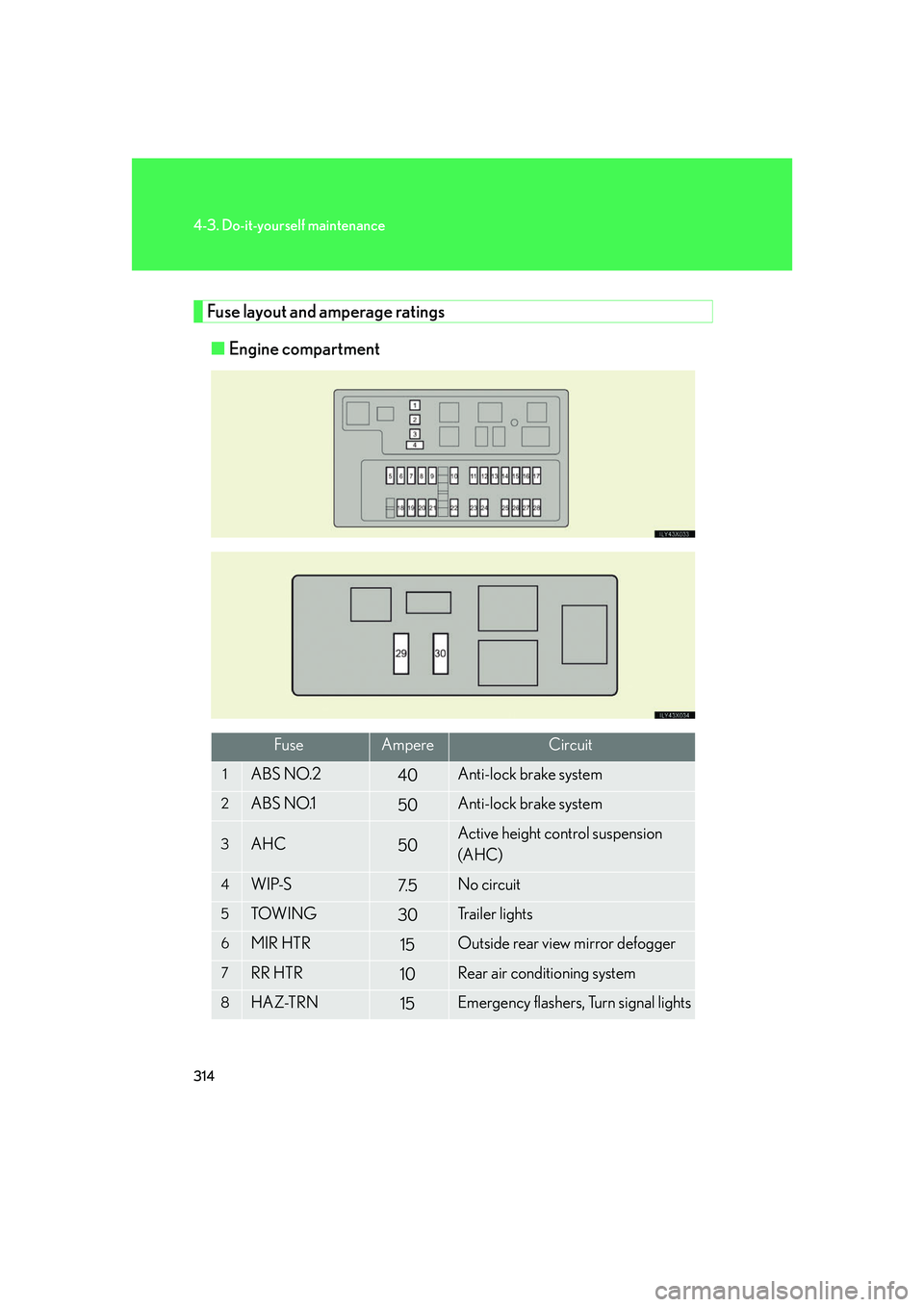

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1ABS NO.240Anti-lock brake system
2ABS NO.150Anti-lock brake system
3AHC50Active height control suspension
(AHC)
4WIP-S7. 5No circuit
5TOW I N G30Trailer lights
6MIR HTR15Outside rear view mirror defogger
7RR HTR10Rear air conditioning system
8HAZ-TRN15Emergency flashers, Turn signal lights

When trouble arises5
327
5-1. Essential information............ 328If your vehicle needs to be towed .......................................... 328
If you think something is wrong .......................................... 333
Fuel pump shut off system ..... 334
Event data recorder ................. 335
5-2. Steps to take in an emergency............................ 337
If a warning light turns on or a warning buzzer sounds...
......... 337
If you have a flat tire.................. 346
If the engine will not start ....... 357
If the shift lever cannot be shifted from P........................... 358
If you lose your keys ................. 359
If the battery is discharged .... 360
If your vehicle overheats ........ 363
If the vehicle becomes stuck ............................................ 366

328
5-1. Essential information
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
hook. This should only attempted on hard, surfaced roads for short dis-
tances at low speeds.
A driver must be in the vehicle to s teer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion.
Towing hook
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towi ng, and abide by all state/provincial
and local laws.
Use a towing dolly or flat bed truck.

5
When trouble arises
329
5-1. Essential information
■Emergency towing procedureThe ignition key must be in the “ACC” or the “ON” (engine running) posi-
tion.
Put the four-wheel drive control lever in “H”. (The center differential is
unlocked.)
Put the vehicle height in the “N” mode and push the height control switch
to turn off the AHC.
Put the shift lever in “N”.
Release the parking brake.
CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing hook and the cable or chain.
●If the engine is not running, the power assi st for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle wheels on the ground.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
333
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temper ature gauge needle continually points
higher than normal
● Engine oil pressure gauge continually points lower than normal
● Voltmeter continually points higher or lower than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

334
5-1. Essential information
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.
Turn the ignition key to the “ACC” to “LOCK” position.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to th e ground, the fuel system has been damaged
and it is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2
