TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors......................................... 3
Wireless remote control ................. 3
Side doors ............................................. 5
Back door .............................................. 9
1-3. Adjustable components ............. 12 Front seats ........................................... 12
Rear seats ............................................ 14
Driving position memory system ................................................ 21
Head restraints................................. 23
Seat belts ............................................ 24
Steering wheel................................. 30
Inside rear view mirror ................... 31
Outside rear view mirrors ........... 32
Roof luggage carrier ..................... 34
1-4. Opening and closing the windows and moon roof .......... 37
Power windows................................ 37
Power quarter windows ............... 40
Moon roof ........................................... 41
1-5. Refueling ........................................ 44 Opening the fuel tank cap ........... 44 1-6. Anti-theft system ......................... 47
Engine immobilizer system ......... 47
Alarm.................................................... 49
Theft prevention labels (U.S.A.) .............................................. 51
1-7. Safety information ....................... 52 Correct driving posture ............... 52
SRS airbags ....................................... 54
Front passenger occupant classification system .................... 67
Child restraint sy stems ................. 72
Installing child restraints ............... 75
2-1. Driving procedures.................... 88 Driving the vehicle ......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever............................. 102
Parking brake ................................. 103
2-2. Instrument cluster ..................... 104 Gauges and meters ..................... 104
Indicators and warning lights................................................. 107
Trip information display ............... 110
1Before driving
2When driving

1
2
3
4
5
6
7
v
5-2. Steps to take in an emergency .............................. 337
If a warning light turns on or a warning buzzer sounds...
............. 337
If you have a flat tire..................... 346
If the engine will not start .......... 357
If the shift lever cannot be shifted from P ............................. 358
If you lose your keys .................... 359
If the battery is discharged ...... 360
If your vehicle overheats ........... 363
If the vehicle becomes stuck................................................ 366
6-1. Specifications............................ 368 Maintenance data ....................... 368
Fuel information ............................ 378
Tire information.............................. 381
6-2. Customization .......................... 389 Customizable features ............. 389
6-3. Initialization ............................... 393 Items to initialize ........................... 393
Reporting safety defects for U.S.A. owners ............................. 396 Alphabetical index................... 398
What to do if............................... 406
6Vehicle specifications
7For US owners
Index

55
1-7. Safety information
1
Before driving
Airbag system componentsYour vehicle is equipped with AD VANCED AIRBAGS designed based
on US motor vehicle sa fety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consists of the driver seat’s position sensor etc. The
front passenger’s airbag system con sists of the front passenger occupant
classification sensor etc.
The main SRS airbag system componen ts are shown above. The SRS air-
bag system is controlled by the airb ag sensor assembly. The airbag sen-
sor assembly consists of a safing sensor and an airbag sensor.
Front passenger airbag
Airbag sensor assembly
Front passenger occupant
classification indicator light
Occupant detection sensor
SRS warning light
Driver airbag
Front passenger’s seat belt
buckle switch
Driver's seat belt buckle switch
Driver's seat position sensor
Front airbag sensor
Curtain shield airbag
Side airbag
Curtain shield airbag sensor
Side and curtain shield airbag
sensor

67
1
1-7. Safety information
Before driving
Front passenger occupant classification system
Condition and operation in the front passenger occupant classification system
■Adult*1
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.
SRS warning light
AIRBAG OFF indicator light
AIRBAG ON indicator light
Front passenger’s seat belt reminder light
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights ON
SRS warning light Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Activated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger’s seat belt pretensioner

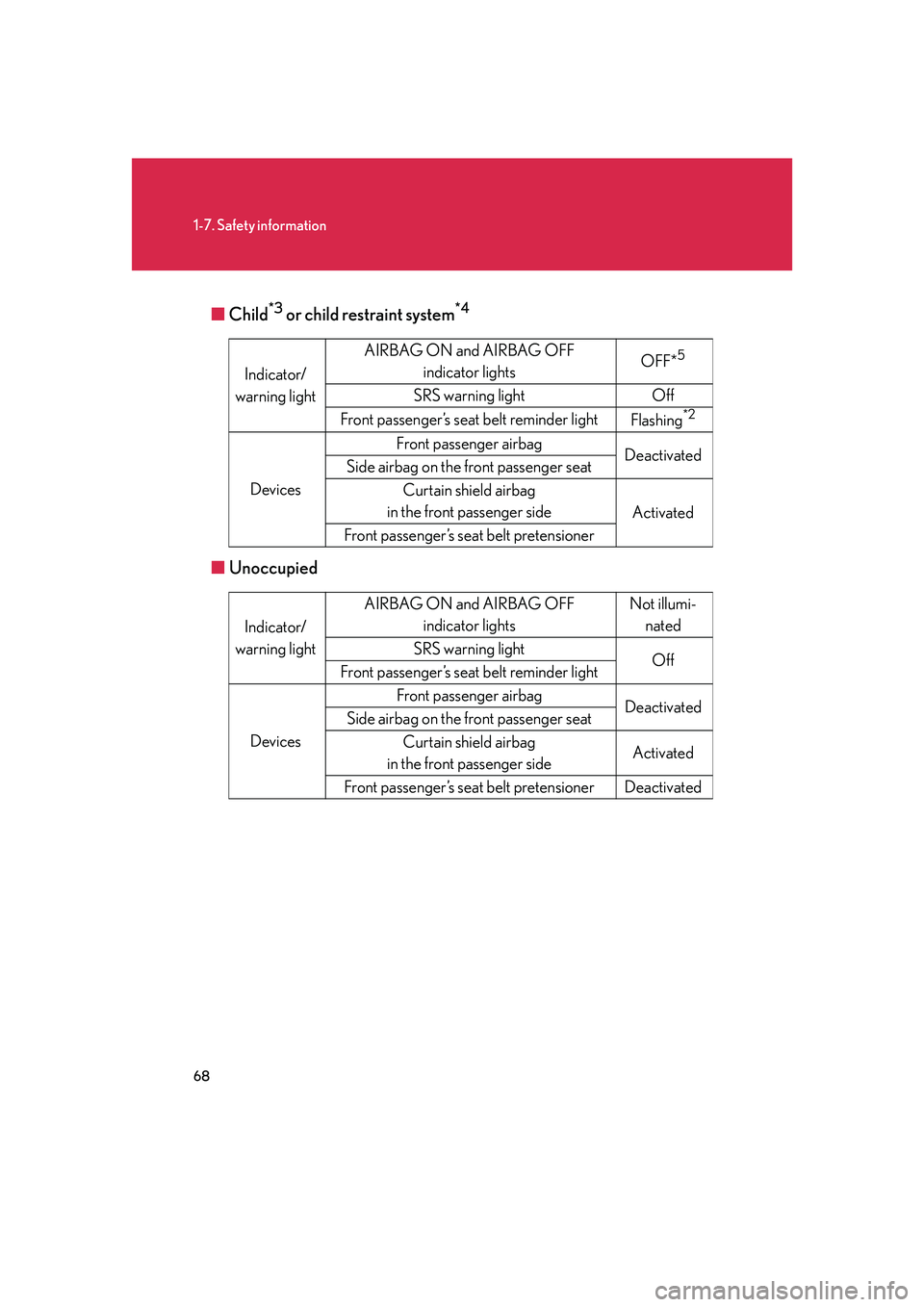

68
1-7. Safety information
■Child*3 or child restraint system*4
■Unoccupied
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights OFF*
5
SRS warning light
Off
Front passenger’s seat belt reminder light Flashing
*2
DevicesFront passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side Activated
Front passenger’s seat belt pretensioner
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights Not illumi-
nated
SRS warning light Off
Front passenger’s seat belt reminder light
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side Activated
Front passenger’s seat belt pretensioner Deactivated

69
1-7. Safety information
1
Before driving
■There is a malfunction in the system
*1: The system judges a person of adul t size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
*2: In the event the front passenger does not wear a seat belt.
*3: When a larger child who has outgr own a child restraint system sits in
the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique or posture.
*4: Never install a real-facing child restraint system on the front passen- ger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
( P. 7 2 )
*5: In case indicator is not illuminated , consult this manual as for installing
the child restraint system properly. ( P. 7 5 )
Indicator/
warning light AIRBAG ON and AIRBAG OFF
indicator lights OFF
SRS warning light On
Front passenger’s seat belt reminder light Off
Devices Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag
in the front passenger side Activated
Front passenger’s seat belt pretensioner

71
1-7. Safety information
1
Before driving
CAUTION
■Front passenger occupant classification system precautions
●If an adult sits in the front passenger se at, the AIRBAG ON indicator light is illu-
iminated. If the AIRBAG OFF indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn cor-
rectly. If the AIRBAG OFF indicator still remain illuminated, either ask the pas-
senger to move to the second seat, or if that is not possible, move the front
passenger seat fully rearward.
●When it is unavoidable to install the forw ard-facing child restraint system on the
front passenger seat, install the child rest raint system on the front passenger seat
in the proper order. ( P. 7 5 )
●Do not remove the front seat.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to in dicate a malfunction on the detection
system. In this case, contact your Lexus dealer immediately.
●Child restraint systems installed on the second seat should not contact the front
seat backs.

When driving2
87
2-1. Driving procedures ................. 88Driving the vehicle ...................... 88
Starting the engine ...................... 95
Automatic transmission ............. 98
Turn signal lever .......................... 102
Parking brake ............................... 103
2-2. Instrument cluster................... 104 Gauges and meters .................. 104
Indicators and warning lights.............................................. 107
Trip information display............. 110
2-3. Operating the lights and windshield wipers .................. 112
Headlight switch ........................... 112
Fog light switch.............................. 114
Windshield wipers and washer............................................ 115
Rear window wiper and washer........................................... 118
Headlight cleaner switch .......... 119 2-4. Using other driving
systems .................................... 120
Cruise control ............................. 120
Rear view monitor system ...... 123
Lexus night view system ........... 126
AHC (Active Height Control Suspension) ............................... 130
AVS (Adaptive Variable Suspension) ............................... 138
Four-wheel drive system ......... 139
Driving assist systems................ 142
2-5. Driving information................ 146 Off-road precautions ............... 146
Cargo and luggage..................... 151
Vehicle load limits ...................... 155
Winter driving tips ..................... 156
Trailer towing................................ 160
Dinghy towing .............................. 170
