2007 Lexus GX470 Using other driving systems /

29
1-3. Adjustable components
1
Before driving
Third center seat belt (vehicles with third seats)The third center seat belt is a 3-point type restraint with 2 buckles. Both
seat belt buckles must be correctly located and securely latched for
proper operation. Make sure that the buckle with the
light gray buckle release button is
securely latched for ready use of
the center seat belt.
■Adjusting the height of the belt (front and second outboard seats)
Up
Down
Move the height adjuster up and
down as needed until you hear a
click.

30
1-3. Adjustable components
■Release method
The belt can be completely released when not required, such as when
removing the third seat.
To release the hooked tab, insert
the vehicle's key into the hole on
the buckle with the light gray
buckle release button.
Stow the seat belt tabs in the cover
set in the roof as shown.
■ Extracting the belt
Pull the belt out partially, then remove the tabs from the cover.
STEP1
STEP2

31
1-3. Adjustable components
1
Before driving
Seat belt pretensioners (front seats)The pretensioner helps the seat
belt to quickly restrain the occu-
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli-
sion.
The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudd en stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend, and
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. ( P. 8 1 )

32
1-3. Adjustable components
■Pregnant women
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 2 8 )
■Child seat belt usage
The seat belts of your vehi cle were principally designed for persons of adult size.
●Use a child restraint system appropriately for the child, until the child becomes
large enough to properly wear the vehicle's seat belt. ( P. 74 )
●When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 28 regarding seat belt usage.
■Replacing the belt after the pretensioner has been activated
The seat belts cannot be used if a preten sioner has activated. After an accident,
have your Lexus dealer inspect the pretensioners and replace them, if necessary.
■Seat belt extender
Obtain medical advice and wear the seat belt
in the proper way. ( P. 2 8 )
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul-
der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suf-
fer death or serious injury as a result of sud-
den braking or a collision.
If your seat belts cann ot be fastened securely
because they are not long enough, a person-
alized seat belt extender is available from
your Lexus dealer free of charge.

33
1-3. Adjustable components
1
Before driving
CAUTION
■Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of sud-
den braking or an accident. Failing to do so may cause death or serious injury.
●Ensure that all passengers wear a seat belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at the same time, including children.
●Children should be seated in the rear seat and always use a seat belt and/or an
appropriate child restraint system.
●Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seat belt low and snug across your hips.
■Seat belt damage and wear
●Do not damage the seat belts by allowing the belt, plate or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from injury.
●Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt
does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, including the belt s, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
●Do not attempt to install, remove, modify , disassemble or dispose of a seat belt.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate han-
dling of the pretensioner may cause it to activate or operate improperly and may
cause death or serious injury.

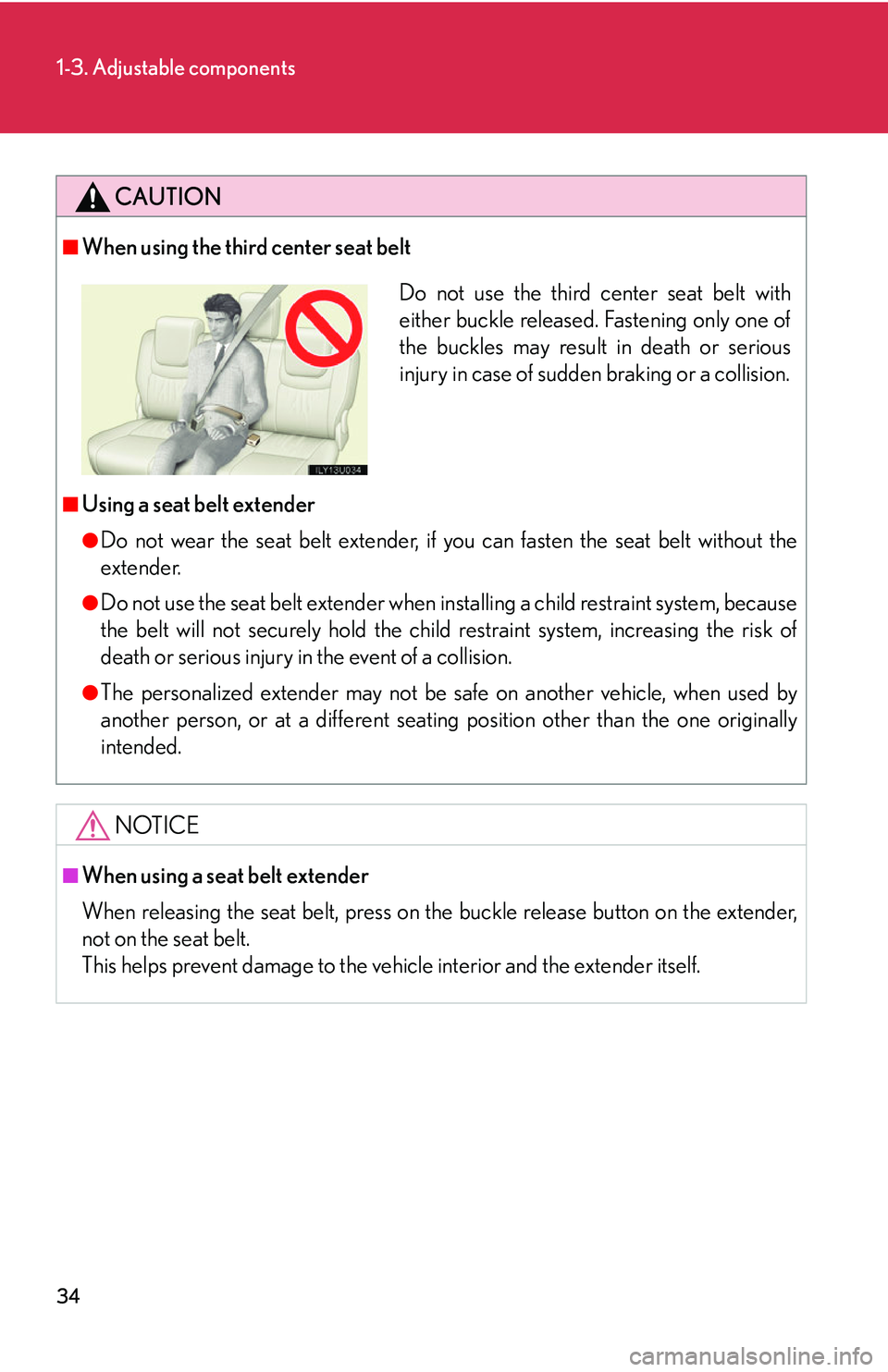

34
1-3. Adjustable components
CAUTION
■When using the third center seat belt
■Using a seat belt extender
●Do not wear the seat belt extender, if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when in stalling a child restraint system, because
the belt will not securely hold the chil d restraint system, increasing the risk of
death or serious injury in the event of a collision.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehi cle interior and the extender itself.
Do not use the third center seat belt with
either buckle released. Fastening only one of
the buckles may result in death or serious
injury in case of sudden braking or a collision.

35
1
1-3. Adjustable components
Before driving
Steering wheel
Auto tilt away and auto returnWhen the ignition key is removed,
the steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
When the key is inserted in the
ignition switch, the steering wheel
will return to the original position.
The steering wheel can be adjusted to a comfortable position while the
ignition switch is in the “ACC” or “ON” position.
Up
Down
Toward the driver
Away from the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and may lead to an acci-
dent, resulting in death or serious injury.

36
1-3. Adjustable components
Inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and may cause an accident, result-
ing in death or serious injury.
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically re duces the reflected light.
Press the switch to turn auto
mode on/off.
The indicator comes on when
auto mode is turned ON.
The anti-glare mirror is auto-
matically set to auto mode
whenever the ignition switch is
turned to the “ON” position.
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
