2007 Lexus GX470 Using other driving systems /

317
4-3. Do-it-yourself maintenance
4
Maintenance and care

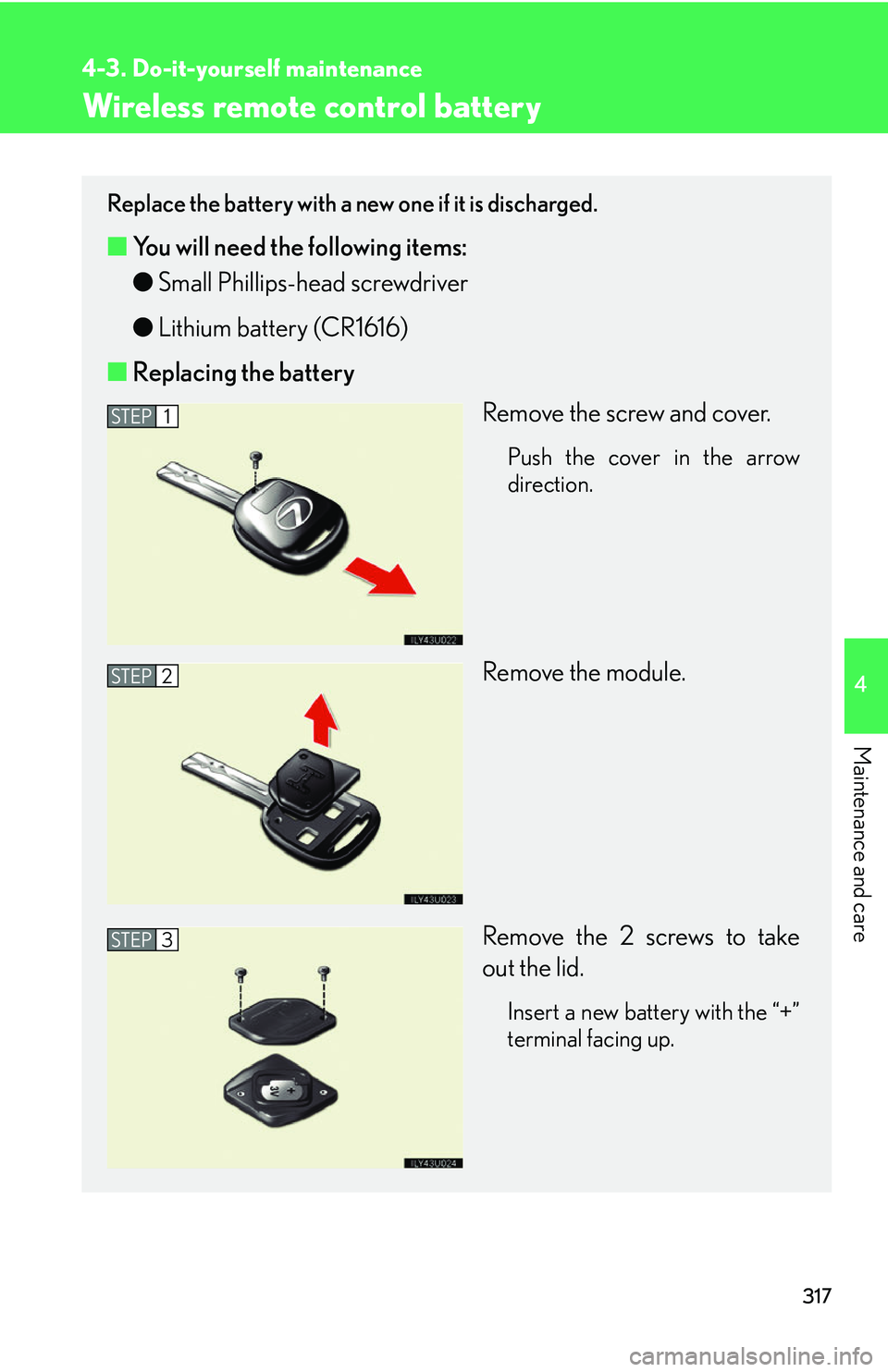

Wireless remote control battery
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Small Phillips-head sc rewdriver
● Lithium battery (CR1616)
■ Replacing the battery
Remove the screw and cover.
Push the cover in the arrow
direction.
Remove the module.
Remove the 2 screws to take
out the lid.
Insert a new battery with the “+”
terminal facing up.
STEP1
STEP2
STEP3

318
4-3. Do-it-yourself maintenance
■If the battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
●The operational range is reduced.
■Use a CR1616 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the electronic key.
●Do not bend the battery terminals.

319
4-3. Do-it-yourself maintenance
4
Maintenance and care

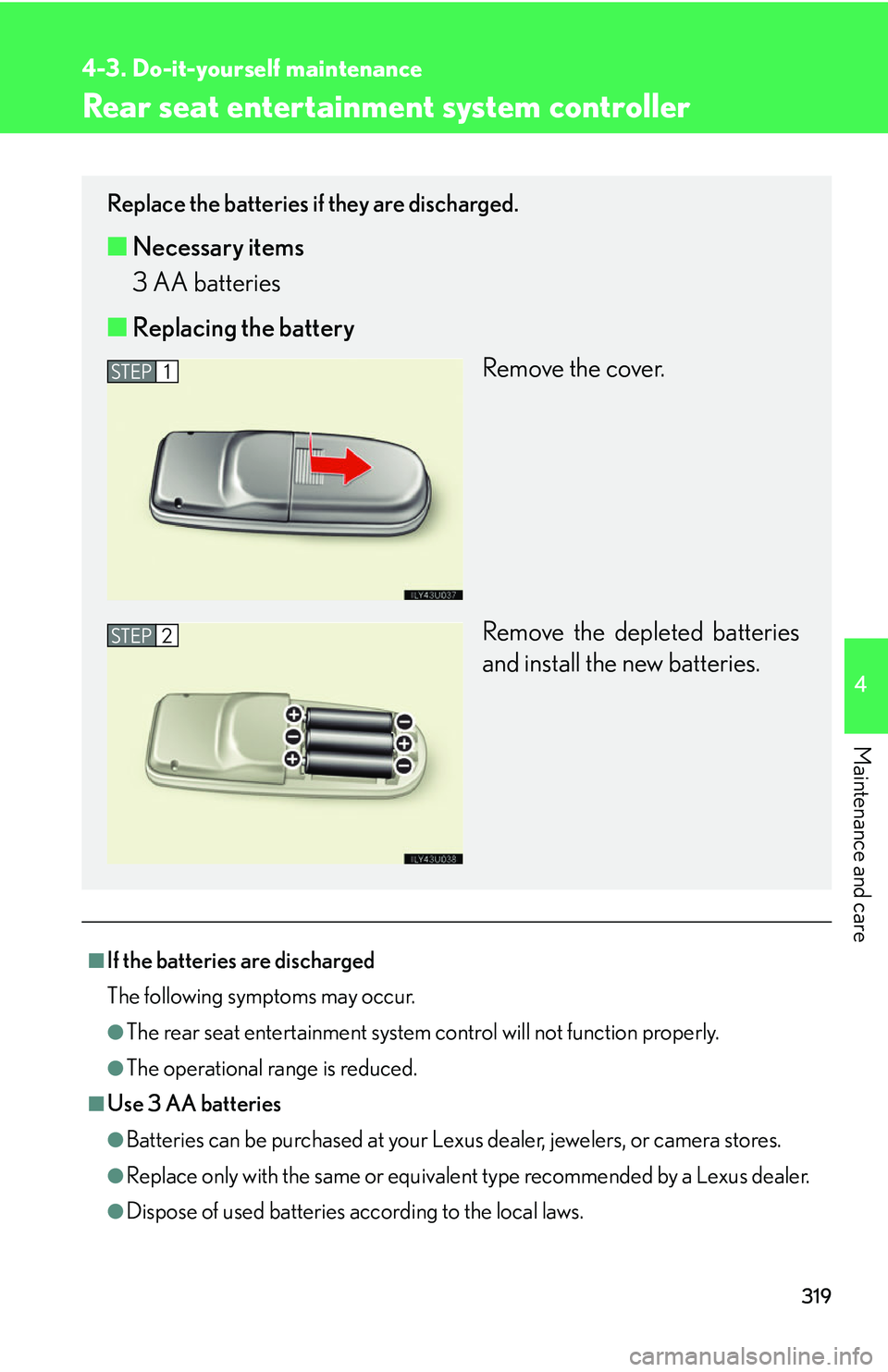

Rear seat entertainment system controller
■If the batteries are discharged
The following symptoms may occur.
●The rear seat entertainment system control will not function properly.
●The operational range is reduced.
■Use 3 AA batteries
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
Replace the batteries if they are discharged.
■Necessary items
3 AA batteries
■ Replacing the battery
Remove the cover.
Remove the depleted batteries
and install the new batteries.
STEP1
STEP2

320
4-3. Do-it-yourself maintenance
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend the battery terminals.

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the ignition switch to the “LOCK” position.
Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
Driver's side instrument panel Remove the lid.STEP1
STEP2

322
4-3. Do-it-yourself maintenance
After a system failure, see “Fuse layout and amperage ratings”
(P. 323) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP3
STEP4
STEP5

323
4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1ALT140
Charging system, AM1, HEATER,
CDS FAN, FR FOG, DEFOG, AIR
SUS, AC INV, SEAT HEATER, OBD,
STOP, J/B, RR AC, MIR HEATER,
BATT CHG, TOWING BRK, TOW-
ING
2HEATER50Air conditioning system
3AIR SUS50Rear height control air suspension
4AM150
ACC, CIG, IG1, FR WIP-WSH, RR
WIP, RR WSH, DIFF, ECU-IG,
TEMS, STA
5TOWING BRK30Trailer brake controller
6J/B50
P FR P/W, P RR P/W, D RR P/W, D
P/ S E AT, P P/ S E AT, TA I L , PA N E L ,
POWER OR TI&TE
7BATT CHG30Trailer sub battery

324
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
8TOW I N G40Trailer lights
9CDS FAN20Electric cooling fan
10RR A/C30Rear air conditioning system
11MIR HEATER10Outside rear view mirror defogger
12STOP10
Stop lights, high mounted stoplight,
shift lock control system, vehicle sta-
bility control system, electronic mod-
ulated suspension, rear height control
air suspension, multiport fuel injec-
tion system/sequential multiport fuel
injection system
13AC INV15Power outlet (115V AC)
14FR FOG15Front fog lights
15OBD7. 5On-board diagnosis system
16HEAD (LO RH)10Right hand headlight (low beam)
17HEAD (LO LH)10Left hand headlight (low beam)
18HEAD (HI RH)10Right hand headlight (high beam)
19HEAD (HI LH)10Left hand headlight (high beam)
20EFI NO.210
Multiport fuel injection system/
sequential multiport fuel injection
system
21HEATER No.27. 5Air conditioning system
22DEFOG30Rear window defogger
23AIRSUS NO.210Rear height control air suspension
24S E AT H E AT E R20Seat heaters
