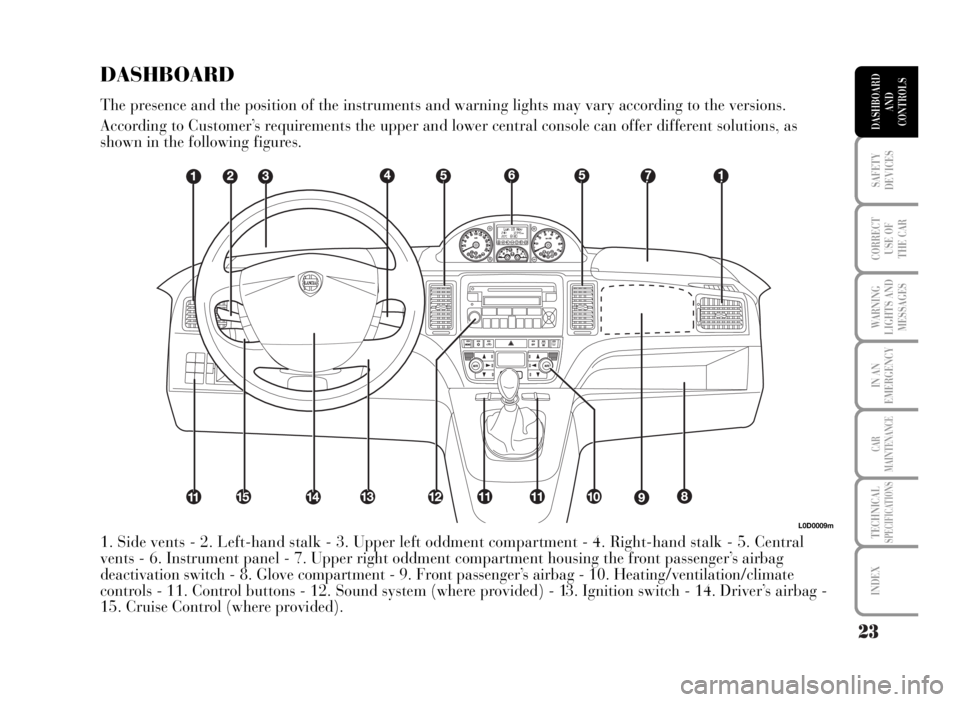

1. Side vents - 2. Left-hand stalk - 3. Upper left oddment compartment - 4. Right-hand stalk - 5. Central
vents - 6. Instrument panel - 7. Upper right oddment compartment housing the front passenger’s airbag
deactivation switch - 8. Glove compartment - 9. Front passenger’s airbag - 10. Heating/ventilation/climate
controls - 11. Control buttons - 12. Sound system (where provided) - 13. Ignition switch - 14. Driver’s airbag -
15. Cruise Control (where provided).
DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
According to Customer’s requirements the upper and lower central console can offer different solutions, as
shown in the following figures.

24
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
Upper central console:
❒with fixed oddment compartment A and removable oddment
compartment (DIN) B for sound system installation;
❒with sound system upon request.
L0D0231m
L0D0232m
❒with Connect Nav +
L0D0359m

Lower central console:
❒with manual climate control system B;
25
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
❒with automatic two-zone climate control system C.
L0D0234m
L0D0235m

26
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
INSTRUMENT PANEL
Modal
A – Speedometer
B – Fuel gauge with
reserve warning light
C – Engine coolant temperature
gauge with high
temperature warning light
D – Rev counter
E – Multifunction display
cmWarning lights fitted on Multijet ver-
sions only
Comfort
A – Speedometer
B – Fuel gauge with
reserve warning light
C – Engine coolant temperature
gauge with high
temperature warning light
D – Rev counter
E – Reconfigurable multifunction
display
cmWarning lights fitted on Multijet ver-
sions onlyL0D0010m
L0D0372m

INSTRUMENTS
SPEEDOMETER
Speed indicator.
REV. COUNTER
Engine rpm indicator.
IMPORTANT The electronic injection control system gradually shuts
off the flow of fuel when the engine is “over-revving” resulting in a
gradual loss of engine power.
When the engine is idling, the rev counter may indicate a gradual or
sudden highering of the speed.
This is normal as it takes place during normal operation, for example
when activating the climate control system or the fan. In particular a
slow change in the speed preserves the battery charge.
FUEL LEVEL GAUGE
This shows the amount of fuel left in the fuel tank (see the indications
given in paragraph “At the filling station").
The reserve warning light A turns on to indicate that approx.
6 litres of fuel are left in the tank.
Do not travel with the fuel tank almost empty: the gaps in fuel
delivery could damage the catalyst.
27
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0022m
L0D0023m
L0D0241m

ENGINE COOLANT TEMPERATURE GAUGE
The turning on of the warning light A indicates that the coolant fluid
temperature is too high; in this case, stop the engine and contact a
Lancia Dealership.
This shows the temperature of the engine coolant fluid and begins
working when the fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle should hover around the middle
of the scale according to the working conditions.
IMPORTANT If the needle reaches the low temperature area with
warning light A on, this means that there is a failure. Contact a
Lancia Dealership.
28
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
If the needle reaches the red area, stop the engine immediately and contact a Lancia Dealership.
L0D0024m

MULTIFUNCTION DISPLAY
(On two-line mode panel)
The “Multifunction display” shows all the useful information
necessary when driving, more particularly:
INFORMATION ON STANDARD SCREEN
❒Mileage recorder (A);
❒Clock (B);
❒Headlight aiming position display (C) (with dipped beam
headlights on).
With ignition key removed and front doors closed the display is off.
With ignition key removed, when opening one of the front doors the
display comes on showing the clock and the total km covered.
If the “Follow me home” function is on (see paragraph “Follow me
home” in this section), the display will show the time the function is
on instead of the mileage recorder indication (see figure).
INFORMATION ABOUT CAR CONDITIONS
❒Trip computer information;
❒Inertial switch operation (at event);
❒Speed limit exceeded (at event).
29
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND
CONTROLS
L0D0028m
L0D0027m

DISPLAY CONTROL BUTTONS
To use the information the “Multifunction display” is able to give, you
should firstly familiarise with the control buttons using them as
described below.
Before doing anything you are advised to read this section thoroughly.
MODE button
To scroll the display and the related options upwards/downwards.
Press for less than 2 seconds (pulse) to confirm the option required
and/or move to the main screen (same option) or access the Menu.
Press for more than 2 seconds to exit the set-up menu and to confirm
selected options.
+ and – buttons
To increase (+) or to decrease (–) the displayed value or to change
displayed values (see next pages).
TRIP button
Press for less than 2 seconds (pulse) to scroll the Trip computer
screens.
Press for more than 2 seconds to reset the Trip computer and start a
new mission.
IMPORTANT When in set-up menu, to display the Trip computer
info you have first to quit the set-up menu, then use the Trip button
to display the Trip computer info.
