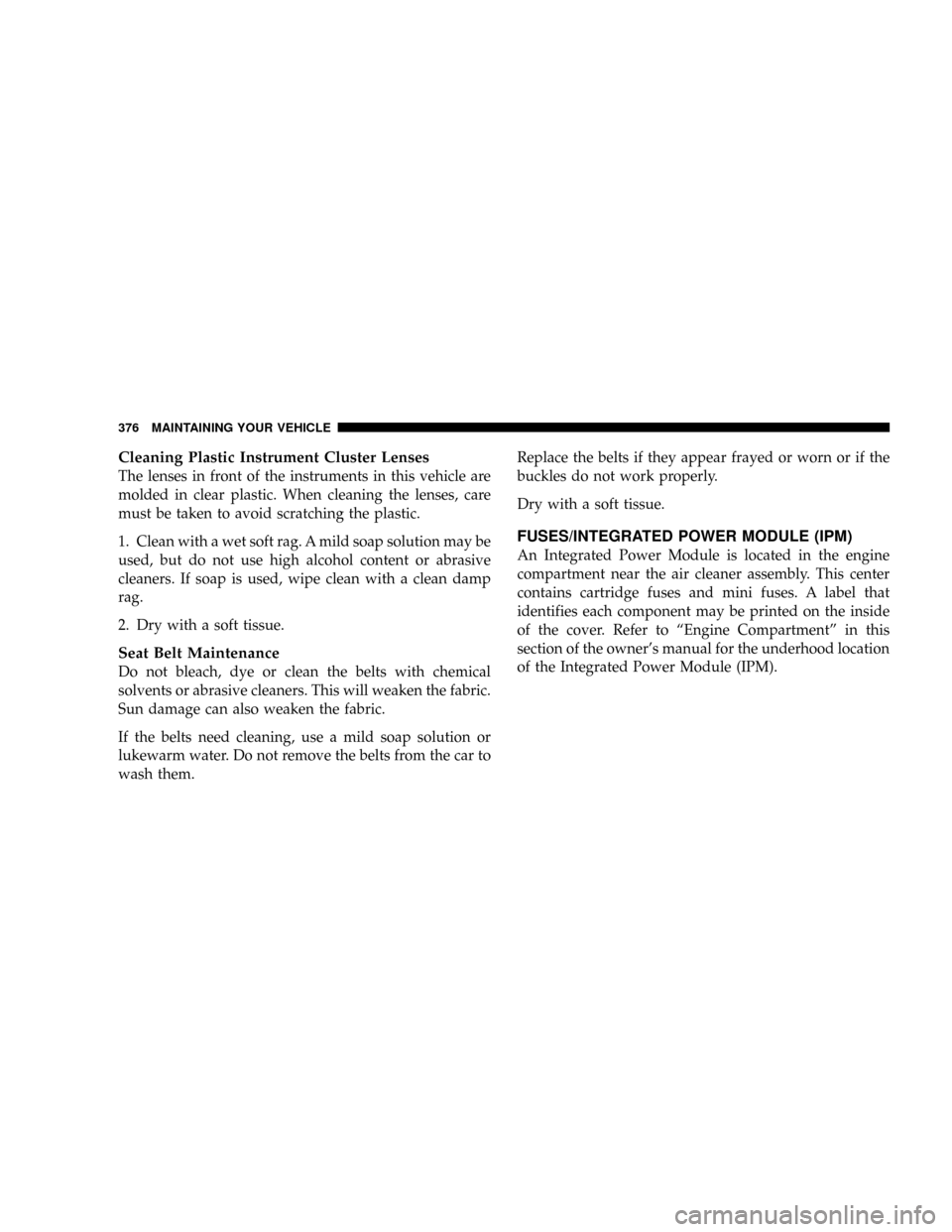

Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.
If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Dry with a soft tissue.
FUSES/INTEGRATED POWER MODULE (IPM)
An Integrated Power Module is located in the engine
compartment near the air cleaner assembly. This center
contains cartridge fuses and mini fuses. A label that
identifies each component may be printed on the inside
of the cover. Refer to ªEngine Compartmentº in this
section of the owner's manual for the underhood location
of the Integrated Power Module (IPM).
376 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini
FuseDescription
1 Empty Empty
2 15 Amp
Lt. BlueAWD/4WD ECU
Feed
3 10 Amp
RedCHMSL Brake Switch
Feed
4 10 Amp
RedIgnition Switch Feed
5 20 Amp
YellowTrailer Tow
6 10 Amp
RedIOD Sw/Pwr Mir/
Ocm Steering Cntrl
Sdar/Hands Free
Phone
7 30 Amp
GreenIOD Sense1
8 30 Amp
GreenIOD Sense2Cavity Cartridge
FuseMini
FuseDescription
9 40 Amp
GreenPower Seats
10 20 Amp
YellowCCN Power Locks
11 15 Amp
Lt BluePower Outlet
12 20 Amp
YellowIgn Run/Acc Inverter
13 20 Amp
YellowPwr run/Acc Outlet
RR
14 10 Amp
RedIOD CCN/ Interior
Lighting
15 40 Amp
GreenRAD Fan Relay Bat-
tery Feed
16 15 Amp
Lt. BlueIGN Run/Acc Cigar
Ltr/Sunroof
MAINTAINING YOUR VEHICLE 377
7

Cavity Cartridge
FuseMini
FuseDescription
17 10 Amp
RedIOD Feed Mod-Wcm
18 40 Amp
GreenASD Relay Contact
PWR Feed
19 20 Amp
YellowPWR Amp 1 & Amp
2 Feed
20 15 Amp
Lt. BlueIOD Feed Radio
21 10 Amp
RedIOD Feed Intrus
Mod/Siren
22 10 Amp
RedIGN RUN Heat/AC/
Compass Sensor
23 15 Amp
Lt. BlueENG ASD Relay Feed
3
24 15 Amp
Lt. BluePower Sunroof FeedCavity Cartridge
FuseMini
FuseDescription
25 10 Amp
RedHeated Mirror
26 15 Amp
Lt. BlueENG ASD Relay Feed
2
27 10 Amp
RedIGN RUN Only ORC
Feed
28 10 Amp
RedIGN RUN ORC/OCM
Feed
29 Hot Car (No Fuse Re-
quired)
30 20 Amp
YellowHeated Seats
31 10 Amp
RedHeadlamp Washer
Relay Control
32 30 Amp
PinkENG ASD Control
Feed 1
378 MAINTAINING YOUR VEHICLE

Cavity Cartridge
FuseMini
FuseDescription

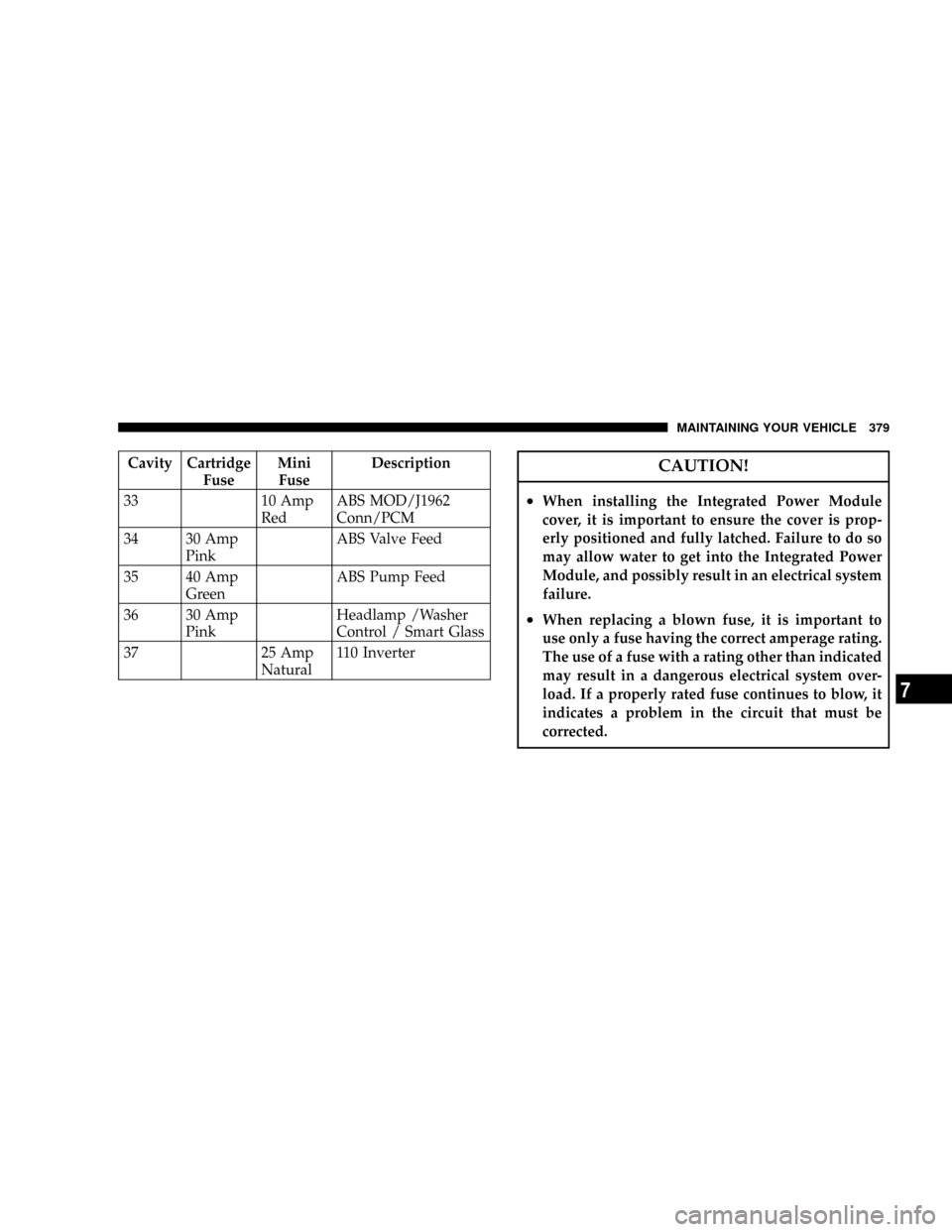

33 10 Amp
RedABS MOD/J1962
Conn/PCM
34 30 Amp
PinkABS Valve Feed
35 40 Amp
GreenABS Pump Feed
36 30 Amp
PinkHeadlamp /Washer
Control / Smart Glass
37 25 Amp
Natural110 InverterCAUTION!
²When installing the Integrated Power Module
cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
²When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
MAINTAINING YOUR VEHICLE 379
7

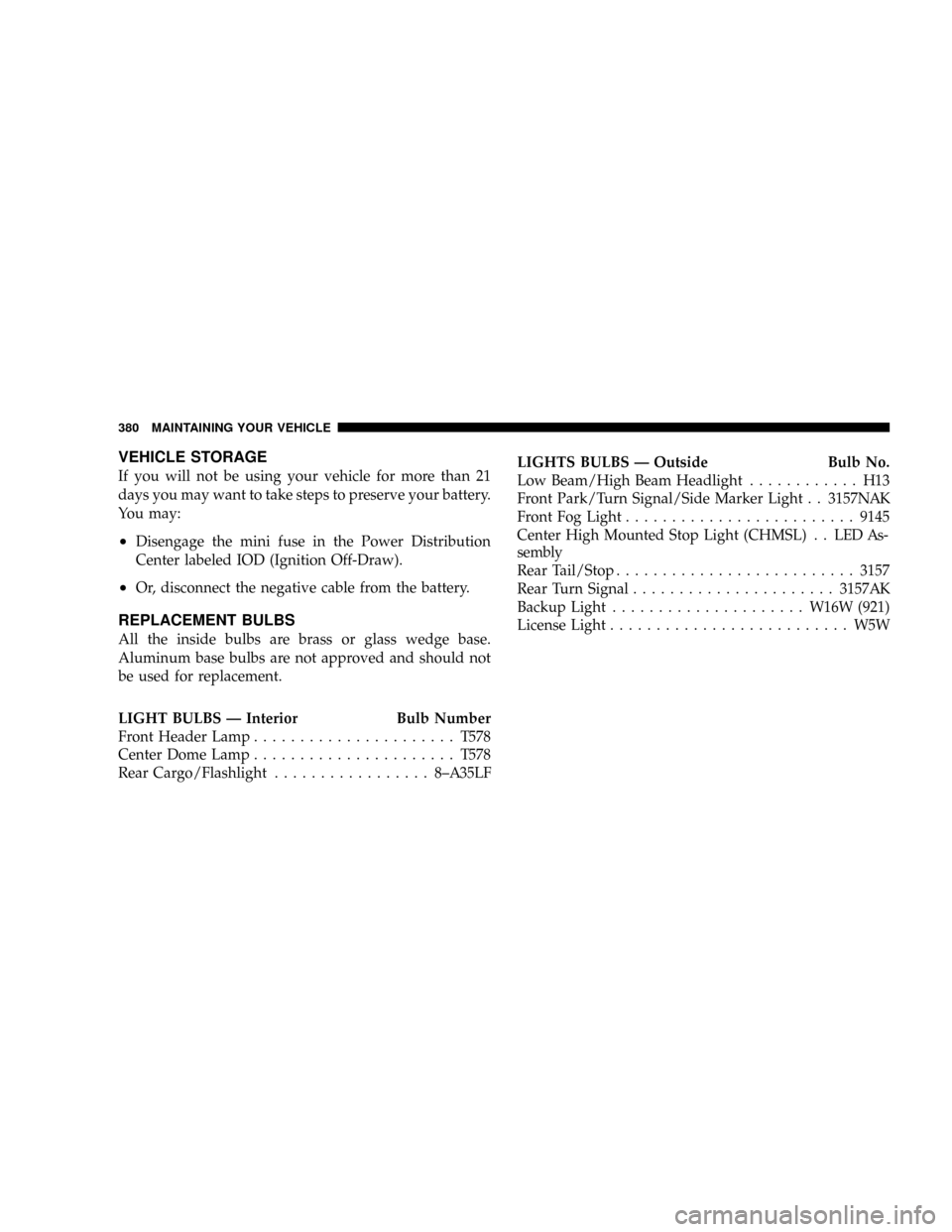

VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days you may want to take steps to preserve your battery.
You may:
²Disengage the mini fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
²Or, disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS Ð Interior Bulb Number
Front Header Lamp......................T578
Center Dome Lamp......................T578
Rear Cargo/Flashlight.................8±A35LFLIGHTS BULBS Ð Outside Bulb No.
Low Beam/High Beam Headlight............ H13
Front Park/Turn Signal/Side Marker Light. . 3157NAK
Front Fog Light.........................9145
Center High Mounted Stop Light (CHMSL). . LED As-
sembly
Rear Tail/Stop..........................3157
Rear Turn Signal......................3157AK
Backup Light.....................W16W (921)
License Light.......................... W5W
380 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT

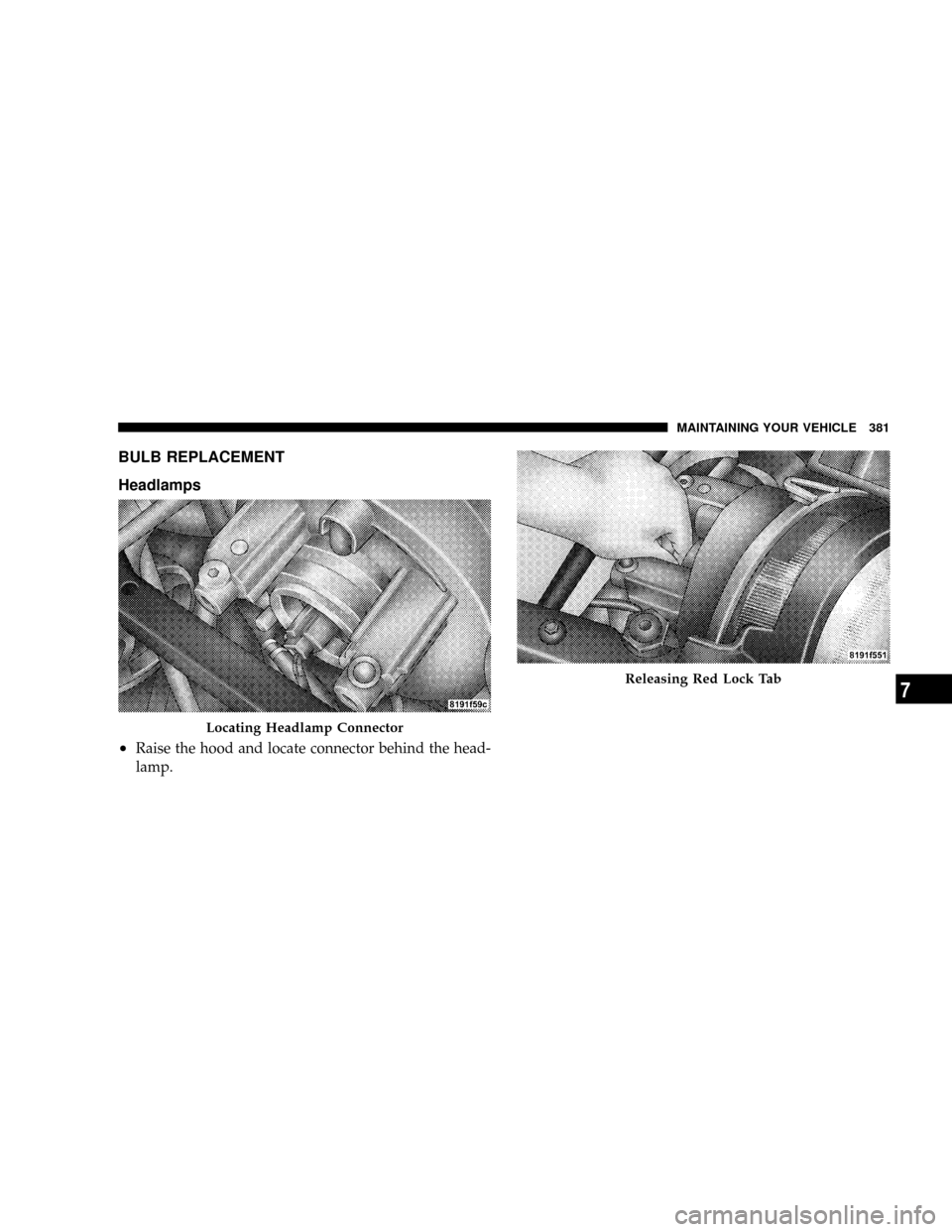

Headlamps
²
Raise the hood and locate connector behind the head-
lamp.
Locating Headlamp Connector
Releasing Red Lock Tab
MAINTAINING YOUR VEHICLE 381
7

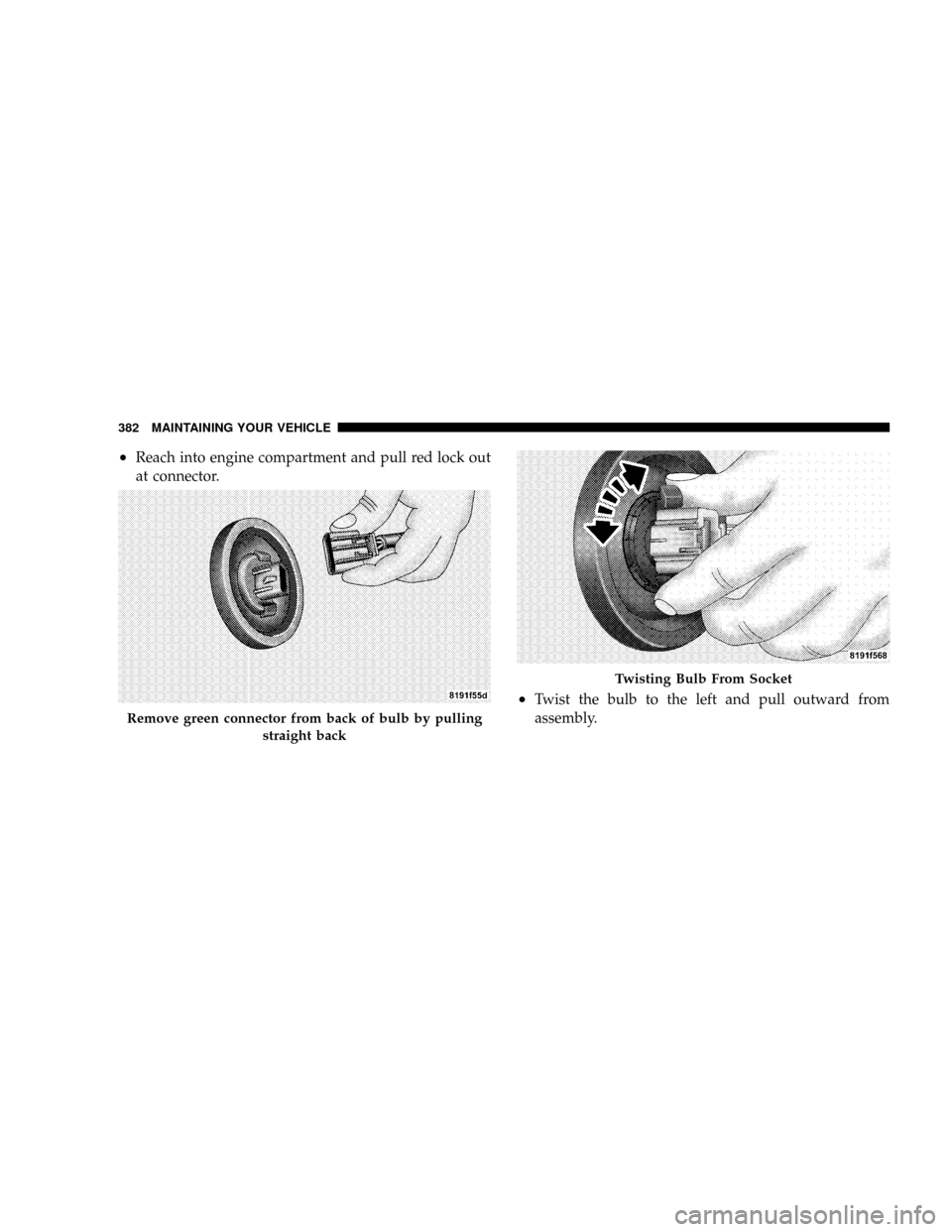

²Reach into engine compartment and pull red lock out
at connector.
²Twist the bulb to the left and pull outward from
assembly.
Remove green connector from back of bulb by pulling
straight back
Twisting Bulb From Socket
382 MAINTAINING YOUR VEHICLE

NOTE:These are halogen bulbs. Take care not to touch
the bulb with your fingers. Body oils from your fingers
could cause excessive heat buildup which reduces bulb
life.Fog Lights
See your authorized dealer for replacement.

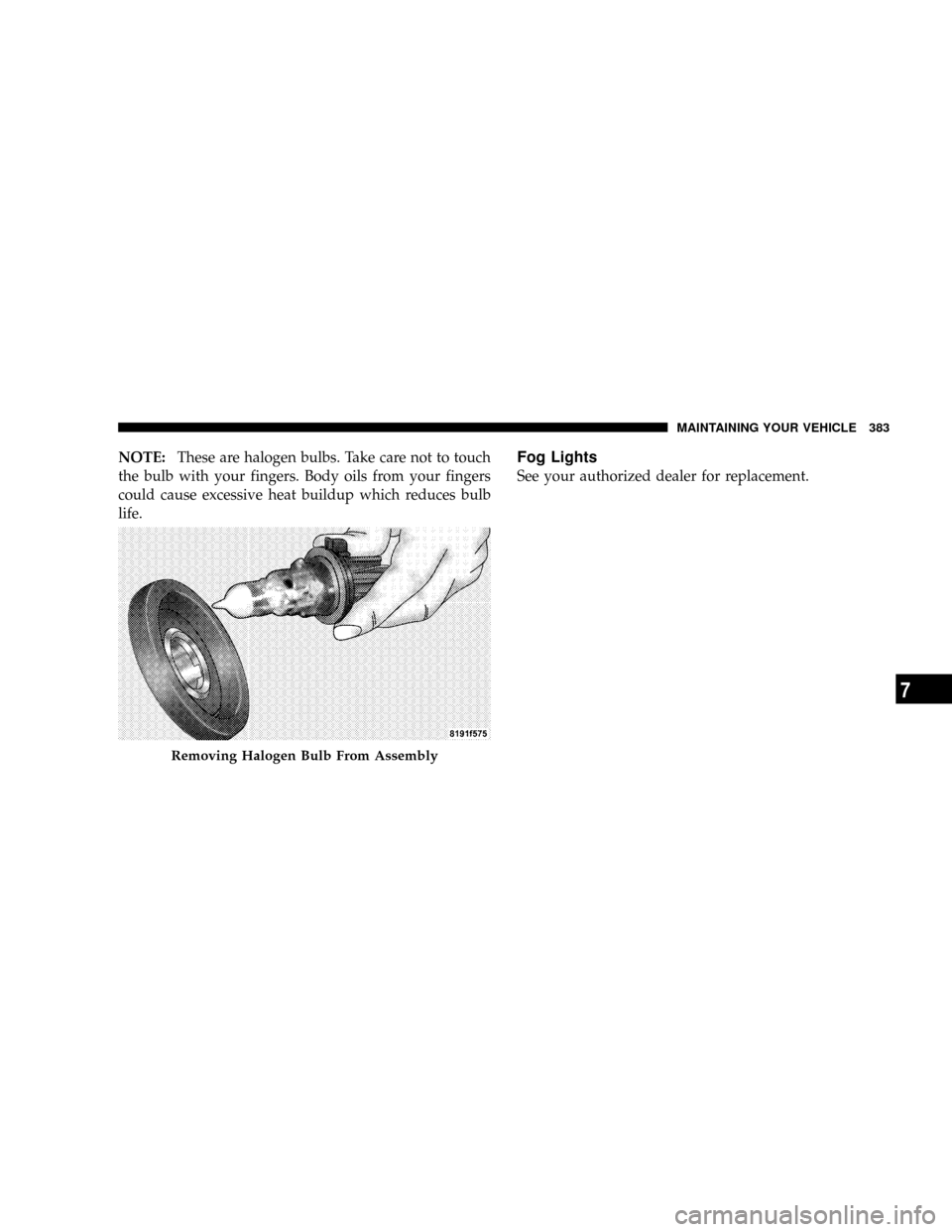

Removing Halogen Bulb From Assembly
MAINTAINING YOUR VEHICLE 383
