2007 JEEP PATRIOT Owners Manual

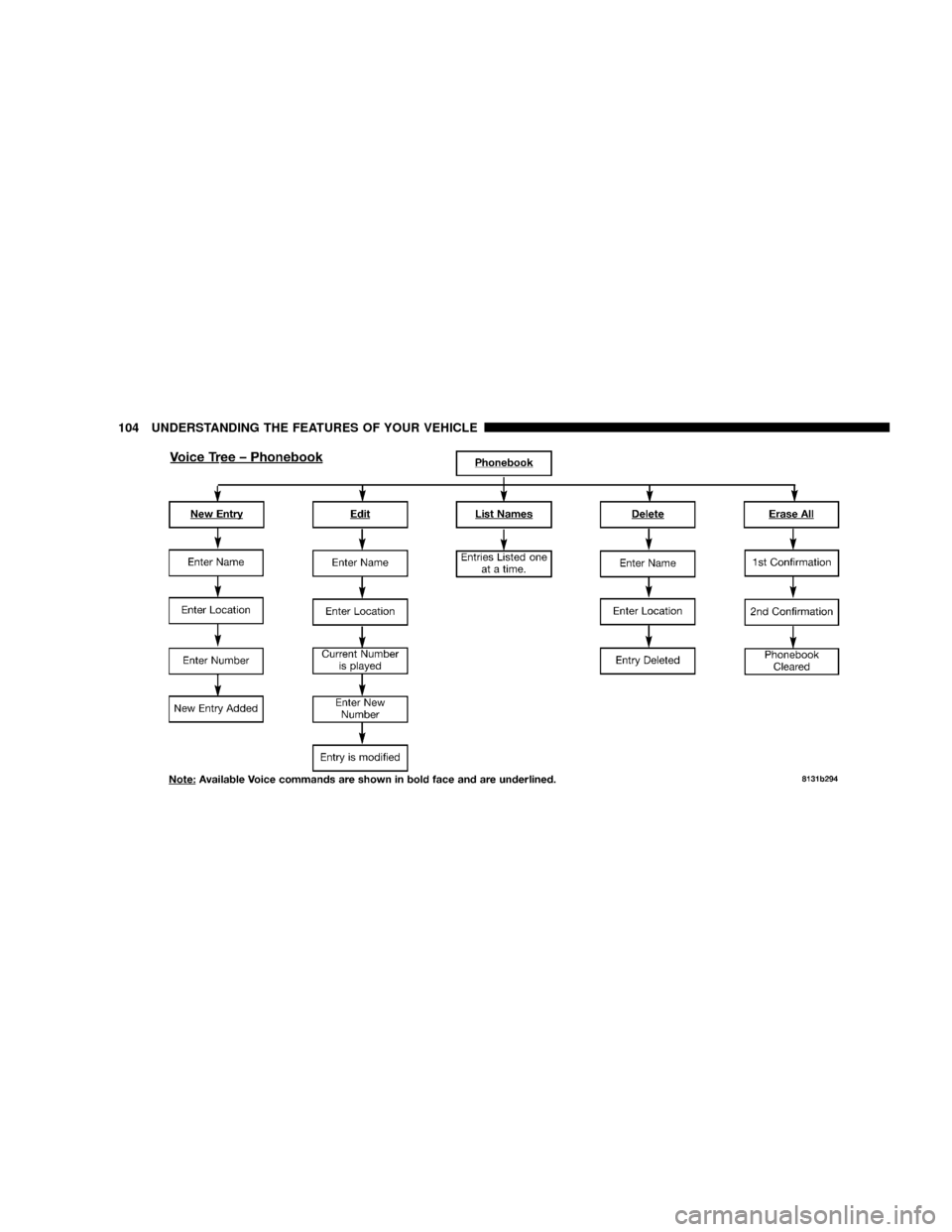

104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

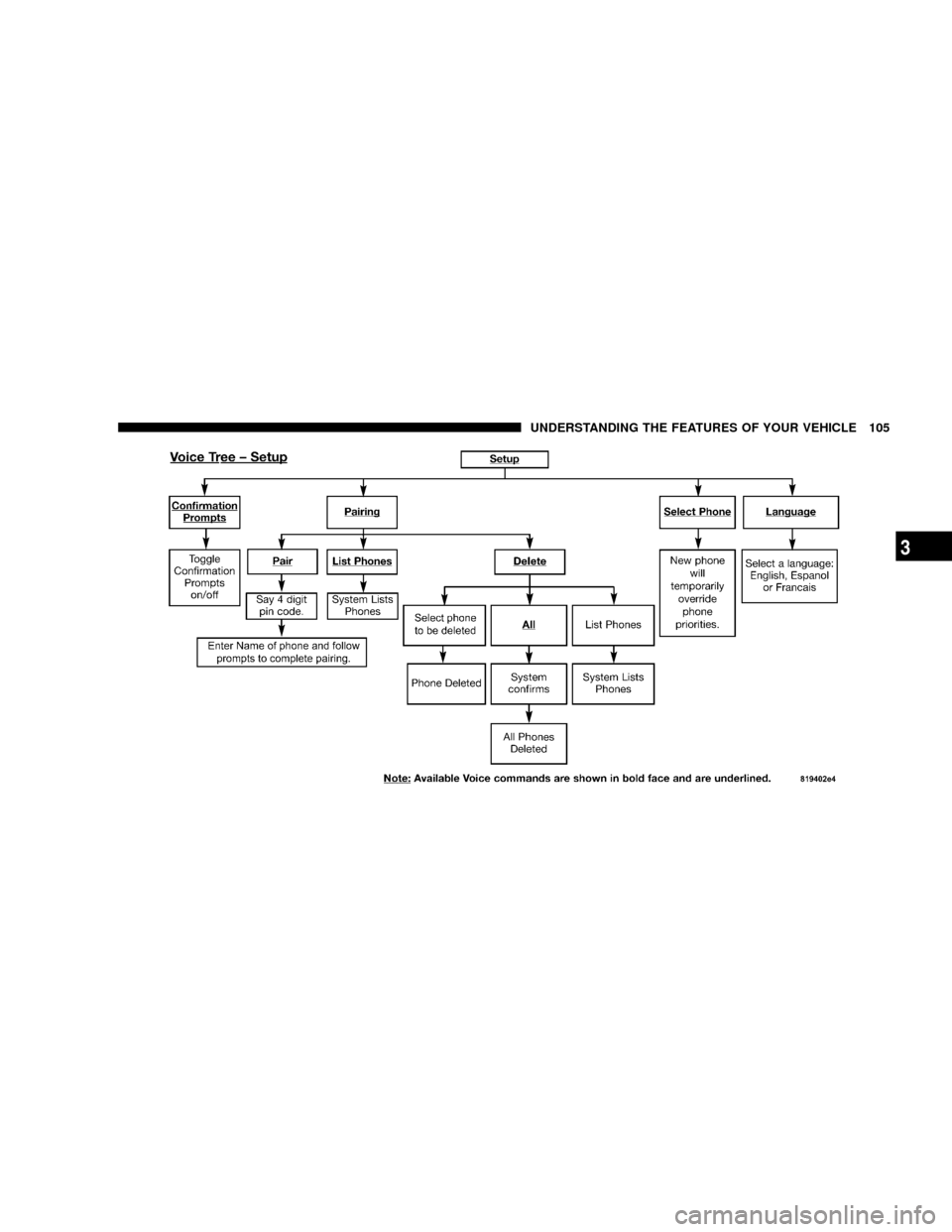

UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105
3

North American English
Primary Alternate(s)
Zero
One
Tw o
Three
Four
Five
Six
Seven
Eight
Nine
Star (*)
Plus (+)
Pound (#)
Add Location
AllCall
Cancel
Confirmation Prompts
Continue
Delete
Dial
Edit
Emergency
English
Erase All
Espanol
Francais
Help
Home
Language
List names
List phones
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Mobile
Mute
Mute off
New entry
No
Pager
Pair a phone
Phone pairing Pairing
Phonebook Phone book
Previous
Record again
Redial
Return to main menu Return. Main menu
Select phone Select
Send
Set up Phone settings / Phone
set upTowing assistance
Transfer call
Try again
Voice training
Work
Ye s
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
²This device may not cause harmful interference.
²This device must accept any interference received,
including interference that may cause undesired op-
eration.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107
3

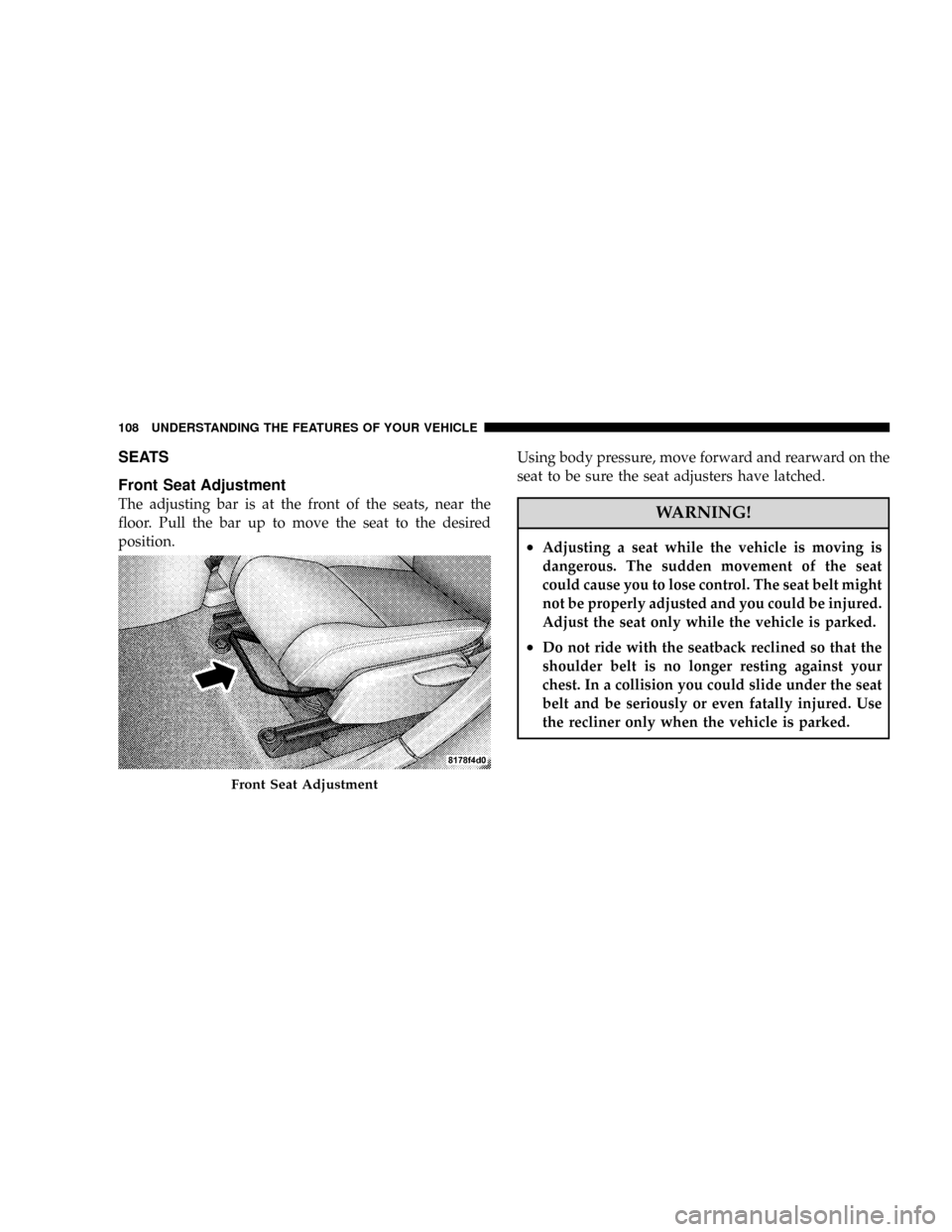

SEATS
Front Seat Adjustment
The adjusting bar is at the front of the seats, near the
floor. Pull the bar up to move the seat to the desired
position.Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.WARNING!
²Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be properly adjusted and you could be injured.
Adjust the seat only while the vehicle is parked.
²Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.
Front Seat Adjustment
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

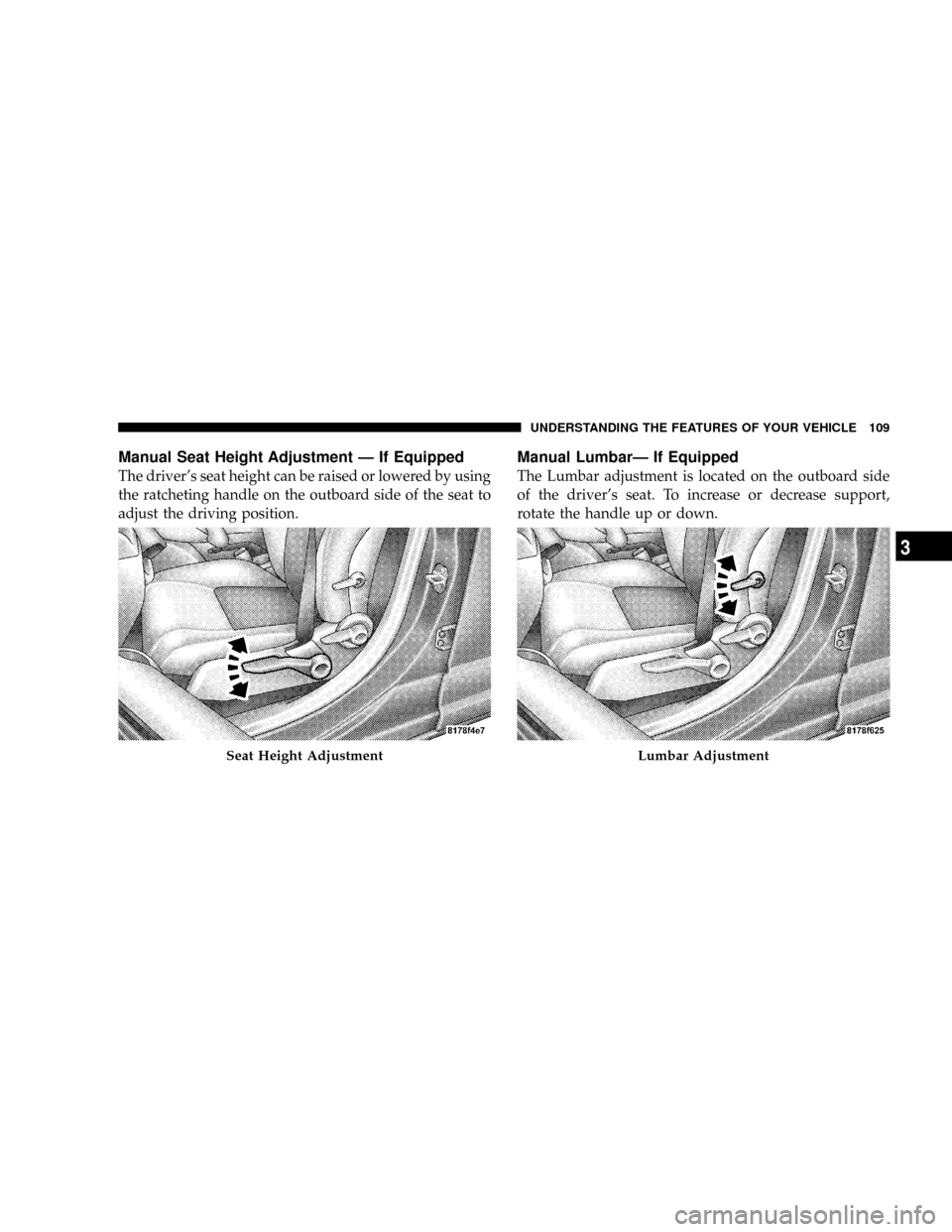

Manual Seat Height Adjustment Ð If Equipped
The driver's seat height can be raised or lowered by using
the ratcheting handle on the outboard side of the seat to
adjust the driving position.
Manual LumbarÐ If Equipped
The Lumbar adjustment is located on the outboard side
of the driver's seat. To increase or decrease support,
rotate the handle up or down.
Seat Height AdjustmentLumbar Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109
3

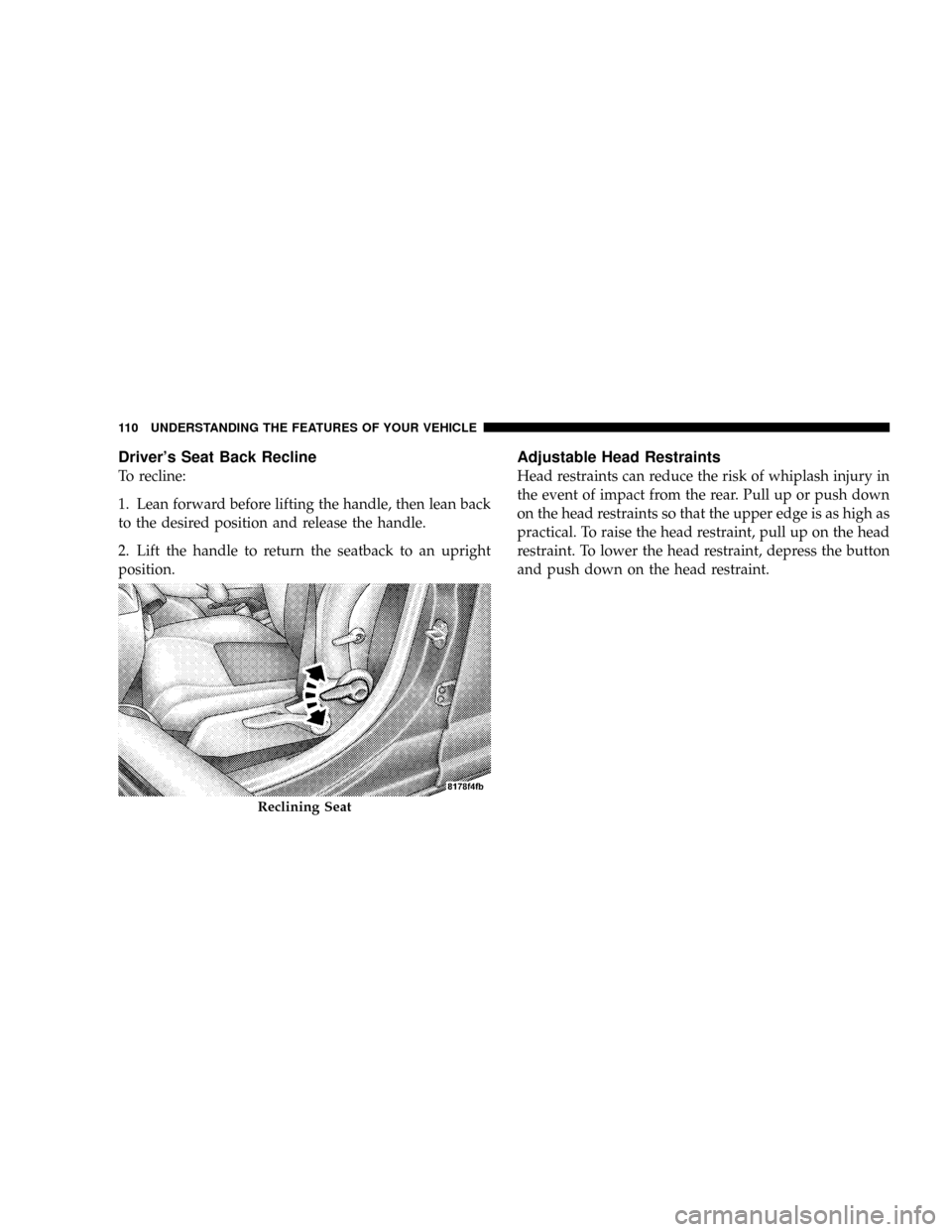

Driver's Seat Back Recline
To recline:
1. Lean forward before lifting the handle, then lean back
to the desired position and release the handle.
2. Lift the handle to return the seatback to an upright
position.
Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull up or push down
on the head restraints so that the upper edge is as high as
practical. To raise the head restraint, pull up on the head
restraint. To lower the head restraint, depress the button
and push down on the head restraint.
Reclining Seat
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Heated Seats Ð If Equipped
WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time. Do not place anything on the seat
that insulates against heat, such as a blanket or
cushion. This may cause the seat heater to overheat.
Head Restraint Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111
3
