8A-98 ELECTRICAL-BODY AND CHASSIS
TRANSMISSION HARNESS






RTW 78AXF035601



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-99
TRANSMISSION HARNESS












RTW 78AXF035701



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-100 ELECTRICAL-BODY AND CHASSIS
SYSTEM REPAIR
START AND CHARGING

PARTS LOCATION (RHD)



















RTW 78AXF036101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-101
PARTS LOCATION (RHD)


RTW 78AXF042301


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-102 ELECTRICAL-BODY AND CHASSIS
PARTS LOCATION (LHD)













RTW 78AXF036201


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

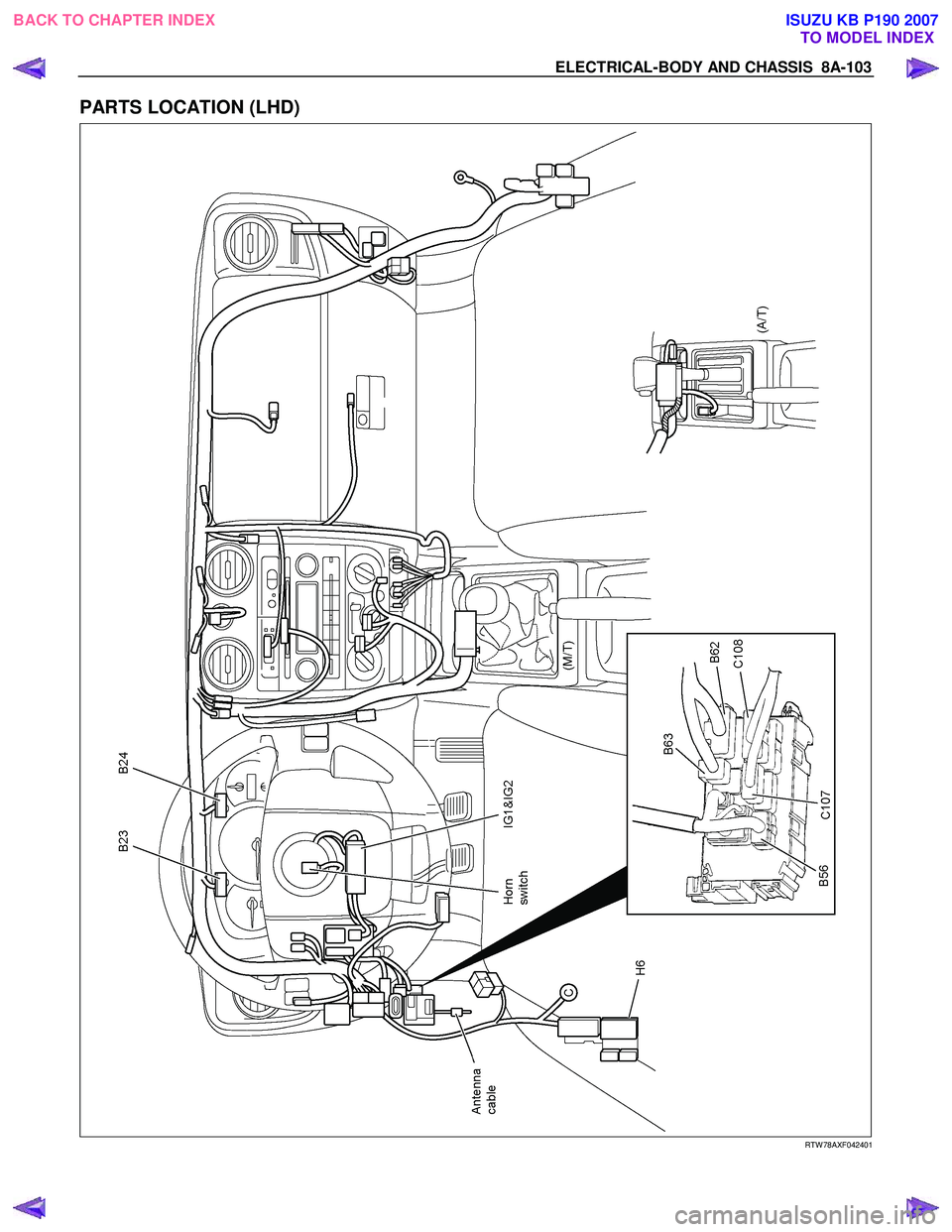

ELECTRICAL-BODY AND CHASSIS 8A-103
PARTS LOCATION (LHD)


RTW 78AXF042401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-104 ELECTRICAL-BODY AND CHASSIS

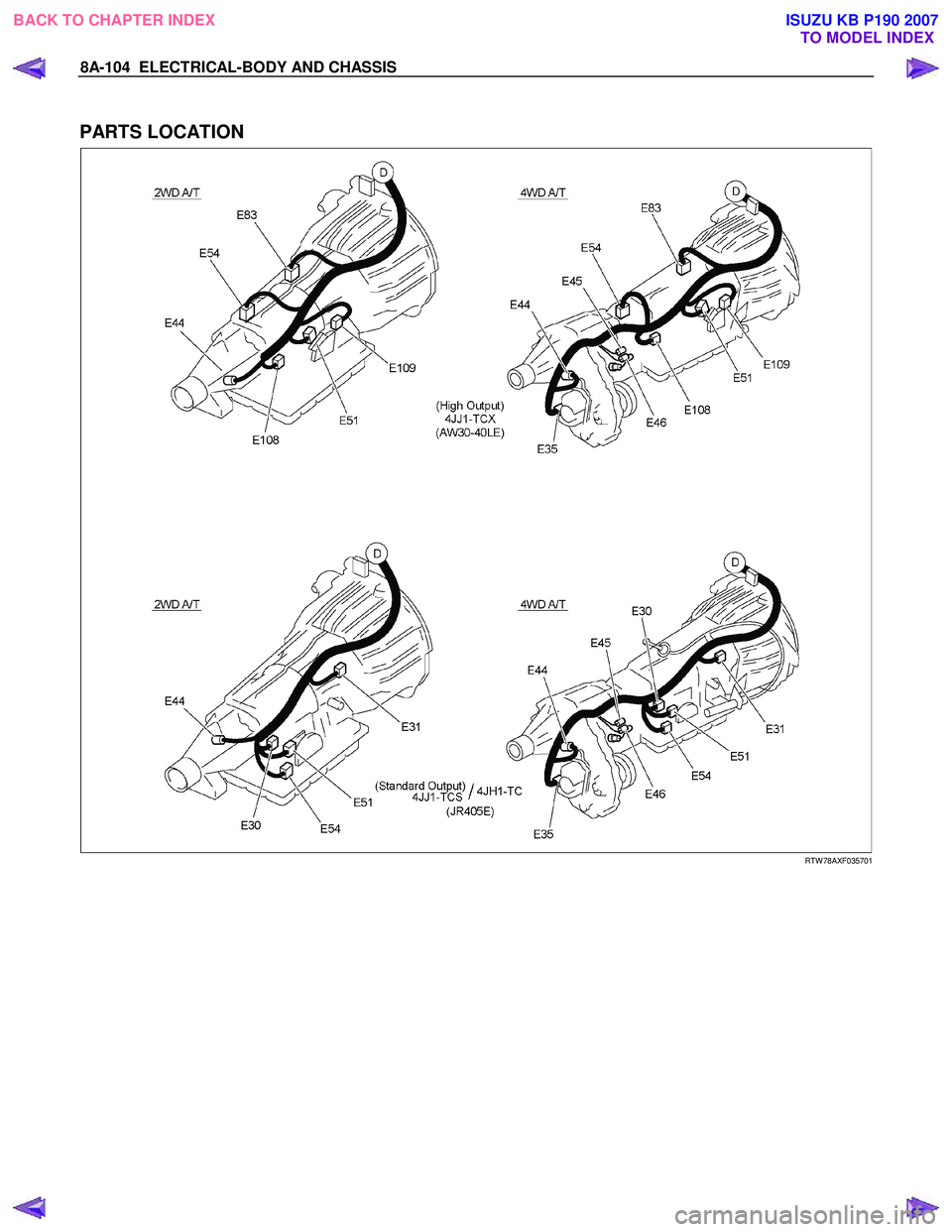

PARTS LOCATION


RTW 78AXF035701



BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-105
CIRCUIT DIAGRAM C24SE


RTW 680XF005001
