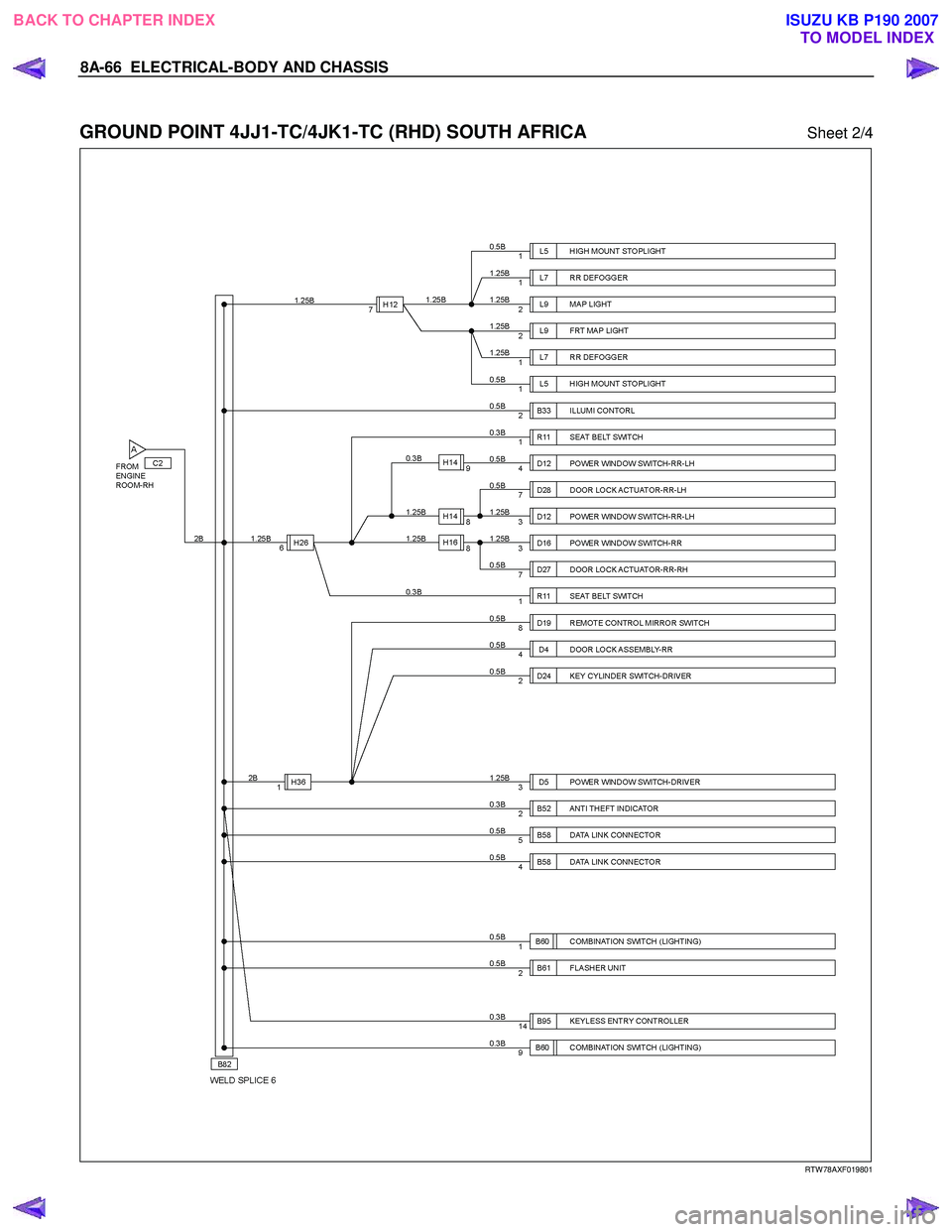

8A-66 ELECTRICAL-BODY AND CHASSIS

GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 2/4








RTW 78AXF019801

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

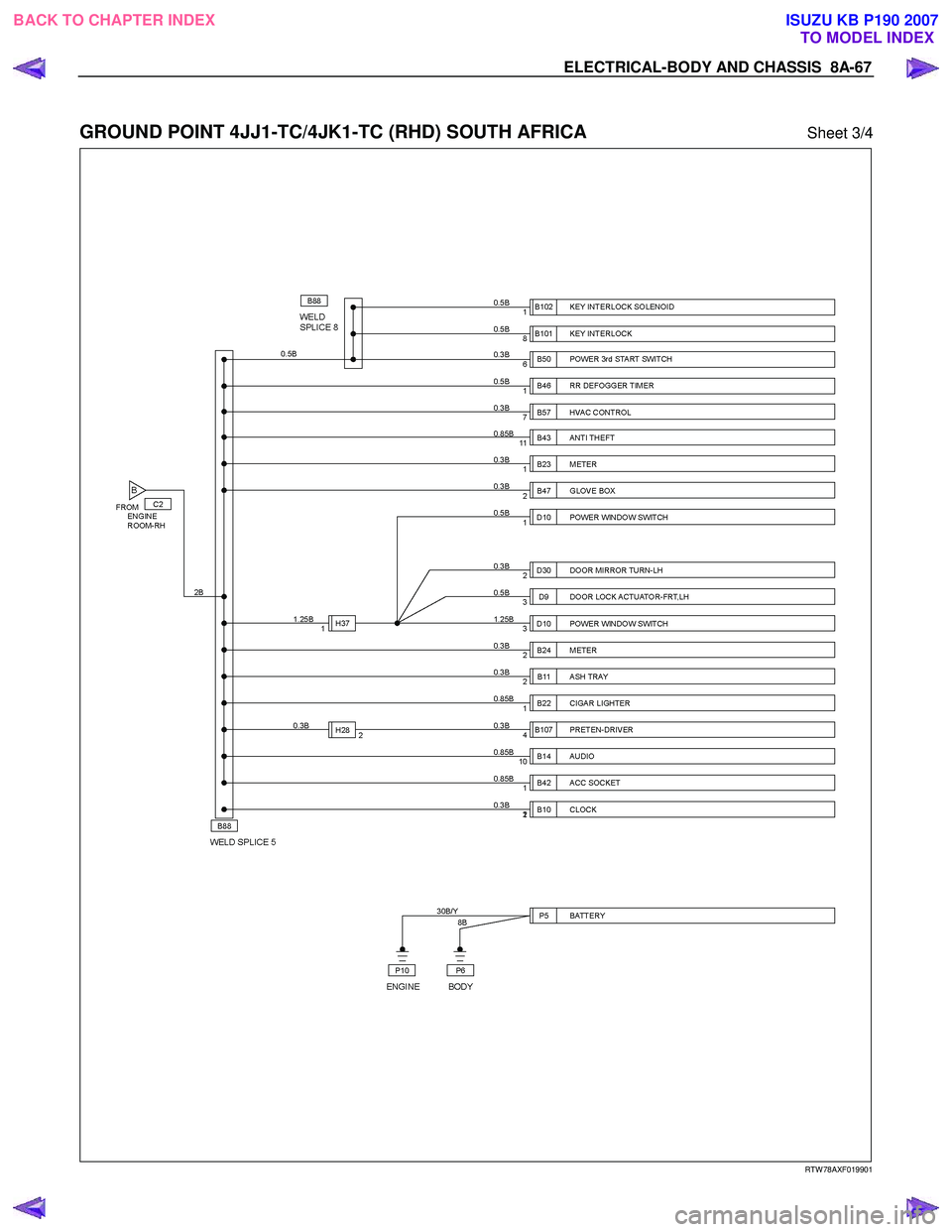

ELECTRICAL-BODY AND CHASSIS 8A-67

GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 3/4











RTW 78AXF019901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

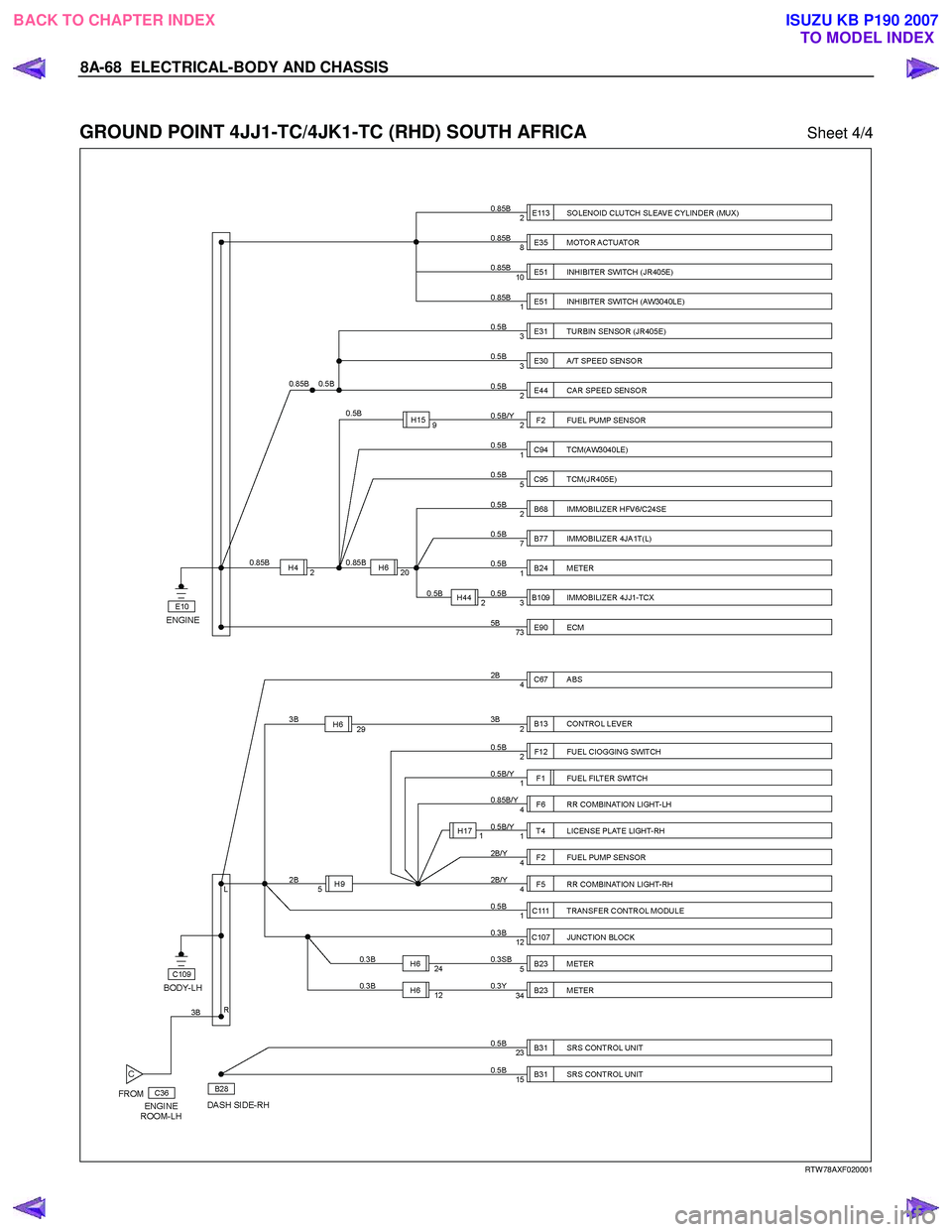

8A-68 ELECTRICAL-BODY AND CHASSIS

GROUND POINT 4JJ1-TC/4JK1-TC (RHD) SOUTH AFRICA Sheet 4/4







RTW 78AXF020001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

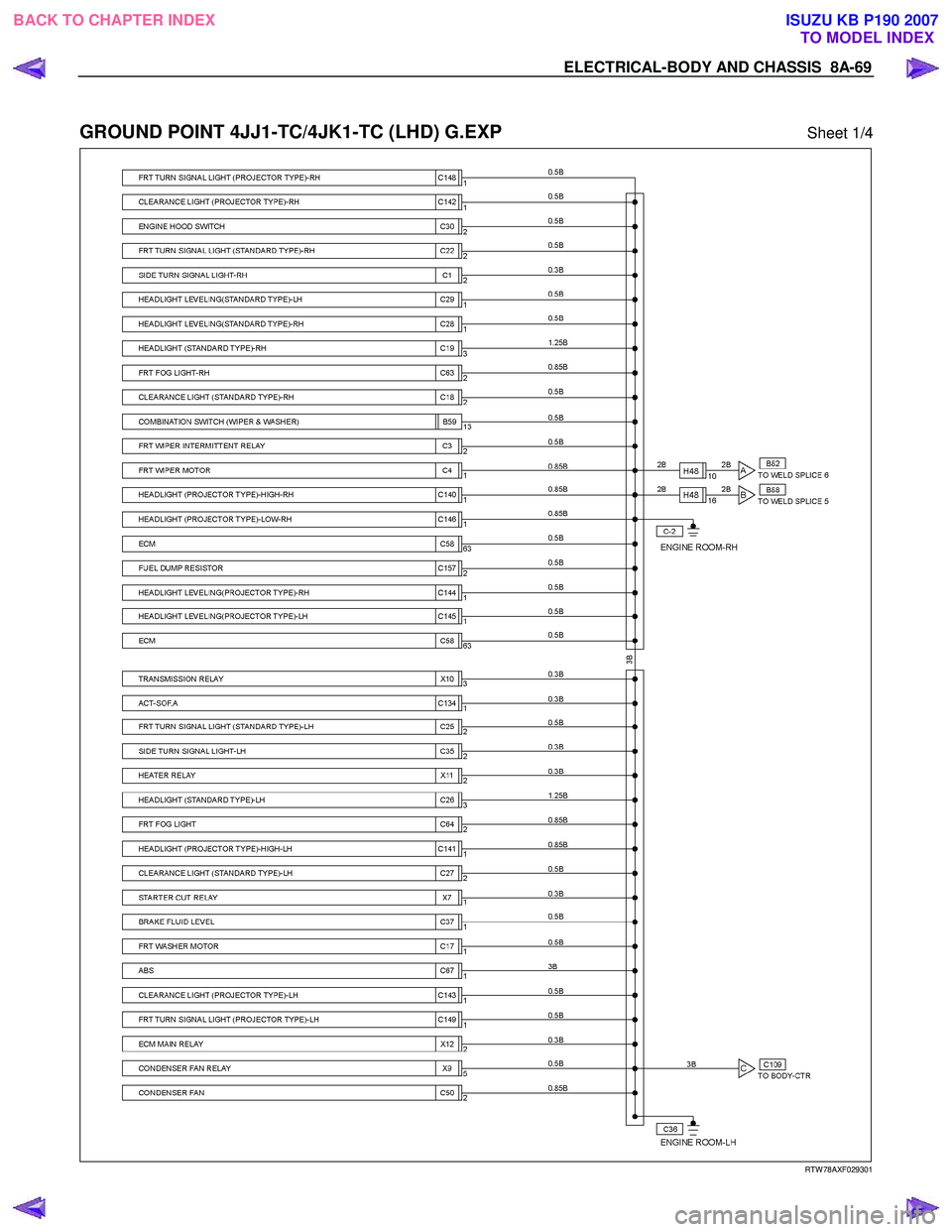

ELECTRICAL-BODY AND CHASSIS 8A-69

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 1/4




RTW 78AXF029301

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

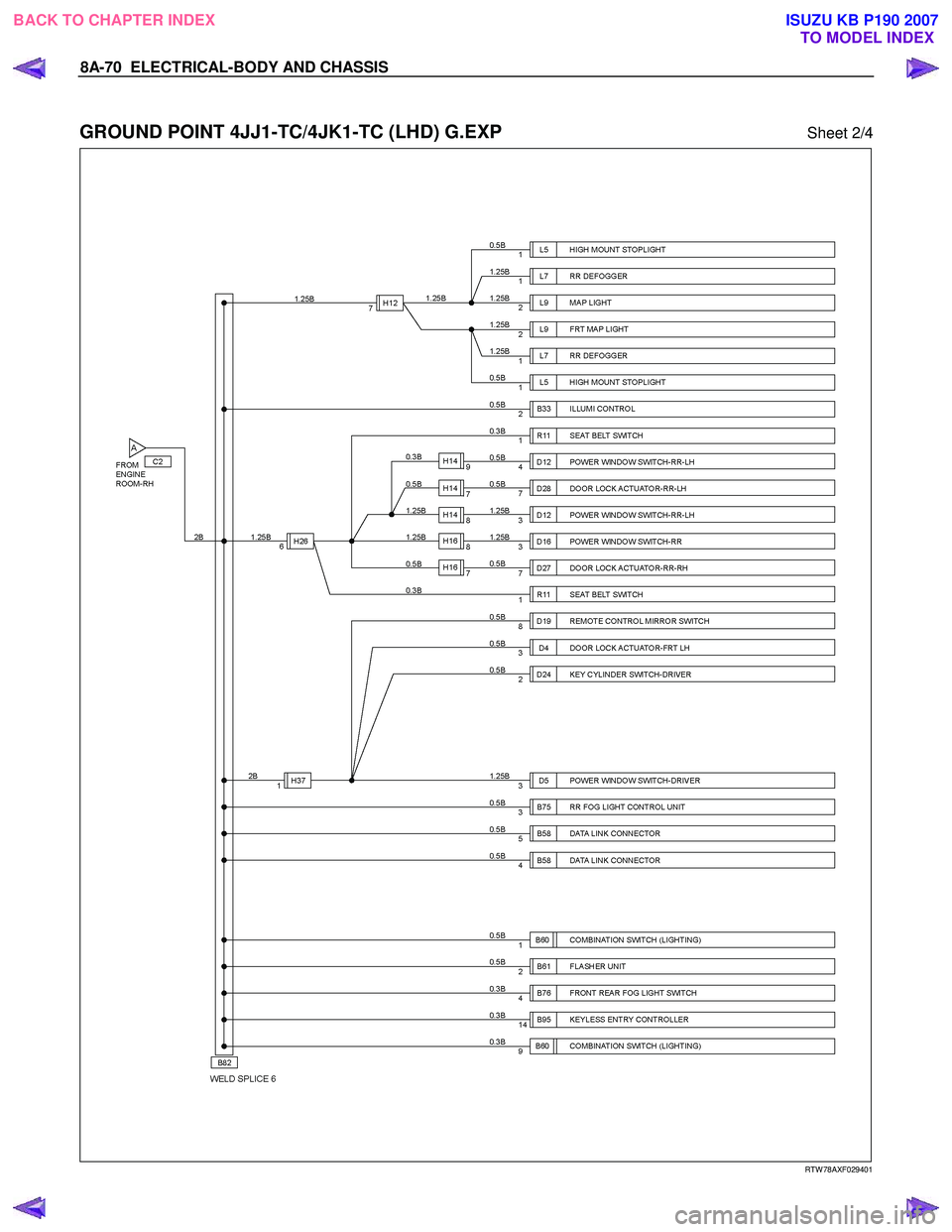

8A-70 ELECTRICAL-BODY AND CHASSIS

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 2/4









RTW 78AXF029401

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-71

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 3/4











RTW 78AXF029501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-72 ELECTRICAL-BODY AND CHASSIS

GROUND POINT 4JJ1-TC/4JK1-TC (LHD) G.EXP Sheet 4/4






RTW 78AXF029601

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-73

GROUND POINT 4JJ1-TC (RHD) EXCEPT SOUTH AFRICA Sheet 1/4




RTW 78AXF035101

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007
