ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-277
61. Test each accelerator pedal position (APP)
sensor 2 circuits between the ECM (pins 9, 10
and 25 of C-58) and the APP sensor (pins 3, 8
and 9 of C-40) for high resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 7
7 1. Test each APP sensor 1 circuits between the
ECM (pins 11, 12 and 27 of C-58) and the
APP sensor (pins 4, 5 and 10 of C-40) for high
resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 8
8 1. Test each APP sensor 3 circuits between the
ECM (pins 7, 8 and 23 of C-58) and the APP
sensor (pins 1, 6 and 7 of C-40) for high
resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 9
9 1. Turn OFF the ignition.
2. Disconnect the APP sensor harness connector.
3. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the APP sensor (pins 1, 3, 4, 5,
6, 7, 8, 9 and 10 of C-40).
4. Disconnect the ECM harness connector.
5. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the ECM (pins 7, 8, 9, 10, 11, 12,
23, 25 and 27 of C-58).
6. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 10
10 1. Test the APP sensor 1 and sensor 3 signal
circuit between the ECM (pins 8 and 12 of C-
58) and the APP sensor (pins 5 and 6 of C-40)
for a short circuit each other.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 11
11 Replace the APP sensor. Refer to APP Sensor
Replacement.
Did you complete the replacement? —
Go to Step 12
—
121. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Does the DTC fail this ignition? —
Go to Step 13 Go to Step 15
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-278 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

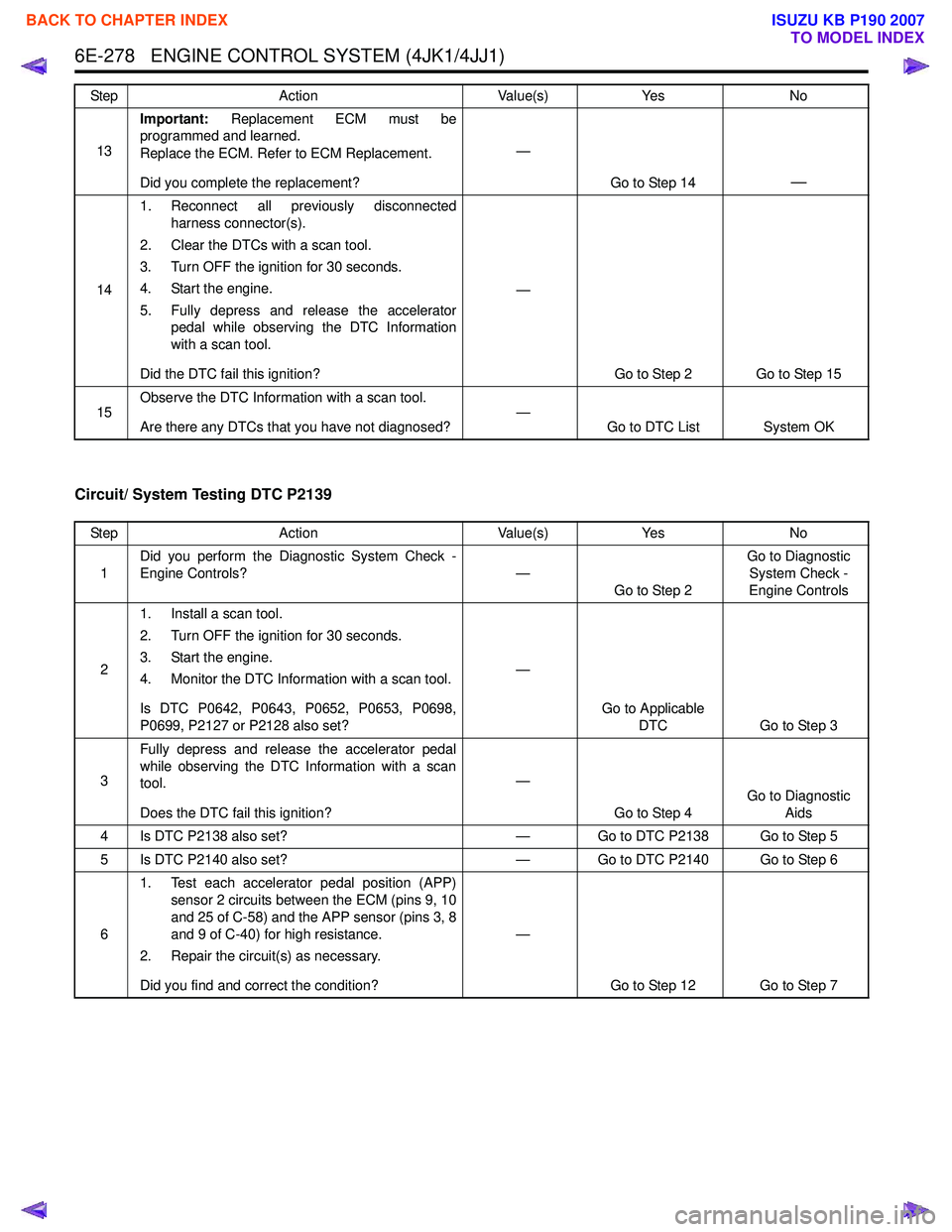

Circuit/ System Testing DTC P2139
13Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 14
—
141. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 15
15 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0642, P0643, P0652, P0653, P0698,
P0699, P2127 or P2128 also set? —
Go to Applicable DTC Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the DTC Information with a scan
tool.
Does the DTC fail this ignition? —
Go to Step 4 Go to Diagnostic
Aids
4 Is DTC P2138 also set? — Go to DTC P2138 Go to Step 5
5 Is DTC P2140 also set? — Go to DTC P2140 Go to Step 6
6 1. Test each accelerator pedal position (APP)
sensor 2 circuits between the ECM (pins 9, 10
and 25 of C-58) and the APP sensor (pins 3, 8
and 9 of C-40) for high resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 7

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-279

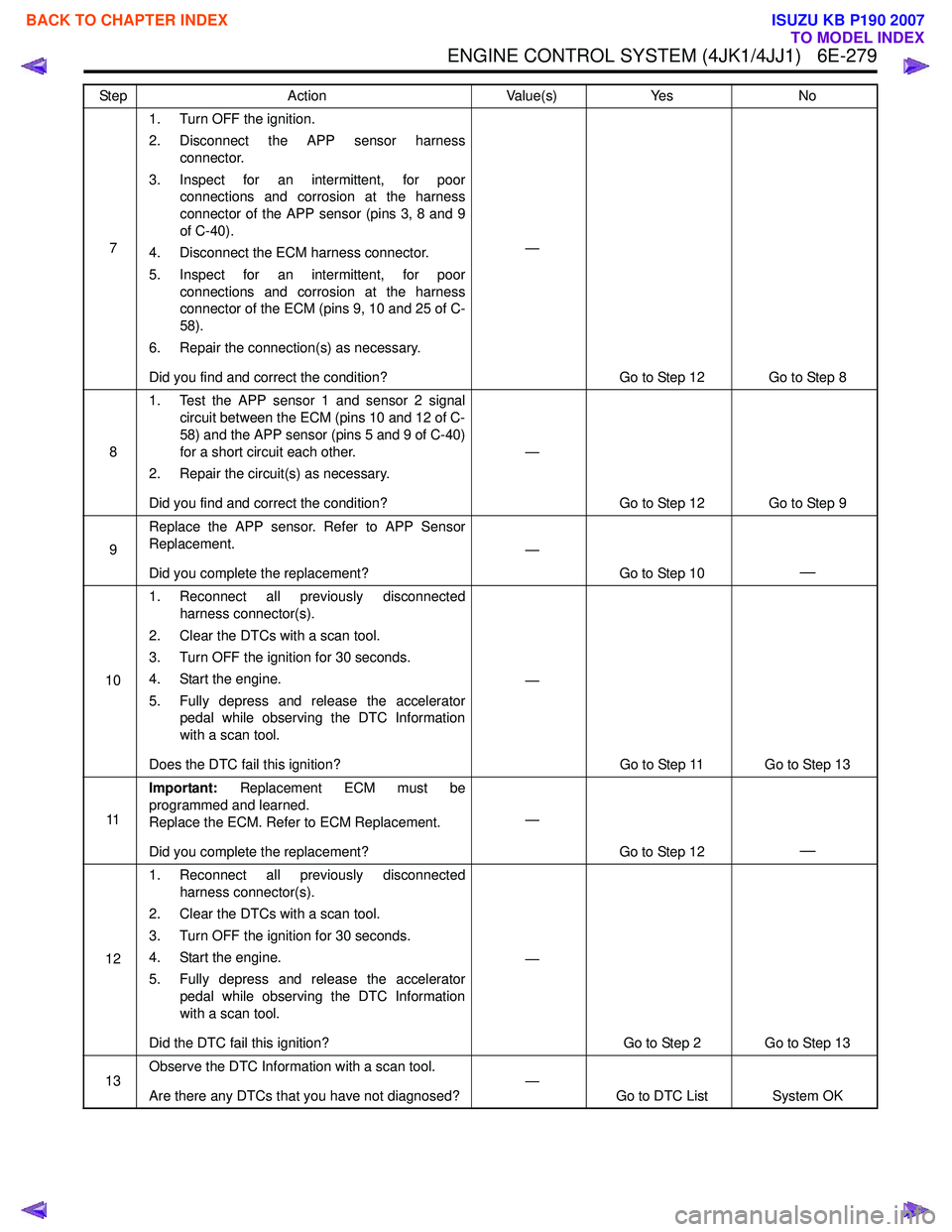

71. Turn OFF the ignition.
2. Disconnect the APP sensor harness connector.
3. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the APP sensor (pins 3, 8 and 9
of C-40).
4. Disconnect the ECM harness connector.
5. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the ECM (pins 9, 10 and 25 of C-
58).
6. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 8
8 1. Test the APP sensor 1 and sensor 2 signal
circuit between the ECM (pins 10 and 12 of C-
58) and the APP sensor (pins 5 and 9 of C-40)
for a short circuit each other.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 12 Go to Step 9
9 Replace the APP sensor. Refer to APP Sensor
Replacement.
Did you complete the replacement? —
Go to Step 10
—
101. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Does the DTC fail this ignition? —
Go to Step 11 Go to Step 13
11 Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 12
—
121. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 13
13 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-280 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

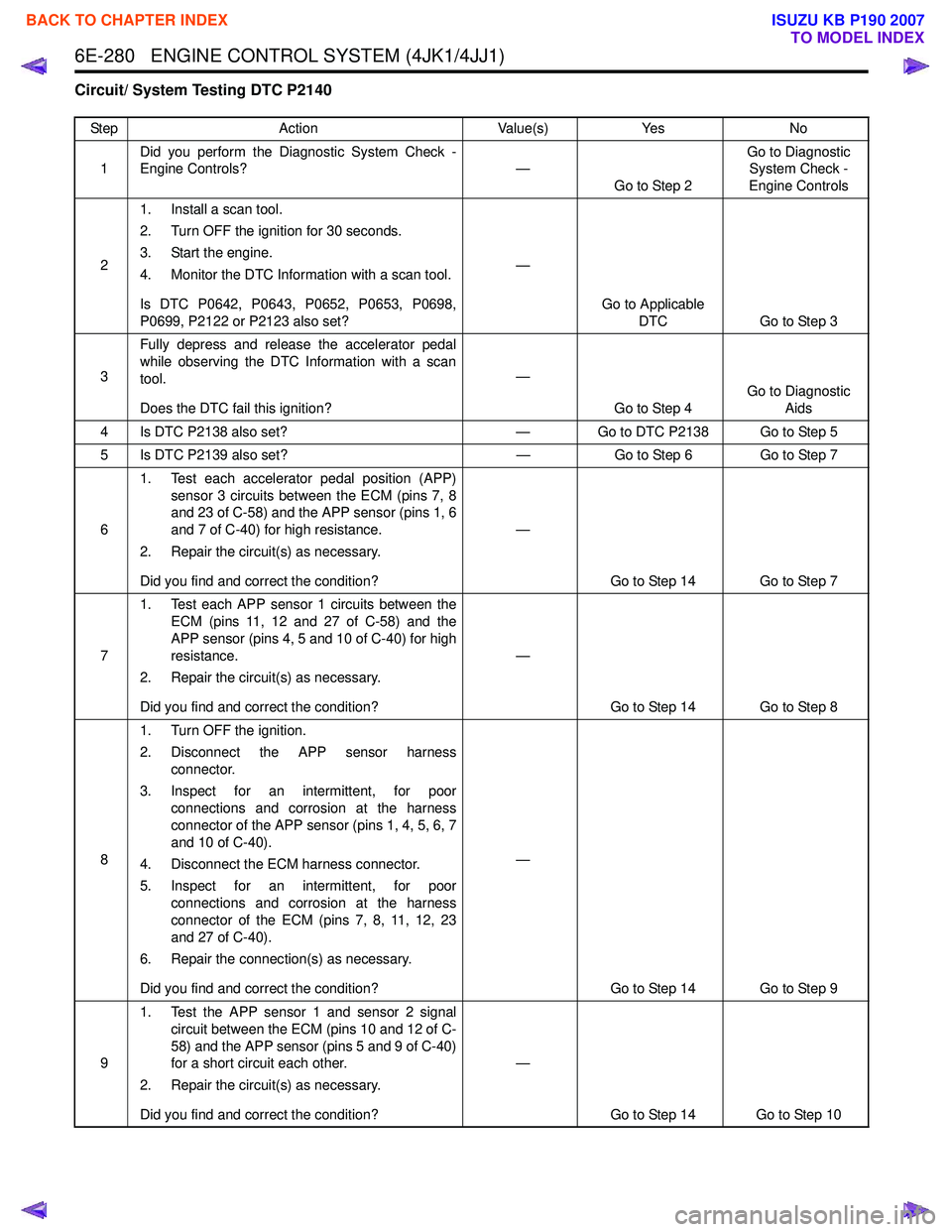

Circuit/ System Testing DTC P2140
StepAction Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0642, P0643, P0652, P0653, P0698,
P0699, P2122 or P2123 also set? —
Go to Applicable DTC Go to Step 3
3 Fully depress and release the accelerator pedal
while observing the DTC Information with a scan
tool.
Does the DTC fail this ignition? —
Go to Step 4 Go to Diagnostic
Aids
4 Is DTC P2138 also set? — Go to DTC P2138 Go to Step 5
5 Is DTC P2139 also set? —Go to Step 6 Go to Step 7
6 1. Test each accelerator pedal position (APP)
sensor 3 circuits between the ECM (pins 7, 8
and 23 of C-58) and the APP sensor (pins 1, 6
and 7 of C-40) for high resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 7
7 1. Test each APP sensor 1 circuits between the
ECM (pins 11, 12 and 27 of C-58) and the
APP sensor (pins 4, 5 and 10 of C-40) for high
resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 8
8 1. Turn OFF the ignition.
2. Disconnect the APP sensor harness connector.
3. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the APP sensor (pins 1, 4, 5, 6, 7
and 10 of C-40).
4. Disconnect the ECM harness connector.
5. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the ECM (pins 7, 8, 11, 12, 23
and 27 of C-40).
6. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 9
9 1. Test the APP sensor 1 and sensor 2 signal
circuit between the ECM (pins 10 and 12 of C-
58) and the APP sensor (pins 5 and 9 of C-40)
for a short circuit each other.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 10

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-281

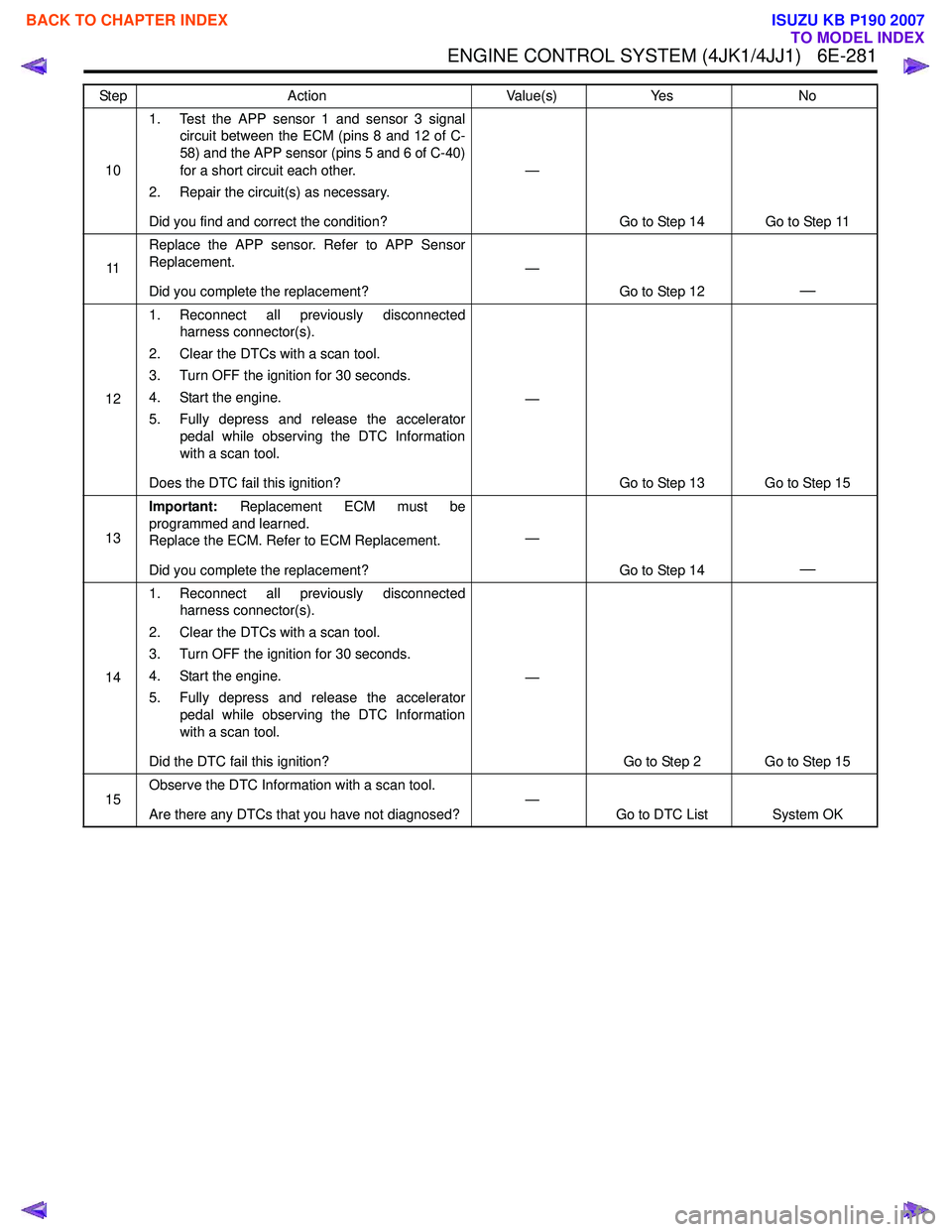

101. Test the APP sensor 1 and sensor 3 signal
circuit between the ECM (pins 8 and 12 of C-
58) and the APP sensor (pins 5 and 6 of C-40)
for a short circuit each other.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 14 Go to Step 11
11 Replace the APP sensor. Refer to APP Sensor
Replacement.
Did you complete the replacement? —
Go to Step 12
—
121. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Does the DTC fail this ignition? —
Go to Step 13 Go to Step 15
13 Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 14
—
141. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Fully depress and release the accelerator pedal while observing the DTC Information
with a scan tool.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 15
15 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step Action Value(s) Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-282 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

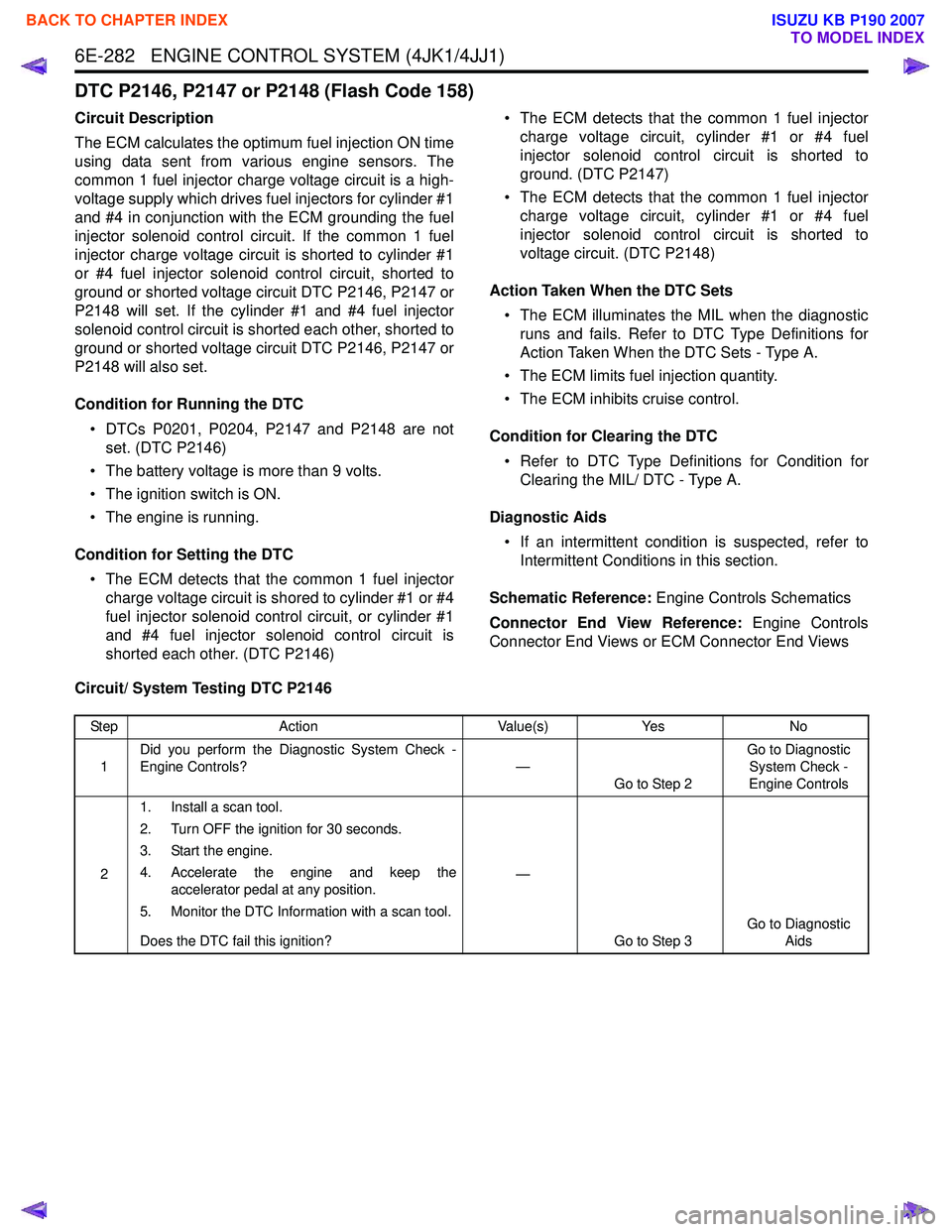

DTC P2146, P2147 or P2148 (Flash Code 158)
Circuit Description
The ECM calculates the optimum fuel injection ON time
using data sent from various engine sensors. The
common 1 fuel injector charge voltage circuit is a high-
voltage supply which drives fuel injectors for cylinder #1
and #4 in conjunction with the ECM grounding the fuel
injector solenoid control circuit. If the common 1 fuel
injector charge voltage circuit is shorted to cylinder #1
or #4 fuel injector solenoid control circuit, shorted to
ground or shorted voltage circuit DTC P2146, P2147 or
P2148 will set. If the cylinder #1 and #4 fuel injector
solenoid control circuit is shorted each other, shorted to
ground or shorted voltage circuit DTC P2146, P2147 or
P2148 will also set.
Condition for Running the DTC • DTCs P0201, P0204, P2147 and P2148 are not set. (DTC P2146)
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC • The ECM detects that the common 1 fuel injector charge voltage circuit is shored to cylinder #1 or #4
fuel injector solenoid control circuit, or cylinder #1
and #4 fuel injector solenoid control circuit is
shorted each other. (DTC P2146) • The ECM detects that the common 1 fuel injector
charge voltage circuit, cylinder #1 or #4 fuel
injector solenoid control circuit is shorted to
ground. (DTC P2147)
• The ECM detects that the common 1 fuel injector charge voltage circuit, cylinder #1 or #4 fuel
injector solenoid control circuit is shorted to
voltage circuit. (DTC P2148)
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2146
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Accelerate the engine and keep the accelerator pedal at any position.
5. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-286 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

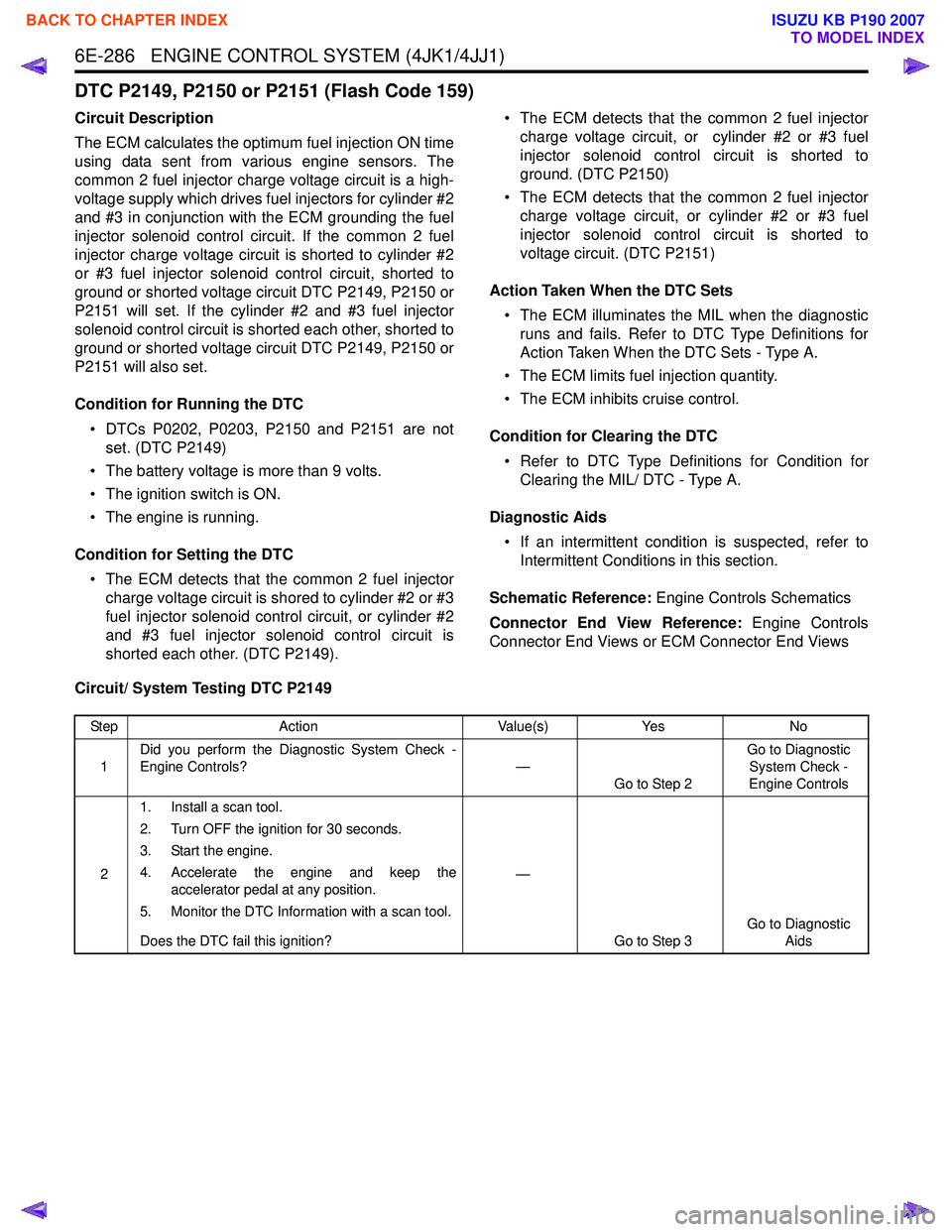

DTC P2149, P2150 or P2151 (Flash Code 159)
Circuit Description
The ECM calculates the optimum fuel injection ON time
using data sent from various engine sensors. The
common 2 fuel injector charge voltage circuit is a high-
voltage supply which drives fuel injectors for cylinder #2
and #3 in conjunction with the ECM grounding the fuel
injector solenoid control circuit. If the common 2 fuel
injector charge voltage circuit is shorted to cylinder #2
or #3 fuel injector solenoid control circuit, shorted to
ground or shorted voltage circuit DTC P2149, P2150 or
P2151 will set. If the cylinder #2 and #3 fuel injector
solenoid control circuit is shorted each other, shorted to
ground or shorted voltage circuit DTC P2149, P2150 or
P2151 will also set.
Condition for Running the DTC • DTCs P0202, P0203, P2150 and P2151 are not set. (DTC P2149)
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The engine is running.
Condition for Setting the DTC • The ECM detects that the common 2 fuel injector charge voltage circuit is shored to cylinder #2 or #3
fuel injector solenoid control circuit, or cylinder #2
and #3 fuel injector solenoid control circuit is
shorted each other. (DTC P2149). • The ECM detects that the common 2 fuel injector
charge voltage circuit, or cylinder #2 or #3 fuel
injector solenoid control circuit is shorted to
ground. (DTC P2150)
• The ECM detects that the common 2 fuel injector charge voltage circuit, or cylinder #2 or #3 fuel
injector solenoid control circuit is shorted to
voltage circuit. (DTC P2151)
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2149
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Accelerate the engine and keep the accelerator pedal at any position.
5. Monitor the DTC Information with a scan tool.
Does the DTC fail this ignition? —
Go to Step 3 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-290 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

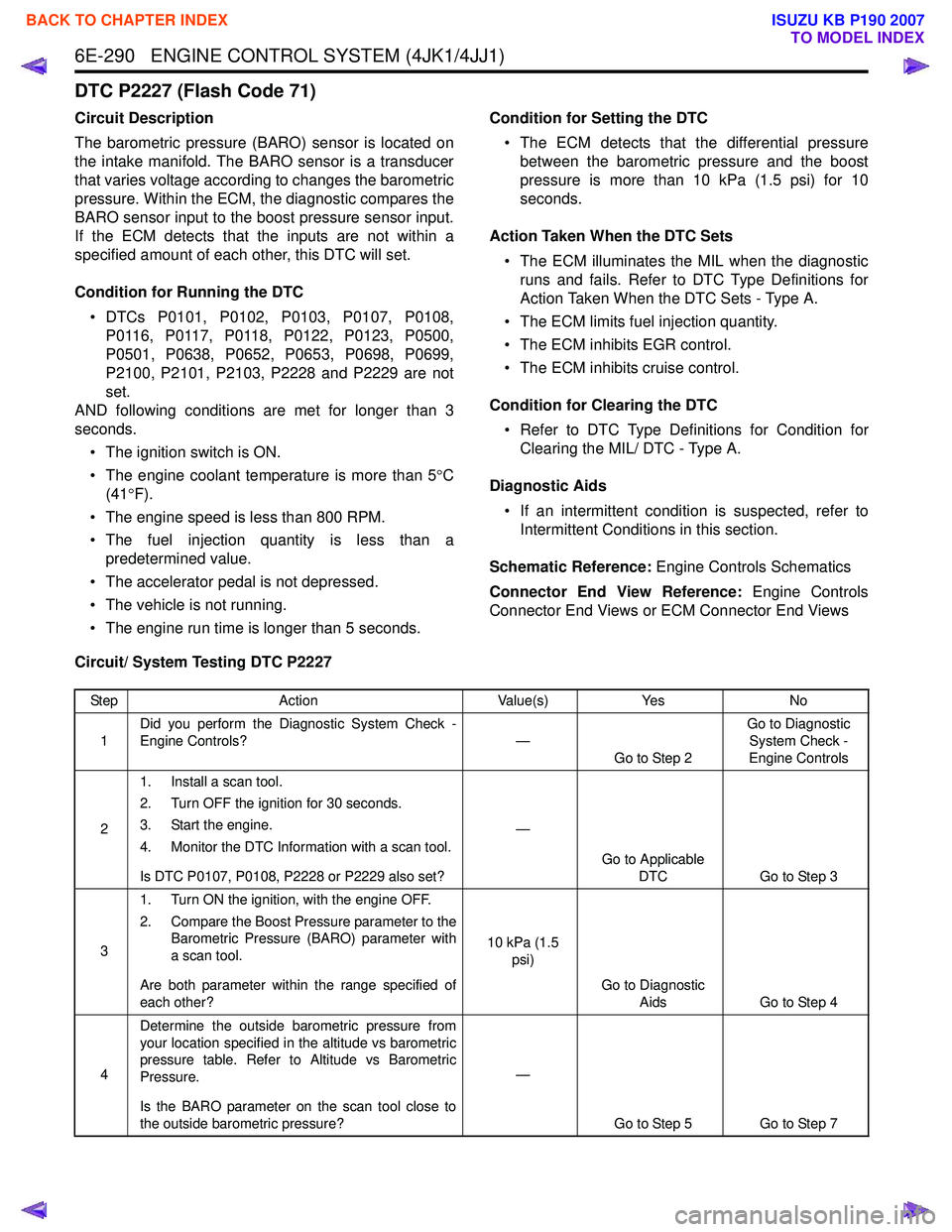

DTC P2227 (Flash Code 71)
Circuit Description
The barometric pressure (BARO) sensor is located on
the intake manifold. The BARO sensor is a transducer
that varies voltage according to changes the barometric
pressure. Within the ECM, the diagnostic compares the
BARO sensor input to the boost pressure sensor input.
If the ECM detects that the inputs are not within a
specified amount of each other, this DTC will set.
Condition for Running the DTC • DTCs P0101, P0102, P0103, P0107, P0108, P0116, P0117, P0118, P0122, P0123, P0500,
P0501, P0638, P0652, P0653, P0698, P0699,
P2100, P2101, P2103, P2228 and P2229 are not
set.
AND following conditions are met for longer than 3
seconds.
• The ignition switch is ON.
• The engine coolant temperature is more than 5 °C
(41 °F).
• The engine speed is less than 800 RPM.
• The fuel injection quantity is less than a predetermined value.
• The accelerator pedal is not depressed.
• The vehicle is not running.
• The engine run time is longer than 5 seconds. Condition for Setting the DTC
• The ECM detects that the differential pressure between the barometric pressure and the boost
pressure is more than 10 kPa (1.5 psi) for 10
seconds.
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits EGR control.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P2227
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine.
4. Monitor the DTC Information with a scan tool.
Is DTC P0107, P0108, P2228 or P2229 also set? —
Go to Applicable DTC Go to Step 3
3 1. Turn ON the ignition, with the engine OFF.
2. Compare the Boost Pressure parameter to the Barometric Pressure (BARO) parameter with
a scan tool.
Are both parameter within the range specified of
each other? 10 kPa (1.5
psi)
Go to Diagnostic Aids Go to Step 4
4 Determine the outside barometric pressure from
your location specified in the altitude vs barometric
pressure table. Refer to Altitude vs Barometric
Pressure.
Is the BARO parameter on the scan tool close to
the outside barometric pressure? —
Go to Step 5 Go to Step 7

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
