6E-154 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

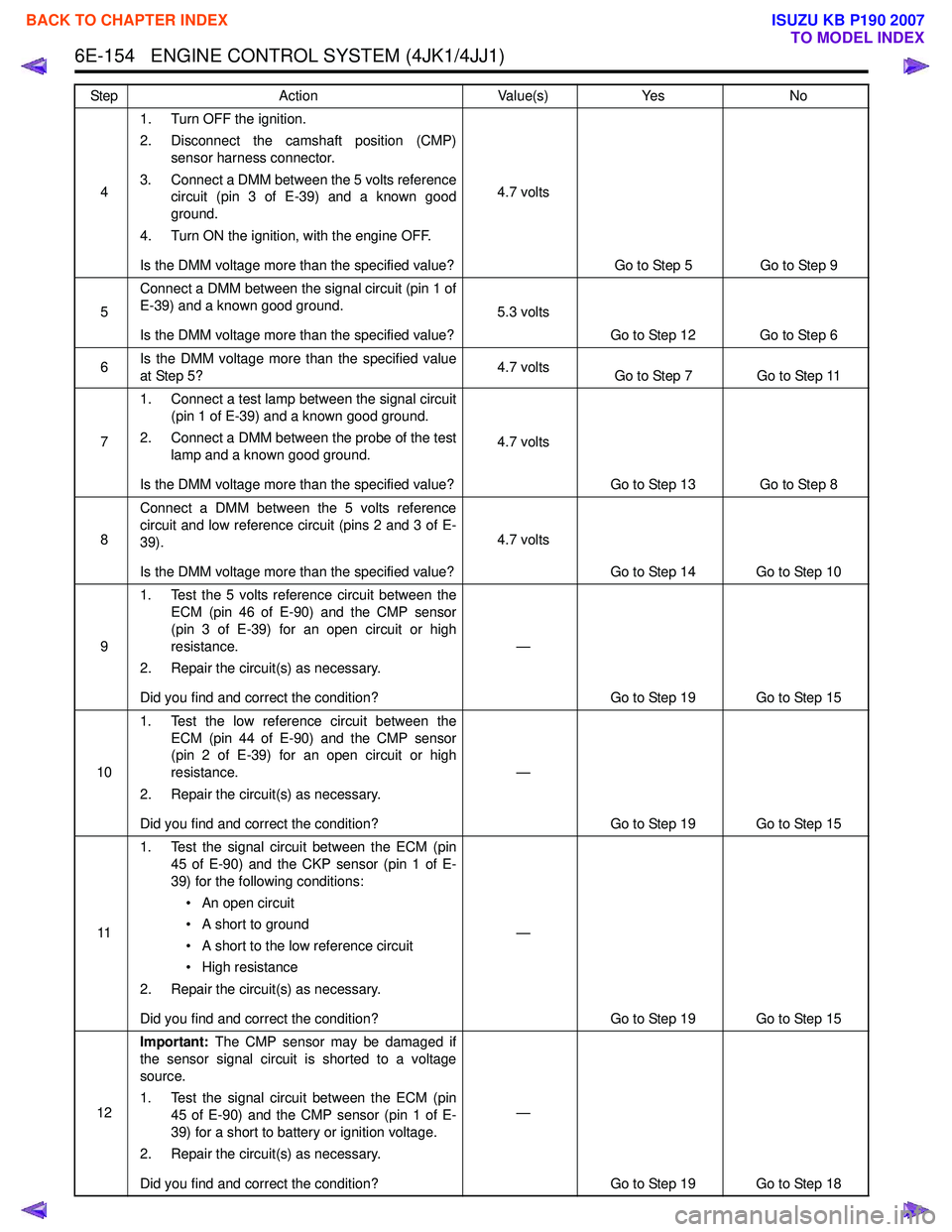

41. Turn OFF the ignition.
2. Disconnect the camshaft position (CMP) sensor harness connector.
3. Connect a DMM between the 5 volts reference circuit (pin 3 of E-39) and a known good
ground.
4. Turn ON the ignition, with the engine OFF.
Is the DMM voltage more than the specified value? 4.7 volts
Go to Step 5 Go to Step 9
5 Connect a DMM between the signal circuit (pin 1 of
E-39) and a known good ground.
Is the DMM voltage more than the specified value? 5.3 volts
Go to Step 12 Go to Step 6
6 Is the DMM voltage more than the specified value
at Step 5? 4.7 volts
Go to Step 7 Go to Step 11
7 1. Connect a test lamp between the signal circuit
(pin 1 of E-39) and a known good ground.
2. Connect a DMM between the probe of the test lamp and a known good ground.
Is the DMM voltage more than the specified value? 4.7 volts
Go to Step 13 Go to Step 8
8 Connect a DMM between the 5 volts reference
circuit and low reference circuit (pins 2 and 3 of E-
39).
Is the DMM voltage more than the specified value? 4.7 volts
Go to Step 14 Go to Step 10
9 1. Test the 5 volts reference circuit between the
ECM (pin 46 of E-90) and the CMP sensor
(pin 3 of E-39) for an open circuit or high
resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 15
10 1. Test the low reference circuit between the
ECM (pin 44 of E-90) and the CMP sensor
(pin 2 of E-39) for an open circuit or high
resistance.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 15
11 1. Test the signal circuit between the ECM (pin
45 of E-90) and the CKP sensor (pin 1 of E-
39) for the following conditions:
• An open circuit
• A short to ground
• A short to the low reference circuit
• High resistance
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 15
12 Important:
The CMP sensor may be damaged if
the sensor signal circuit is shorted to a voltage
source.
1. Test the signal circuit between the ECM (pin 45 of E-90) and the CMP sensor (pin 1 of E-
39) for a short to battery or ignition voltage.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 18
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-155

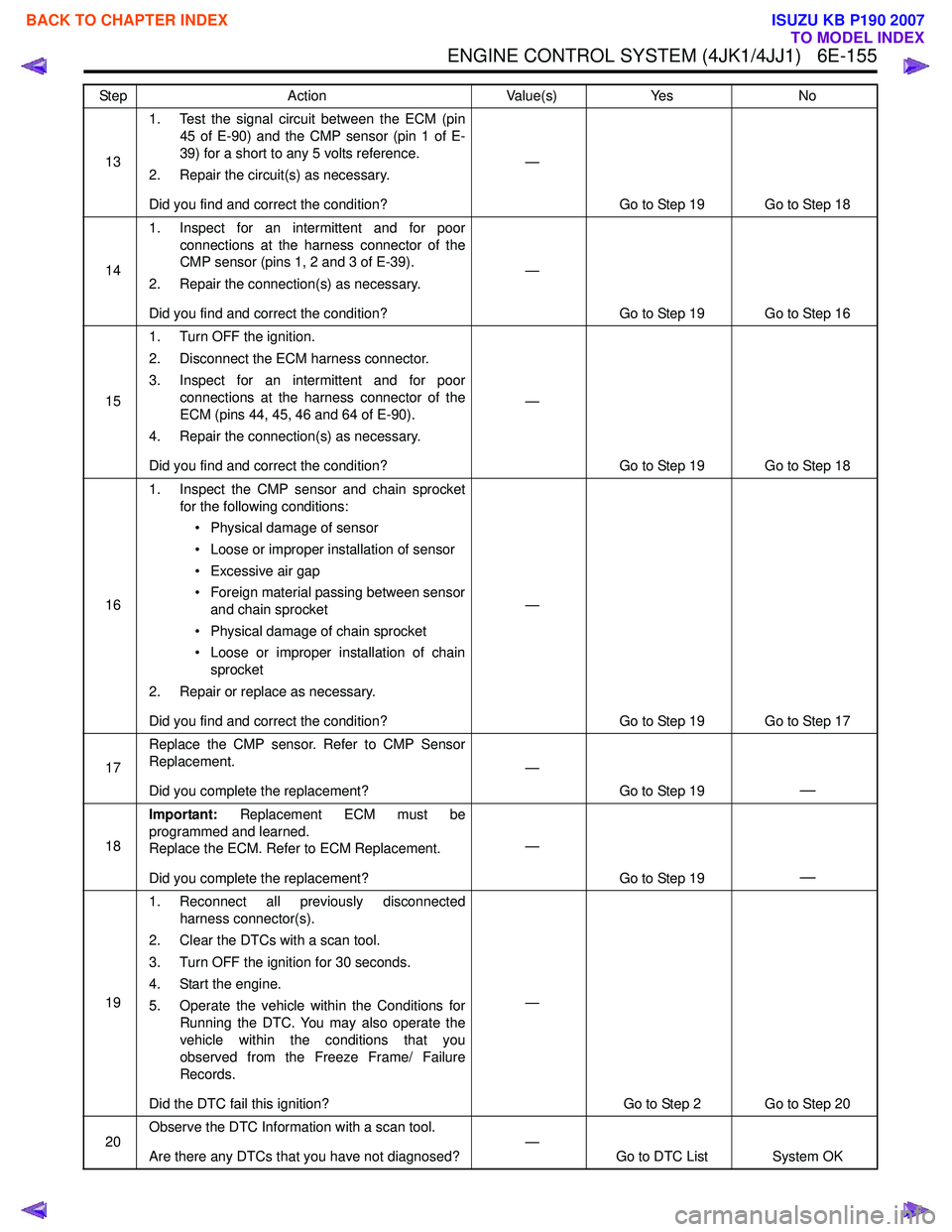

131. Test the signal circuit between the ECM (pin
45 of E-90) and the CMP sensor (pin 1 of E-
39) for a short to any 5 volts reference.
2. Repair the circuit(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 18
14 1. Inspect for an intermittent and for poor
connections at the harness connector of the
CMP sensor (pins 1, 2 and 3 of E-39).
2. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 16
15 1. Turn OFF the ignition.
2. Disconnect the ECM harness connector.
3. Inspect for an intermittent and for poor connections at the harness connector of the
ECM (pins 44, 45, 46 and 64 of E-90).
4. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 18
16 1. Inspect the CMP sensor and chain sprocket
for the following conditions:
• Physical damage of sensor
• Loose or improper installation of sensor
• Excessive air gap
• Foreign material passing between sensor and chain sprocket
• Physical damage of chain sprocket
• Loose or improper installation of chain sprocket
2. Repair or replace as necessary.
Did you find and correct the condition? —
Go to Step 19 Go to Step 17
17 Replace the CMP sensor. Refer to CMP Sensor
Replacement.
Did you complete the replacement? —
Go to Step 19
—
18Important:
Replacement ECM must be
programmed and learned.
Replace the ECM. Refer to ECM Replacement.
Did you complete the replacement? —
Go to Step 19
—
191. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Operate the vehicle within the Conditions for Running the DTC. You may also operate the
vehicle within the conditions that you
observed from the Freeze Frame/ Failure
Records.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 20
20 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-156 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

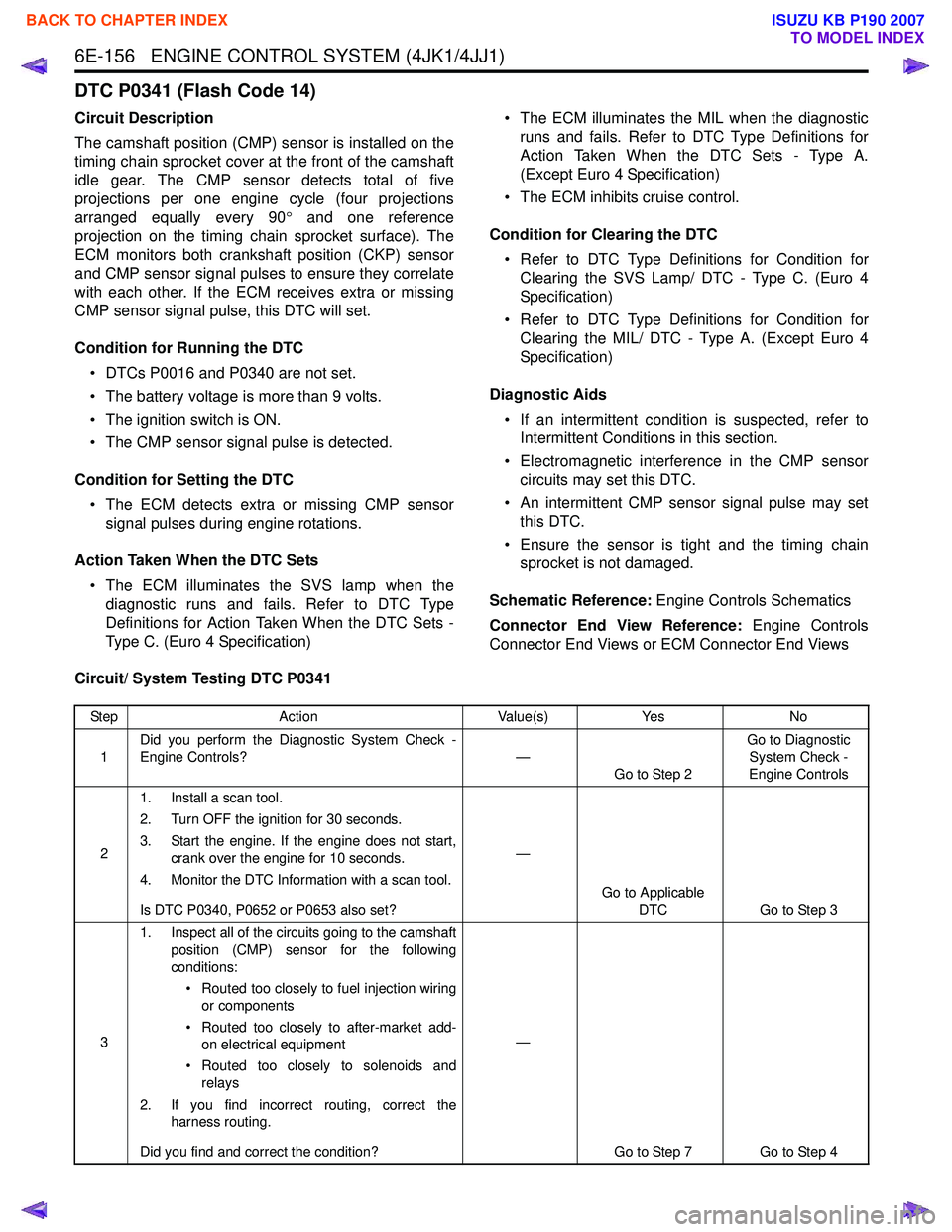

DTC P0341 (Flash Code 14)
Circuit Description
The camshaft position (CMP) sensor is installed on the
timing chain sprocket cover at the front of the camshaft
idle gear. The CMP sensor detects total of five
projections per one engine cycle (four projections
arranged equally every 90 ° and one reference
projection on the timing chain sprocket surface). The
ECM monitors both crankshaft position (CKP) sensor
and CMP sensor signal pulses to ensure they correlate
with each other. If the ECM receives extra or missing
CMP sensor signal pulse, this DTC will set.
Condition for Running the DTC • DTCs P0016 and P0340 are not set.
• The battery voltage is more than 9 volts.
• The ignition switch is ON.
• The CMP sensor signal pulse is detected.
Condition for Setting the DTC • The ECM detects extra or missing CMP sensor signal pulses during engine rotations.
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification) • The ECM illuminates the MIL when the diagnostic
runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• Electromagnetic interference in the CMP sensor circuits may set this DTC.
• An intermittent CMP sensor signal pulse may set this DTC.
• Ensure the sensor is tight and the timing chain sprocket is not damaged.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0341
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine. If the engine does not start, crank over the engine for 10 seconds.
4. Monitor the DTC Information with a scan tool.
Is DTC P0340, P0652 or P0653 also set? —
Go to Applicable DTC Go to Step 3
3 1. Inspect all of the circuits going to the camshaft
position (CMP) sensor for the following
conditions:
• Routed too closely to fuel injection wiring or components
• Routed too closely to after-market add- on electrical equipment
• Routed too closely to solenoids and relays
2. If you find incorrect routing, correct the harness routing.
Did you find and correct the condition? —
Go to Step 7 Go to Step 4

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

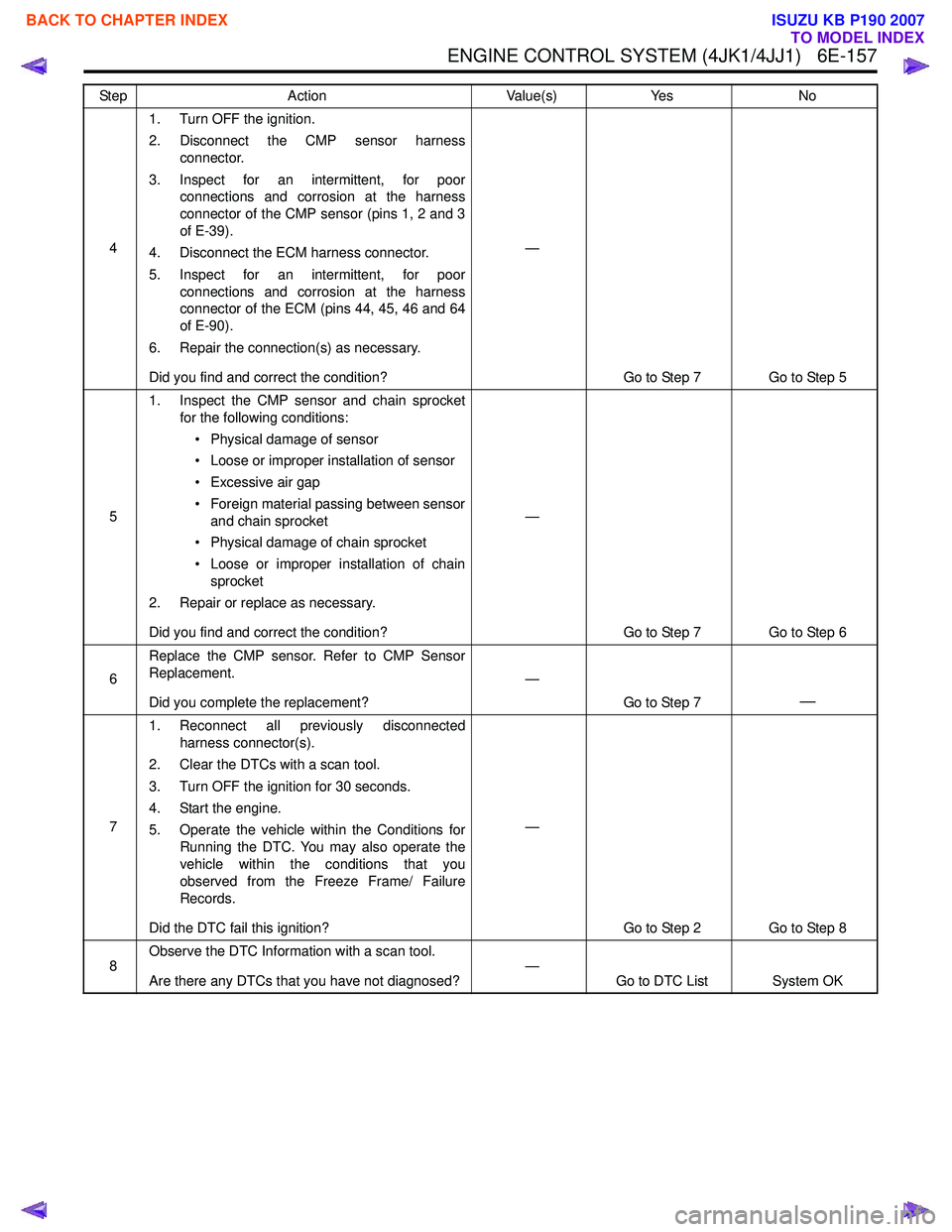

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-157
41. Turn OFF the ignition.
2. Disconnect the CMP sensor harness connector.
3. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the CMP sensor (pins 1, 2 and 3
of E-39).
4. Disconnect the ECM harness connector.
5. Inspect for an intermittent, for poor connections and corrosion at the harness
connector of the ECM (pins 44, 45, 46 and 64
of E-90).
6. Repair the connection(s) as necessary.
Did you find and correct the condition? —
Go to Step 7 Go to Step 5
5 1. Inspect the CMP sensor and chain sprocket
for the following conditions:
• Physical damage of sensor
• Loose or improper installation of sensor
• Excessive air gap
• Foreign material passing between sensor and chain sprocket
• Physical damage of chain sprocket
• Loose or improper installation of chain sprocket
2. Repair or replace as necessary.
Did you find and correct the condition? —
Go to Step 7 Go to Step 6
6 Replace the CMP sensor. Refer to CMP Sensor
Replacement.
Did you complete the replacement? —
Go to Step 7
—
71. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine.
5. Operate the vehicle within the Conditions for Running the DTC. You may also operate the
vehicle within the conditions that you
observed from the Freeze Frame/ Failure
Records.
Did the DTC fail this ignition? —
Go to Step 2 Go to Step 8
8 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-158 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

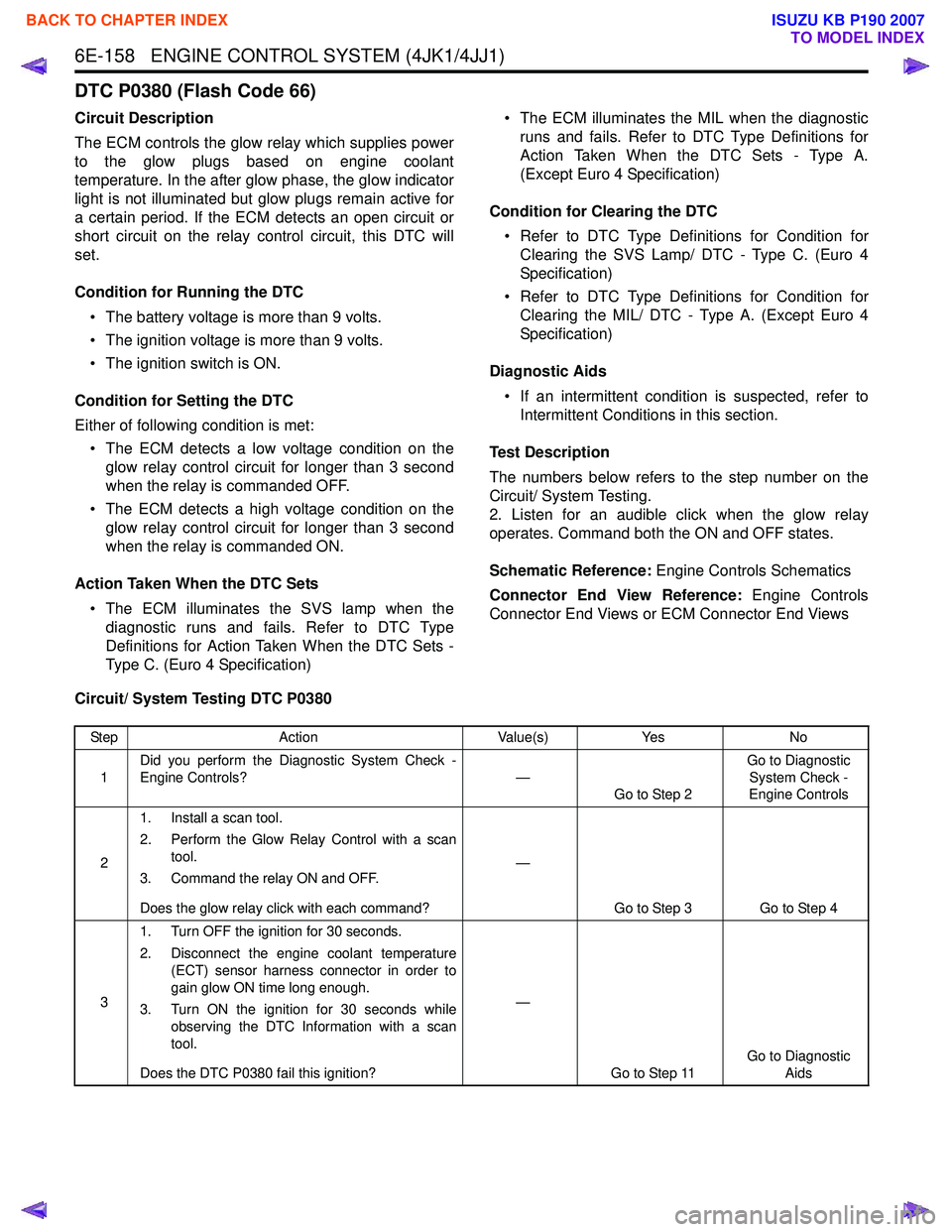

DTC P0380 (Flash Code 66)
Circuit Description
The ECM controls the glow relay which supplies power
to the glow plugs based on engine coolant
temperature. In the after glow phase, the glow indicator
light is not illuminated but glow plugs remain active for
a certain period. If the ECM detects an open circuit or
short circuit on the relay control circuit, this DTC will
set.
Condition for Running the DTC • The battery voltage is more than 9 volts.
• The ignition voltage is more than 9 volts.
• The ignition switch is ON.
Condition for Setting the DTC
Either of following condition is met: • The ECM detects a low voltage condition on the glow relay control circuit for longer than 3 second
when the relay is commanded OFF.
• The ECM detects a high voltage condition on the glow relay control circuit for longer than 3 second
when the relay is commanded ON.
Action Taken When the DTC Sets • The ECM illuminates the SVS lamp when the diagnostic runs and fails. Refer to DTC Type
Definitions for Action Taken When the DTC Sets -
Type C. (Euro 4 Specification) • The ECM illuminates the MIL when the diagnostic
runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
(Except Euro 4 Specification)
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the SVS Lamp/ DTC - Type C. (Euro 4
Specification)
• Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A. (Except Euro 4
Specification)
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
Test Description
The numbers below refers to the step number on the
Circuit/ System Testing.
2. Listen for an audible click when the glow relay
operates. Command both the ON and OFF states.
Schematic Reference: Engine Controls Schematics
Connector End View Reference: Engine Controls
Connector End Views or ECM Connector End Views
Circuit/ System Testing DTC P0380
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Perform the Glow Relay Control with a scan tool.
3. Command the relay ON and OFF.
Does the glow relay click with each command? —
Go to Step 3 Go to Step 4
3 1. Turn OFF the ignition for 30 seconds.
2. Disconnect the engine coolant temperature (ECT) sensor harness connector in order to
gain glow ON time long enough.
3. Turn ON the ignition for 30 seconds while observing the DTC Information with a scan
tool.
Does the DTC P0380 fail this ignition? —
Go to Step 11 Go to Diagnostic
Aids

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-160 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

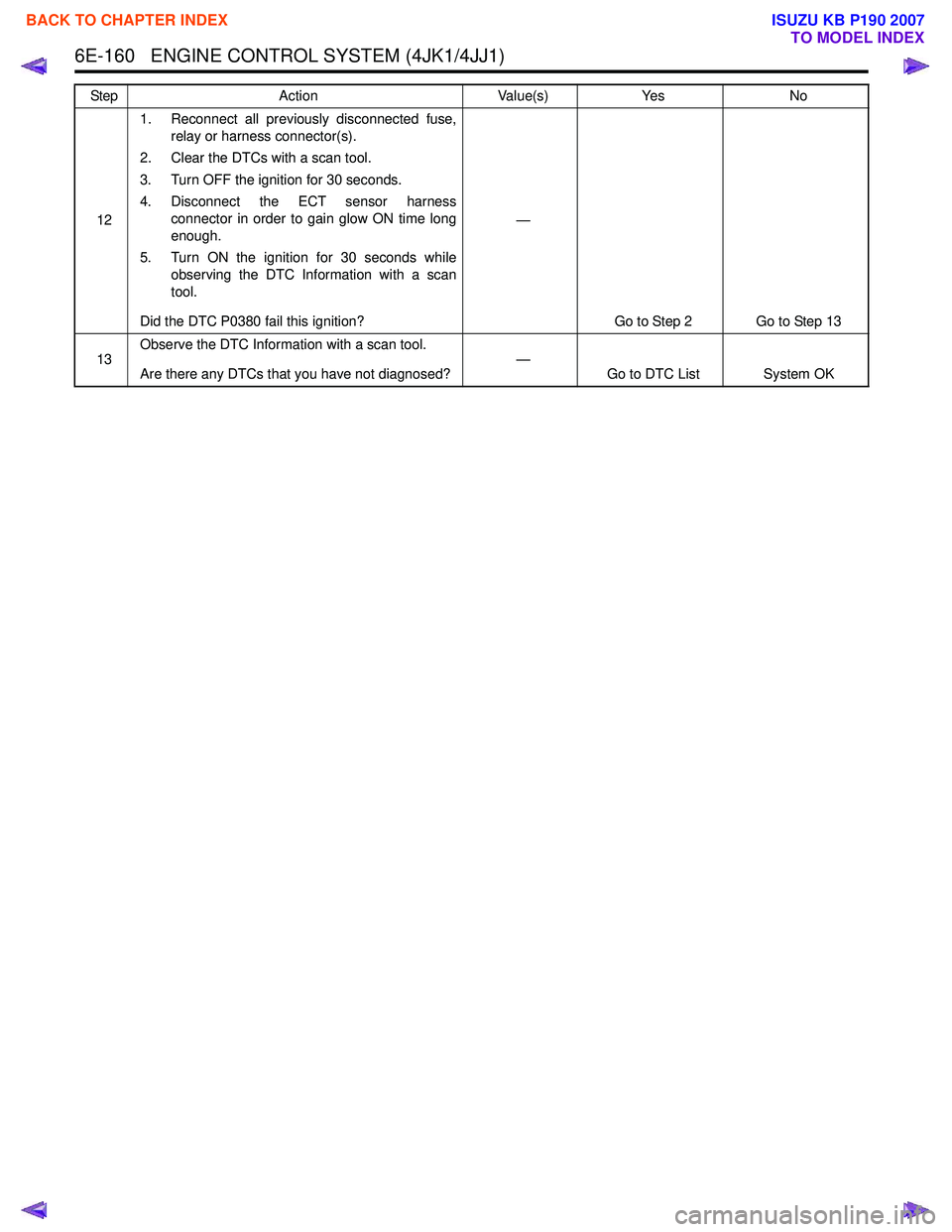

121. Reconnect all previously disconnected fuse,
relay or harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Disconnect the ECT sensor harness connector in order to gain glow ON time long
enough.
5. Turn ON the ignition for 30 seconds while observing the DTC Information with a scan
tool.
Did the DTC P0380 fail this ignition? —
Go to Step 2 Go to Step 13
13 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

ENGINE CONTROL SYSTEM (4JK1/4JJ1) 6E-161

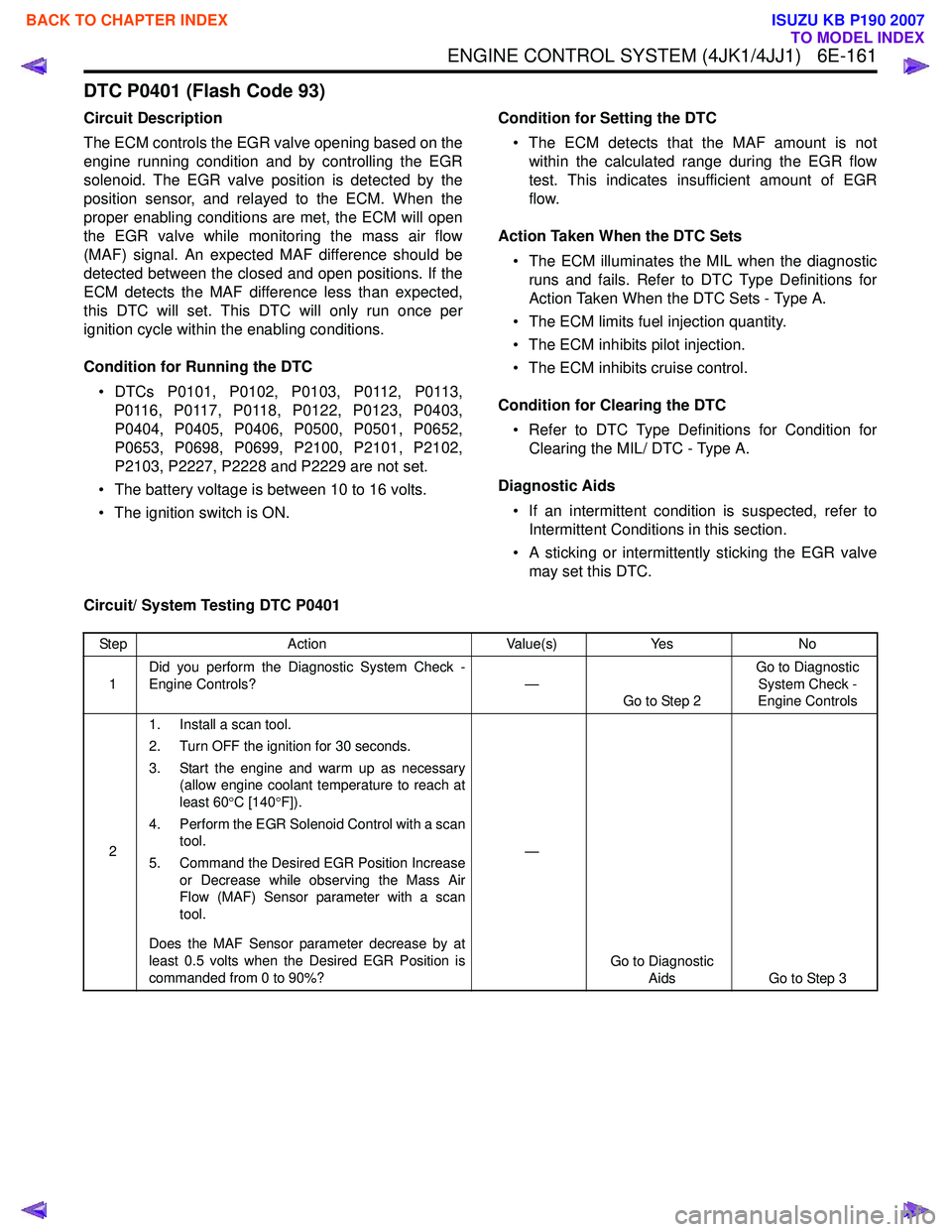

DTC P0401 (Flash Code 93)
Circuit Description
The ECM controls the EGR valve opening based on the
engine running condition and by controlling the EGR
solenoid. The EGR valve position is detected by the
position sensor, and relayed to the ECM. When the
proper enabling conditions are met, the ECM will open
the EGR valve while monitoring the mass air flow
(MAF) signal. An expected MAF difference should be
detected between the closed and open positions. If the
ECM detects the MAF difference less than expected,
this DTC will set. This DTC will only run once per
ignition cycle within the enabling conditions.
Condition for Running the DTC • DTCs P0101, P0102, P0103, P0112, P0113, P0116, P0117, P0118, P0122, P0123, P0403,
P0404, P0405, P0406, P0500, P0501, P0652,
P0653, P0698, P0699, P2100, P2101, P2102,
P2103, P2227, P2228 and P2229 are not set.
• The battery voltage is between 10 to 16 volts.
• The ignition switch is ON. Condition for Setting the DTC
• The ECM detects that the MAF amount is not within the calculated range during the EGR flow
test. This indicates insufficient amount of EGR
flow.
Action Taken When the DTC Sets • The ECM illuminates the MIL when the diagnostic runs and fails. Refer to DTC Type Definitions for
Action Taken When the DTC Sets - Type A.
• The ECM limits fuel injection quantity.
• The ECM inhibits pilot injection.
• The ECM inhibits cruise control.
Condition for Clearing the DTC • Refer to DTC Type Definitions for Condition for Clearing the MIL/ DTC - Type A.
Diagnostic Aids • If an intermittent condition is suspected, refer to Intermittent Conditions in this section.
• A sticking or intermittently sticking the EGR valve may set this DTC.
Circuit/ System Testing DTC P0401
Step Action Value(s)Yes No
1 Did you perform the Diagnostic System Check -
Engine Controls? —
Go to Step 2 Go to Diagnostic
System Check -
Engine Controls
2 1. Install a scan tool.
2. Turn OFF the ignition for 30 seconds.
3. Start the engine and warm up as necessary (allow engine coolant temperature to reach at
least 60 °C [140 °F]).
4. Perform the EGR Solenoid Control with a scan tool.
5. Command the Desired EGR Position Increase or Decrease while observing the Mass Air
Flow (MAF) Sensor parameter with a scan
tool.
Does the MAF Sensor parameter decrease by at
least 0.5 volts when the Desired EGR Position is
commanded from 0 to 90%? —
Go to Diagnostic Aids Go to Step 3

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

6E-162 ENGINE CONTROL SYSTEM (4JK1/4JJ1)

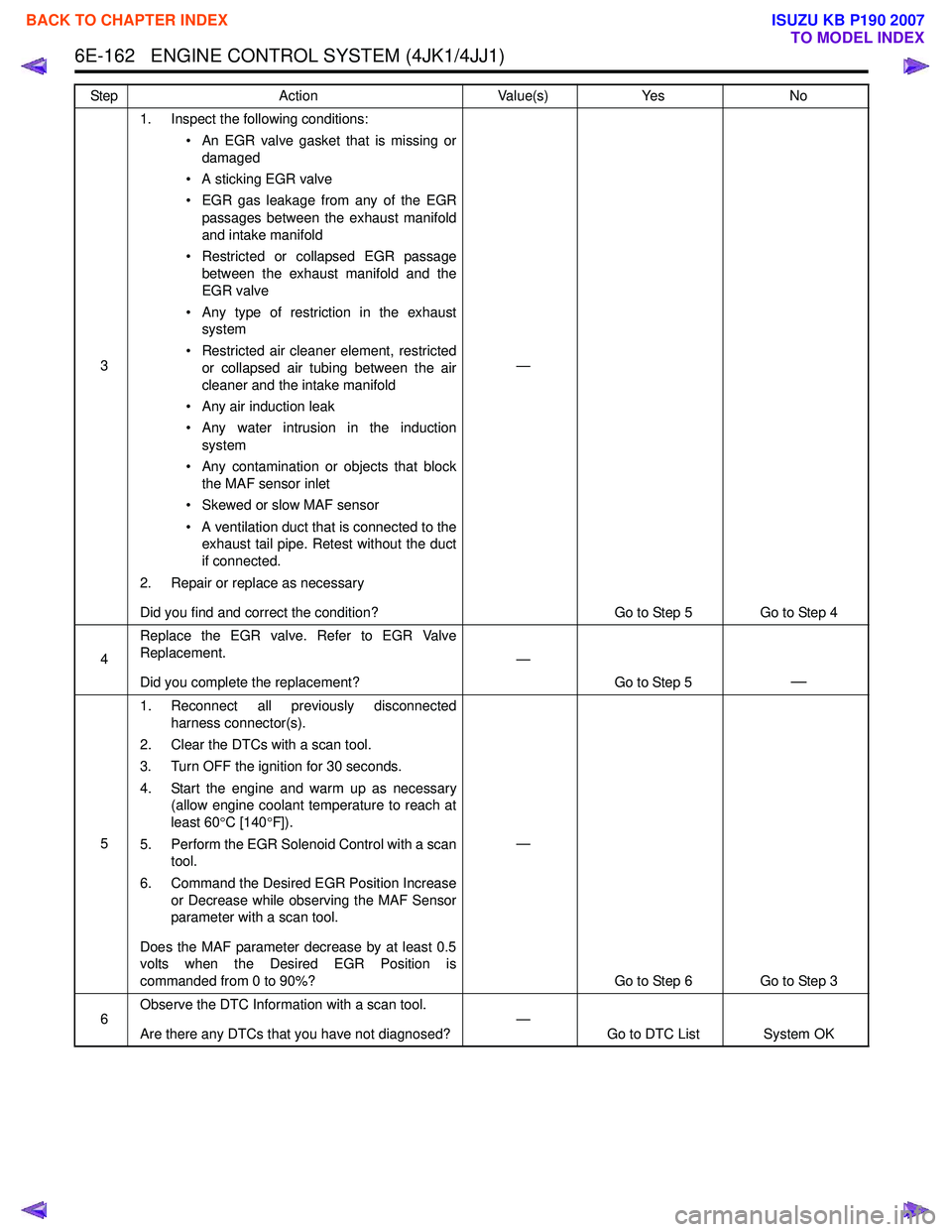

31. Inspect the following conditions:
• An EGR valve gasket that is missing ordamaged
• A sticking EGR valve
• EGR gas leakage from any of the EGR passages between the exhaust manifold
and intake manifold
• Restricted or collapsed EGR passage between the exhaust manifold and the
EGR valve
• Any type of restriction in the exhaust system
• Restricted air cleaner element, restricted or collapsed air tubing between the air
cleaner and the intake manifold
• Any air induction leak
• Any water intrusion in the induction system
• Any contamination or objects that block the MAF sensor inlet
• Skewed or slow MAF sensor
• A ventilation duct that is connected to the exhaust tail pipe. Retest without the duct
if connected.
2. Repair or replace as necessary
Did you find and correct the condition? —
Go to Step 5 Go to Step 4
4 Replace the EGR valve. Refer to EGR Valve
Replacement.
Did you complete the replacement? —
Go to Step 5
—
51. Reconnect all previously disconnected
harness connector(s).
2. Clear the DTCs with a scan tool.
3. Turn OFF the ignition for 30 seconds.
4. Start the engine and warm up as necessary (allow engine coolant temperature to reach at
least 60 °C [140 °F]).
5. Perform the EGR Solenoid Control with a scan tool.
6. Command the Desired EGR Position Increase or Decrease while observing the MAF Sensor
parameter with a scan tool.
Does the MAF parameter decrease by at least 0.5
volts when the Desired EGR Position is
commanded from 0 to 90%? —
Go to Step 6 Go to Step 3
6 Observe the DTC Information with a scan tool.
Are there any DTCs that you have not diagnosed? —
Go to DTC List System OK
Step
Action Value(s)Yes No

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
