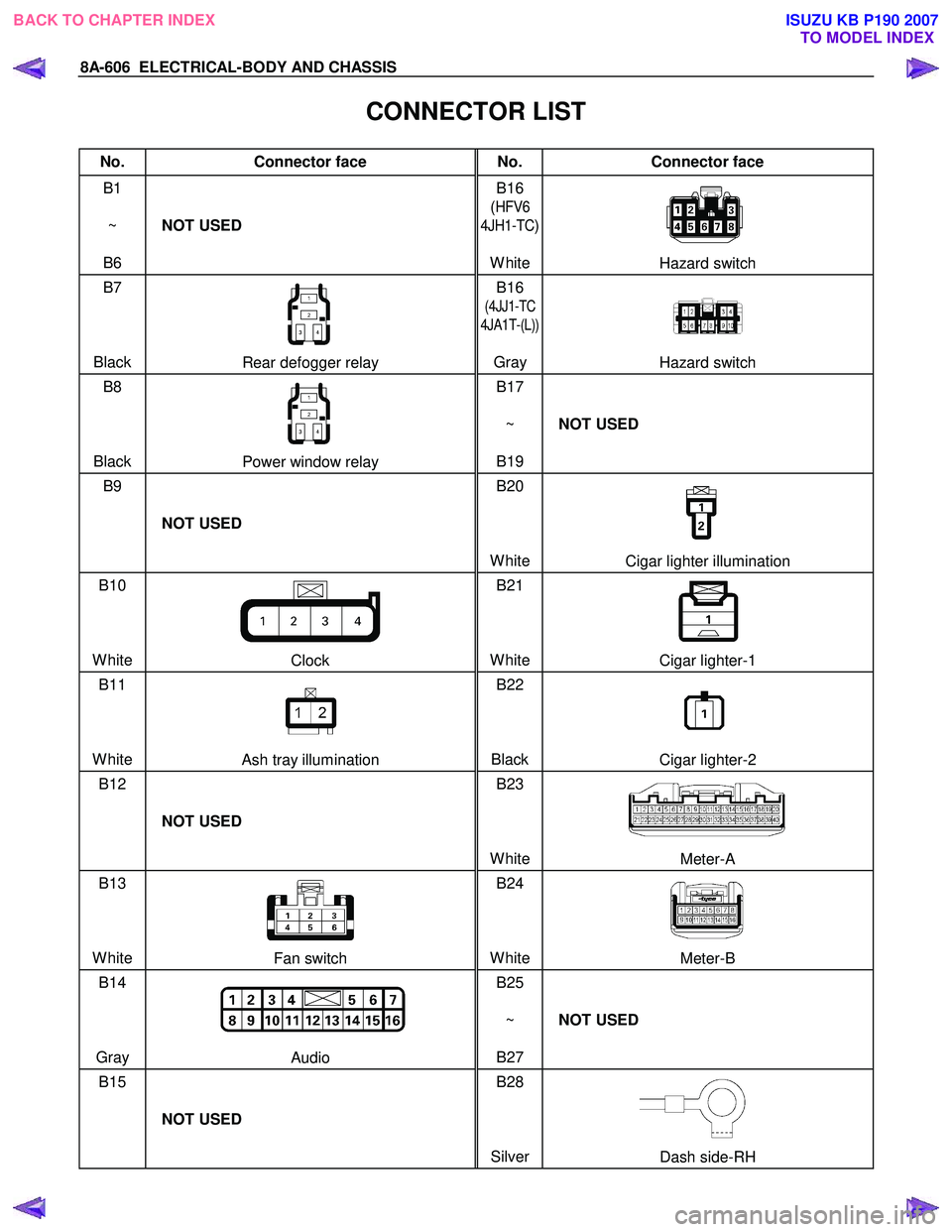

8A-606 ELECTRICAL-BODY AND CHASSIS

CONNECTOR LIST
No. Connector face No. Connector face
B1

~
B6 NOT USED B16
(
HFV6
4JH1-TC
)

White
Hazard switch
B7


Black
Rear defogger relay B16
(4JJ1-TC
4JA1T-(L))
Gray Hazard switch
B8


Black
Power window relay B17

~
B19 NOT USED
B9



NOT USED B20



White
Cigar lighter illumination
B10


White
Clock B21



WhiteCigar lighter-1
B11


White
Ash tray illumination B22



BlackCigar lighter-2
B12


NOT USED B23



White
Meter-A
B13


White
Fan switch B24



WhiteMeter-B
B14


Gray
Audio B25

~
B27 NOT USED
B15



NOT USED B28



Silver
Dash side-RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

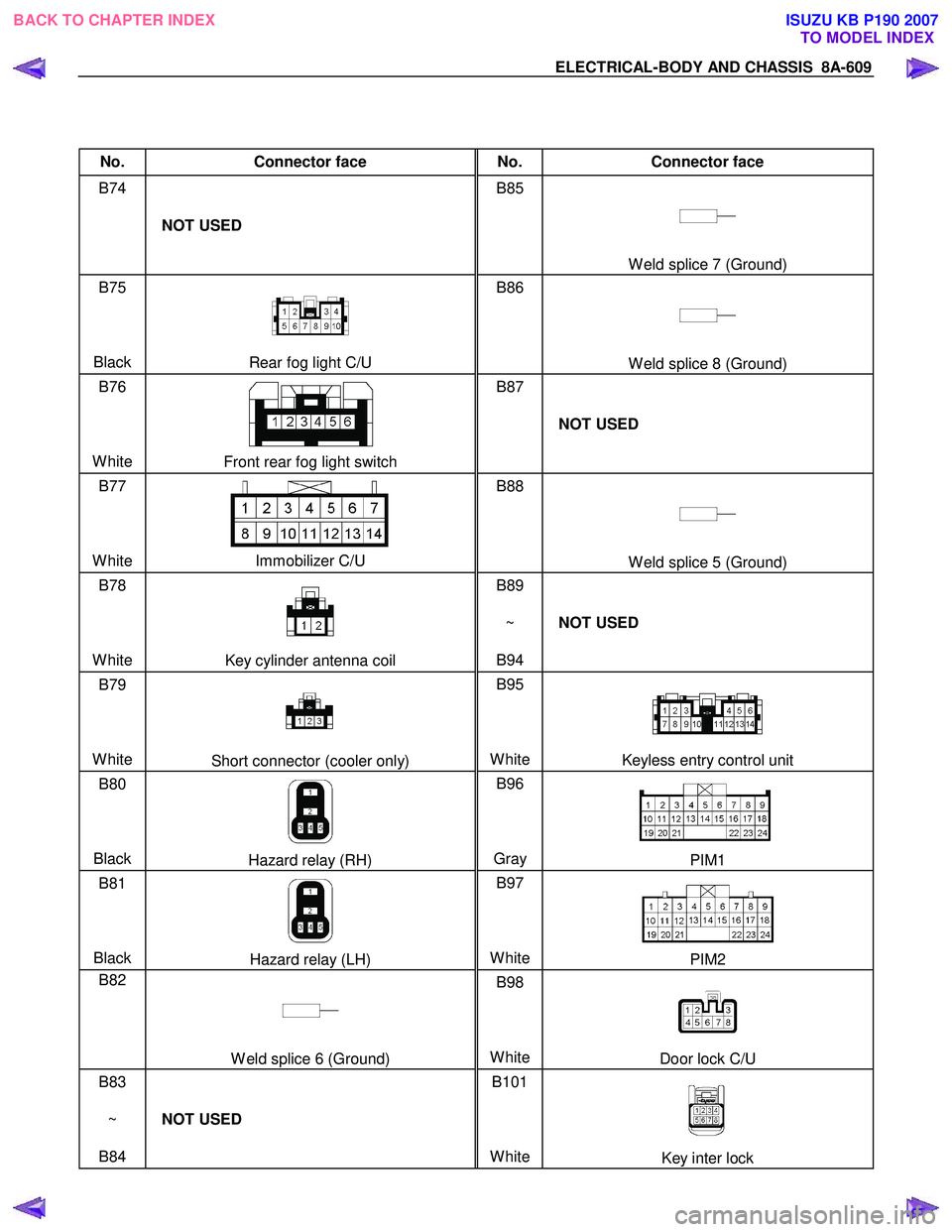

ELECTRICAL-BODY AND CHASSIS 8A-609


No. Connector face No. Connector face
B74



NOT USED B85




W eld splice 7 (Ground)
B75


Black
Rear fog light C/U B86



W eld splice 8 (Ground)
B76


White
Front rear fog light switch B87



NOT USED
B77



White
Immobilizer C/U B88



W eld splice 5 (Ground)
B78


White

Key cylinder antenna coil B89

~
B94 NOT USED
B79



White
Short connector (cooler only) B95



White

Keyless entry control unit
B80


Black
Hazard relay (RH) B96



Gray PIM1
B81


Black
Hazard relay (LH) B97



WhitePIM2
B82



W eld splice 6 (Ground) B98



WhiteDoor lock C/U
B83
~
B84 NOT USED B101



White
Key inter lock


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

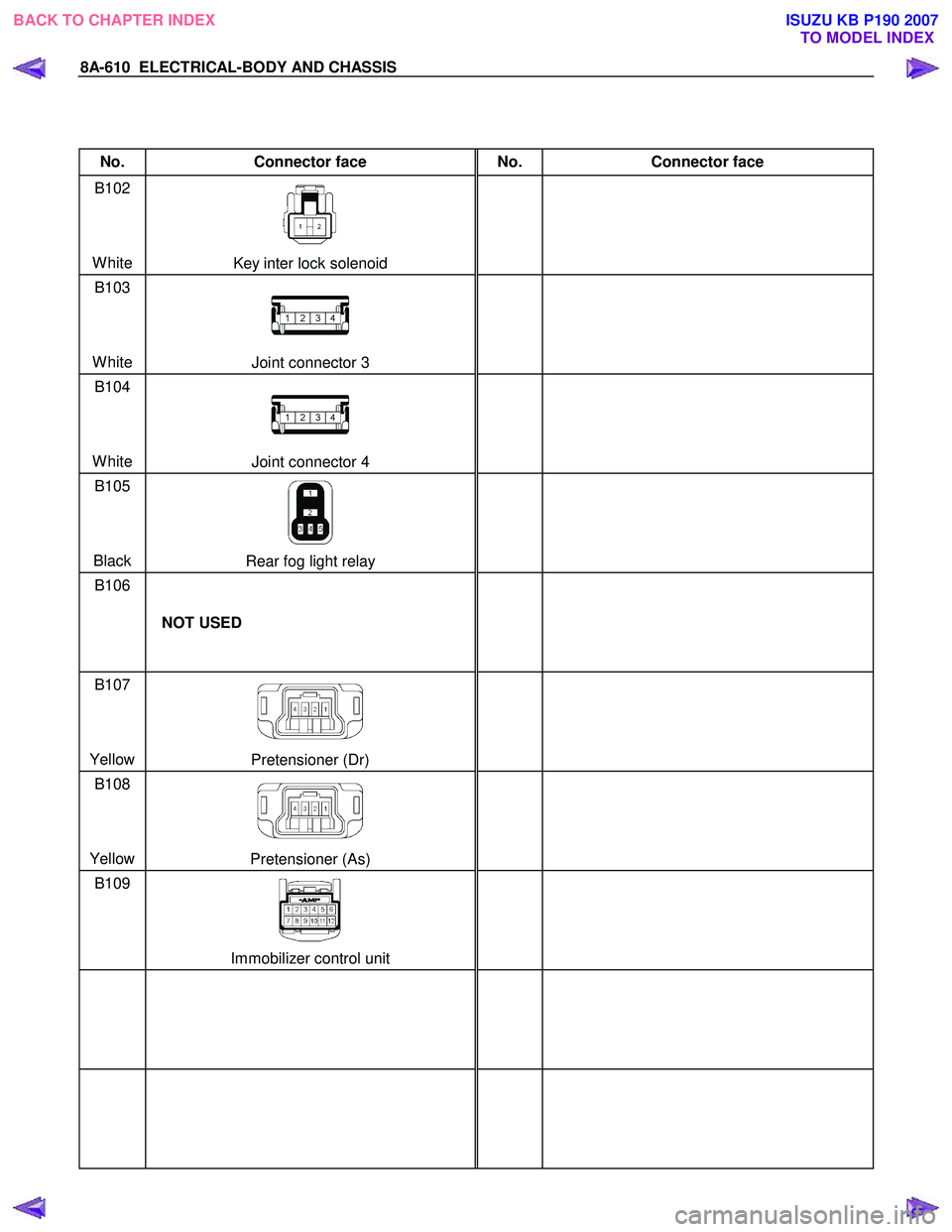

8A-610 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
B102



White
Key inter lock solenoid

B103



White
Joint connector 3

B104



White
Joint connector 4

B105



Black
Rear fog light relay

B106



NOT USED

B107



Yellow
Pretensioner (Dr)

B108



Yellow
Pretensioner (As)

B109




Immobilizer control unit







BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

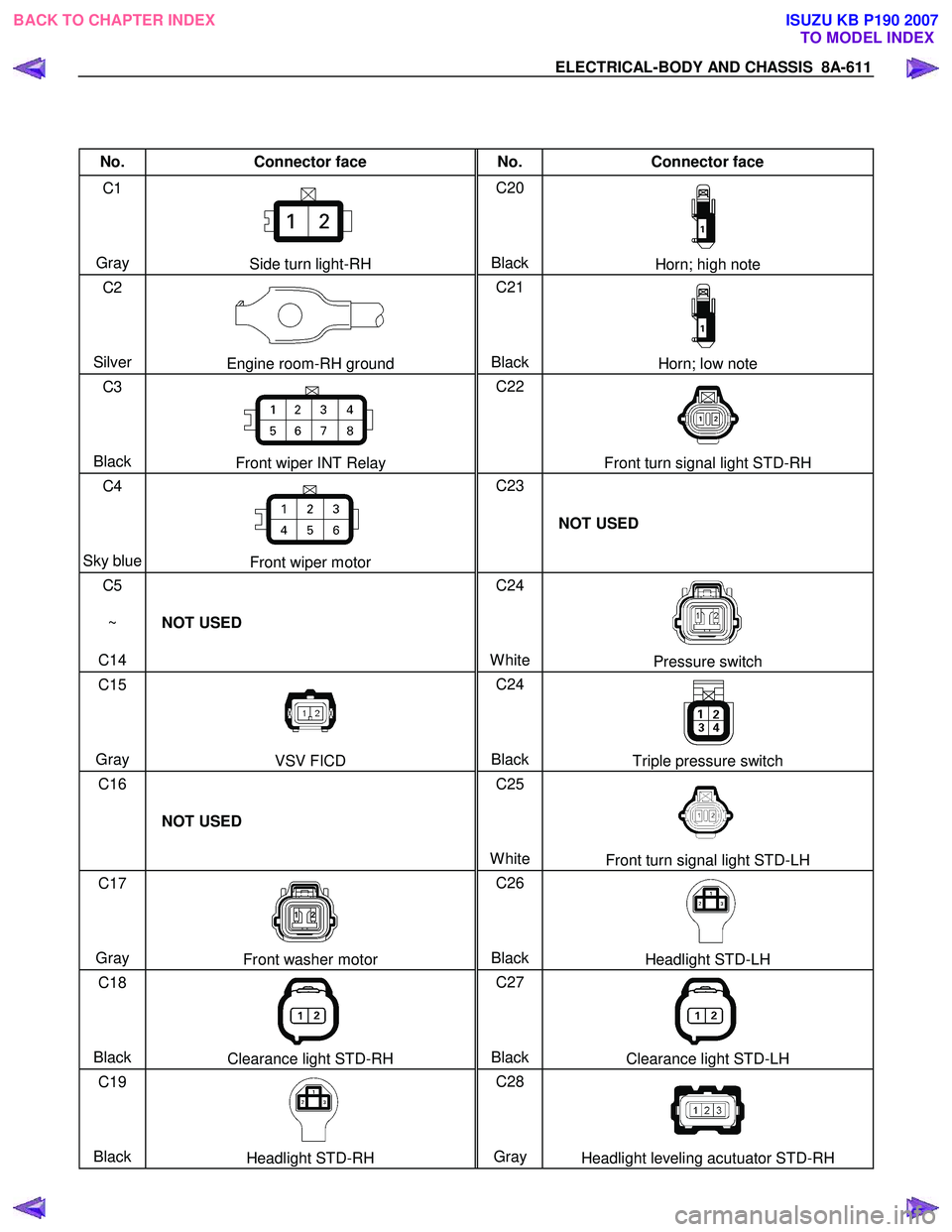

ELECTRICAL-BODY AND CHASSIS 8A-611


No. Connector face No. Connector face
C1



Gray
Side turn light-RH C20



BlackHorn; high note
C2


Silver
Engine room-RH ground C21



BlackHorn; low note
C3


Black
Front wiper INT Relay C22



Front turn signal light STD-RH
C4


Sky blue
Front wiper motor C23



NOT USED
C5

~
C14 NOT USED C24



White
Pressure switch
C15


Gray
VSV FICD C24



BlackTriple pressure switch
C16


NOT USED C25



White
Front turn signal light STD-LH
C17


Gray
Front washer motor C26



BlackHeadlight STD-LH
C18


Black
Clearance light STD-RH C27



BlackClearance light STD-LH
C19


Black
Headlight STD-RH C28



Gray Headlight leveling acutuator STD-RH


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-623


No. Connector face No. Connector face
E89



White

Immobilizer engine control unit E107




MAP sensor
E90


Black
ECM J1 E108



Blue Cylinder revolution
E92


Silver
Fuse & relay box E109



Blue SPGA
E94
~
E95 NOT USED E110



Brown
Backup light switch
E96


Black
Reverse switch E111



BrownNeutral switch
E97
~
E98 NOT USED E112



Gray
1st switch
E99


Black
O2 sensor-RH E113



Gray Clutch sleave cylinder
E100


Black
O2 sensor-LH E114

~
E115 NOT USED
E101

~
E105 NOT USED E116




Backup light switch
E106



EVRV: Turbo



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-630 ELECTRICAL-BODY AND CHASSIS


No. Connector face No. Connector face
P1



Silver
Battery (+) P9
(4JA1T- (L))
SilverACG (B)
P2


Silver
Relay & Fuse box P9
(4JH1-TC)


Silver
ACG (B)
P3


Black
Starter (S) P10



SilverEngine ground
P4
(HFV6)

Silver
Starter (B) P11



SilverFuse & relay box
P4


Silver
Starter (B) P12



NOT USED
P5



Silver
Battery (-) P13



Gray Shift on the fly actuator
P6


Silver
Body earth (Ground) P14



NOT USED
P7




Battery (ALT) P15



Silver2nd battery (+)
P8


Green
ACG (L)

P9
(HFV6)

Silver
ACG (B)



BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

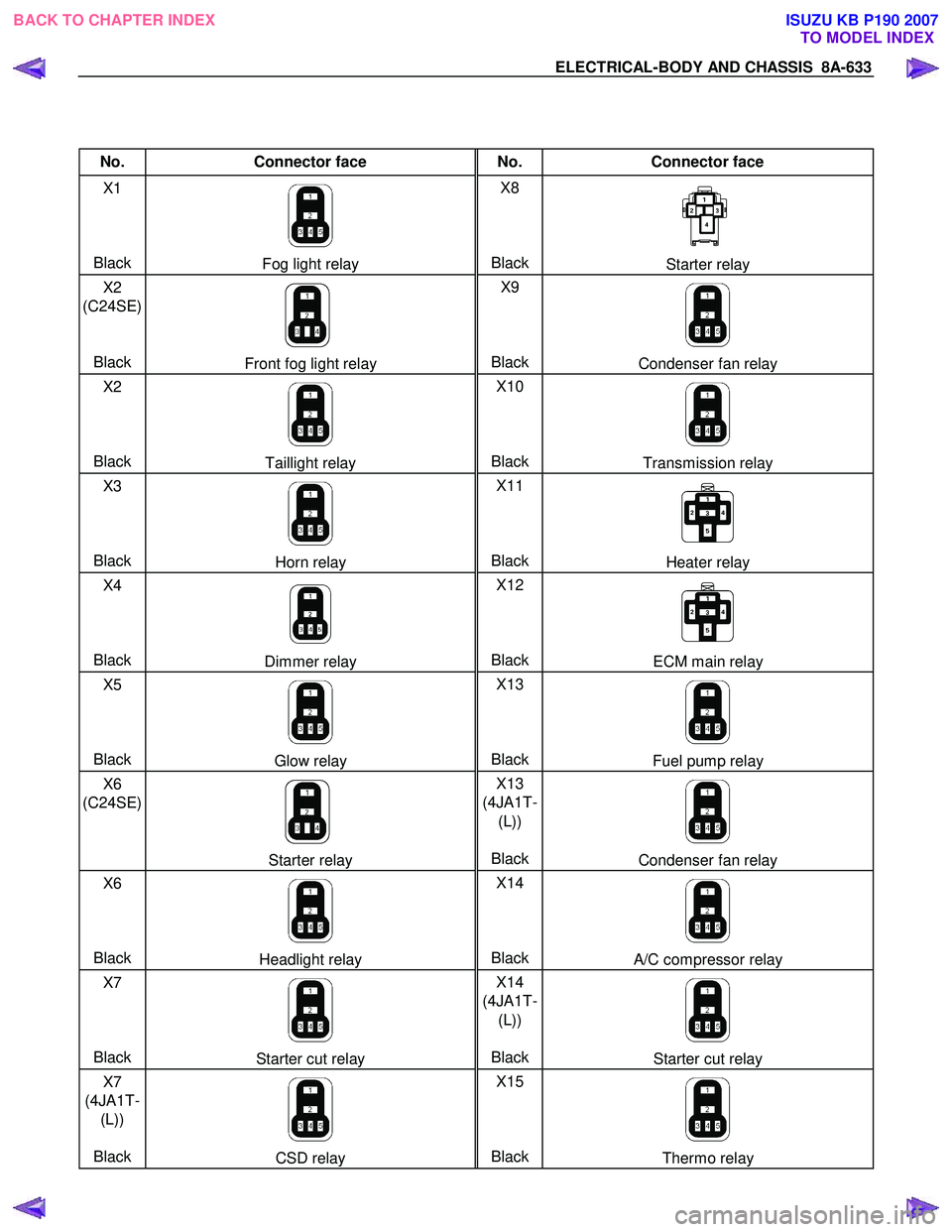

ELECTRICAL-BODY AND CHASSIS 8A-633


No. Connector face No. Connector face
X1



Black
Fog light relay X8



BlackStarter relay
X2
(C24SE)

Black
Front fog light relay X9



BlackCondenser fan relay
X2


Black
Taillight relay X10



BlackTransmission relay
X3


Black
Horn relay X11



BlackHeater relay
X4


Black
Dimmer relay X12



BlackECM main relay
X5


Black
Glow relay X13



BlackFuel pump relay
X6
(C24SE)


Starter relay X13
(4JA1T- (L))
BlackCondenser fan relay
X6


Black
Headlight relay X14



BlackA/C compressor relay
X7


Black
Starter cut relay X14
(4JA1T- (L))
BlackStarter cut relay
X7
(4JA1T- (L))
Black
CSD relay X15



BlackThermo relay


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ACCESSORIES 9-23


No. Connector face No. Connector face
D-22
White
Tweeter -LH P-1
SilverBattery (+)
H-14
White
Rear body ∼ Rear door -LH P-2
SilverRelay & Fuse box
H-16
White
Rear body ∼ Rear door -RH P-5
SilverBattery (-)
H-18
White
Engine room ∼ INST P-6
SilverBody earth
H-36
White
INST ~ Front door-RH P-10
SilverEngine ground
H-37
White
INST ~ Front door-LH R-7
BlackRear speaker -LH
H-39
White
INST ~ Front door-LH R-8
BlackRear speaker -RH
H-42
White

INST ~ Front door-driver


H-43

INST ~ Body


H-43
White

INST ~ Body




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
