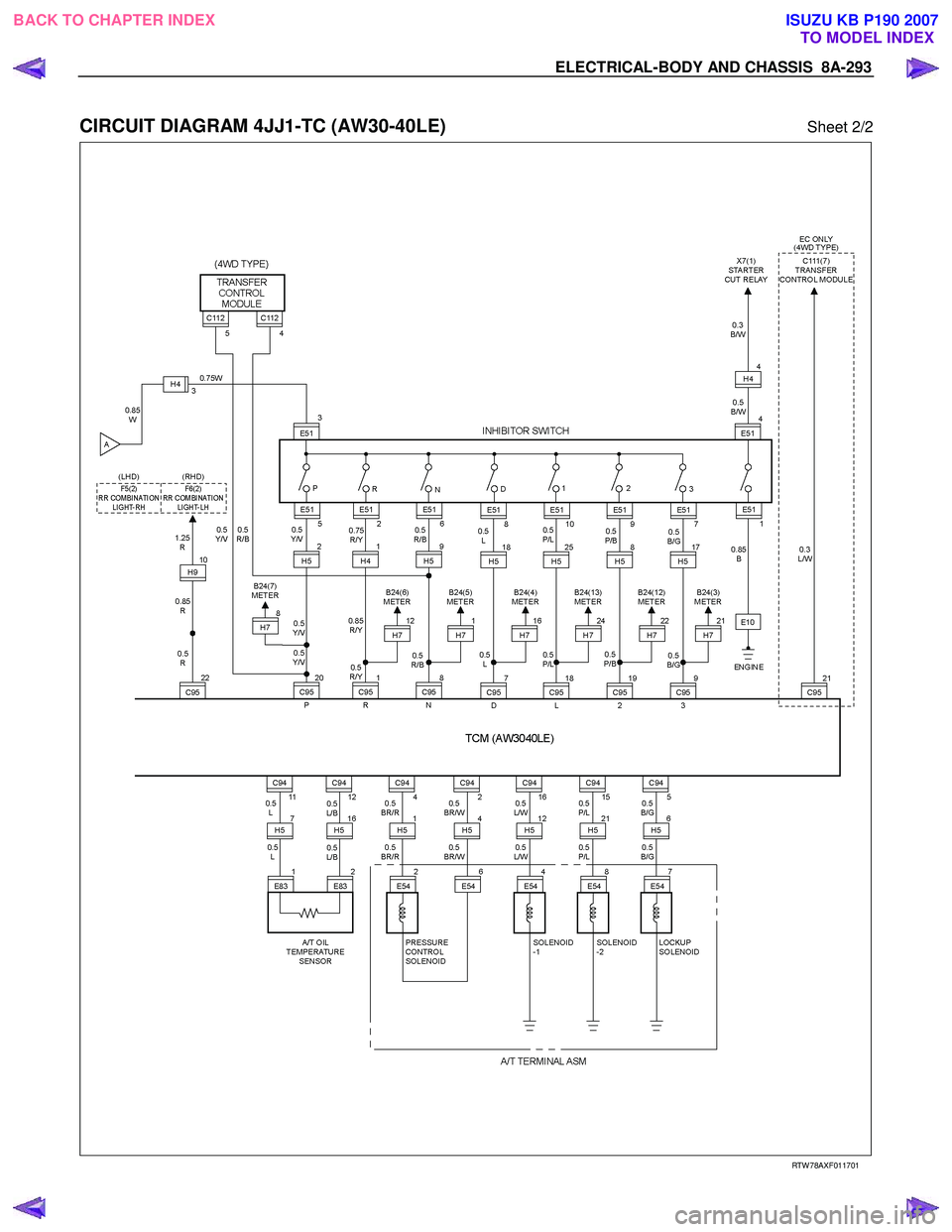

ELECTRICAL-BODY AND CHASSIS 8A-293

CIRCUIT DIAGRAM 4JJ1-TC (AW30-40LE) Sheet 2/2










RTW 78AXF011701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

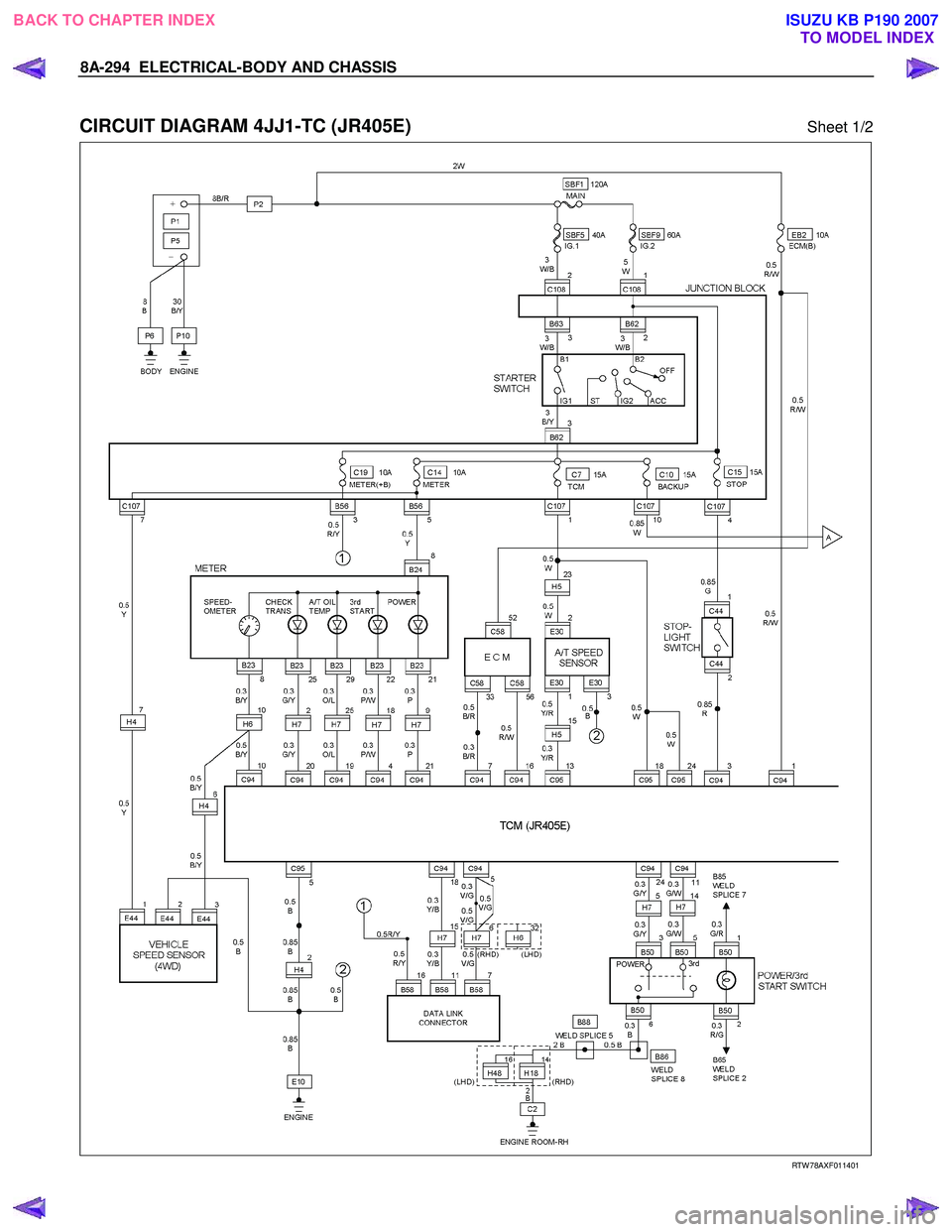

8A-294 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 1/2


RTW 78AXF011401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

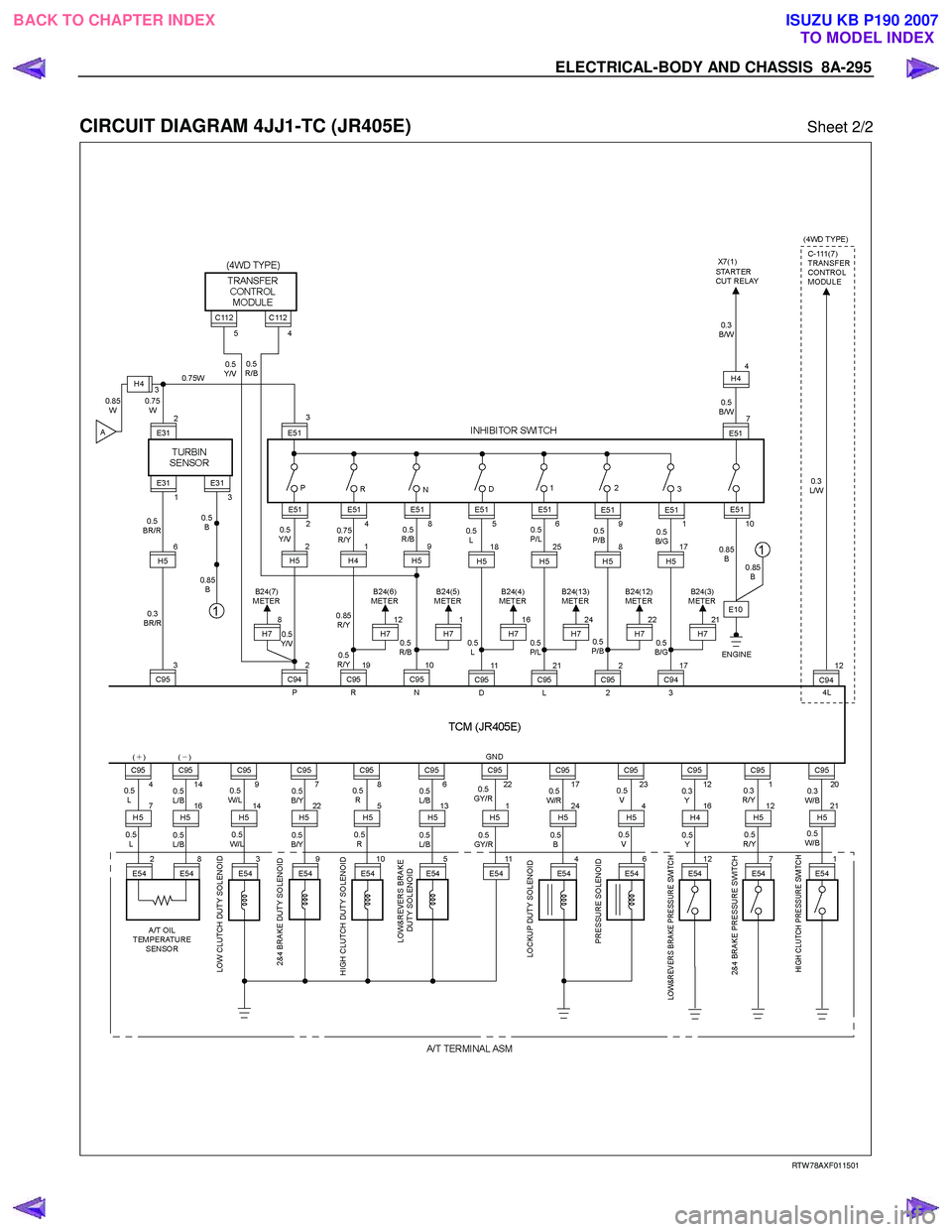

ELECTRICAL-BODY AND CHASSIS 8A-295

CIRCUIT DIAGRAM 4JJ1-TC (JR405E) Sheet 2/2










RTW 78AXF011501

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

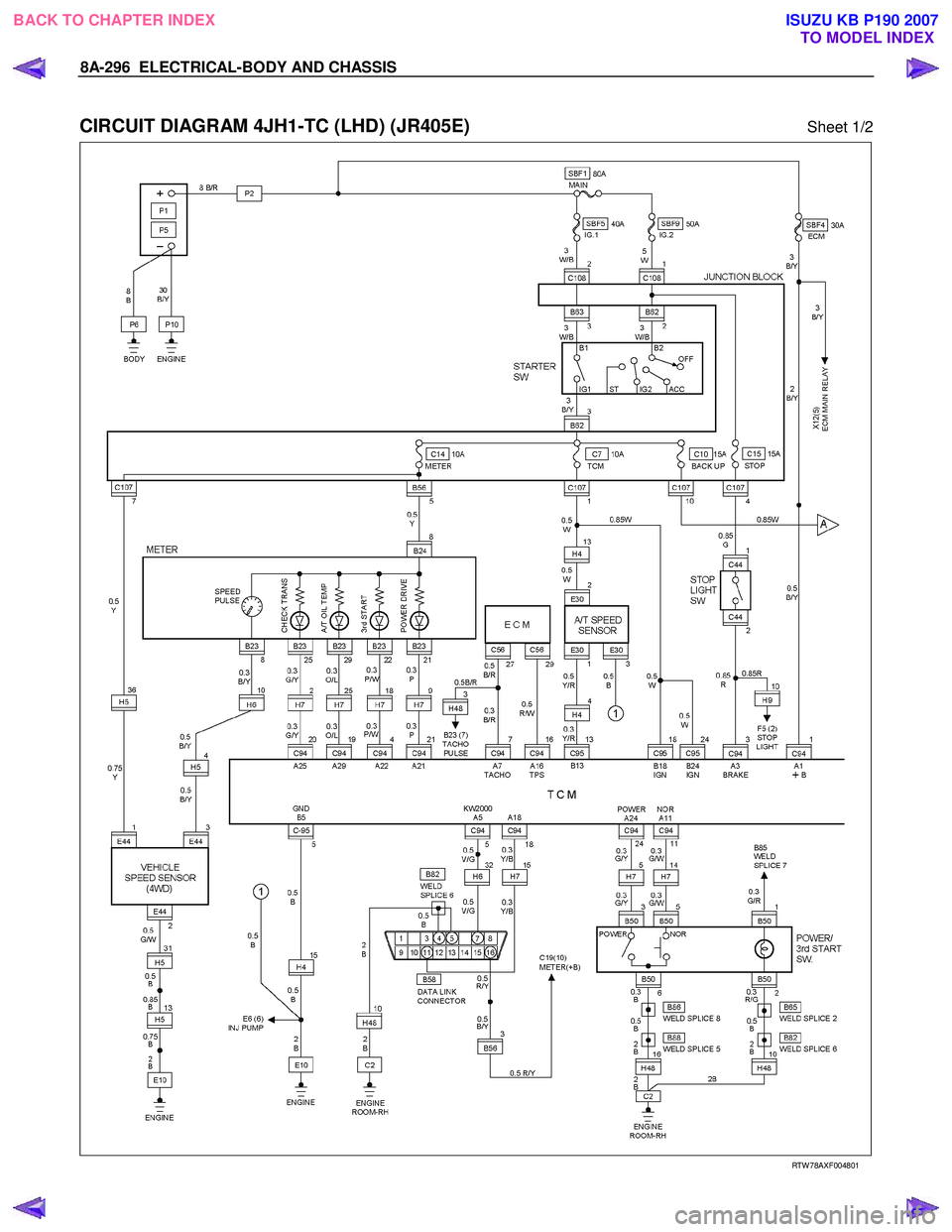

8A-296 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 1/2


RTW 78AXF004801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

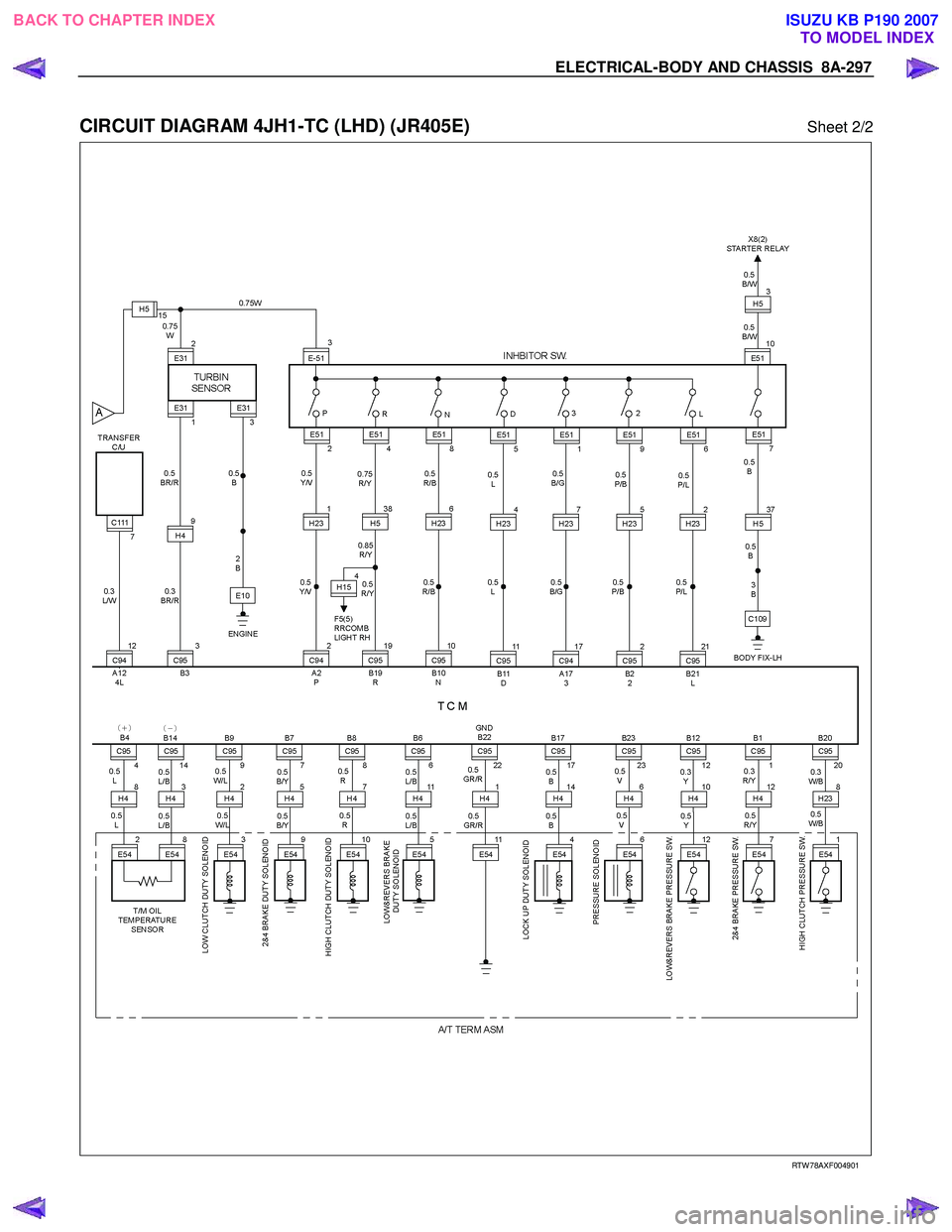

ELECTRICAL-BODY AND CHASSIS 8A-297

CIRCUIT DIAGRAM 4JH1-TC (LHD) (JR405E) Sheet 2/2









RTW 78AXF004901


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

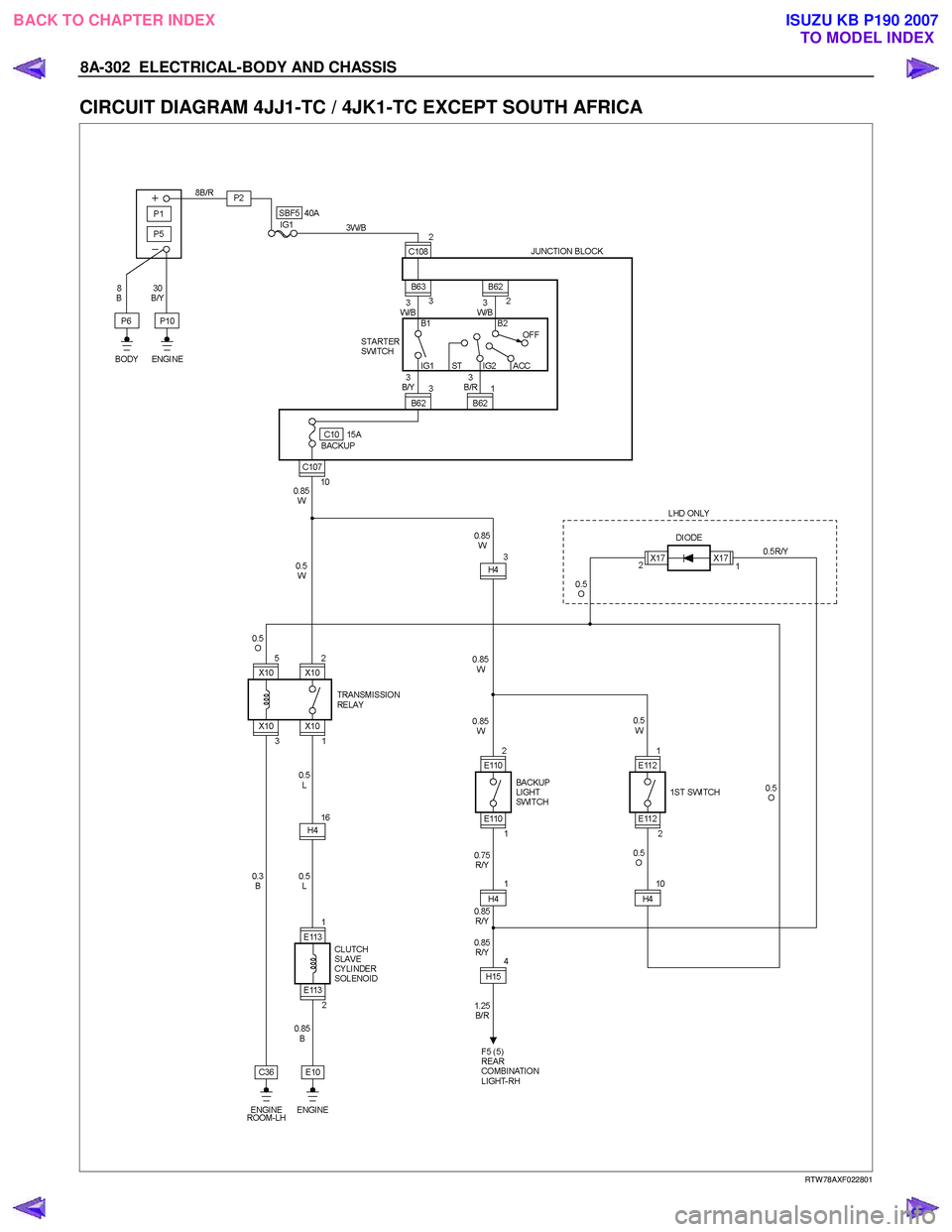

8A-302 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC EXCEPT SOUTH AFRICA




RTW 78AXF022801

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

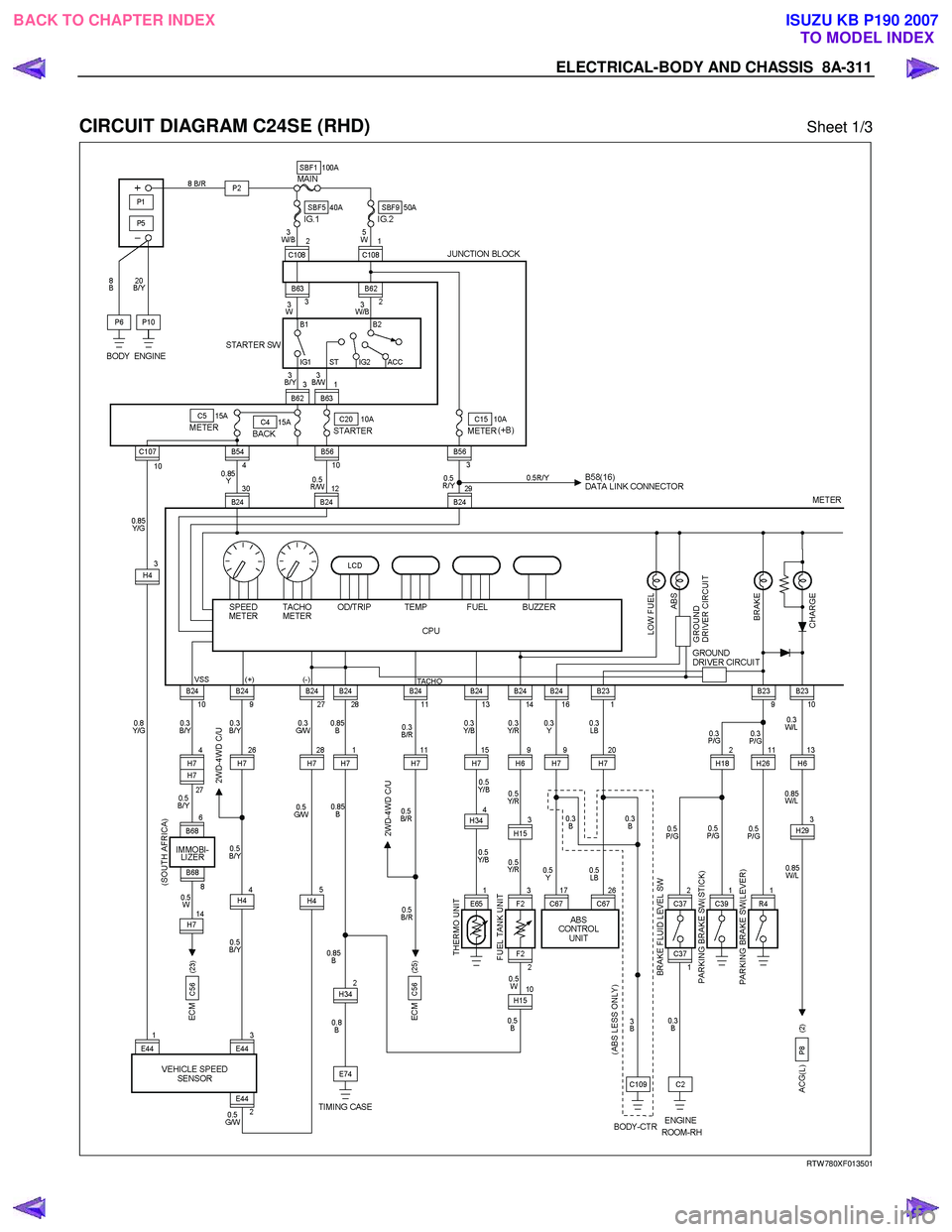

ELECTRICAL-BODY AND CHASSIS 8A-311

CIRCUIT DIAGRAM C24SE (RHD) Sheet 1/3


RTW 780XF013501


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-312 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (RHD) Sheet 2/3




















RTW 780XF013601
