Page 3105 of 6020
Engine Mechanical – V6 Page 6A1–328
Page 6A1–328

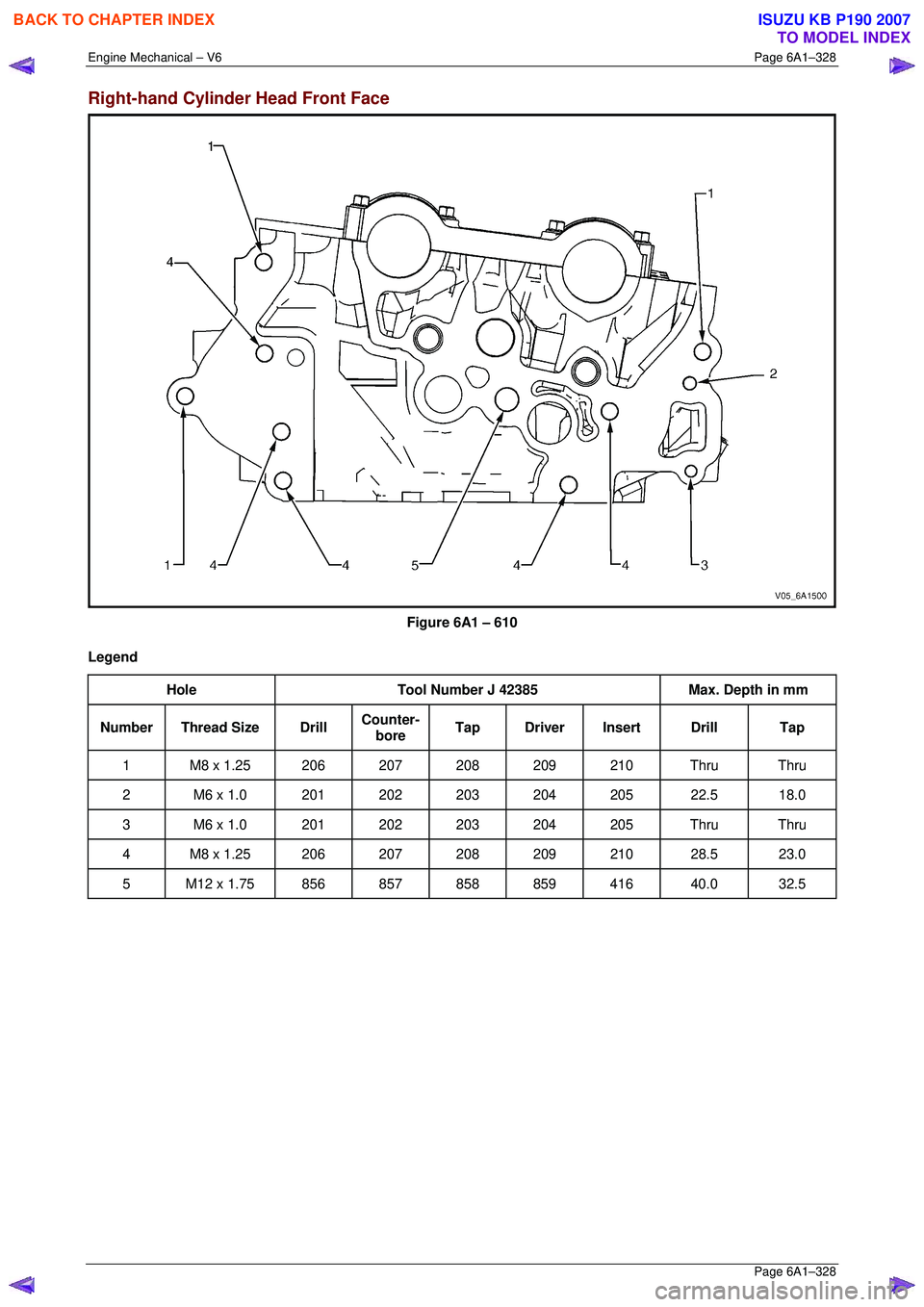

Right-hand Cylinder Head Front Face
Figure 6A1 – 610
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 Thru Thru
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M6 x 1.0 201 202 203 204 205 Thru Thru
4 M8 x 1.25 206 207 208 209 210 28.5 23.0
5 M12 x 1.75 856 857 858 859 416 40.0 32.5
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3106 of 6020
Engine Mechanical – V6 Page 6A1–329
Page 6A1–329

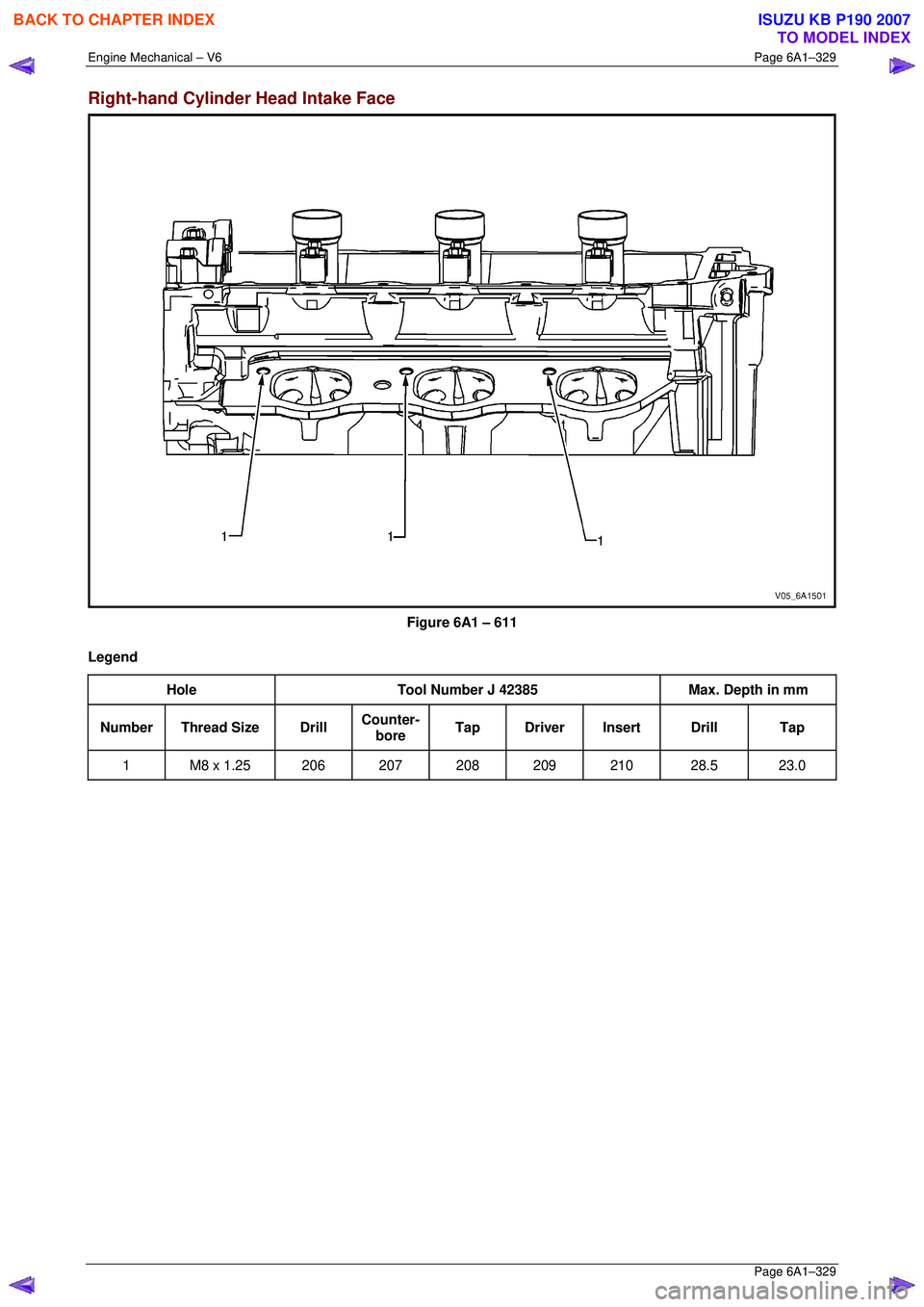

Right-hand Cylinder Head Intake Face
Figure 6A1 – 611
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3107 of 6020
Engine Mechanical – V6 Page 6A1–330
Page 6A1–330

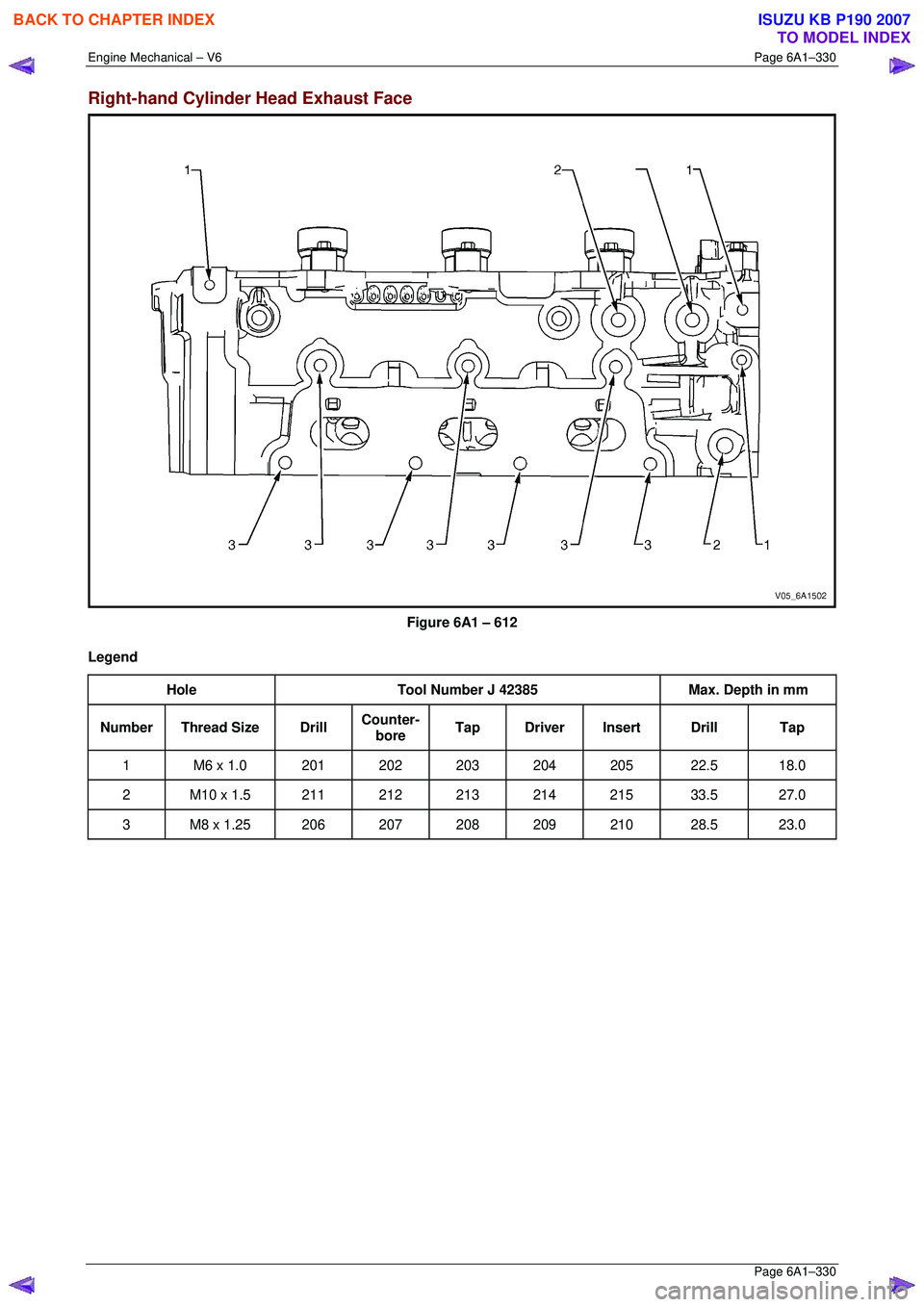

Right-hand Cylinder Head Exhaust Face
Figure 6A1 – 612
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 206 207 208 209 210 28.5 23.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3108 of 6020
Engine Mechanical – V6 Page 6A1–331
Page 6A1–331

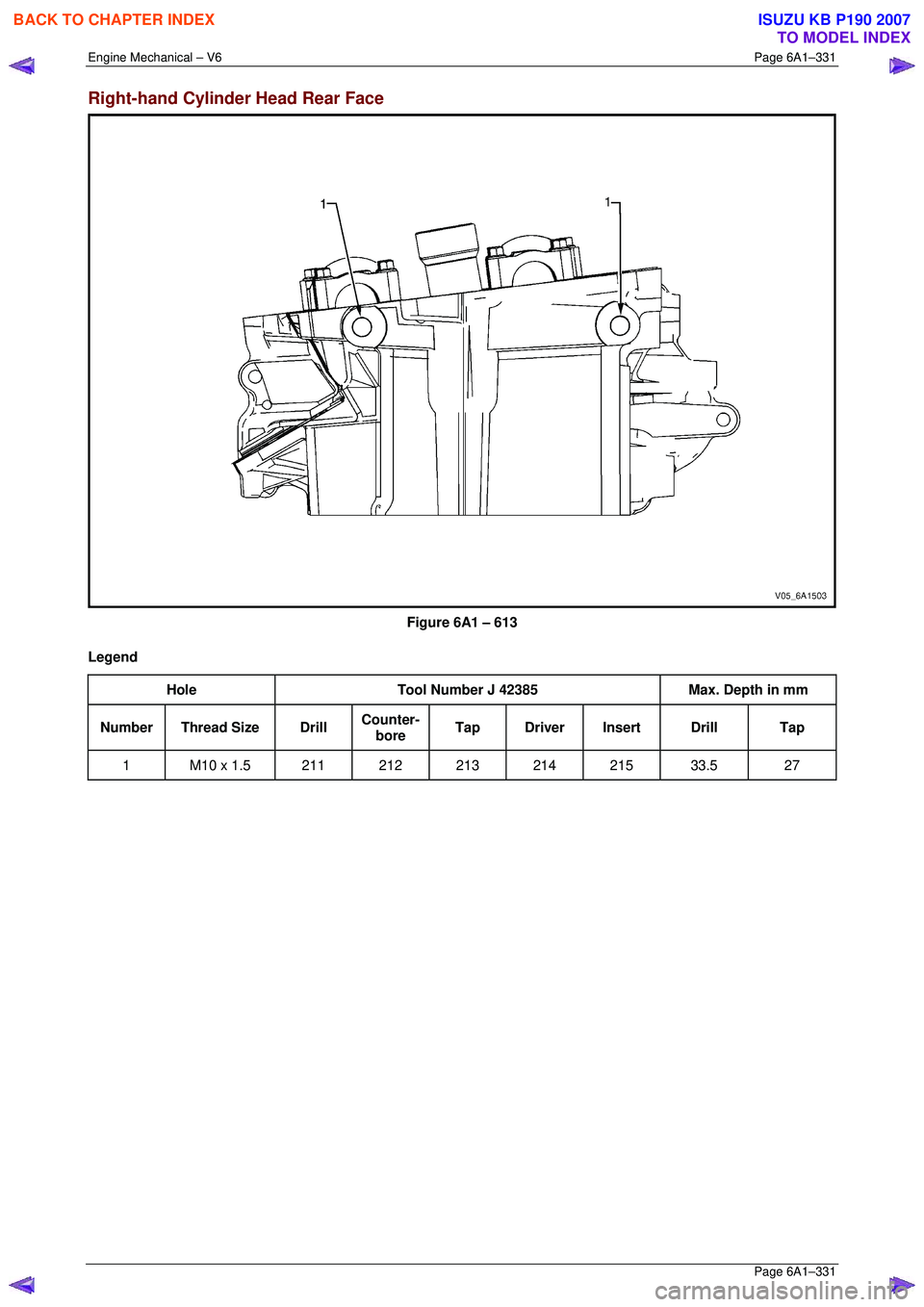

Right-hand Cylinder Head Rear Face
Figure 6A1 – 613
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 215 33.5 27
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3109 of 6020
Engine Mechanical – V6 Page 6A1–332
Page 6A1–332

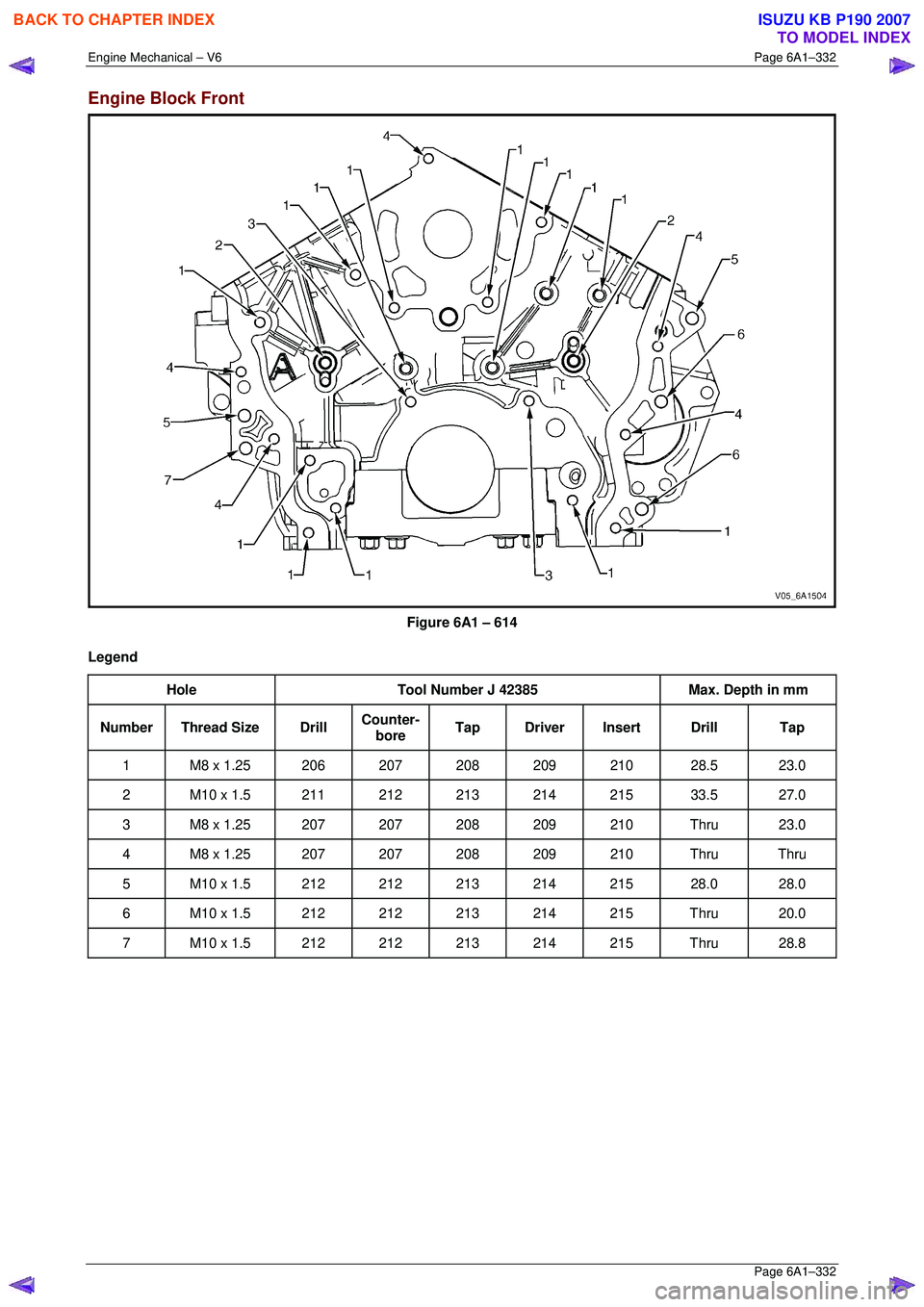

Engine Block Front
Figure 6A1 – 614
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M10 x 1.5 211 212 213 214 215 33.5 27.0
3 M8 x 1.25 207 207 208 209 210 Thru 23.0
4 M8 x 1.25 207 207 208 209 210 Thru Thru
5 M10 x 1.5 212 212 213 214 215 28.0 28.0
6 M10 x 1.5 212 212 213 214 215 Thru 20.0
7 M10 x 1.5 212 212 213 214 215 Thru 28.8
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3110 of 6020
Engine Mechanical – V6 Page 6A1–333
Page 6A1–333

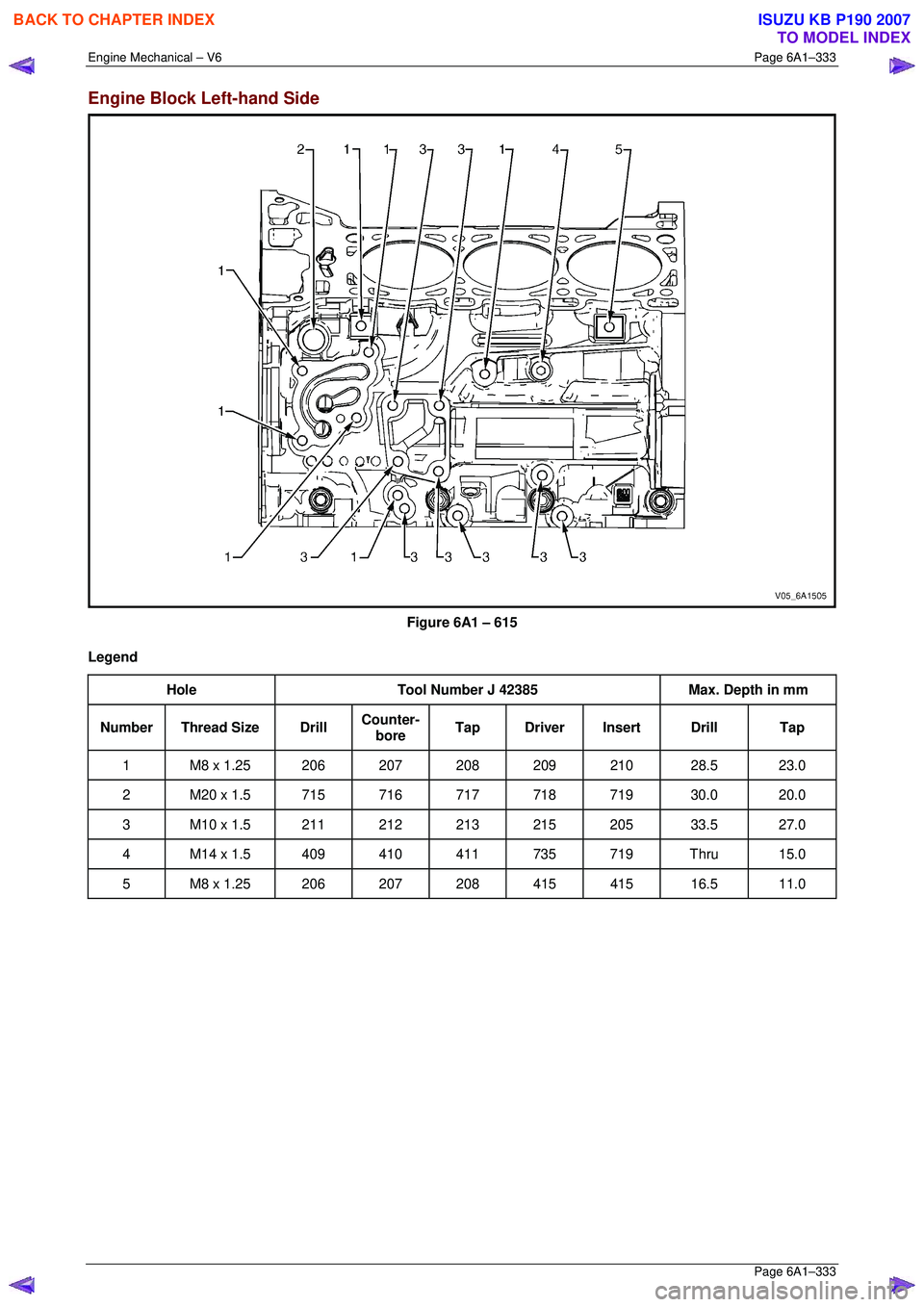

Engine Block Left-hand Side
Figure 6A1 – 615
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M8 x 1.25 206 207 208 209 210 28.5 23.0
2 M20 x 1.5 715 716 717 718 719 30.0 20.0
3 M10 x 1.5 211 212 213 215 205 33.5 27.0
4 M14 x 1.5 409 410 411 735 719 Thru 15.0
5 M8 x 1.25 206 207 208 415 415 16.5 11.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3111 of 6020
Engine Mechanical – V6 Page 6A1–334
Page 6A1–334

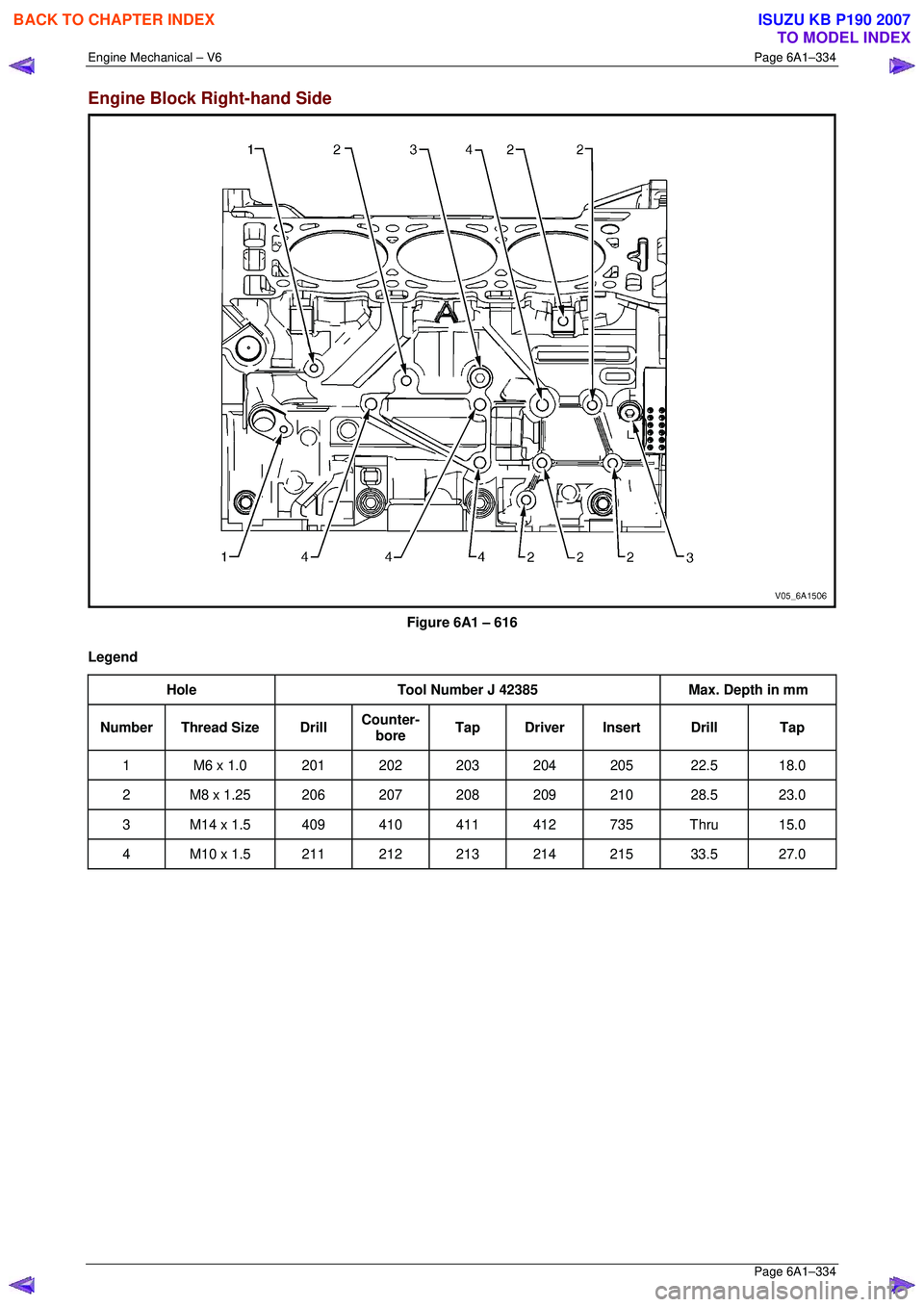

Engine Block Right-hand Side
Figure 6A1 – 616
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M6 x 1.0 201 202 203 204 205 22.5 18.0
2 M8 x 1.25 206 207 208 209 210 28.5 23.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 215 33.5 27.0
BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
Page 3112 of 6020
Engine Mechanical – V6 Page 6A1–335
Page 6A1–335

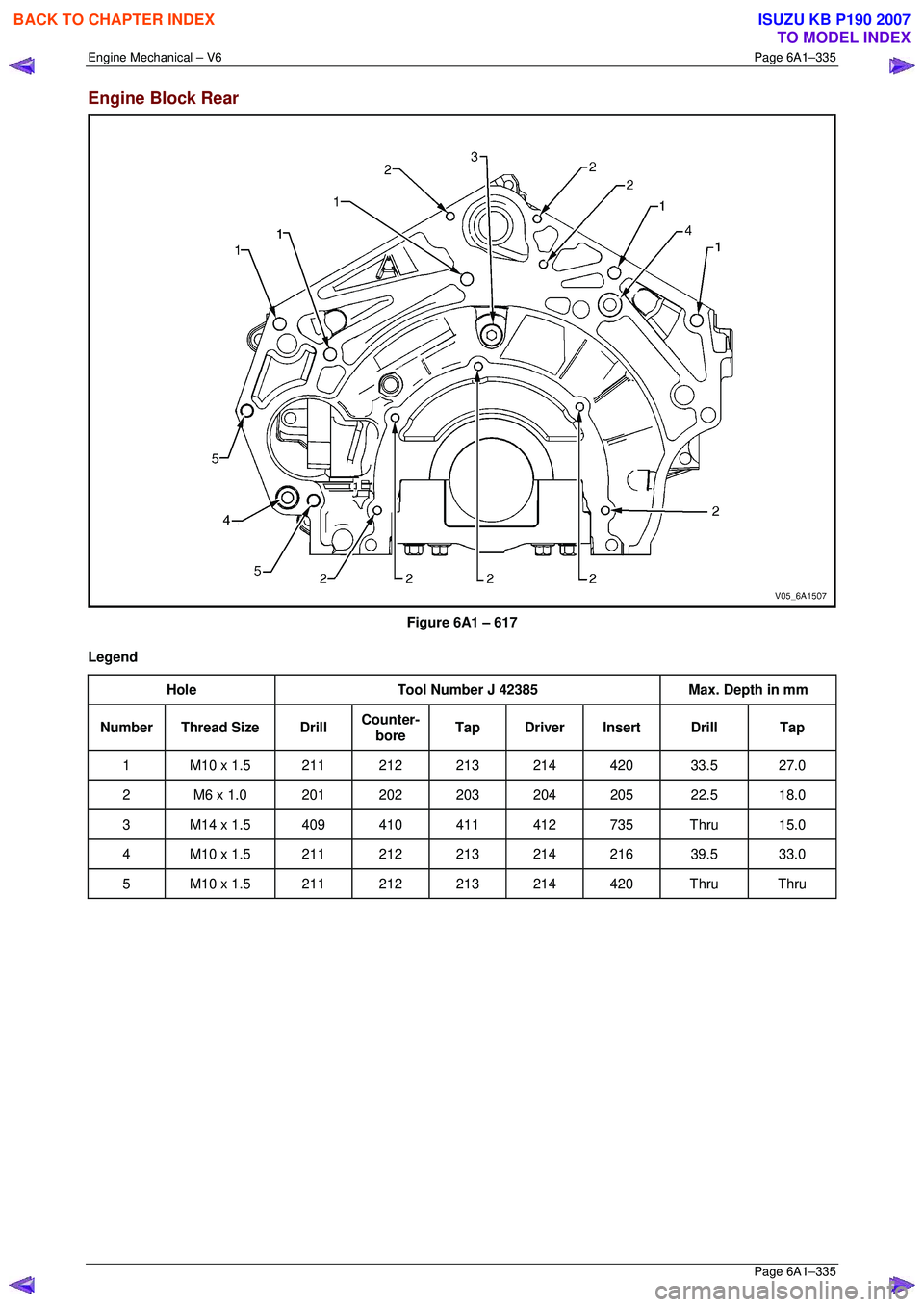

Engine Block Rear
Figure 6A1 – 617
Legend Hole Tool Number J 42385 Max. Depth in mm
Number Thread Size Drill Counter-
bore Tap Driver Insert Drill Tap
1 M10 x 1.5 211 212 213 214 420 33.5 27.0
2 M6 x 1.0 201 202 203 204 205 22.5 18.0
3 M14 x 1.5 409 410 411 412 735 Thru 15.0
4 M10 x 1.5 211 212 213 214 216 39.5 33.0
5 M10 x 1.5 211 212 213 214 420 Thru Thru
