2007 ISUZU KB P190 heater

ELECTRICAL-BODY AND CHASSIS 8A-25
Light Name Bulb No. Rated Power
V-W Number
of Bulbs Lens
Color Remarks
P16W 12-21 2 W hite Regular cab Backup light
P21W 12-16 2 W hite Extend cab, Crew cab
License plate light W 5W 12-5 2 W hite
A/C-Heater control light - 12-0.7 1 -
Dome light - 12-10 1 W hite
Spotlight/ Map light - 12-5 2 W hite

Light Name Rated Power
V-W Luminous Color Remarks
ILLUMINATION
LIGHT LED W hite
MULTI FUNCTION DISPLAY LCD Light blue
TURN SIGNAL LED Green
HIGH BEAM LED Blue
LOW FUEL LED Amber
A/T OIL TEMP LED Red
BRAKE LED Red
4W D LED Green
SEAT BELT LED Red
CHECK ENGINE LED Amber
OIL LED Red
FUEL FILTER LED Green
ABS LED Amber
SEDIMENTER LED Red
SRS LED Red
CHARGE LED Red
CHECK TRANS LED Red
CHECK 4W D LED Red
POW ER DRIVE LED Amber
3RD START LED Green
4W D-LOW LED Green
DOOR AJAR LED Red
P LED/LCD Green
R LED/LCD Green
N LED/LCD Green
D LED/LCD Green
3 LED/LCD Green
2 LED/LCD Green
A/T shift
indicator
L LED/LCD Green LED: Indicated on
the gauge
panel
LCD: Indicated on the
tachometer
panel
Meter
Illumination
light,
Indicator
light,
W arning
light

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-28 ELECTRICAL-BODY AND CHASSIS

RELAY LOCATION
RELAY & FUSE BOX (ENGINE ROOM)
RHD






NO. RELEY (C24SE) RELAY (HFV6) RELAY (4JA1T(L)) RELAY
(4JJ1-TC/4JK1-TC)
X1 RELAY; TAIL LIGHT RELAY; FOG LIGHT ← ←
X2 RELAY; FUEL PUMP RELAY; TAIL LIGHT
← ←
X3 RELAY; HORN
← ← ←
X4 RELAY; DIMMER
← ← ←
X5
  RELAY; GLOW
←
X6 RELAY; STARTER RELAY; H/LIGHT
← ←
X7 RELAY; H/LIGHT
(Except AUSTRALIA)
RELAY; COND FAN
(AUSTRALIA) RELAY; H/ LIGHT RELAY; CSD RELAY; STARTER CUT
X8
  RELAY; STARTER
←
X9 RELAY; FRT FOG
LAMP 
 RELAY; COND FAN
X10 RELAY; COND FAN
  RELAY;
TRANSMISSION
X11 RELAY; HEATER ← ← ←
X12 RELAY; STARTER CUT
(AUSTRALIA) RELAY; ECM MAIN
 RELAY; ECM MAIN
X13 RELAY; STARTER CUT
(Except AUSTRALIA)
RELAY; H/LIGHT
(AUSTRALIA) RELAY; F/PUMP RELAY; COND FAN RELAY; F/PUMP
X14 RELAY; A/C COMP
← RELAY; STARTER CUT RELAY; A/C COMP
X15 RELAY; THERMO RELAY; STARTER RELAY; THERMO
←




BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-29

RELAY LOCATION
RELAY & FUSE BOX (ENGINE ROOM)
LHD






NO. RELEY (C24SE) RELAY (HFV6) RELAY (4JH1-TC) RELAY (4JA1T(L)) RELAY
(4JJ1-TC/4JK1-TC)
X1 RELAY; TAIL LIGHT RELAY; FOG
LIGHT ←
← ←
X2 RELAY; FUEL
LIGHT RELAY; TAIL
LIGHT ←
← ←
X3 RELAY; HORN
← ← ← ←
X4 RELAY; DIMMER
← ← ← ←
X5
  RELAY; GLOW
← ←
X6 RELAY; STARTER RELAY; H/LIGHT
← ← ←
X7 RELAY; H/LIGHT
 RELAY; STARTER
CUT RELAY; CSD RELAY; STARTER
CUT
X8   RELAY; STARTER
← ←
X9 RELAY; FRT FOG
LIGHT 
RELAY; COND
FAN 
←
X10 RELAY; COND
FAN 
  RELAY;
TRANSMISSION
X11 RELAY; HEATER ← ← ← ←
X12
 RELAY; ECM MAIN RELAY; ECM MAIN
 ←
X13 RELAY; STARTER
CUT RELAY; F/PUMP
 RELAY; COND
FAN RELAY; F/PUMP
X14 RELAY; A/C COMP
← ← RELAY; STARTER
CUT RELAY; A/C COMP
X15 RELAY; THERMO RELAY; STARTER RELAY; THERMO RELAY; THERMO
←



BACK TO CHAPTER INDEXTO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-371
HEATER AND AIR CONDITIONING

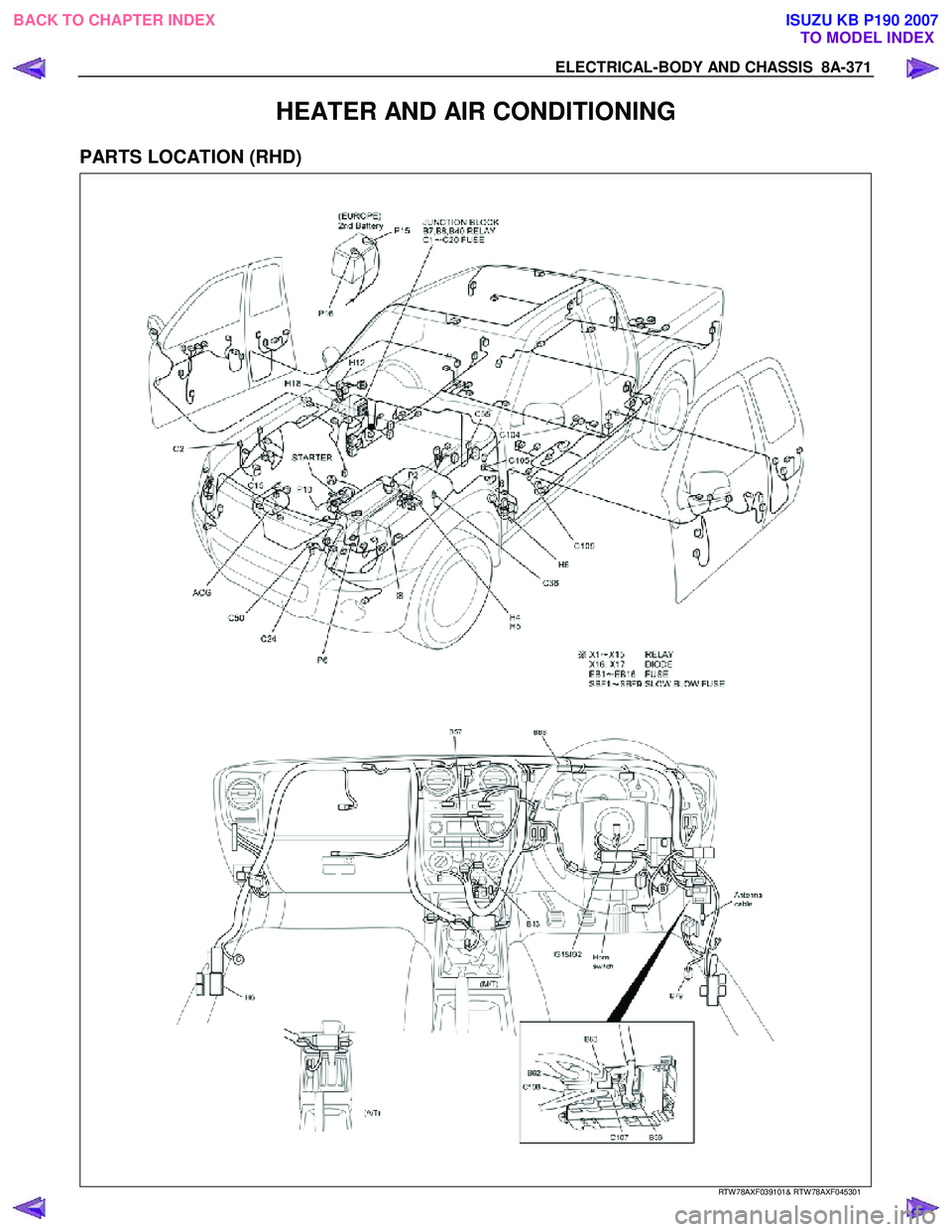

PARTS LOCATION (RHD)







RTW 78AXF039101& RTW 78AXF045301

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-377

CIRCUIT DIAGRAM C24SE COOLER WITHOUT HEATER


RTW 680XF012401

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-378 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE A/C WITH HEATER


RTW 780XF013701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-381

CIRCUIT DIAGRAM 4JA1T (L) A/C WITH HEATER Sheet 1/2


RTW 78AXF008201

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-382 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T (L) A/C WITH HEATER Sheet 2/2












RTW 78AXF008301

BACK TO CHAPTER INDEX
