2007 INFINITI M35 window

GW-20
POWER WINDOW SYSTEM
Revision: 2007 April2007 M35/M45
SchematicNIS0021J
TIWT1344E

POWER WINDOW SYSTEM
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45

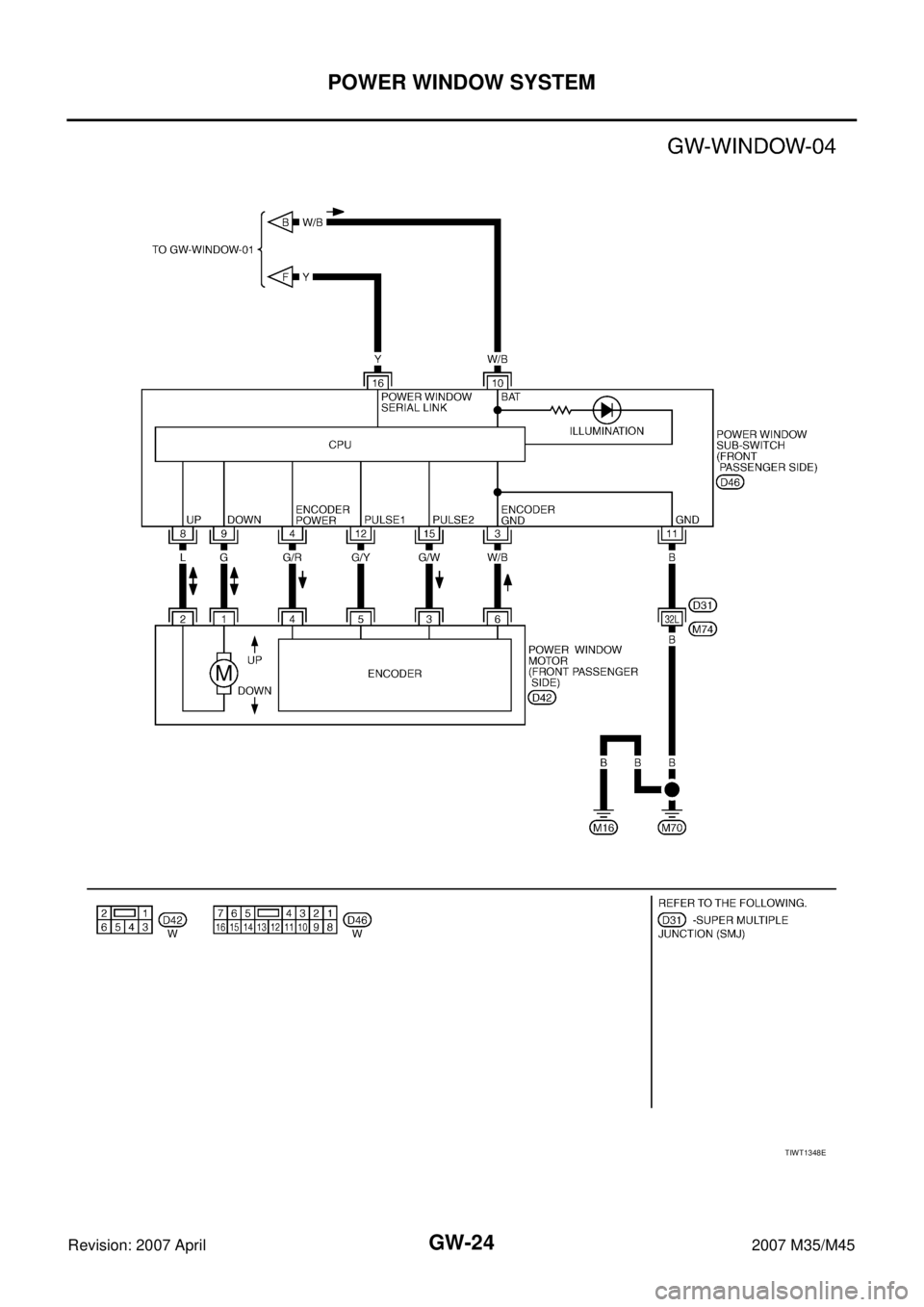

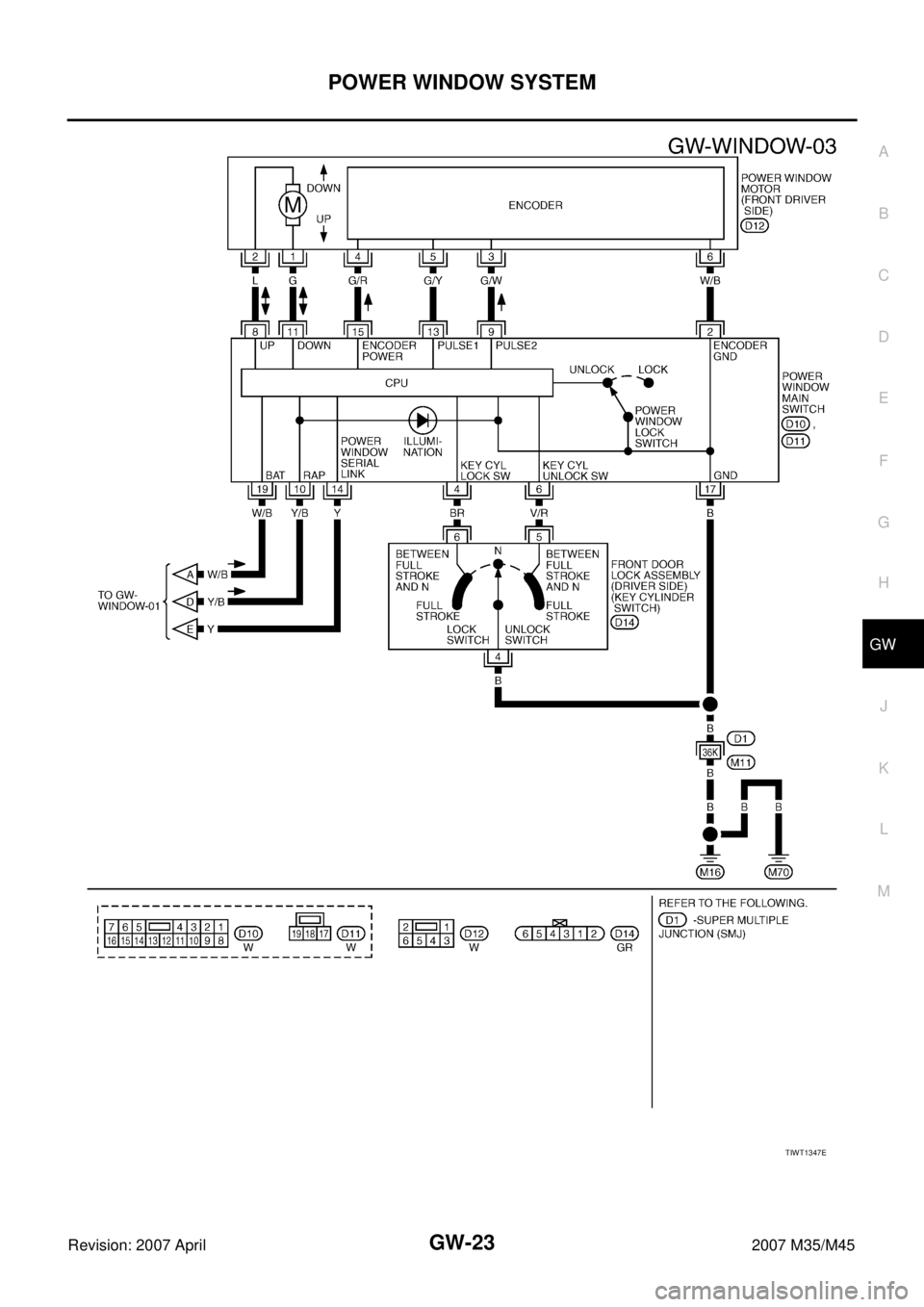

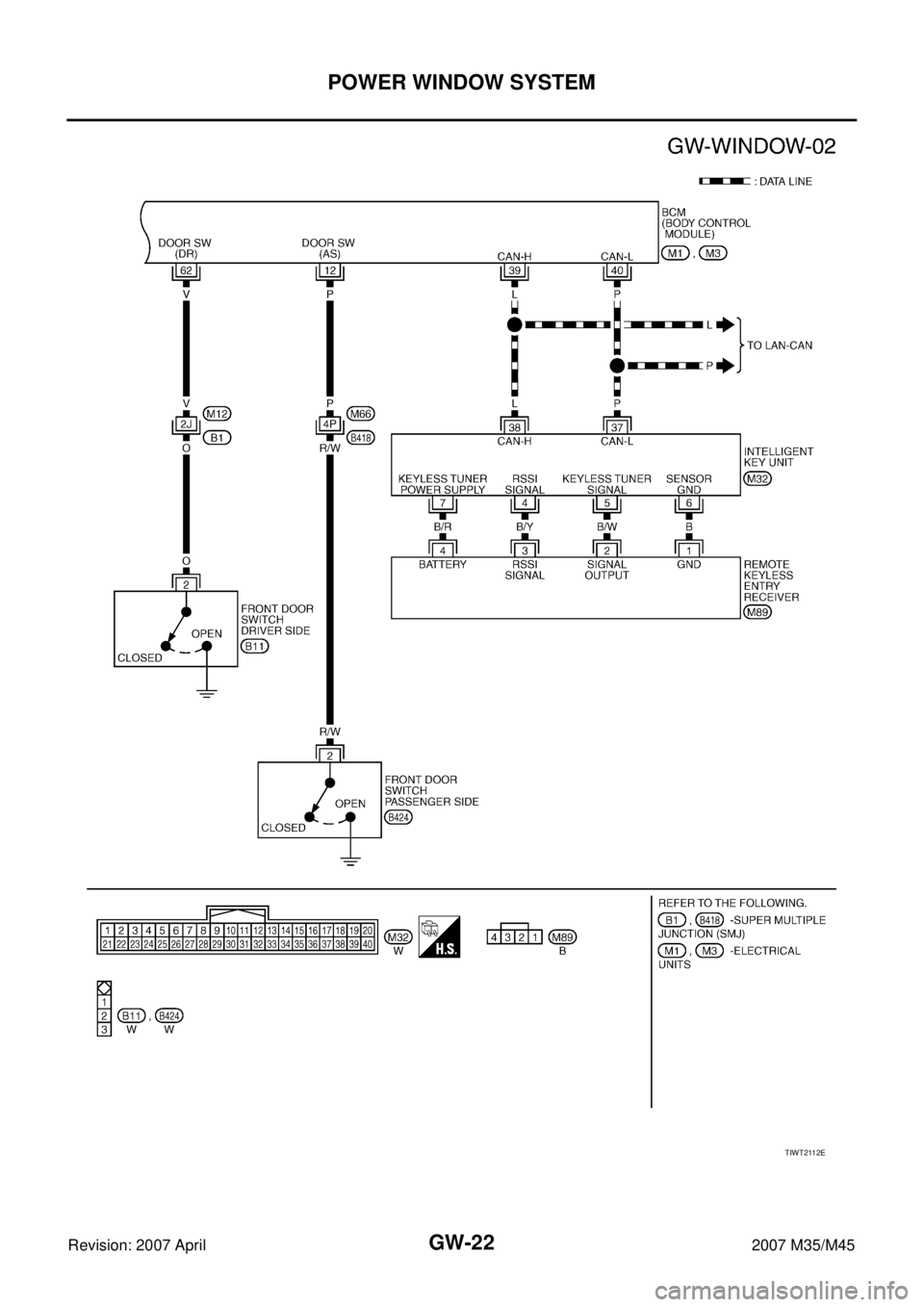

Wiring Diagram — WINDOW —NIS0021K
T I W T 2 111 E

GW-22
POWER WINDOW SYSTEM
Revision: 2007 April2007 M35/M45
TIWT2112E

POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
TIWT1347E

GW-24
POWER WINDOW SYSTEM
Revision: 2007 April2007 M35/M45
TIWT1348E

POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
TIWT2036E

GW-26
POWER WINDOW SYSTEM
Revision: 2007 April2007 M35/M45
TIWT2037E

POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
Terminal and Reference Value for BCMNIS0021L
Te r m i -
nalWire
colorItemSignal
Input/
OutputConditionVoltage [V]
(Approx.)
12 PFront door switch
passenger side signalInputON (Open) 0
OFF (Close) Battery voltage
22 G Power window serial link Input/
OutputIGN SW ON or power window
timer operating.
38 W Ignition switch (ON or START) InputIgnition switch
(ON or START position)Battery voltage
39 L CAN - HInput/
Output——
40 P CAN - LInput/
Output——
42 P Power source (Fuse) Input — Battery voltage
52 B Ground — — 0
53 BR Rap signal OutputIGN SW ON Battery voltage
Within 45 second after ignition
switch is turned to OFFBattery voltage
When driver side or passenger
side door is opened daring
retained power operation0
54 O Power window power supply Output — Battery voltage
55 W Power source (Fusible link) Input — Battery voltage
62 VFront door switch
driver side signalInputON (Open) 0
OFF (Close) Battery voltage
PIIA2344J
