PROPELLER SHAFT
PREPARATION ........................................................... 2
Special Service Tools .......................................... ..... 2
Commercial Service Tools ................................... ..... 2
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 3
NVH Troubleshooting Chart ................................ ..... 3
FRONT PROPELLER SHAFT ............................... ..... 4
On-Vehicle Inspection ......................................... ..... 4
APPEARANCE AND NOISE INSPECTION ..... ..... 4
PROPELLER SHAFT VIBRATION ................... ..... 4
Components ........................................................ ..... 4
Removal and Installation ..................................... ..... 5
REMOVAL ........................................................ ..... 5
INSPECTION ................................................... ..... 5
INSTALLATION ................................................ ..... 6
REAR PROPELLER SHAFT ................................. ..... 7
On-Vehicle Inspection ......................................... ..... 7 APPEARANCE AND NOISE INSPECTION .....
..... 7
PROPELLER SHAFT VIBRATION ................... ..... 7
Components ........................................................ ..... 8
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSPECTION ................................................... ... 10
INSTALLATION ................................................ ... 11
Disassembly and Assembly of Center Bearing ... ... 12
DISASSEMBLY ................................................ ... 12
ASSEMBLY ...................................................... ... 13
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 14
General Specifications ......................................... ... 14
2WD MODELS ................................................. ... 14
AWD MODELS ................................................. ... 14
Journal Axal Play ................................................. ... 14
Propeller Shaft Runout ........................................ ... 14

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING PR-3
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 July 2007 FX35/FX45
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartNDS000AS
Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: Applicable
Reference page
Front
PR-4—
—
—
—
PR-4PR-5
NVH in FFD and RFD section
NVH in FAX, RAX, FSU, and RSU section
NVH in WT section
NVH in WT section
NVH in RAX section
NVH in BR section
NVH in PS section
RearPR-7PR-11—
PR-8—
PR-7PR-10
Possible cause and SUSPECTED PARTS
Uneven rotating torque
Center bearing improper installation
Excessive center bearing axial end play
Center bearing mounting (insulator) cracks, damage or deterioration
Excessive joint angle
Rotation imbalance
Excessive runout
DIFFERENTIAL
AXLE AND SUSPENSION
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom Noise
××××××××××××××
Shake × × ××××××
Vibration ××××××× ×× × ×

PR-4
FRONT PROPELLER SHAFT
Revision: 2006 July 2007 FX35/FX45
FRONT PROPELLER SHAFTPFP:37200
On-Vehicle InspectionNDS000D2
APPEARANCE AND NOISE INSPECTION

Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.
PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft runout first.
1. Measure propeller shaft runout at runout measuring point by rotating final drive companion flange with hands. For measuring
point, refer to PR-4, "
Propeller Shaft Runout Measuring Point" .
2. If runout still exceeds specifications, separate propeller shaft at final drive companion flange; then rotate companion flange 90,
180, 270 degrees and install propeller shaft.
3. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
4. Check the vibration by driving vehicle.
Propeller Shaft Runout Measuring Point

Propeller shaft runout measuring point (Point “ ”)
ComponentsNDS000AU
Propeller shaft runout limit : 0.8 mm (0.031 in)
SDIA1759E
Dimension A: 381.5 mm (15.01 in)
PDIA0768J
1. Propeller shaft assembly 2. O-ring
Refer to GI-11, "
Components" , for the symbols in the figure.
PDIA1215E

PR-6
FRONT PROPELLER SHAFT
Revision: 2006 July 2007 FX35/FX45

As shown in the figure, while fixing yoke on one side, check axial
play of joint. If outside the standard, replace propeller shaft
assembly.

Check propeller shaft for bend and damage. If damage is
detected, replace propeller shaft assembly.
CAUTION:
Do not disassemble joints.
INSTALLATION
Note the following, install in the reverse order of removal.

Align matching marks to install propeller shaft to final drive com-
panion flange, and then tighten to specified torque. Refer to PR-
4, "Components" .
CAUTION:
Do not reuse the bolts.

After assembly, perform a driving test to check propeller shaft
vibration. If vibration occurred, separate propeller shaft from
final drive or transfer. Reinstall companion flange after rotating it
by 90, 180, 270 degrees. Then perform driving test and check
propeller shaft vibration again at each point. Journal axial play : 0 mm (0 in)
PDA0005D
SDIA1517E

REAR PROPELLER SHAFT PR-7
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 July 2007 FX35/FX45
REAR PROPELLER SHAFTPFP:37000
On-Vehicle InspectionNDS000AW
APPEARANCE AND NOISE INSPECTION

Check the propeller shaft tube surface for dents or cracks. If damaged, replace propeller shaft assembly.

If center bearing is noisy or damaged, replace center bearing.
PROPELLER SHAFT VIBRATION
If vibration is present at high speed, inspect propeller shaft runout first.
1. Measure propeller shaft runout at runout measuring points by rotating final drive companion flange with hands. For measuring
point, refer to PR-4, "
Propeller Shaft Runout Measuring Point" .
2. If runout still exceeds specifications, separate propeller shaft at final drive companion flange; then rotate companion flange 60,
120, 180, 240, 300 degrees and install propeller shaft.
3. Check runout again. If runout still exceeds specifications, replace propeller shaft assembly.
4. Check the vibration by driving vehicle.

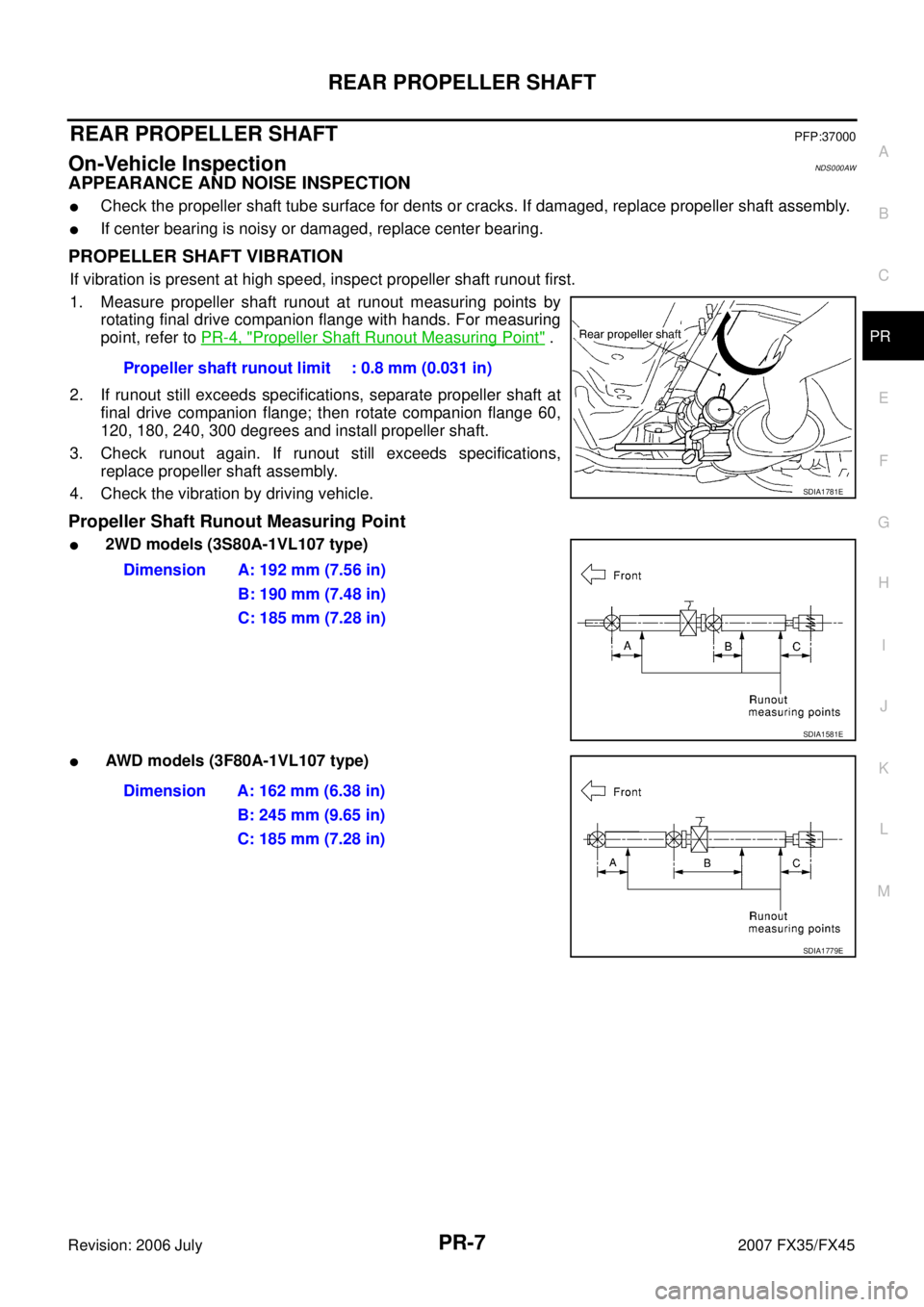

Propeller Shaft Runout Measuring Point

2WD models (3S80A-1VL107 type)

AWD models (3F80A-1VL107 type) Propeller shaft runout limit : 0.8 mm (0.031 in)
SDIA1781E
Dimension A: 192 mm (7.56 in)
B: 190 mm (7.48 in)
C: 185 mm (7.28 in)
SDIA1581E
Dimension A: 162 mm (6.38 in) B: 245 mm (9.65 in)
C: 185 mm (7.28 in)
SDIA1779E

REAR PROPELLER SHAFT PR-11
C E F
G H
I
J
K L
M A
B
PR
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Avoid damaging the rebro joint boot, protect it with a shop towel or equivalent.

Align matching marks to install propeller shaft to final drive and transfer (AWD models only) companion
flanges, and then tighten to specified torque. Refer to PR-8, "
Components" .

Install center bearing mounting bracket (Upper) with its arrow
mark facing forward.

Adjust position of mounting bracket sliding back and forth to pre-
vent play in thrust direction of center bearing insulator. Install
bracket to vehicle.

After assembly, perform a driving test to check propeller shaft
vibration. If vibration occurred, separate propeller shaft from
final drive. Reinstall companion flange after rotating it by 60,
120, 180, 240, 300 degrees. Then perform driving test and
check propeller shaft vibration again at each point.

If propeller shaft or final drive has been replaced, connect them
as follows:
1. Install the propeller shaft while aligning its matching mark A with the matching mark B on the joint as close as possible.
2. Tighten the joint bolts to the specified torque. Refer to PR-8,
"Components" .
CAUTION:
Do not reuse the bolts, nuts and washers.
PDIA0017E
SDIA2049E
