RF-14
SUNROOF
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNIS001T2
Terminals and Reference Value for Sunroof Motor AssemblyNIS001T3
Te r -
minal Wire
color Item Signal
Input/
Output Condition
Voltage (V)
(Approx.)
Ignition
switch OPeration or condition
12 P/B Front door switch
(passenger side) signal Input OFF OPEN (ON) 0
CLOSE (OFF) Battery voltage
38 W/L Ignition switch (ON) Input Ignition switch (ON or START) position Battery voltage
42 L/R Power source (Fuse) Input OFF — Battery voltage
49 B Ground (signal) — ON — 0
52 B Ground (power) — ON — 0
53 Y/B RAP signal Output Ignition switch ON Battery voltage
OFF Within 45 seconds after ignition switch is
turned to OFF position Battery voltage
When driver side or passenger side door
open in power window timer is operates. 0
54 W Power window power supply Output OFF — Battery voltage
55 G Power source (Fusible link) Input OFF — Battery voltage
62 W Front door switch
(driver side) signal Input OFF OPEN (ON) 0
CLOSE (OFF) Battery voltage
Te r -
minal Wire
color Item Signal
Input/
Output Condition
Voltage (V)
(Approx.)
Ignition
switch Operation or condition
1BR Sunroof switch (Tilt up/
Slide close) signal Input ON Ignition switch ON and sunroof
switch in TILT UP/SLIDE
CLOSE position 0
Other than above Battery voltage
5LG Sunroof switch
(Tilt down/Slide open)
signal Input ON Ignition switch ON and sunroof
switch in TILT DOWN/SLIDE
OPEN position 0
Other than above Battery voltage
7W Power window power
supply Input OFF — Battery voltage
8 G Vehicle speed signal Input ON Speedometer operated
[When vehicle speed is approx.
40 km/h (25 MPH)]
9 SB RAP signal Input Ignition switch ON Battery voltage
OFF Within 45 seconds after ignition
switch is turned to OFF position Battery voltage
When driver side or passenger
side door open in power window
timer is operates. 0
10 B Ground — ON — 0
ELF1080D

SUNROOF RF-15
C
D E
F
G H
J
K L
M A
B
RF
Revision: 2006 July 2007 FX35/FX45
Work FlowNIS001T4
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to RF-11, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to RF-16,
"Trouble Diagnosis Chart by Symptom" .
4. Does sunroof system operate normally? If Yes, GO TO 5. If No, GO TO 3.
5. INSPECTION END.
CONSULT-II Function (BCM)NIS001T5
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
ACTIVE TEST
WORK SUPPORT
DATA MONITOR
BCM diagnostic test item Check item diagnostic test mode Content Refer to page RETAINED PWR Work support Changes setting of each function.
RF-15
Data monitor Displays the input data of BCM in real time.RF-15
Active test Gives a drive signal to a load to check the operation.RF-15
Test Item Description
RETAINED PWR This test is able to supply RAP signal (power) from BCM (body control module) to power window
system and power sunroof system (if equipped). Those systems can be operated when turning on
“RETAINED PWR” on CONSULT-II screen even if the ignition switch is turned OFF.
NOTE:
During this test, CONSULT-II can be operated with ignition switch in OFF position. “RETAINED
PWR” should be turned ON or OFF on CONSULT-II screen when ignition switch is ON. Then turn
ignition switch OFF to check retained power operation. CONSULT-II might be stuck if “RETAINED
PWR” is turned to ON or OFF on CONSULT-II screen when ignition switch is OFF.
Work item Description
RETAINED PWR Rap signal’s power supply period can be changed by mode setting. Selects rap signal’s power
supply period between three steps

MODE1 (45 sec.) / MODE2 (OFF) / MODE 3 (2 min.).
Monitor item Description
IGN ON SW Indicates [ON / OFF] condition of ignition switch
DOOR SW–DR Indicates [ON / OFF] condition of front door switch driver side
DOOR SW–AS Indicates [ON / OFF] condition of front door switch passenger side

RF-18
SUNROOF
Revision: 2006 July 2007 FX35/FX45

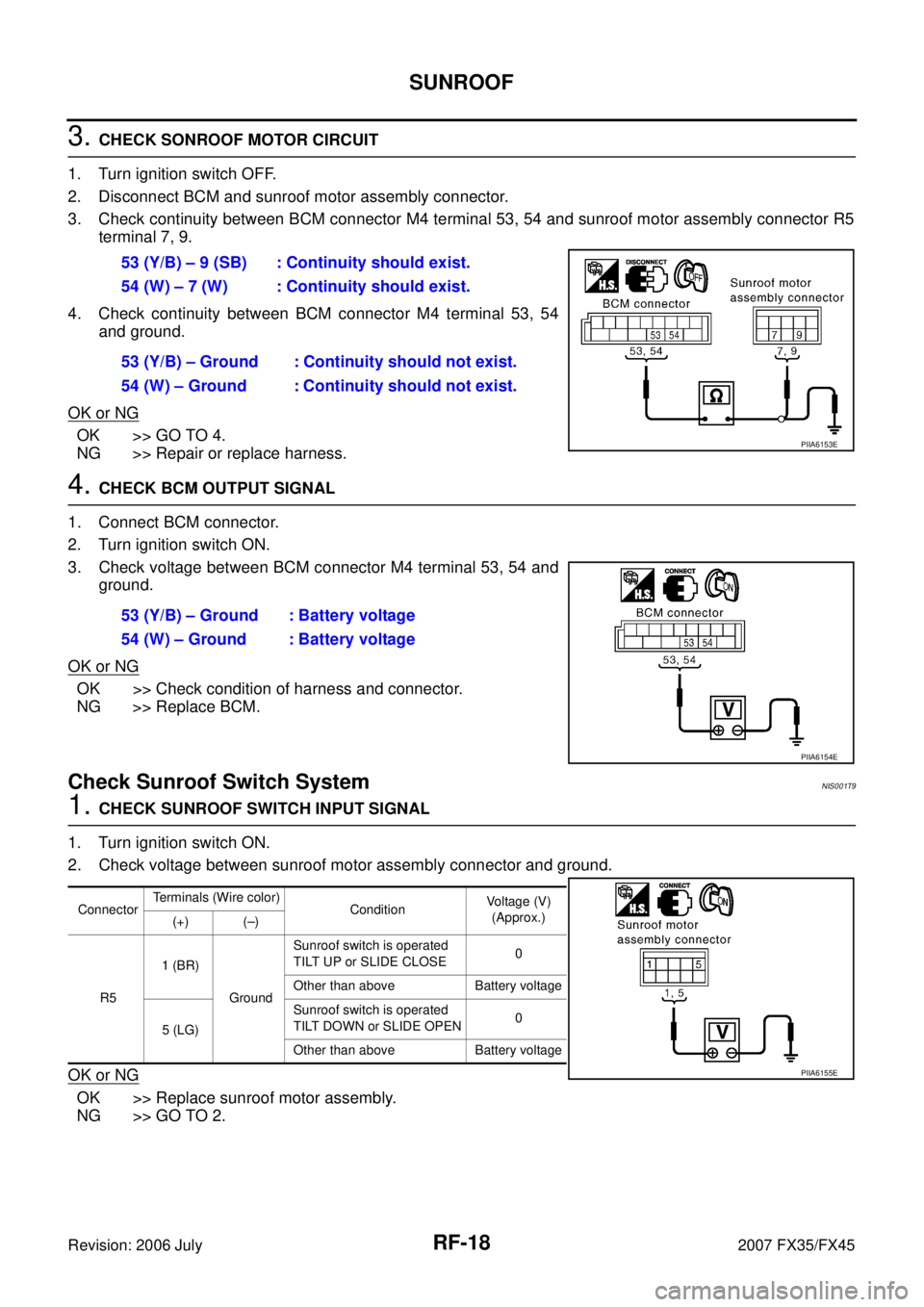

3. CHECK SONROOF MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM and sunroof motor assembly connector.
3. Check continuity between BCM connector M4 terminal 53, 54 and sunroof motor assembly connector R5 terminal 7, 9.
4. Check continuity between BCM connector M4 terminal 53, 54 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M4 terminal 53, 54 and ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Replace BCM.
Check Sunroof Switch System NIS001T9
1. CHECK SUNROOF SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between sunroof motor assembly connector and ground.
OK or NG
OK >> Replace sunroof motor assembly.
NG >> GO TO 2. 53 (Y/B) – 9 (SB) : Continuity should exist.
54 (W) – 7 (W) : Continuity should exist.
53 (Y/B) – Ground : Continuity should not exist.
54 (W) – Ground : Continuity should not exist.
PIIA6153E
53 (Y/B) – Ground : Battery voltage
54 (W) – Ground : Battery voltage
PIIA6154E
Connector Terminals (Wire color)
Condition Voltage (V)
(Approx.)
(+) (–)
R5 1 (BR)
Ground Sunroof switch is operated
TILT UP or SLIDE CLOSE 0
Other than above Battery voltage
5 (LG) Sunroof switch is operated
TILT DOWN or SLIDE OPEN 0
Other than above Battery voltage
PIIA6155E

SUNROOF RF-21
C
D E
F
G H
J
K L
M A
B
RF
Revision: 2006 July 2007 FX35/FX45
2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between BCM connector M3, B14 terminal 12, 62 and door switch connector B26, B36 terminal 1.
4. Check continuity between BCM connector M3, B14 terminals 12, 62 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR SWITCH
Check continuity between door switches terminal 1 and ground part
of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace malfunction door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M3, B14 terminal 12, 62 and ground.
OK or NG
OK >> Further inspection is necessary. Refer to RF-16, "Trou-
ble Diagnosis Chart by Symptom" .
NG >> Replace BCM. Driver side door
62 (W) – 1 (W) : Continuity should exist.
Passenger side door
12 (P/B) – 1 (SB) : Continuity should exist.
12 (P/B) – Ground : Continuity should not exist.
62 (W) – Ground : Continuity should not exist.
PIIA6159E
Terminal Door switch Continuity
1 Ground part of
door switch Pushed (close) No
Released (open) Yes
PIIA3351E
12 (P/B) – Ground : Battery voltage
62 (W) – Ground : Battery voltage
PIIA6158E

AUTOMATIC DRIVE POSITIONER SE-31
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for BCMNIS001UU
Terminals and Reference Values for Automatic Drive Positioner Control UnitNIS001UV
Te r -
minal Wire
Color Item
Signal
Input/Output Condition
Voltage (V)
(Approx.)
11 LG Ignition switch (ACC) Input Ignition switch
(ACC or ON position) Battery voltage
37 B/W Key switch signal Input Key switch ON (key is inserted in
ignition key cylinder) Battery voltage
Key switch OFF (key is removed
from ignition key cylinder) 0
38 W/L Ignition switch (ON) Input Ignition switch
(ON or START position) Battery voltage
39 L CAN-H Input/Output — —
40 P CAN-L Input/Output — —
42 L/R Power source (Fuse) Input — Battery voltage
49 B Ground (signal) — — 0
52 B Ground (power) — — 0
55 G Power supply (Fusible link) Input — Battery voltage
62 W Front door switch
(driver side) Output ON (Open)
→ OFF (Closed) 0 → Battery voltage
Te r -
minal Wire
Color Item
Signal
Input/Output Condition
Voltage (V)
(Approx.)
1 R Tilt switch UP signal Input Tilt switch turned to upward 0
Other than above 5
2 G/W Changeover switch RH signal Input When changeover switch in RH
position 0
Other than above 5
3 GY Mirror switch UP signal Input When mirror switch in turned to
upward position 0
Other than above 5
4 Y Mirror switch LEFT signal Input When mirror switch in turned to
leftward position 0
Other than above 5
5OR Passenger side mirror sen-
sor (vertical) signal Input When passenger side mirror
motor is UP or DOWN operation Changes between 3 (close to
perk) - 1 (close to valley)
6P/L Driver side mirror sensor
(vertical) signal InputWhen driver side mirror motor is
UP or DOWN operation Changes between 3 (close to
perk) - 1 (close to valley)
7 Y/R Tilt sensor signal Input Tilt position, top 2
Tilt position, bottom 4
10 B UART LINE (TX) Output Memory switch 1 or 2 operated
11 B R Telescopic switch
FORWARD signal Input Telescopic switch turned to for-
ward 0
Other than above 5
PIIA4813E

SE-32
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
14 L/W Passenger side mirror motor
UP signal Output When passenger side mirror
motor UP operation 1.5 - Battery voltage
Other than above 0
15 L/B Passenger side mirror motor
LEFT signal Output When passenger side mirror
motor LEFT operation 1.5 - Battery voltage
Other than above 0
16 P Driver side mirror motor
DOWN signal
Output When driver side mirror motor
DOWN operation 1.5 - Battery voltage
Other than above 0
Driver side mirror motor
RIGTH signal When driver side mirror motor
RIGHT operation 1.5 - Battery voltage
Other than above 0
17 R/B Tilt switch DOWN signal Input Tilt switch turned to downward 0
Other than above 5
18 L/OR Changeover switch LH signal Input When changeover switch in LH
position 0
Other than above 5
19 GY/L Mirror switch DOWN signal Input When mirror switch in turned to
downward position 0
Other than above 5
20 PU Mirror switch RIGHT signal Input When mirror switch in turned to
rightward position 0
Other than above 5
21 G/Y Passenger side mirror sen-
sor (horizontal) signal Input When passenger side mirror
motor is LEFT or RIGHT operation Changes between 1 (close to left
edge) - 3 (close to right edge)
22 L/Y Driver side mirror sensor
(horizontal) signal InputWhen driver side mirror motor is
LEFT or RIGHT operation Changes between 1 (close to
right edge) - 3 (close to left edge)
23 Y/B Telescopic sensor signal Input Telescopic position, top 1
Telescopic position, bottom 4
26 W UART LINE (RX) Input Memory switch 1 or 2 operated
27 LG Telescopic switch
BACKWARD signal Input Telescopic switch turned to back-
ward 0
Other than above 5
28 SB Ignition switch (START) Input Ignition switch
(START position) Battery voltage
30 W/R Passenger side mirror motor
DOWN signal
Output When passenger side mirror
motor downward 1.5 - Battery voltage
Other than above 0
Passenger side mirror motor
RIGTH signal When passenger side mirror
motor RIGHT operation 1.5 - Battery voltage
Other than above 0
Te r -
minal Wire
Color Item Signal
Input/Output Condition Voltage (V)
(Approx.)
PIIA4814E

AUTOMATIC DRIVE POSITIONER SE-33
C
D E
F
G H
J
K L
M A
B
SE
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for Driver Seat Control UnitNIS001UW
31 R/W Driver side mirror motor
UP signal Output When driver side mirror motor
upward 1.5 - Battery voltage
Other than above 0
32 G/B Driver side mirror motor
LEFT signal Output When driver side mirror motor
LEFT operation 1.5 - Battery voltage
Other than above 0
33 G/W Sensor power supply Input — 5
34 L/R Battery power supply Input — Battery voltage
35 R/L Tilt motor UP signal Output Tilt switch turned to upward Battery voltage
Other than above 0
36 L/R Telescopic motor
FORWARD signal Output Telescopic switch turned to for-
ward Battery voltage
OFF 0
39 W/R Battery power supply Input — Battery voltage
40 B Ground (signal) — — 0
41 B/Y Ground (sensor) — — 0
42 R/B Tilt motor DOWN signal Output Tilt switch turned to downward Battery voltage
Other than above 0
44 L/W Telescopic motor
BACKWARD signal Output Telescopic switch turned to back-
ward Battery voltage
Other than above 0
48 B Ground (power) — — 0
Te r -
minal Wire
Color Item Signal
Input/Output Condition Voltage (V)
(Approx.)
Te r -
minal Wire
Color Item Signal
Input/Output Condition Voltage (V)
(Approx.)
1A R Power source (Fusible link) Input — Battery voltage
2 P UART LINE (TX) Output Memory switch 1 or 2 operated
3G Sliding motor
FORWARD signal Output When sliding motor
FORWARD operation Battery voltage
Other than above 0
4 G/L Reclining motor
FORWARD signal Output When reclining motor
FORWARD operation Battery voltage
Other than above 0
5LG Front lifting motor
DOWN signal Output When front lifting motor
DOWN operation Battery voltage
Other than above 0
6 G/W Rear lifting motor UP signal Output When rear lifting motor
UP operation Battery voltage
Other than above 0
PIIA4814E

SE-44
AUTOMATIC DRIVE POSITIONER
Revision: 2006 July 2007 FX35/FX45
2. CHECK FUNCTION
With CONSULT-II
Check operation with “SEAT SLIDE” in ACTIVE TEST.
OK or NG
OK >> Sliding motor circuit is OK.
NG >> GO TO 3.
3. CHECK SLIDING MOTOR HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver seat control unit connector and sliding motor connector.
3. Check continuity between driver seat control unit connector B153 terminals 3, 10 and sliding motor connector B161 termi-
nals 3, 10.
4. Check continuity between driver seat control unit connector B153 terminals 3, 10 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between driver seat control unit and sliding motor.
4. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
1. Connect the driver seat control unit connector.
2. Sliding switch operate, check voltage between driver seat control unit connector and ground.
OK or NG
OK >> Replace sliding motor.
NG >> Replace driver seat control unit.
Test item Description
SEAT SLIDE The sliding motor is activated by receiving the drive signal.
PIIA0265E
3 (G) – 3 (G) : Continuity should exist.
10 (G/R) – 10 (G/R) : Continuity should exist.
3 (G) – Ground : Continuity should not exist.
10 (G/R) – Ground : Continuity should not exist.
PIIA6114E
Connec- tor Terminals
(Wire color) Sliding switch condition Voltage (V)
(Approx.)
(+) (–)
B153 3 (G)
Ground FORWARD Battery voltage
Other than above 0
10 (G/R) BACKWARD Battery voltage
Other than above 0
PIIA6113E
