2007 INFINITI FX35 abs

REAR BUMPER EI-19
C
D E
F
G H
J
K L
M A
B
EI
Revision: 2006 July 2007 FX35/FX45

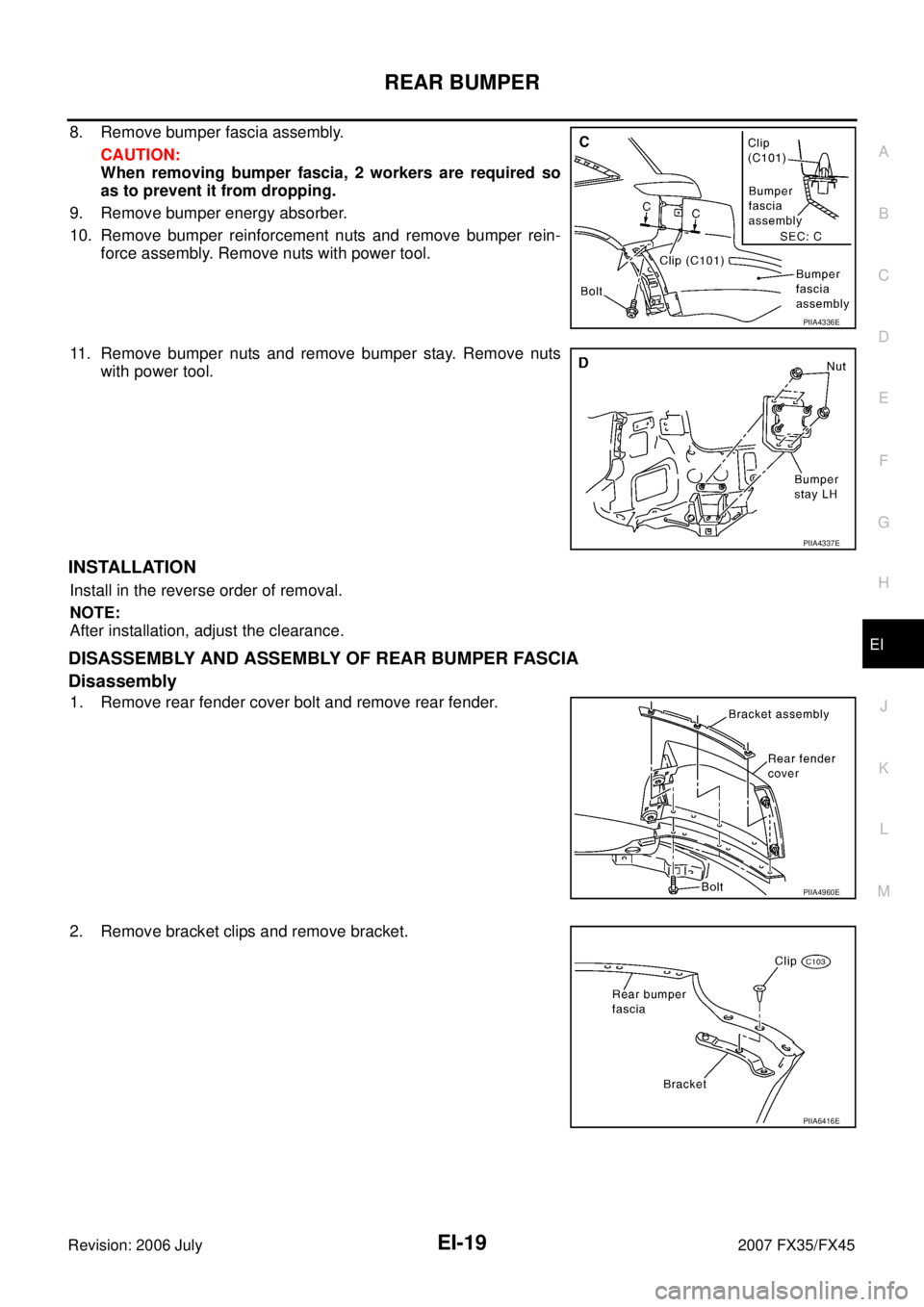

8. Remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so
as to prevent it from dropping.
9. Remove bumper energy absorber.
10. Remove bumper reinforcement nuts and remove bumper rein- force assembly. Remove nuts with power tool.
11. Remove bumper nuts and remove bumper stay. Remove nuts with power tool.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, adjust the clearance.
DISASSEMBLY AND ASSEMBLY OF REAR BUMPER FASCIA
Disassembly
1. Remove rear fender cover bolt and remove rear fender.
2. Remove bracket clips and remove bracket.
PIIA4336E
PIIA4337E
PIIA4960E
PIIA6416E

EM-46
[VQ35DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 July 2007 FX35/FX45
4. Remove fuel feed hose (with damper) from fuel sub-tube.
NOTE:
There is no fuel return route.
CAUTION:

While hoses are disconnected, plug them to prevent fuel
from draining.

Do not separate damper and hose.
5. When separating fuel feed hose (with damper) and centralized under-floor piping connection, disconnect quick connector as the following:
a. Remove quick connector cap from quick connector connection on right member side.
b. Disconnect fuel feed hose (with damper) from bracket hose clamp.
c. Disconnect quick connector from centralized under-floor piping as follows: CAUTION:
Disconnect quick connector by using quick connector release [SST: — (J-45488)], not by picking
out retainer tabs.
i. With the sleeve side of quick connector release facing quick connector, install quick connector release onto centralized under-floor piping.
ii. Insert quick connector release into quick connector until sleeve contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
iii. Draw and pull out quick connector straight from centralized under-floor piping.
CAUTION:

Pull quick connector holding “A” position as shown in
the figure.

Do not pull with lateral force applied. O-ring inside quick connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose (with damper) dur-
ing installation/removal.
KBIA1293E
PBIC2083E
PBIC1898E

CYLINDER HEAD EM-107
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
6. Remove valve oil seal using the valve oil seal puller (SST).
7. If valve seat must be replaced, refer to EM-110, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-109, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.

Using a pliers, pull spark plug tube out of cylinder head.
CAUTION:

Take care not to damage cylinder head.

Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-109, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-110, "
VALVE SEAT REPLACEMENT" .
3. Install new valve oil seals as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with the valve oil seal drift (SST) to match dimension in the figure.
4. Install valve spring seat.
5. Install valve.

Larger diameter valves are for intake side.
NOTE:
Larger diameter valves are for intake side.
6. Install valve spring (uneven pitch type).

Install narrow pitch end (paint mark) to cylinder head side
(valve spring seat side).

Intake side and exhaust side valve springs are different.
Install them referring to the following paint mark collar.
7. Install valve spring retainer.
PBIC0884E
Height “H” (Without valve spring seat installed) Intake and exhaust : 14.3 - 14.9 mm (0.563 - 0.587 in)
PBIC2769E
Paint mark collarIntake and Exhaust : Blue
SEM085D

FUEL INJECTOR AND FUEL TUBE EM-195
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
3. Disconnect fuel feed hose on engine side as follows: (Perform
same procedure for the side of centralized under-floor piping as
well.)
a. Remove quick connector cap from quick connector connection.
b. Disconnect quick connector from fuel feed damper as follows: CAUTION:
Disconnect quick connector by using quick connector release [SST: J-45488], not by picking out
retainer tabs (centralized under-floor piping side).
i. With the sleeve side of quick connector release facing to quick connector, install quick connector release onto fuel tube.
ii. Insert quick connector release into quick connector until sleeve contacts and goes no further. Hold quick connector release on
that position.
CAUTION:
Inserting quick connector release hard will not disconnect
quick connector. Hold quick connector release where it
contacts and goes no further.
iii. Draw and pull out quick connector straight from fuel feed damper.
CAUTION:

Pull quick connector holding “A” position as shown in
the figure.

Do not pull with lateral force applied. O-ring inside quick connector may be damaged.

Prepare container and cloth beforehand as fuel will leak out.

Avoid fire and sparks.

Keep parts away from heat source. Especially, be careful when welding is performed around
them.

Do not expose parts to battery electrolyte or other acids.

Do not bend or twist connection between quick connector and fuel feed hose during installa-
tion/removal.
PBIC4552E
SBIA0354E
KBIA0702E

EM-198
[VK45DE]
FUEL INJECTOR AND FUEL TUBE
Revision: 2006 July 2007 FX35/FX45

Tighten mounting bolts in two steps in numerical order as
shown in the figure.
6. Connect fuel feed hose on engine side as follows: (Unless otherwise indicated, the installation to the engine side and centralized under-floor piping side is exactly alike.)
a. Make sure no foreign substances are deposited in and around fuel tube and quick connector, and no dam- age on them.
b. Thinly apply new engine oil around fuel tube from tip end to spool end.
c. Align center to insert quick connector straightly into fuel tube. Engine side:

Insert fuel tube into quick connector until top spool is com-
pletely inside quick connector, and 2nd level spool exposes
right below quick connector.
CAUTION:

Hold “A” position as shown in the figure when inserting
fuel tube into quick connector.

Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.

Insert until you hear a “click” sound and actually feel the
engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
Centralized under-floor piping side:

Visually confirm that the two retainer tabs are connected to the connector.
CAUTION:

Carefully align center to avoid inclined insertion to prevent damage to O-ring inside quick con-
nector.

Insert until you hear a “click” sound and actually feel the engagement.

To avoid misidentification of engagement with a similar sound, be sure to perform the next step.
d. Pull quick connector by hand holding position. Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
e. Install quick connector cap on quick connector connection. CAUTION:
If cap cannot be installed smoothly, quick connector may
have not been installed correctly. Check connection again.
f. Install fuel feed hose to hose clamps.
7. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leakage at connection points.
A : Right bank
B : Left bank
: Engine front
1st step : 10.1 N·m (1.0 kg-m, 7 ft-lb)
2nd step : 23.5 N·m (2.4 kg-m, 17 ft-lb)
PBIC3303E
KBIA0272E
SBIA0354E

CYLINDER HEAD EM-237
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

Identify installation positions, and store them without mixing them up.
6. Remove valve oil seal with valve oil seal puller (SST).
7. If valve seat must be replaced, refer to EM-241, "
VALVE SEAT REPLACEMENT" .
8. If valve guide must be replaced, refer to EM-239, "
VALVE GUIDE REPLACEMENT" .
9. Remove spark plug tube, as necessary.

Using pair of pliers, pull spark plug tube out of cylinder head.
CAUTION:

Take care not to damage cylinder head.

Once removed, spark plug tube will be deformed and cannot be reused. Do not remove it unless
absolutely necessary.
ASSEMBLY
1. When valve guide is removed, install it. Refer to EM-239, "VALVE GUIDE REPLACEMENT" .
2. When valve seat is removed, install it. Refer to EM-241, "
VALVE SEAT REPLACEMENT" .
3. Install new valve oil seal as follows:
a. Apply new engine oil on valve oil seal joint and seal lip.
b. Install with valve oil seal drift (SST) to match dimension in the figure.
4. Install valve.

Install in the original position.
NOTE:
Larger diameter valves are for intake side.
5. Install valve spring (with valve spring seat).

Install smaller pitch (valve spring seat side) to cylinder head
side.
6. Install valve spring retainer.
PBIC0072E
PBIC0073E
PBIC0074E

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY FL-5
C
D E
F
G H
I
J
K L
M A
FL
Revision: 2006 July 2007 FX35/FX45
3. Open fuel filler lid.
4. Open filler cap and release the pressure inside fuel tank.
5. Remove rear seat cushion. Refer to SE-104, "
REAR SEAT" .
6. Peel off floor carpet, then remove inspection hole cover for main and sub fuel level sensor units by turning clips clockwise by 90
degrees.
7. Disconnect harness connector and fuel feed tube.
Disconnect quick connector as follows:

Hold the sides of connector, push in tabs and pull out tube.

If quick connector sticks to tube of main fuel level sensor unit,
push and pull quick connector several times until they start to
move.Then disconnect them by pulling.
PBIC1576E
PBIC1577E
SFE562A

FL-6
FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
CAUTION:

Quick connector can be disconnected when the tabs
are completely depressed. Do not twist it more than
necessary.

Do not use any tools to disconnected quick connector.

Keep resin tube away from heat. Be especially careful
when welding near the resin tube.

Prevent acid liquid such as battery electrolyte, etc.
from getting on resin tube.

Do not bend or twist resin tube during installation and
disconnection.

Do not remove the remaining retainer on hard tube (or
the equivalent) except when resin tube or retainer is
replaced.

When resin tube or hard tube (or the equivalent) is
replaced, also replace retainer with new one.

To keep the connecting portion clean and to avoid
damage and foreign materials, cover them completely
with plastic bags or something similar.
8. Remove main fuel level sensor unit, fuel filter and fuel pump assembly, and sub fuel level sensor unit as follows:
CAUTION:

Do not bend float arm during removal.

Avoid impacts such as falling when handling components.
a. Removal of main fuel level sensor unit, fuel filter and fuel pump assembly:
i. Remove retainer.
ii. Raise main fuel level sensor unit, fuel filter and fuel pump assembly, and using snap ring pliers, remove fuel hose connec-
tor.
CAUTION:
Be careful not to damage fuel hose connector by expanding
them excessively.
b. Removal of sub fuel level sensor unit:
i. Remove retainer.
ii. Raise and release sub fuel level sensor unit to remove.
INSTALLATION
Note to the following, and install in the reverse order of removal. Retainer color: White
SBIA0504E
PBIC0163E
PBIC1578E
