BASIC SERVICE PROCEDURE
Revision: 2006 July 2007 FX35/FX45
–For models with CONSULT-II, drive vehicle until “ATF TEMP SE 1” in “DATA MONITOR” mode of “A/T”
system indicates less than 0.9V.
–For models without CONSULT-II, drive vehicle for 10 minutes.
OPERATION PROCEDURE
With CONSULT-II
1. Perform EC-83, "Accelerator Pedal Released Position Learning" .
2. Perform EC-83, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
6. Touch “START” and wait 20 seconds.
7. Make sure that “CMPLT” is displayed on CONSULT-II screen. If “CMPLT” is not displayed, Idle Air Volume Learning will not be
carried out successfully. In this case, find the cause of the inci-
dent by referring to the DIAGNOSTIC PROCEDURE below.
8. Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
Without CONSULT-II
NOTE:

It is better to count the time accurately with a clock.

It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit
has a malfunction.
1. Perform EC-83, "
Accelerator Pedal Released Position Learning" .
2. Perform EC-83, "
Throttle Valve Closed Position Learning" .
3. Start engine and warm it up to normal operating temperature.
4. Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
5. Turn ignition switch OFF and wait at least 10 seconds.
SEF217Z
SEF454Y
ITEM SPECIFICATION
Idle speed 650 ± 50 rpm (in P or N position)
Ignition timing 15 ± 5 ° BTDC (in P or N position)
MBIB0238E

TROUBLE DIAGNOSIS EC-89
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
Detailed Flow
1. GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the EC-91, "
DIAGNOSTIC WORKSHEET" .
>> GO TO 2.
2. CHECK DTC*1
1. Check DTC*1 .
2. Perform the following procedure if DTC*
1 is displayed.
–Record DTC*1 and freeze frame data*2 . (Print them out with CONSULT-II or GST.)
–Erase DTC*1 . (Refer to EC-66, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION"
.)
–Study the relationship between the cause detected by DTC*1 and the symptom described by the cus-
tomer. (Symptom Matrix Chart is useful. Refer to EC-96, "
Symptom Matrix Chart" .)
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC*1 is displayed>>GO TO 3.
Symptom is described, DTC*
1 is not displayed>>GO TO 4.
Symptom is not described, DTC*
1 is displayed>>GO TO 5.
3. CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
DIAGNOSIS WORK SHEET is useful to verify the incident.
Connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis
results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4. CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
DIAGNOSIS WORK SHEET is useful to verify the incident.
Connect CONSULT-II to the vehicle in “DATA MONITOR (AUTO TRIG)” mode and check real time diagnosis
results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.

TROUBLE DIAGNOSIS EC-117
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45101 P/L Stop lamp switch [Ignition switch: OFF]
Brake pedal: Fully released
Approximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
102 LG/B PNP switch [Ignition switch: ON]

Selector lever: P or N
Approximately 0V
[Ignition switch: ON]

Except above position BATTERY VOLTAGE
(11 - 14V)
104 L/OR Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON] 0 - 1.0V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 3.9 - 4.7V
107 PU/W Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature.
108 SB ICC brake switch
(models with ICC system)
ASCD brake switch
(models with ASCD system) [Ignition switch: ON]

Brake pedal: Slightly depressed
Approximately 0V
[Ignition switch: ON]

Brake pedal: Fully released BATTERY VOLTAGE
(11 - 14V)
109 W/L Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFF BATTERY VOLTAGE
(11 - 14V)
113 GY/R Fuel pump relay [Ignition switch: ON]

For 1 second after turning ignition switch ON
[Engine is running] 0 - 1.5V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ON BATTERY VOLTAGE
(11 - 14V)
11 5
11 6 B/R
B/W ECM ground [Engine is running]

Idle speed Body ground
11 7 R / Y EVAP canister vent control
valve [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
121 R/W Power supply for ECM
(Back-up) [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14V)
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)

EC-122
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
*: The items are the same as those of 1st trip freeze frame data.
DATA MONITOR MODE
Monitored Item
× : Applicable
VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH-P/S [%]

The throttle operating angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE
[ ° C] or [ °F]

The intake air temperature at the moment a malfunction is detected is displayed.
Freeze frame data
item* Description
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks
ENG SPEED [rpm] ××

Indicates the engine speed computed from
the signal of the crankshaft position sensor
(POS) and camshaft position sensor
(PHASE).
Accuracy becomes poor if engine
speed drops below the idle rpm.

If the signal is interrupted while the
engine is running, an abnormal
value may be indicated.
MAS A/F SE-B1 [V] ××

The signal voltage of the mass air flow sensor
is displayed.
When the engine is stopped, a cer-
tain value is indicated.
B/FUEL SCHDL
[msec] ×

Base fuel schedule indicates the fuel injection
pulse width programmed into ECM, prior to
any learned on board correction.
A/F ALPHA-B1 [%] ×

The mean value of the air-fuel ratio feedback
correction factor per cycle is indicated.

When the engine is stopped, a cer-
tain value is indicated.

This data also includes the data for
the air-fuel ratio learning control.
A/F ALPHA-B2 [%]
×
COOLAN TEMP/S
[ ° C] or [ °F] ××

The engine coolant temperature (determined
by the signal voltage of the engine coolant
temperature sensor) is displayed.

When the engine coolant tempera-
ture sensor is open or short-cir-
cuited, ECM enters fail-safe mode.
The engine coolant temperature
determined by the ECM is displayed.
A/F SEN1 (B1) [V] ××

The A/F signal computed from the input signal
of the Air fuel ratio (A/F) sensor 1 is displayed.
A/F SEN1 (B2) [V] ×
HO2S2 (B1) [V] ×

The signal voltage of the heated oxygen sen-
sor 2 is displayed.
HO2S2 (B2) [V] ×
HO2S2 MNTR(B1)
[RICH/LEAN] ×

Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after
three way catalyst is relatively small.
LEAN: means the amount of oxygen after
three way catalyst is relatively large.

When the engine is stopped, a cer-
tain value is indicated.
HO2S2 MNTR(B2)
[RICH/LEAN] ×
VHCL SPEED SE
[km/h] or [mph] ××

The vehicle speed computed from the vehicle
speed signal sent from combination meter is
displayed.
BATTERY VOLT
[V] ××

The power supply voltage of ECM is dis-
played.
ACCEL SEN 1 [V] ××

The accelerator pedal position sensor signal
voltage is displayed.
ACCEL SEN 2 signal is converted
by ECM internally. Thus, it differs
from ECM terminal voltage signal.
ACCEL SEN 2 [V]
×

TROUBLE DIAGNOSIS EC-125
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45SNOW MODE SW
[ON/OFF]
Indicates [ON/OFF] condition from the snow
mode switch signal.
A/F S1 HTR(B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes larger
as the value increases.
A/F S1 HTR(B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant pres-
sure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CANCEL
switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from RESUME/
ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop lamp
switch signal.
VHCL SPD CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to excessively
high compared with the ASCD set speed, and
ASCD operation is cut off.
LO SPEED CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed decreased to excessively
low compared with the ASCD set speed, and
ASCD operation is cut off.
AT OD MONITOR
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D
according to the input signal from the TCM.
AT OD CANCEL
[ON/OFF]

Indicates [ON/OFF] condition of A/T O/D can-
cel signal sent from the TCM.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
CRUISE LAMP
[ON/OFF]

Indicates [ON/OFF] condition of CRUISE
lamp determined by the ECM according to the
input signals.
SET LAMP
[ON/OFF]

Indicates [ON/OFF] condition of SET lamp
determined by the ECM according to the input
signals.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-128
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
*: DTC P1442 and P1456 does not apply to S50 models but appears in DTC Work Support Mode screens.
REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description

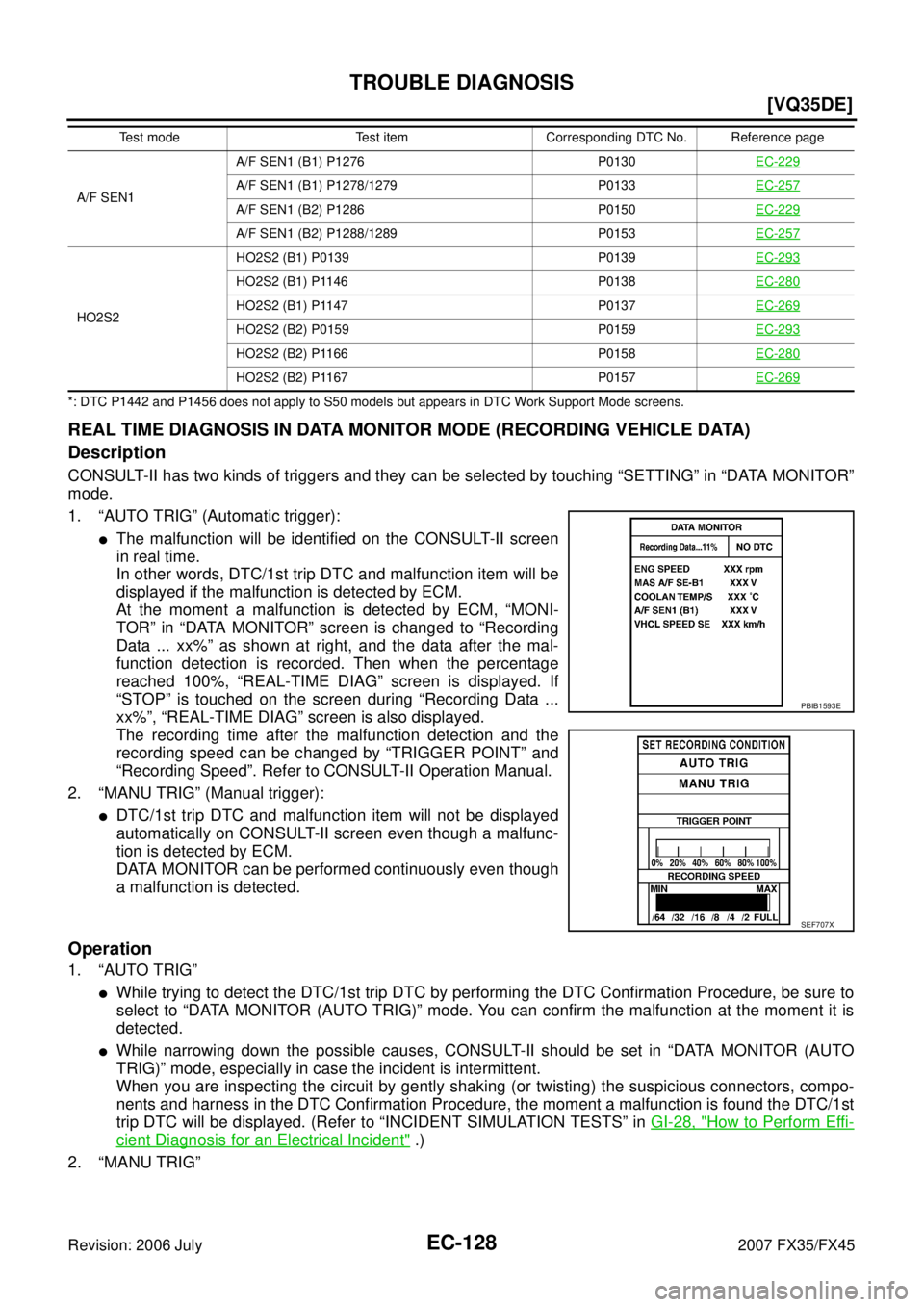

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):

The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the
recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II Operation Manual.
2. “MANU TRIG” (Manual trigger):

DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.
Operation
1. “AUTO TRIG”

While trying to detect the DTC/1st trip DTC by performing the DTC Confirmation Procedure, be sure to
select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.

While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC/1st
trip DTC will be displayed. (Refer to “INCIDENT SIMULATION TESTS” in GI-28, "
How to Perform Effi-
cient Diagnosis for an Electrical Incident" .)
2. “MANU TRIG”
A/F SEN1 A/F SEN1 (B1) P1276 P0130
EC-229A/F SEN1 (B1) P1278/1279 P0133EC-257
A/F SEN1 (B2) P1286 P0150EC-229
A/F SEN1 (B2) P1288/1289 P0153EC-257
HO2S2 HO2S2 (B1) P0139 P0139
EC-293
HO2S2 (B1) P1146 P0138EC-280
HO2S2 (B1) P1147 P0137EC-269
HO2S2 (B2) P0159 P0159EC-293
HO2S2 (B2) P1166 P0158EC-280
HO2S2 (B2) P1167 P0157EC-269
Test mode Test item Corresponding DTC No. Reference page
PBIB1593E
SEF707X

EC-142
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
10. DETECT MALFUNCTIONING PART
1. Check the following.
–Ignition coil and its circuit (Refer to EC-650, "IGNITION SIGNAL" .)
–Fuel injector and its circuit (Refer to EC-629, "FUEL INJECTOR" .)
–Intake air leakage
–Low compression pressure (Refer to EM-101, "CHECKING COMPRESSION PRESSURE" .)
2. If NG, repair or replace the malfunctioning part. If OK, replace fuel injector. (It may be caused by leakage from fuel injector or clogging.)
>> GO TO 11.
11 . CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG >> GO TO 12.
12. CHECK A/F SENSOR 1 FUNCTION
Perform all DTC Confirmation Procedure related with A/F sensor 1.

For DTC P0130, P0150, refer to EC-229, "DTC Confirmation Procedure" .

For DTC P0131, P0151, refer to EC-240, "DTC Confirmation Procedure" .

For DTC P0132, P0152, refer to EC-249, "DTC Confirmation Procedure" .

For DTC P0133, P0153, refer to EC-258, "DTC Confirmation Procedure" .

For DTC P2A00, P2A03, refer to EC-606, "DTC Confirmation Procedure" .
OK or NG
OK >> GO TO 15.
NG >> GO TO 13.
13. CHECK A/F SENSOR 1 CIRCUIT
Perform Diagnostic Procedure according to corresponding DTC.
>> GO TO 14.
14. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG >> GO TO 15.
15. DISCONNECT AND RECONNECT ECM HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect ECM harness connector. Check pin terminal and connector for damage, and then reconnect it.
>> GO TO 16.

EC-144
[VQ35DE]
TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Revision: 2006 July 2007 FX35/FX45
20. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”, AND “B/FUEL SCHDL”
Select “A/F ALPHA-B1”, “A/F ALPHA-B2”, and “B/FUEL SCHDL” in “DATA MONITOR (SPEC)” mode, and
make sure that the each indication is within the SP value.
OK or NG
OK >> INSPECTION END
NG (“B/FUEL SCHDL” is more, “A/F ALPHA-B1”, “A/F ALPHA-B2” are less than the SP value)>>GO TO 21.
21. DISCONNECT AND RECONNECT MASS AIR FLOW SENSOR HARNESS CONNECTOR
1. Stop the engine.
2. Disconnect mass air flow sensor harness connector. Check pin terminal and connector for damage and then reconnect it again.
>> GO TO 22.
22. CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”
1. Start engine.
2. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “DATA MONITOR (SPEC)” mode, and make sure that the each indication is within the SP value.
OK or NG
OK >> 1. Detect malfunctioning part of mass air flow sensor circuit and repair it. Refer to EC-196, "
DTC P0102, P0103 MAF SENSOR" .
2. GO TO 29.
NG >> GO TO 23.
23. CHECK “MAS A/F SE-B1”
Select “MAS A/F SE-B1” in “DATA MONITOR (SPEC)” mode, and
make sure that the indication is within the SP value.
OK or NG
OK >> GO TO 24.
NG (More than the SP value)>>Replace mass air flow sensor, and then GO TO 29.
24. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to BL-207, "
ECM Re-Communicating Function" .
3. Perform EC-82, "
VIN Registration" .
4. Perform EC-83, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-83, "
Throttle Valve Closed Position Learning" .
6. Perform EC-83, "
Idle Air Volume Learning" .
>> GO TO 29.
PBIB2370E
