TROUBLE DIAGNOSIS EC-775
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
21
22
23
40
41
42
44
63 W
R
P
PU
BR
B
OR
G Fuel injector No. 5
Fuel injector No. 3
Fuel injector No. 1
Fuel injector No. 6
Fuel injector No. 4
Fuel injector No. 2
Fuel injector No. 7
Fuel injector No. 8 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
24 P A/F sensor 1 heater
(Bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
25 P Heated oxygen sensor 2
heater (Bank 2) [Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
29 GY VIAS control solenoid valve [Engine is running]

Selector lever: P or N
0 - 1.0V
[Engine is running]

Selector lever: D

Engine speed: Below 5,000 rpm BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: Above 5,000 rpm 0 - 1.0V
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
34 Y Intake air temperature sen-
sor [Engine is running] Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
36 W Knock sensor (Bank 2) [Engine is running]

Idle speedApproximately 2.5V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB0042E
PBIB0043E
PBIB1584E

TROUBLE DIAGNOSIS EC-783
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame d ata
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-721
.
*3: Always “CMPLT” is displayed.
INSPECTION PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
WORK SUPPORT MODE
Work Item
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector ×× ×
Power transistor (Ignition timing) ×× ×
Throttle control motor relay ×××
Throttle control motor ×
EVAP canister purge volume con-
trol solenoid valve ×××××
Air conditioner relay ××
Fuel pump relay ××××
Cooling fan relay ××××
Air fuel ratio sensor 1 heater ×××
× *
3
Heated oxygen sensor 2 heater ×××
× *3
EVAP canister vent control valve ×× ×××
Intake valve timing control solenoid
valve ××××
VIAS control solenoid valve ××××
Calculated load value ×××
Item
DIAGNOSTIC TEST MODE
WORK SUP-
PORT SELF-DIAGNOS-
TIC RESULTS DATA
MONI-
TOR DATA
MONI- TOR
(SPEC) ACTIVE
TEST DTC & SRT
CONFIRMATION
DTC*1 FREEZE
FRAME
DATA*2 SRT
STATUS DTC
WORK SUP-
PORT
WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE

FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS. When releasing fuel pressure
from fuel line
IDLE AIR VOL LEARN

THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM. When learning the idle air volume
SELF-LEARNING CONT

THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT. When clearing the coefficient of
self-learning control value

EC-786
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
THRTL SEN 1 [V]××
The throttle position sensor signal voltage
is displayed.
THRTL SEN 2 signal is converted by
ECM internally. Thus, they differs from
ECM terminal voltage signal.
THRTL SEN 2 [V]
×
FUEL T/TMP SE
[ ° C] or [ °F] ×

The fuel temperature (determined by the
signal voltage of the fuel tank tempera-
ture sensor) is displayed.
INT/A TEMP SE
[ ° C] or [ °F] ××

The intake air temperature (determined
by the signal voltage of the intake air tem-
perature sensor) is indicated.
EVAP SYS PRES
[V] ×

The signal voltage of EVAP control sys-
tem pressure sensor is displayed.
FUEL LEVEL SE
[V] ×

The signal voltage of the fuel level sensor
is displayed.
START SIGNAL
[ON/OFF] ××

Indicates start signal status [ON/OFF]
computed by the ECM according to the
signals of engine speed and battery volt-
age.

After starting the engine, [OFF] is dis-
played regardless of the starter signal.
CLSD THL POS
[ON/OFF] ××

Indicates idle position [ON/OFF] com-
puted by ECM according to the accelera-
tor pedal position sensor signal.
AIR COND SIG
[ON/OFF] ××

Indicates [ON/OFF] condition of the air
conditioner switch as determined by the
air conditioner signal.
P/N POSI SW
[ON/OFF] ××

Indicates [ON/OFF] condition from the
park/neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF] ××

[ON/OFF] condition of the power steering
system (determined by the signal voltage
of the power steering pressure sensor
signal) is indicated.
LOAD SIGNAL
[ON/OFF] ××

Indicates [ON/OFF] condition from the
electrical load signal.
ON: Rear window defogger switch is ON
and/or lighting switch is in 2nd position.
OFF: Both rear window defogger switch
and lighting switch are OFF.
IGNITION SW
[ON/OFF] ×

Indicates [ON/OFF] condition from igni-
tion switch signal.
HEATER FAN SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the
heater fan switch signal.
BRAKE SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the
stop lamp switch signal.
INJ PULSE-B1
[msec] ×

Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
When the engine is stopped, a certain
computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC] ×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE [%]

“Calculated load value” indicates the
value of the current air flow divided by
peak air flow.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

TROUBLE DIAGNOSIS EC-787
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45MASS AIRFLOW
[g·m/s]
Indicates the mass air flow computed by
ECM according to the signal voltage of
the mass air flow sensor.
PURG VOL C/V
[%]

Indicates the EVAP canister purge vol-
ume control solenoid valve control value
computed by the ECM according to the
input signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[ ° CA]

Indicates [ °CA] of intake camshaft
advanced angle.
INT/V TIM (B2)
[ ° CA]
INT/V SOL (B1) [%]

The control value of the intake valve tim-
ing control solenoid valve (determined by
ECM according to the input signals) is
indicated.

The advance angle becomes larger as
the value increases.
INT/V SOL (B2) [%]
VIAS S/V
[ON/OFF]

The control condition of the VIAS control
solenoid valve (determined by ECM
according to the input signals) is indi-
cated.

OFF: VIAS control solenoid valve is not
operating.
ON: VIAS control solenoid valve is oper-
ating.
AIR COND RLY
[ON/OFF] ×

The air conditioner relay control condition
(determined by ECM according to the
input signals) is indicated.
FUEL PUMP RLY
[ON/OFF] ×

Indicates the fuel pump relay control con-
dition determined by ECM according to
the input signals.
VENT CONT/V
[ON/OFF]

The control condition of the EVAP canis-
ter vent control valve (determined by
ECM according to the input signals) is
indicated.
ON: Closed
OFF: Open
THRTL RELAY
[ON/OFF] ×

Indicates the throttle control motor relay
control condition determined by the ECM
according to the input signals.
COOLING FAN
[HI/MID/OFF]

The control condition of the cooling fan
(determined by ECM according to the
input signals) is indicated.
HI: High speed operation
MID: Middle speed operation
OFF: Stop
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated
oxygen sensor 2 heater determined by
ECM according to the input signals.
HO2S2 HTR (B2)
[ON/OFF] Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-788
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
I/P PULLY SPD
[rpm]
Indicates the engine speed computed
from the turbine revolution sensor signal.
VEHICLE SPEED
[km/h] or [MPH]

The vehicle speed computed from the
vehicle speed signal sent from TCM is
displayed.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume
learning
YET: Idle air volume learning has not
been performed yet.
CMPLT: Idle air volume learning has
already been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
SNOW MODE SW
[ON/OFF]

Indicates [ON/OFF] condition from the
snow mode switch signal.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes
larger as the value increases.
A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant
pressure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the
vehicle speed signal sent from combina-
tion meter is displayed.
SET VHCL SPD
[km/h] or [mph]

The preset vehicle speed is displayed.
MAIN SW
[ON/OFF]

Indicates [ON/OFF] condition from MAIN
switch signal.
CANCEL SW
[ON/OFF]

Indicates [ON/OFF] condition from CAN-
CEL switch signal.
RESUME/ACC SW
[ON/OFF]

Indicates [ON/OFF] condition from
RESUME/ACCELERATE switch signal.
SET SW
[ON/OFF]

Indicates [ON/OFF] condition from SET/
COAST switch signal.
BRAKE SW1
[ON/OFF]

Indicates [ON/OFF] condition from ASCD
brake switch signal.
BRAKE SW2
[ON/OFF]

Indicates [ON/OFF] condition of stop
lamp switch signal.
DIST SW
[ON/OFF]

Indicates [ON/OFF] condition from DIS-
TANCE switch signal.
VHCL SPD CUT
[NON/CUT]

Indicates the vehicle cruise condition.
NON: Vehicle speed is maintained at the
ASCD set speed.
CUT: Vehicle speed increased to exces-
sively high compared with the ASCD set
speed, and ASCD operation is cut off.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

TROUBLE DIAGNOSIS EC-797
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
IGNITION SW
Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engine Heater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 7
° - 17 ° BTDC
2,000 rpm 25 ° - 45 ° BTDC
CAL/LD VALUE

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 14% - 33%
2,500 rpm 12% - 25%
MASS AIRFLOW

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle
−5° - 5 °CA
2,000 rpm Approx. 0 ° - 20 °CA
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No load Idle 0% - 2%
2,000 rpm Approx. 25% - 50%
VIAS S/V

Selector lever: P or N ON

Engine speed: More than 5,000 rpm

Selector lever: Except P or N

Engine speed: Less than 5,000 rpm OFF
AIR COND RLY

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY

For 1 seconds after turning ignition switch: ON

Engine running or cranking ON

Except above OFF
VENT CONT/V

Ignition switch: ON OFF
THRTL RELAY

Ignition switch: ON ON
MONITOR ITEM CONDITION SPECIFICATION

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER EC-837
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 July 2007 FX35/FX45
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS004K7
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeNBS004K8
Specification data are reference values.
On Board Diagnosis LogicNBS004K9
DTC Confirmation ProcedureNBS004KA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-841, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)

Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
low The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)

A/F sensor 1 heater
P0051
0051
(Bank 2)
P0032
0032
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)

Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)

A/F sensor 1 heater
P0052
0052
(Bank 2)
SEF058Y

EC-838
[VK45DE]
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 July 2007 FX35/FX45

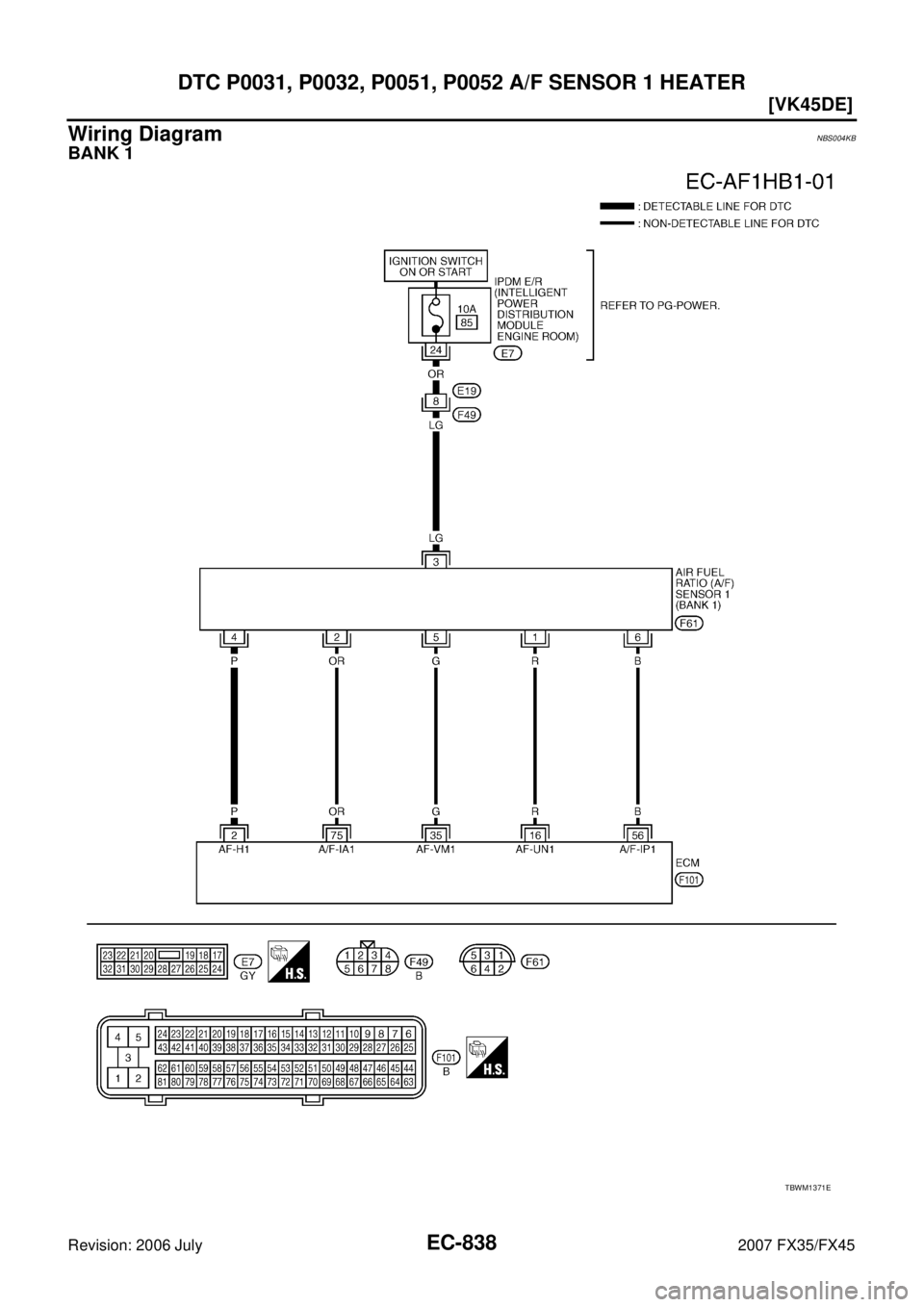

Wiring DiagramNBS004KB
BANK 1
TBWM1371E
