FEATURES OF YOUR HYUNDAI
85

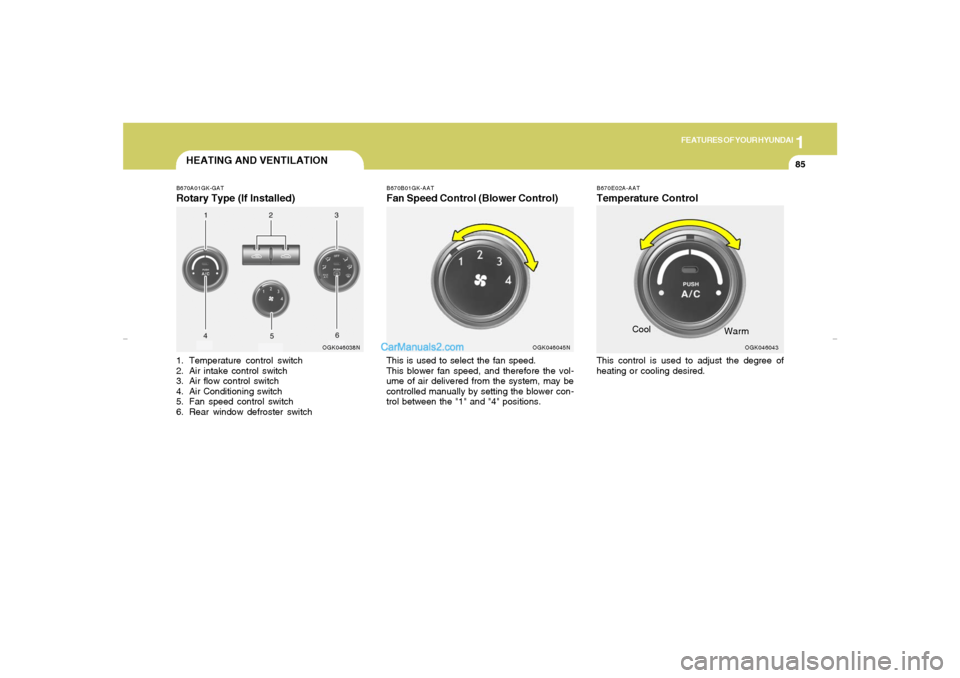

HEATING AND VENTILATIONB670A01GK-GATRotary Type (If Installed)1. Temperature control switch
2. Air intake control switch
3. Air flow control switch
4. Air Conditioning switch
5. Fan speed control switch
6. Rear window defroster switch
OGK046038NB670B01GK-AAT
Fan Speed Control (Blower Control)This is used to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
OGK046045NB670E02A-AAT
Temperature ControlThis control is used to adjust the degree of
heating or cooling desired.Cool
OGK046043
Warm
gkflhma-1b.p659/12/2006, 3:18 PM 85

1FEATURES OF YOUR HYUNDAI86
B670D04O-AATAir Flow ControlThis is used to turn the blower fan on/off and to
direct the flow of air. Air can be directed to the
floor, dashboard outlets, or windshield. Five
symbols are used to represent Face, Bi-Level,
Floor, Floor-Defrost and Defrost air position.
The MAX A/C mode is used to cool the inside of
the vehicle faster. The "OFF" mode is used to
turn the blower fan off.NOTE:If the blower fan is off, the air intake control
is set to the fresh mode automatically.
OGK046039N
B670C02Y-AATAir Intake ControlThis is used to select fresh outside air or
recirculation of inside air.
Fresh
Recirculation
With the "
" mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the " " mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac-
cording to the other functions selected.
NOTE:It should be noted that prolonged opera-
tion of the heating system in "
" mode
will give rise to fogging of the windshield
and side windows and the air within the
passenger compartment will become stale.
In addition prolonged use of the air condi-
tioning with the "
" mode selected may
result in the air within the passenger com-
partment becoming excessively dry.
OGK046044
gkflhma-1b.p659/12/2006, 3:18 PM 86

1
FEATURES OF YOUR HYUNDAI
87
Face-Level
Selecting the "Face" mode will cause air to be
discharged through the side and center venti-
lators.
Bi-Level
Air is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.
OGK016095
OGK016096
Floor-Level
Air is discharged through the floor vents, wind-
shield defroster nozzle, side defroster nozzle
and side ventilator.
If the "Floor" mode is selected, the "Fresh"
mode will be activated.
OGK016097
gkflhma-1b.p659/12/2006, 3:18 PM 87

1FEATURES OF YOUR HYUNDAI88
MAX A/C-Level
Air is discharged through the face level vents.
If the "MAX A/C" mode is selected, the A/C will
turn on automatically and "Recirculation" mode
will be activated.
OGK016103
mode except the defrost mode and the
floor-defrost mode. Although the A/C
switch indicator is turned off, this is normal
operation.
Defrost-Level
Air is discharged through the windshield defrost
nozzle, side defroster nozzle, side ventilator.
If the "Defrost" mode is selected, the A/C will
turn on automatically and "Fresh" mode will be
activated.NOTE:If the "Floor-Defrost" or "Defrost" mode is
selected, the air conditioning will not turn
off by pushing the A/C button.
If the air flow control is set to the defrost or
the floor-defrost mode, the A/C will be on
automatically and the A/C will not off until
the air flow control is set to the another
OGK016099
Floor-Defrost Level
Air is discharged through the windshield defrost
nozzle, the floor vents, side defroster nozzle,
side ventilator.
If the "Floor-Defrost" mode is selected, the A/C
will be turn on automatically and "Fresh" mode
will be activated.
OGK016098
gkflhma-1b.p659/12/2006, 3:18 PM 88

1
FEATURES OF YOUR HYUNDAI
89
* The A/C or the air intake control switch return
to its former setting.
A/C
ON
ON or OFF *
ON or OFF *
ON
ON
NOTE:o The air intake control switch will change
to " " mode when the ignition switch
is turned "ON" with the MAX A/C mode
selected.
o When you change to another mode from
MAX A/C, the A/C and the air intake
control switch are set to the following
chart.
Air Intake
Control Switch
or *
OGK016095N

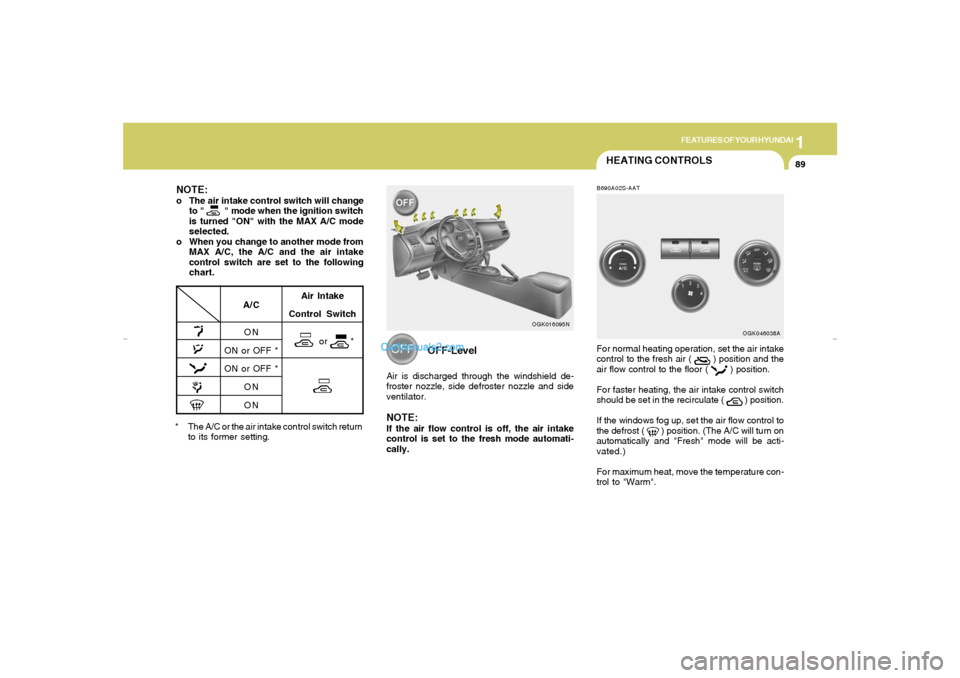

OFF-Level
Air is discharged through the windshield de-
froster nozzle, side defroster nozzle and side
ventilator.NOTE:If the air flow control is off, the air intake
control is set to the fresh mode automati-
cally.
HEATING CONTROLSB690A02S-AATFor normal heating operation, set the air intake
control to the fresh air (
) position and the
air flow control to the floor (
) position.
For faster heating, the air intake control switch
should be set in the recirculate (
) position.
If the windows fog up, set the air flow control to
the defrost (
) position. (The A/C will turn on
automatically and "Fresh" mode will be acti-
vated.)
For maximum heat, move the temperature con-
trol to "Warm".
OGK046038A
gkflhma-1b.p659/12/2006, 3:18 PM 89

1FEATURES OF YOUR HYUNDAI90
OGK016701N
VENTILATIONB710A01A-AATTo operate the ventilation system:
o Set the air intake control switch at the fresh
air (
) position.
o To direct all intake air to the dashboard vents,
set the airflow control to the face (
) position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
AIR CONDITIONING SYSTEMB740A01S-AATAir Conditioning Switch (If installed)The air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
OGK046047
BI-LEVEL HEATINGB700A02A-AATYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control switch to the fresh
air (
) position.
o Set the air flow control at the bi-level (
)
position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
OGK016700N
gkflhma-1b.p659/12/2006, 3:18 PM 90

1
FEATURES OF YOUR HYUNDAI
91
To use the air conditioning to cool the interior:
o Adjust the air flow control to the desired
position.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control switch to the fresh
air (
) position.
o Adjust the fan control to the desired position.
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
B740B02GK-AATAir Conditioning Operation
Cooling
OGK016704N
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the recirculate (
) position on the
air intake control switch.
B740C01GKA-AATDehumidified HeatingFor dehumidified heating:
o Adjust the air flow control to the desired
position.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on at
the same time.
o Set the air intake control switch to the fresh
air (
) position.
o Set the air flow control to the face (
)
position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth.
OGK016705N
gkflhma-1b.p659/12/2006, 3:19 PM 91

1FEATURES OF YOUR HYUNDAI92

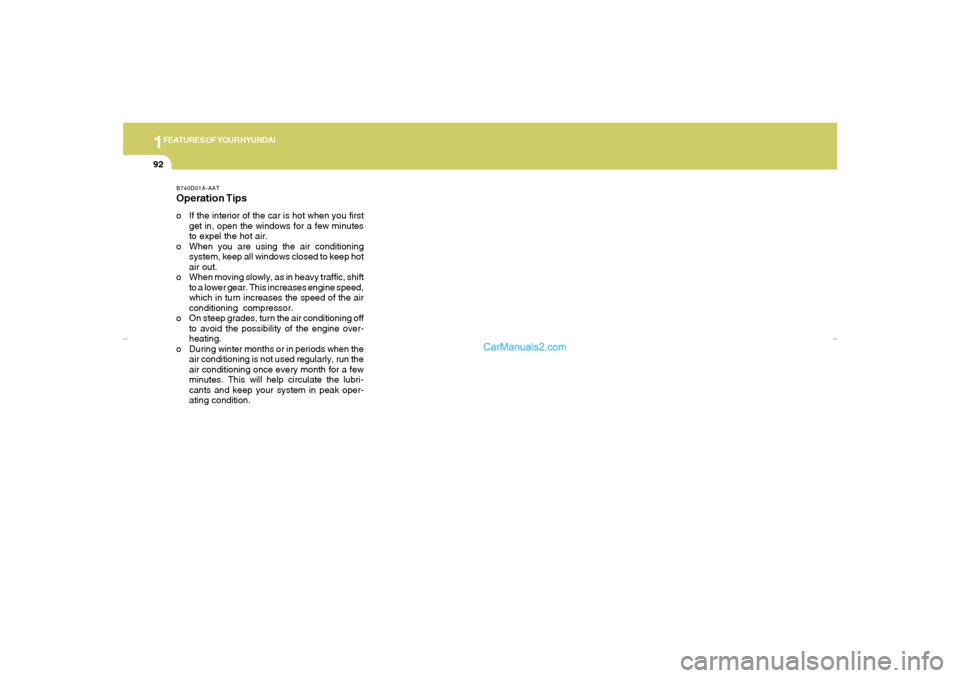

B740D01A-AATOperation Tipso If the interior of the car is hot when you first
get in, open the windows for a few minutes
to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to keep hot
air out.
o When moving slowly, as in heavy traffic, shift
to a lower gear. This increases engine speed,
which in turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air conditioning off
to avoid the possibility of the engine over-
heating.
o During winter months or in periods when the
air conditioning is not used regularly, run the
air conditioning once every month for a few
minutes. This will help circulate the lubri-
cants and keep your system in peak oper-
ating condition.
gkflhma-1b.p659/12/2006, 3:19 PM 92
