2007 Hyundai Tiburon Owner's Manual

1
FEATURES OF YOUR HYUNDAI
61
B350B01O-AATWindshield Washer OperationTo use the windshield washer, pull the wiper/
washer lever toward the steering wheel. When
the washer lever is operated, the wipers auto-
matically make two passes across the wind-
shield. The washer continues to operate until
the lever is released.NOTE:o Do not operate the washer more than 15
seconds at a time or when the fluid
reservoir is empty.
o In icy or freezing weather, be sure the
wiper blades are not frozen to the glass
prior to operating the wipers.
o In areas where water freezes in winter,
use windshield washer antifreeze.
OGK047048N
B350C01S-AATAdjustable Intermittent Wiper OperationTo use the intermittent wiper feature, place the
wiper switch in the "INT" position. With the
switch in this position, the interval between
wipes can be varied from 2 to 10 seconds by
turning the interval adjuster barrel.
OGK047050N
OGK047049N
Mist Wiper OperationIf a single wipe is desired in mist, move the
windshield wiper and washer control lever up.
gkflhma-1a.p659/12/2006, 3:16 PM 61

1FEATURES OF YOUR HYUNDAI62
B390A01E-AATRear Window Wiper And Washer Switch1. : The rear window wiper starts to oper-
ate three times after the washer fluid
sprays onto the rear window.
2.OFF
3.INT :The interval between wipes operates
every 5 seconds intermittently.
4.ON :The rear window wiper starts to oper-
ate continuously.
5. : The washer fluid will be sprayed onto
the rear window and the wiper operates
while the rear window wiper barrel is
placed in this position.
OGK047051N
Do not operate the washer continuously for
more than 15 seconds or when the fluid reser-
voir is empty; this could damage the system. Do
not operate the wiper when the window is dry;
this can result in scratching as well as prema-
ture wiper blade wear.
For the reason stated above,do not operate the
washer when the washer fluid reservoir is
empty.
FRONT FOG LIGHT SWITCHB360A04A-AATTo turn on the front fog lights, push the switch.
They will light when the headlight switch is in the
second position and the ignition key is in the
"ON" position.NOTE:If you turn on the headlight high beams, the
front fog lights will be turned off.
OGK046052
gkflhma-1a.p659/12/2006, 3:16 PM 62

1
FEATURES OF YOUR HYUNDAI
63
REAR WINDOW DEFROSTER
SWITCH
OGK046054-1N B380A02A-AAT
The rear window defroster and heated outside
rearview mirrors are turned on by pushing in the
switch. To turn the defroster off, push the switch
a second time. The rear window defroster
automatically turns itself off after about 20 min-
utes. To restart the defroster cycle, push in the
switch again after it has turned itself off.
NOTE:The engine must be running for the rear
window defroster to operate.
CAUTION:
Do not clean the inner side of the rear
window glass with an abrasive type of glass
cleaner or use a scraper to remove foreign
deposits from the inner surface of the glass
as this may cause damage to the defroster
elements.
!
Type A
Type B
HAZARD WARNING SYSTEMB370A01A-AATThe hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time.
OGK066001
gkflhma-1a.p659/12/2006, 3:16 PM 63

1FEATURES OF YOUR HYUNDAI64
CIGARETTE LIGHTER
INSTRUMENT PANEL LIGHT
CONTROL (RHEOSTAT)B410A01A-AATThe instrument panel lights can be made brighter
or dimmer by turning the instrument panel light
control knob.
OGK046029B420A02A-AAT
For the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
OGK046078
DIGITAL CLOCKB400A01A-AATThere are three control buttons for the digital
clock. Their functions are:
H- Push "H" to advance the hour indicated.
M- Push "M" to advance the minute indicated.
R- Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correct
time. When this is done:
Pressing "R" between 11 : 01 and 11 : 29
changes the readout to 11 : 00.
Pressing "R" between 11 : 30 and 11 : 59
changes the readout to 12 : 00.
Push the "R" button for 3 seconds to display
a 12 or 24-hour clock.
OGK046056
!
CAUTION:
Do not use electric accessories or equip-
ment other than the Hyundai genuine parts
in the socket.
gkflhma-1a.p659/12/2006, 3:17 PM 64

1
FEATURES OF YOUR HYUNDAI
65

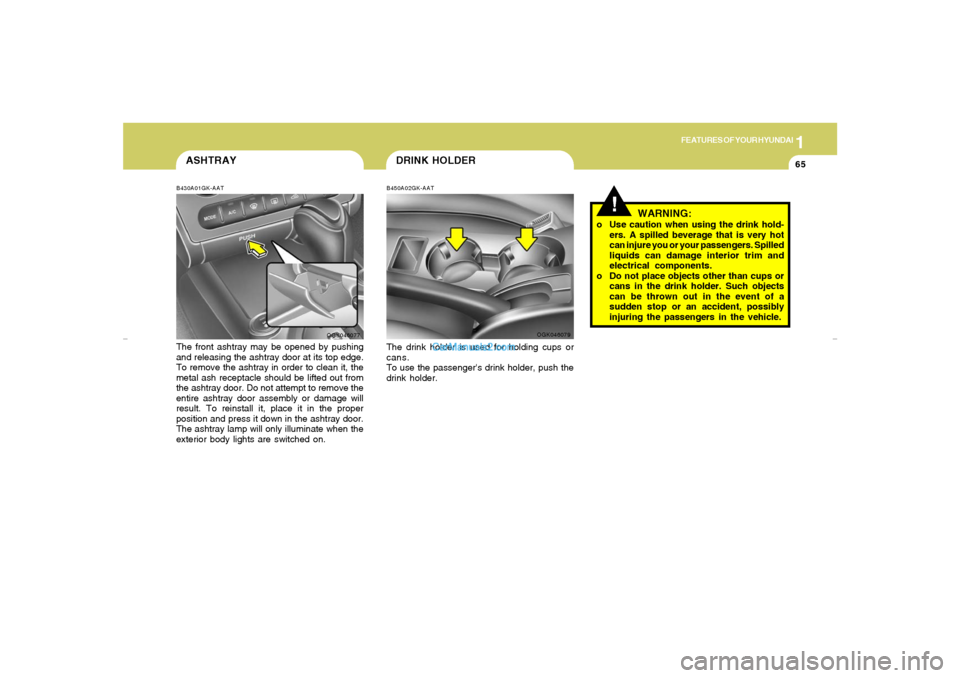

DRINK HOLDER
!
B450A02GK-AATThe drink holder is used for holding cups or
cans.
To use the passenger's drink holder, push the
drink holder.
OGK046079
WARNING:
o Use caution when using the drink hold-
ers. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and
electrical components.
o Do not place objects other than cups or
cans in the drink holder. Such objects
can be thrown out in the event of a
sudden stop or an accident, possibly
injuring the passengers in the vehicle.
ASHTRAYB430A01GK-AATThe front ashtray may be opened by pushing
and releasing the ashtray door at its top edge.
To remove the ashtray in order to clean it, the
metal ash receptacle should be lifted out from
the ashtray door. Do not attempt to remove the
entire ashtray door assembly or damage will
result. To reinstall it, place it in the proper
position and press it down in the ashtray door.
The ashtray lamp will only illuminate when the
exterior body lights are switched on.
OGK046077
gkflhma-1a.p659/12/2006, 3:17 PM 65

1FEATURES OF YOUR HYUNDAI66
!
WARNING:
Be careful that someone’s head, hands and
body are not trapped by a closing sunroof.
SUNROOFB460A01S-AAT(If Installed)The sunroof can be operated with the ignition
key in the "ON" position.
!SUNSHADEB470A01GK-AAT(If Installed)The sunshade can be opened and closed by
sliding it forward or rearward when the sunroof
is closed. The sunshade will open automatically
when the sunroof is opened, but it must be
closed manually.
OGK046019
WARNING:
Never adjust the sunshade while driving.
This could result in loss of control and an
accident that may cause death, serious
injury, or property damage.
B460B03GK-GATOpening the Sunroof SystemThe sunroof can be electrically opened or closed
with the ignition key in the "ON" position. The
sunroof is moved to its fully open position by
pushing the " " switch, and to stop at the desired
position, push in any switches ( , , Up, Down).
To close, press and hold the " " button.
Release the button when the sunroof reaches
the desired position.
OGK046017
gkflhma-1a.p659/12/2006, 3:17 PM 66

1
FEATURES OF YOUR HYUNDAI
67
!
B460C01GK-AATTilting the Sunroof SystemTo use the auto tilt feature, press the UP button
on the overhead console. The sunroof will tilt all
the way open. To stop the sunroof tilting at any
point, press any sunroof control button.
To close the sunroof, press the DOWN button
on the overhead console and hold it until the
sunroof is closed.NOTE:After washing the car or after there is rain,
be sure to wipe off any water that is on the
sunroof before operating it.
OGK046018
B460D03GK-AATManual Operation of SunroofIf the sunroof does not electrically operate:
1. Remove the cap located in the rear roof
panel by using a coin or screw driver.
OGK046020
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.
o Do not place your head or arms out of the
sunroof opening at any time.
o While the vehicle is moving, always keep
the head, hands and other parts of the
body of all occupants away from the roof
opening. Otherwise, you could be seri-
ously injured if the vehicle stops sud-
denly or if the vehicle is involved in an
accident.
CAUTION:
o Do not open the sunroof in severely cold
temperature or when it is covered with
ice or snow.
o Periodically remove any dirt that may
have accumulated on the guide rails.
o Do not press any sunroof control button
longer than necessary.
Damage to the motor or system compo-
nents could occur.
!
gkflhma-1a.p659/12/2006, 3:17 PM 67

1FEATURES OF YOUR HYUNDAI68
OGK046034L-1 B460E04GK-AAT
Resetting the Sunroof SystemIf the battery has been recharged, discon-
nected or the sunroof was been opened manu-
ally with the hexagonal head wrench, you may
need to reset the sunroof.To do this;1. Turn the ignition switch "OFF".
2. While pressing " " "up" button turn the
ignition switch "ON".
The resetting was not occur when the
ignition key is turned "OFF" within 1.5
seconds.
3. If the sunroof is set like this, the sunroof is
reset with tilting up/down automatically once
for all.
CAUTION:
If the sunroof is not reset, it may not operate
normally.
!
INTERIOR LIGHTB480A02GK-GATMap Light(1) Push in the map light switch to turn on the
driver side light.
(2) In the "DOOR" position, the interior cour-
tesy light comes on when any door is
opened regardless of the ignition key posi-
tion. The light goes out gradually 6 seconds
after the door is closed.
(3) Push in the map light switch to turn on the
front passenger side light.
2. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench
can be found in the vehicle’s trunk or glove
box.
3. Push and turn the wrench clockwise to close
or counterclockwise to open the sunroof.
OGK046021
gkflhma-1a.p659/12/2006, 3:17 PM 68
