1FEATURES OF YOUR HYUNDAI
88
B510B01Y-AAT Electric Type (If Installed)
B510B01HP
The outside rearview mirrors can be adjusted to your preferred rear vision,both directly behind the vehicle, and to the rear of the left and right sides. The remote control outside rearviewmirror switch controls the adjustments for both right and left outside mirrors.

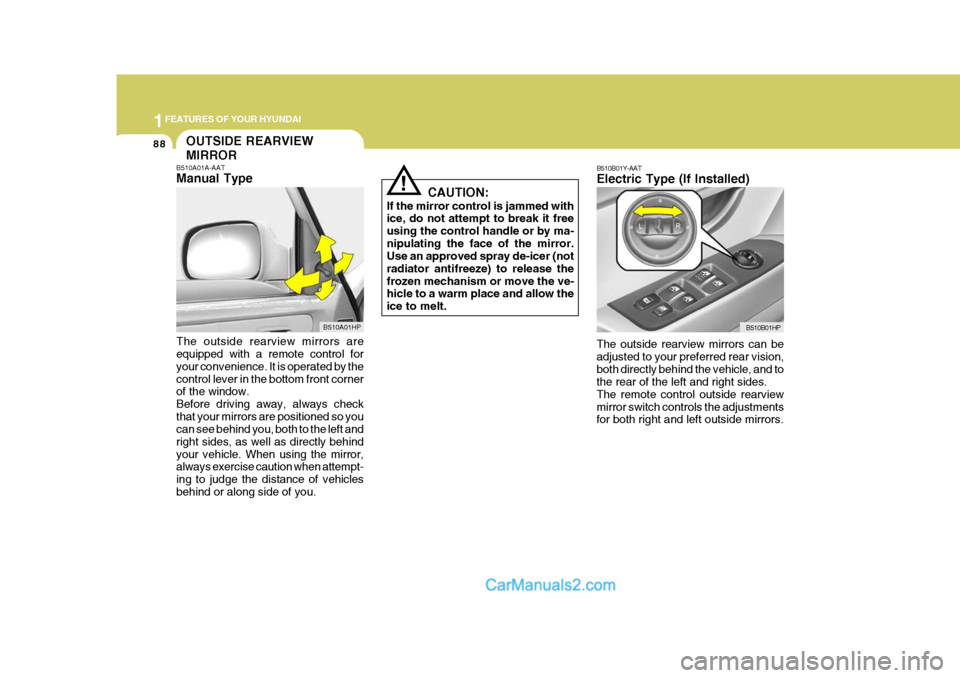

OUTSIDE REARVIEW MIRROR
B510A01A-AAT Manual Type The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by thecontrol lever in the bottom front corner of the window. Before driving away, always checkthat your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behindyour vehicle. When using the mirror, always exercise caution when attempt- ing to judge the distance of vehiclesbehind or along side of you. B510A01HP
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma-nipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release thefrozen mechanism or move the ve- hicle to a warm place and allow the ice to melt.
!
1
FEATURES OF YOUR HYUNDAI

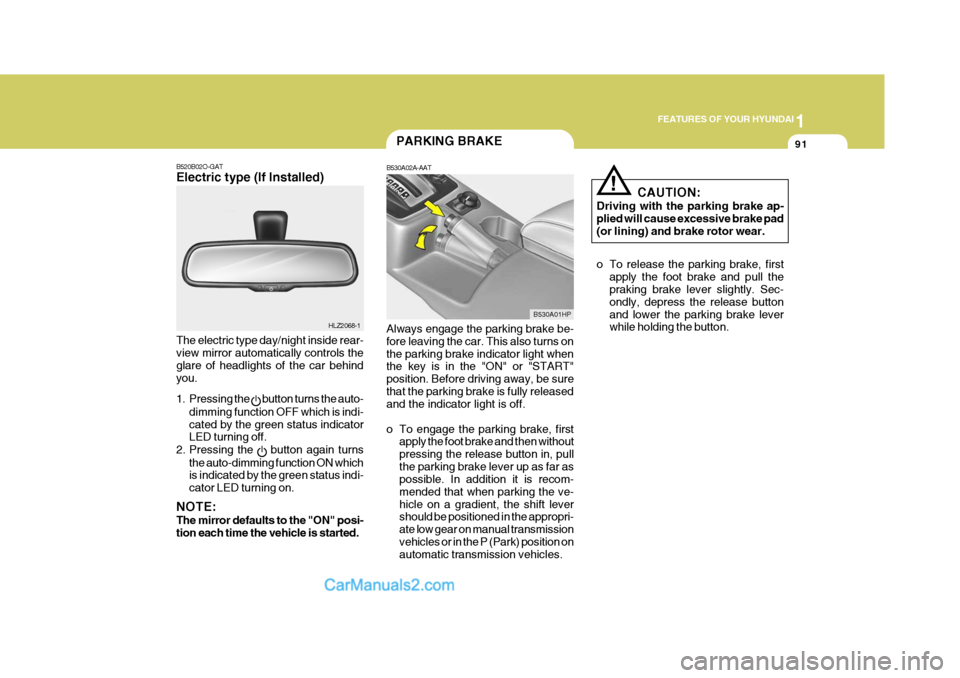

91PARKING BRAKE
B530A02A-AAT Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be surethat the parking brake is fully released and the indicator light is off.
o To engage the parking brake, first apply the foot brake and then without pressing the release button in, pullthe parking brake lever up as far as possible. In addition it is recom- mended that when parking the ve-hicle on a gradient, the shift lever should be positioned in the appropri- ate low gear on manual transmissionvehicles or in the P (Park) position on automatic transmission vehicles. B530A01HP
B520B02O-GAT Electric type (If Installed) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the
button turns the auto-
dimming function OFF which is indi- cated by the green status indicator LED turning off.
2. Pressing the
button again turns
the auto-dimming function ON which is indicated by the green status indi- cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. HLZ2068-1
CAUTION:
Driving with the parking brake ap-plied will cause excessive brake pad (or lining) and brake rotor wear.
o To release the parking brake, first apply the foot brake and pull the praking brake lever slightly. Sec- ondly, depress the release buttonand lower the parking brake lever while holding the button.
!
