FEATURES OF YOUR HYUNDAI
19
This will release the seat on its track so you can move it forward or rearwardto the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks into the desired position and cannot be moved further.
!WARNING:
To ensure the seat is locked se- curely, attempt to move the seatforward or rearward without using the lock release lever.!
B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up onthe recliner control lever at the outside edge of the seat. Now lean back until the desired seatback angle is achieved.To lock the seatback into position, release the recliner control lever.
WARNING:
To minimize risk of severe injury inthe event of a collision or a sudden stop, both the driver and passen-ger seatbacks should always be in an upright position while the ve- hicle is in motion. The protectionprovided by the seat belts and airbags in a frontal collision may be reduced significantly when theseatbacks are reclined. There is greater risk that the driver and pas- senger will slide under the seat beltwhich may result in serious injury if a crash occurs when the seatbacks are reclined.The seat belt cannot provide full protection to an occupant if the seat back is reclined.
HHP2027

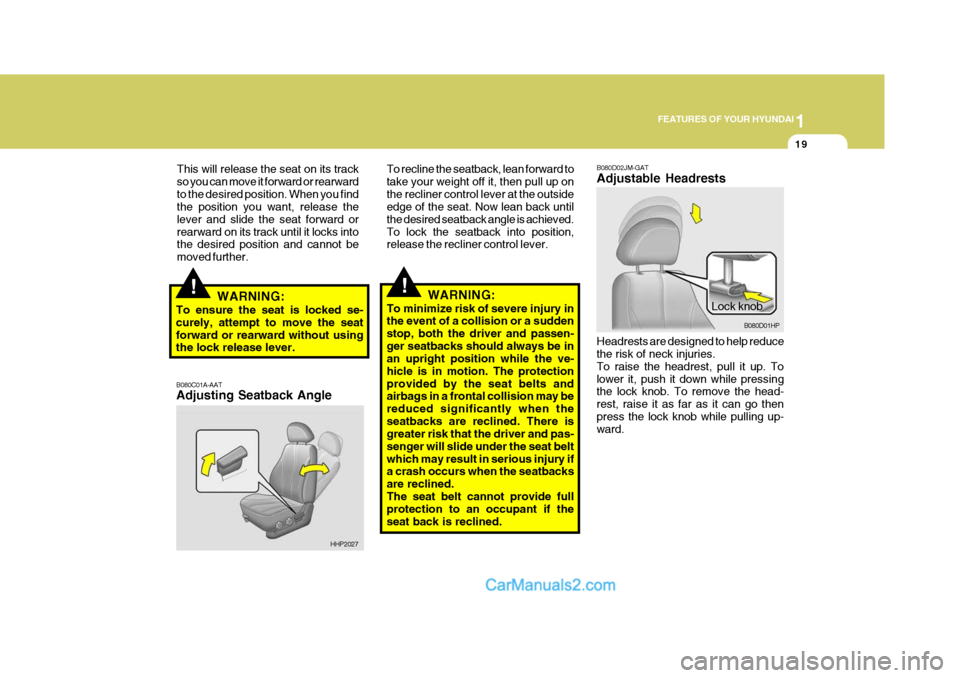

B080D02JM-GAT Adjustable Headrests
Lock knobB080D01HP
Headrests are designed to help reduce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob. To remove the head- rest, raise it as far as it can go thenpress the lock knob while pulling up- ward.

1FEATURES OF YOUR HYUNDAI
20
!
B080E02A-AAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the inboard side of the seat.To increase the amount of lumbar sup- port, pull the lever forward. To de- crease it, push the lever toward therear. 1. Minimum support 2. Maximum support

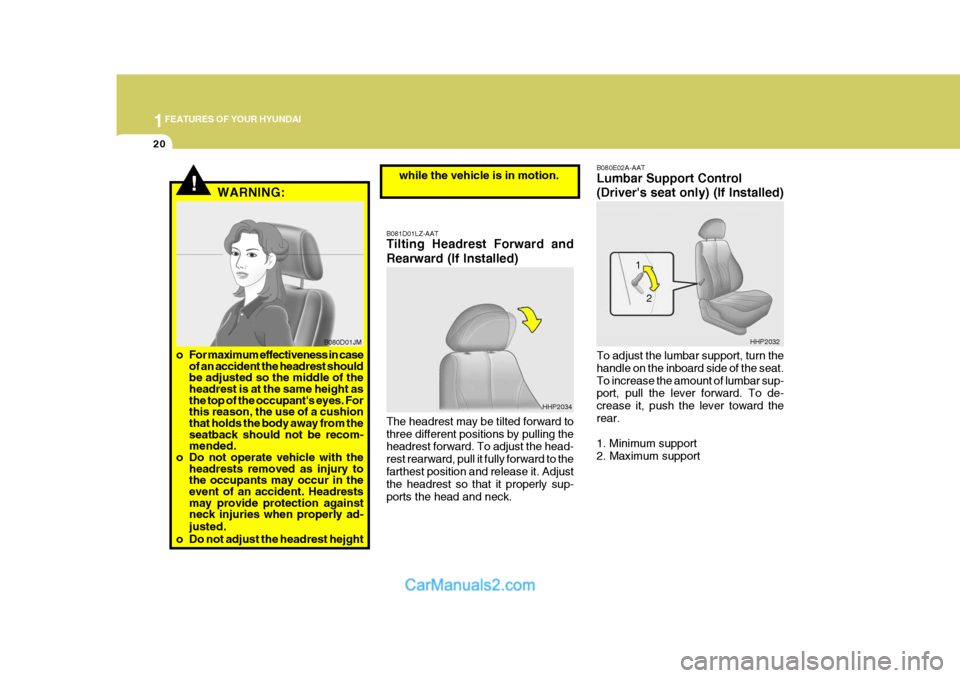

B081D01LZ-AAT Tilting Headrest Forward and Rearward (If Installed) The headrest may be tilted forward to three different positions by pulling the headrest forward. To adjust the head- rest rearward, pull it fully forward to thefarthest position and release it. Adjust the headrest so that it properly sup- ports the head and neck.
HHP2034
HHP2032
1
2
WARNING:
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of theheadrest is at the same height as the top of the occupant's eyes. For this reason, the use of a cushionthat holds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad- justed.
o Do not adjust the headrest hejght B080D01JM
while the vehicle is in motion.

1FEATURES OF YOUR HYUNDAI
24
!

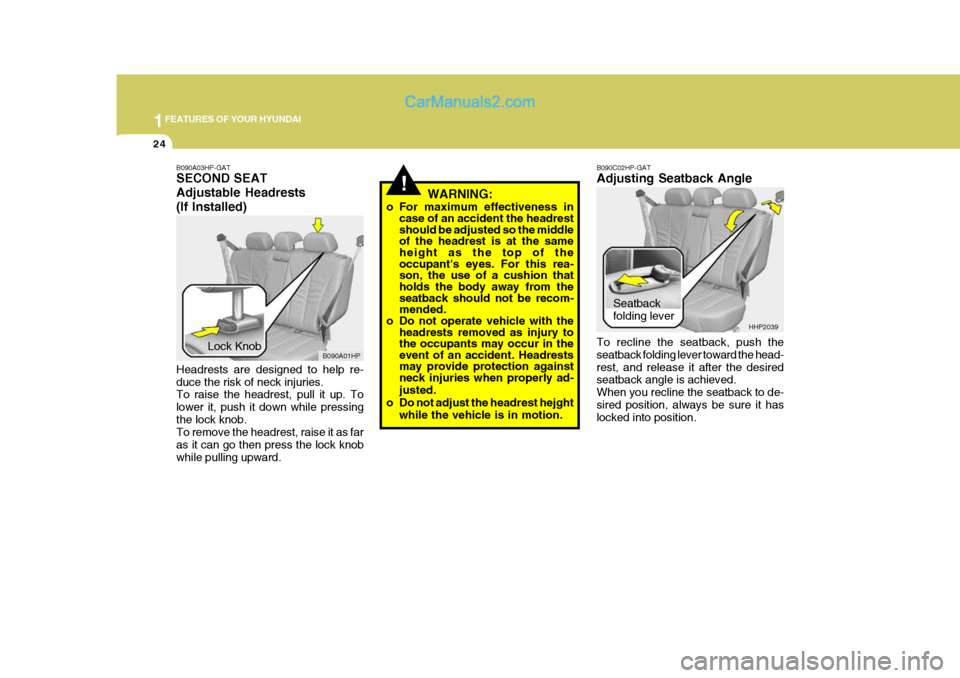

B090A03HP-GAT SECOND SEAT Adjustable Headrests(If Installed) Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob. To remove the headrest, raise it as far as it can go then press the lock knobwhile pulling upward. WARNING:
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the sameheight as the top of the occupant's eyes. For this rea- son, the use of a cushion thatholds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrestsmay provide protection against neck injuries when properly ad- justed.
o Do not adjust the headrest hejght while the vehicle is in motion.
Lock Knob B090C02HP-GAT Adjusting Seatback Angle To recline the seatback, push the seatback folding lever toward the head-rest, and release it after the desired seatback angle is achieved. When you recline the seatback to de-sired position, always be sure it has locked into position.
Seatbackfolding lever
B090A01HP HHP2039

1
FEATURES OF YOUR HYUNDAI
25

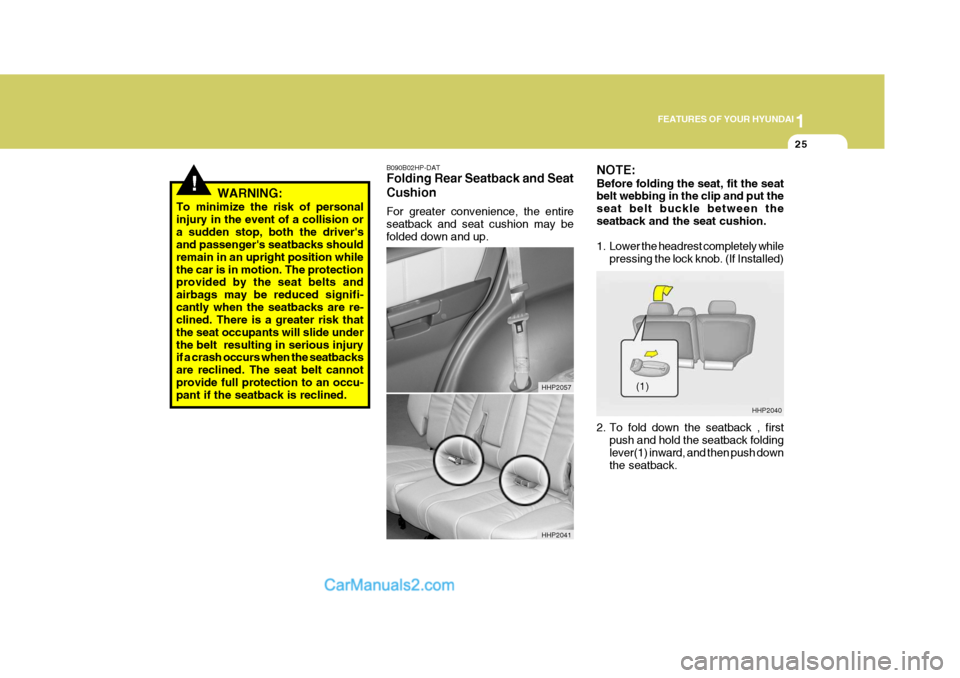

B090B02HP-DAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may befolded down and up.
!WARNING:
To minimize the risk of personal injury in the event of a collision ora sudden stop, both the driver's and passenger's seatbacks should remain in an upright position whilethe car is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is a greater risk that the seat occupants will slide underthe belt resulting in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannotprovide full protection to an occu- pant if the seatback is reclined. NOTE: Before folding the seat, fit the seat belt webbing in the clip and put the seat belt buckle between theseatback and the seat cushion.
1. Lower the headrest completely while
pressing the lock knob. (If Installed)
HHP2057 HHP2041 HHP2040
2. To fold down the seatback , first push and hold the seatback folding lever(1) inward, and then push down the seatback. (1)

1FEATURES OF YOUR HYUNDAI
26
!WARNING:
When folding down or returning the seatback, always hold theseatback. Otherwise, the seatback could move suddenly and result in unexpected injury.
NOTE:
o Before lowering the seat cush-ion when you return the seat, roll the securing strap and put it in the pocket.
o When you return the seatback to its upright position, always besure it is locked into position bypulling and pushing on the top of seatback.
HHP2042
3. Pull the seat cushion release le- ver(2) upward, and then fold up theseat cushion. 4. To secure the seat, hook the secur-
ing strap(3) under the seat cushionto the headrest stay of front driver and passenger seat.
5. To return the seatback and seat cushion to its normal position, re-verse the above procedure. HHP2043
HHP2043-1
(2) (3)

1FEATURES OF YOUR HYUNDAI
28
!
3. Pull the seat cushion release knob(2)
beside the seat cushion, and fold the seat cushion sideways.

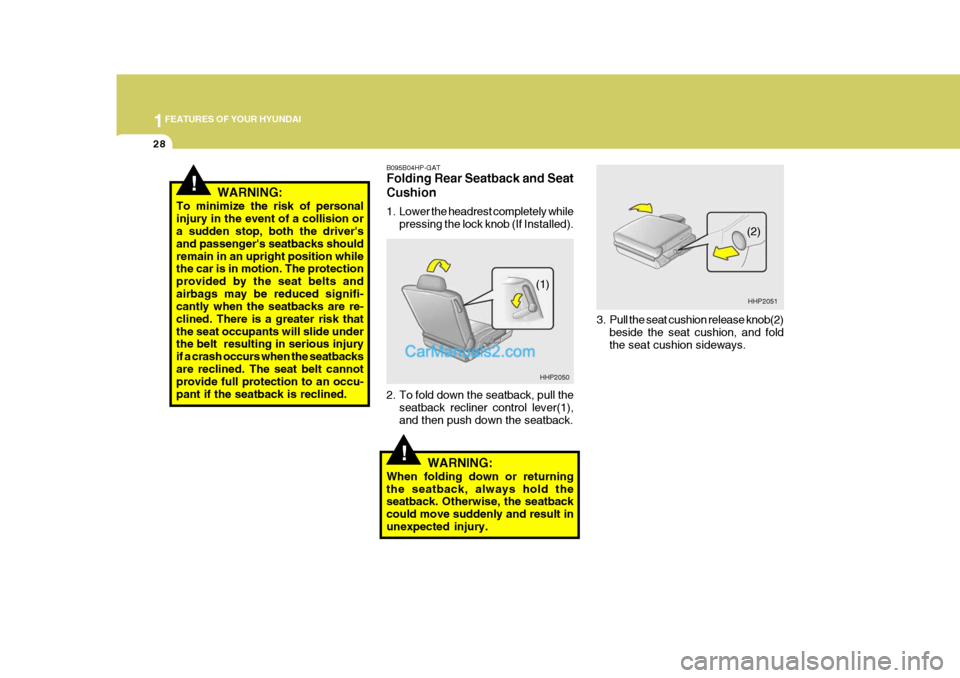

B095B04HP-GAT Folding Rear Seatback and Seat Cushion
1. Lower the headrest completely while
pressing the lock knob (If Installed).
2. To fold down the seatback, pull the seatback recliner control lever(1), and then push down the seatback.
WARNING:
To minimize the risk of personalinjury in the event of a collision or a sudden stop, both the driver's and passenger's seatbacks shouldremain in an upright position while the car is in motion. The protection provided by the seat belts andairbags may be reduced signifi- cantly when the seatbacks are re- clined. There is a greater risk thatthe seat occupants will slide under the belt resulting in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seatback is reclined.
!WARNING:
When folding down or returning the seatback, always hold the seatback. Otherwise, the seatback could move suddenly and result inunexpected injury. HHP2050
HHP2051
(1) (2)

1FEATURES OF YOUR HYUNDAI
30
!
4. To secure the seat, hook the secur-
ing strap (4) under the seat cushion to the headrest stay of front driver and passenger seat.
After doing above procedure, passen-gers can get in or get out of the third seat.
WARNING:
Do not allow passengers to folddown and up the seatback and seat cushion while the car is moving.
B095C01HP-GAT To get in and out of the third seat The second seat should be folded up to get in and out of the third seat.
1. Lower the headrest completely while
pressing the lock knob.(If Installed)
2. To fold down the seatback , first push and hold the seatback folding lever (1) inward, and then push down the seatback. 3. To get in the third seat, pull the
handle for folding the seat cushion (2) beside the seat cushion, then fold up the seat cushion.To get out of the third seat, pull the seat cushion release lever (3) up- ward and fold up the seat cushion.
HHP2045 B095C01HP
B095C02HP
(1) (2)
(3) (4)

1
FEATURES OF YOUR HYUNDAI
43

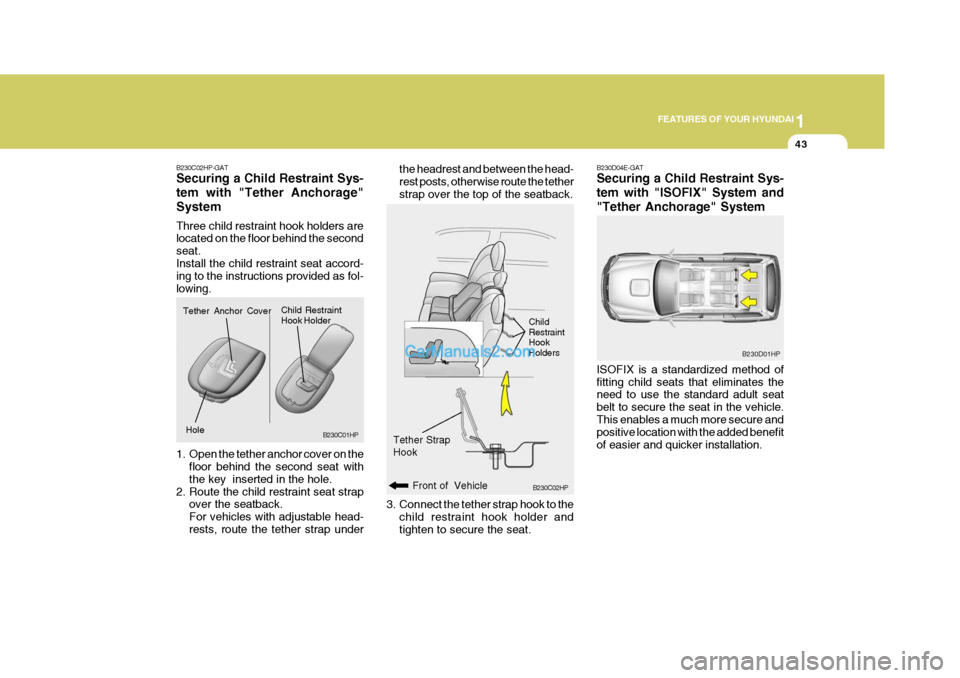

B230D04E-GAT Securing a Child Restraint Sys- tem with "ISOFIX" System and"Tether Anchorage" System ISOFIX is a standardized method of fitting child seats that eliminates the need to use the standard adult seat belt to secure the seat in the vehicle.This enables a much more secure and positive location with the added benefit of easier and quicker installation. B230D01HPB230C02HP-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the floor behind the second seat.Install the child restraint seat accord- ing to the instructions provided as fol- lowing.
1. Open the tether anchor cover on the
floor behind the second seat with the key inserted in the hole.
2. Route the child restraint seat strap over the seatback.For vehicles with adjustable head-rests, route the tether strap under B230C01HP
B230C02HP
the headrest and between the head-rest posts, otherwise route the tetherstrap over the top of the seatback.
Tether Anchor Cover Child Restraint Hook Holder
3. Connect the tether strap hook to the
child restraint hook holder and tighten to secure the seat. Front of Vehicle
Child RestraintHookHolders
Tether Strap HookHole
