30SEATS
HSRFL859
1. FRONT SEAT (See page 1-32)
2. SECOND SEAT (See page 1-34)
3. THIRD SEAT (See page 1-35)
4. FOURTH SEAT (See page 1-37)
5. AUXILIARY SEAT (See page 1-38) 1
2
3
4
5 5
For 12 passengers

1BEFORE DRIVING YOUR VEHICLE
32
!
!
B080A01A-AAT ADJUSTABLE FRONT SEATS
WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control, and an accident causing death, seriousinjury, or property damage. B080B02FC-AAT Adjusting Seat Forward and Rearward To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further. B080C01A-AAT Adjusting Seatback Angle To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now lean back untilthe desired seatback angle is achieved. To lock the seatback into position, release the recliner control lever.
HSRFL080
HSRFL081
WARNING:
To ensure the seat is locked se-curely, attempt to move the seatforward or rearward without using the lock release lever.

1BEFORE DRIVING YOUR VEHICLE
34
5
!
B290C03P-GAT Pull the lever and rotate the seat clock- wise.
WARNING:
o Never rotate the seat while the vehicle is in motion.
o When the seat is rotated, be sure
that the seat is securely locked inposition.
B290A01P-GAT SECOND AND THIRD SEATS Adjusting Seat Forward andRearward (Minibus) (If installed) Pull the lever up and hold it while you slide the seat forward or backward to desired position. Release the lever tolock the seat in position.
B290B02P-GAT To rotate (Second Seat Only) (If installed)
1. Position the driver's seat at the end
of forward. And then position the third seat at the end of rearward.
2. Pull the reclining lever and fold the seatback of the front seat.
3. Fold the auxiliary seat.
4. Pull the lever (a) and slide the seat at the end of rearward.
5. Pull the lever (b) and incline the seatback forward.
6. Rotate the seat clockwise.
7. After rotating the seat 90° or 180°, it
can be fixed.
8. Adjust the seatback or seat the de-
sired position.
HSRFL084
Type A
HSRFL085Type B
B290C01P
3
4 67
(a)
(b)
9. Reverse the above procedure to re-
turn the seat to the original position.

1
BEFORE DRIVING YOUR VEHICLE
35
B310A02P-GAT THIRD SEATS Folding the third seat(Minibus) (If installed) By folding the third seat, larger articles can be stowed in the vehicle.
1. Remove the headrest and tilt the
seatback fully backward. 2. Pull the strap (a) for raising and fold
the seat sideways.
3. Hook the securing band to the assist handle to secure the seat, and fold the legs of the seat.
B310A01P B310A02P
B310A04P B310A05P
(a)
4. Fix the headrest at the upper part ofthe seat leg.
5. Reverse the above procedure when returning the seat to the normalposition.
o While driving, ensure the seat is
locked facing forward.If the seat is not facing forward,this may result in serious injury in the event of a sudden stop.

1BEFORE DRIVING YOUR VEHICLE
36
B310B02P-EAT THIRD SEATS -European communityFolding the third seats (Minibus)
1. Fold the seatback by pushing the
lever fully. B320A07PNOTE: Before folding the seatback, put the buckle into pocket not to dam- age.
B320A04P
B320A06P
2. Pull up the lever in the direction of the arrow sign and then lift the seat cushion until it is fixed. 3. To return the seatback and seat
cushion to its normal position, lowerthe seat cushion at the floor bypushing the lever.
B320A05P
4. Push the lever fully and then returnthe seatback slowly.
B320A08P

1
BEFORE DRIVING YOUR VEHICLE
39
HSRFL088
2. Position the second seat at the end
of forward and then position the third seat at the end of rearward (For 12 passengers). 3. Recline the seatback all the way
backward to make a flat seat.
4. One large flat seat achieved.
CAUTION:
o To make a flat seat, stop the ve- hicle in a safe place.
o Do not walk around on top of the
seats after they have been laid flat. To avoid loosing your foot- ing, step on the center of the seats and walk slowly.
o To ensure the seats are locked securely, attempt to move themback and forth.
o Do not jump on, or impact the seatbacks heavily.
o Never drive with the luggage or
passengers on the flat seat. This is highly dangerous if heavy brak- ing is required.
o To raise the seatback, sit on the seat and put a hand on theseatback and raise slowly. Neverhave a child do this operation, or an unexpected accident may be caused.
!
HSRFL088-1
Type A
Type B
B080D03A-AAT HEADREST Adjustable Headrests(If installed) Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob. Lock knob
HSRFL330

1
BEFORE DRIVING YOUR VEHICLE
41

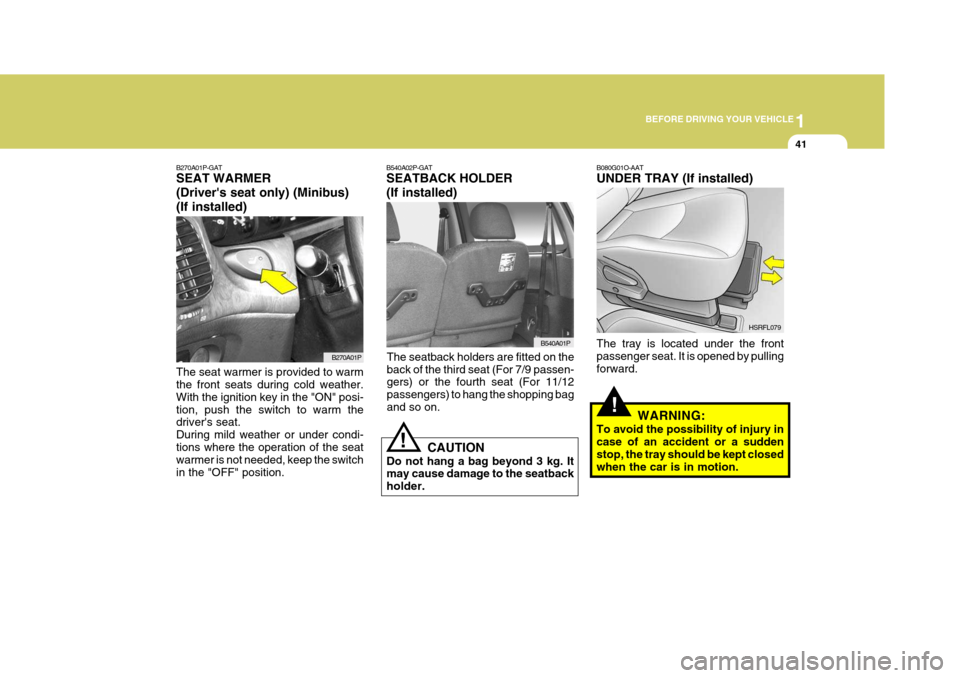

B270A01P-GAT SEAT WARMER (Driver's seat only) (Minibus)(If installed) The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi-tion, push the switch to warm the driver's seat. During mild weather or under condi-tions where the operation of the seat warmer is not needed, keep the switch in the "OFF" position.
B270A01P
!
B080G01O-AAT UNDER TRAY (If installed) The tray is located under the front passenger seat. It is opened by pullingforward.
WARNING:
To avoid the possibility of injury incase of an accident or a sudden stop, the tray should be kept closed when the car is in motion. HSRFL079
The seatback holders are fitted on theback of the third seat (For 7/9 passen- gers) or the fourth seat (For 11/12 passengers) to hang the shopping bagand so on. B540A01P
B540A02P-GAT SEATBACK HOLDER (If installed)
!
CAUTION
Do not hang a bag beyond 3 kg. It may cause damage to the seatback holder.
