2007 GMC YUKON XL navigation system

Brake System Warning Light......................232
Anti-Lock Brake System Warning Light.......233
StabiliTrak
®Indicator Light..........................234
Engine Coolant Temperature Gage.............234
Tire Pressure Light.....................................235
Malfunction Indicator Lamp.........................236
Oil Pressure Gage.....................................239
Oil Pressure Light......................................240
Security Light.............................................241
Fog Lamp Light..........................................241
Cruise Control Light...................................242
Highbeam On Light....................................242
Tow/Haul Mode Light.................................242
Fuel Gage..................................................243
Low Fuel Warning Light.............................243
Driver Information Center (DIC)..................244
DIC Operation and Displays
(With DIC Buttons)..................................244
DIC Operation and Displays
(Without DIC Buttons).............................251
DIC Warnings and Messages.....................254
DIC Vehicle Customization
(With DIC Buttons)..................................264Audio System(s)..........................................274
Setting the Time (Radio with a
Single CD Player)...................................276
Setting the Time (Radio with a
Six-Disc CD Player)................................277
Radio with CD (MP3).................................278
Radio with CD and DVD (MP3)..................295
XM Radio Messages..................................319
Navigation/Radio System............................321
Rear Seat Entertainment System................321
Rear Seat Audio (RSA)..............................332
Theft-Deterrent Feature..............................334
Audio Steering Wheel Controls...................334
Radio Reception.........................................335
Care of Your CDs and DVDs.....................336
Care of the CD and DVD Player................337
Rear Side Window Antenna.......................337
XM™ Satellite Radio Antenna System........337
Section 3 Instrument Panel
184

File System and Naming
The song name that will be displayed will be the
song name that is contained in the ID3 tag.
If the song name is not present in the ID3 tag,
then the radio will display the le name without the
extension (such as .mp3) as the track name.
Track names longer than 32 characters or
four pages will be shortened. The display will not
show parts of words on the last page of text
and the extension of the lename will not be
displayed.
Preprogrammed Playlists
You can access preprogrammed playlists that
were created using WinAmp™, MusicMatch™, or
Real Jukebox™ software, however, you will
not have playlist editing capability using the radio.
These playlists will be treated as special folders
containing compressed audio song les.
Playing an MP3 (In Either the DVD
or CD Slot)
Insert a CD-R partway into either the top or
bottom slot, label side up. The player will pull it in,
and the CD-R should begin playing.
Depending on the format of the disc, a softkey
menu will appear and allow navigation of the disc.
The menu will read left to right as RDM
(Randomize song play order), a Folder icon with
left and right arrows (to move up or down
through available folders), a PL tag if the disc has
a Playlist available, and a Music Navigator tag.
If a Playlist tag is shown, toggling this key brings
up a Folder softkey only or the menu as
previously described.
If you turn off the ignition or radio with a CD-R in
the player it will stay in the player. When you
turn on the ignition or radio, the CD-R will start to
play where it stopped, if it was the last selected
audio source.
As each new track starts to play, the track number
and song title will appear on the display.
307

If the DVD does not begin playing the movie
automatically, press the pushbutton located under
the play/pause symbol tag displayed on the radio.
If the DVD still does not play, refer to the on-screen
instructions, if available.
c(Stop):Press this button to stop playing,
rewinding, or fast forwarding a DVD.
r(Enter):Press this button to select the
choices that are highlighted in any menu.
y(Menu):Press this button to access the DVD
menu. The DVD menu is different on every
DVD. Use the pushbuttons located under the
navigation arrows to navigate the cursor through
the DVD menu. After making a selection press the
enter button. This button only operates when
using a DVD.
Nav (Navigate):Press this button to display
directional arrows for navigating through the
menus.
q(Return):Press this button to exit the current
active menu and return to the previous menu.
This button will operate only when a DVD is
playing and a menu is active.
DVD-A (Audio) Display Buttons
Once a DVD-A is inserted, radio display menu will
show several tag options for DVD playing.
Press the pushbuttons located under any desired
tag option during DVD playback. See the tag
options listed below for more information.
The rear seat operator can navigate the DVD-A
menus and controls through the remote control.
See “Remote Control”, underRear Seat
Entertainment System on page 321for more
information. The Video Screen does not
automatically power on when the DVD-A is
inserted into the DVD slot. It must be manually
turned on by the rear seat occupant through
the remote control power button.
r/j(Play/Pause):Press either the play or
pause icon displayed on the radio system,
to toggle between pausing or restarting playback
of a DVD. If the forward arrow is showing on
display, the system is in pause mode. If the pause
icon is showing on display, the system is in
playback mode.
315

qGroupr:Press this button to cycle through
musical groupings on the DVD-A disc.
Nav (Navigate):Press this button to display
directional arrows for navigating through the
menus.
e(Audio Stream):Press this button to cycle
through audio steam formats located on DVD-A
disc. There is not any type of notication for
the customer to see through the radio display, but
VSM will have a text eld that will show audio
stream changing.
Inserting a Disc
To play a disc, gently insert the disc, with the label
side up, into the loading slot. The DVD player
may not accept some paper labeled media. The
player will start loading the disc into the system
and display “Loading Disc” on the radio display.
At the same time, the radio will display a
softkey menu of option(s). Some discs will
automatically play the movie while others will
default to the softkey menu display which requires
the Play, Enter, or Navigation softkeys to be
pressed (either by softkey or by the rear seat
passenger using the remote control).Loading a disc into the system, depending
on media type and format, ranges from
5 to 20 seconds for a CD, and up to 30 seconds
for a DVD.
Stopping and Resuming Playback
To stop playing a DVD without turning off the
system, press the stop button on the remote
control, or press the pushbutton located under the
stop or the play/pause symbol tags displayed
on the radio. If the radio head is sourced to
something other than DVD-V, press the DVD/CD
AUX button to make DVD-V the active source.
To resume DVD playback, press the play/pause
button on the remote control, or press the
pushbutton located under the play/pause symbol
tag displayed on the radio. The DVD should
resume play from where it last stopped if the disc
has not been ejected and the stop button has
not been pressed twice on the remote control.
If the disc has been ejected or the stop button has
been pressed twice on the remote control, the
disc will resume playing at the beginning of
the disc.
316

Navigation/Radio System
Your vehicle may have a navigation radio system.
The navigation system has built-in features
intended to minimize driver distraction. Technology
alone, no matter how advanced, can never
replace your own judgment. See the Navigation
System manual for some tips to help you
reduce distractions while driving.
Rear Seat Entertainment System
Your vehicle may have a DVD Rear Seat
Entertainment (RSE) system. The RSE system
works with the vehicle’s audio system. The
DVD player is part of the front radio. The RSE
system includes a radio with a DVD player, a video
display screen, two wireless headphones, and a
remote control. SeeRadio with CD and DVD
(MP3) on page 295for more information on the
vehicle’s audio/DVD system.
Before You Drive
The RSE is designed for rear seat passengers
only. The driver cannot safely view the video
screen while driving and should not try to do so.
In severe or extreme weather conditions the
RSE system may or may not work until the
temperature is within the operating range.
The operating range for the RSE system is above
−4°F (−20°C) or below 140°F (60°C). If the
temperature of your vehicle is outside of this
range, heat or cool the vehicle until the
temperature is within the operating range of the
RSE system.
321

g(Mute/Voice Recognition):Press and release
this button to silence the vehicle speakers only.
The audio of the wireless and wired headphones, if
your vehicle has these features, will not be
muted. Press and release this button again, to
turn the sound on.
If your vehicle has the navigation system, press
and hold this button for longer than one second to
initiate voice recognition. See “Voice Recognition”
in the Navigation System manual for more
information.
If your vehicle has OnStar
®, press and hold this
button for longer than one second to interact
with the OnStar system. If your vehicle is also
equipped with the navigation system, press
and hold this button for longer than one second to
initiate voice recognition and say “OnStar” to
enter OnStar
®mode. See theOnStar®System on
page 167in this manual for more information.
SRCE (Source):Press this button to switch
between the radio (AM, FM), XM (if equipped),
CD, and if your vehicle has these features, DVD,
front auxiliary, and rear auxiliary.+
e−e(Volume):Press the plus or minus
button to increase or to decrease the radio volume.
¨(Seek):Press the seek arrow to go to the next
radio station while in AM, FM, or XM (if equipped).
Press this button to go to the next track or chapter
while sourced to the DVD slot. Press the button to
go to the next disc while sourced to a CD or DVD
changer, if multiple discs are loaded.
Radio Reception
You may experience frequency interference and
static during normal radio reception if items
such as cellphone chargers, vehicle convenience
accessories, and external electronic devices
are plugged into the accessory power outlet.
If there is interference or static, unplug the item
from the accessory power outlet.
335

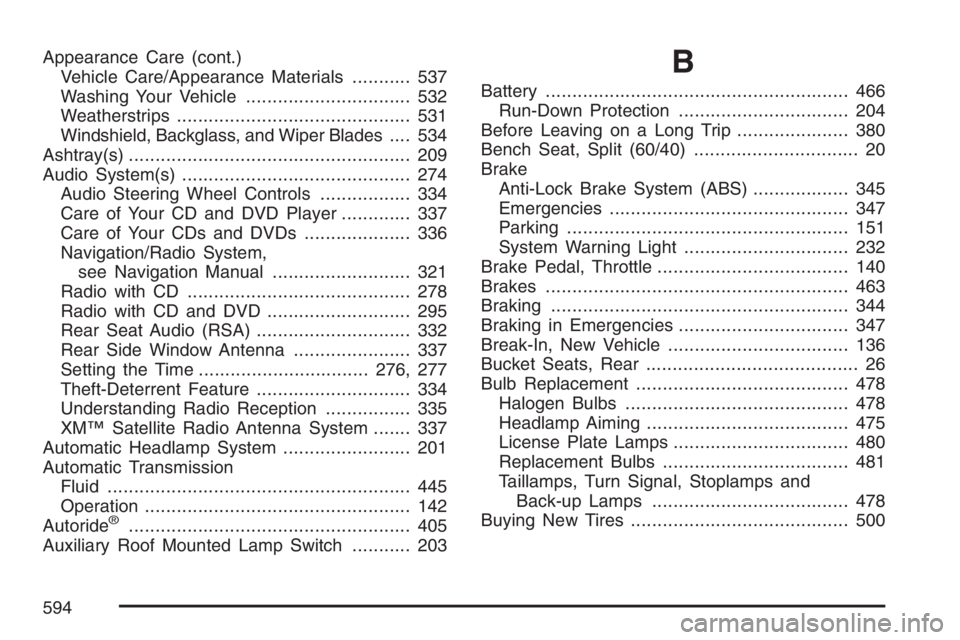

Appearance Care (cont.)
Vehicle Care/Appearance Materials........... 537
Washing Your Vehicle............................... 532
Weatherstrips............................................ 531
Windshield, Backglass, and Wiper Blades.... 534
Ashtray(s)..................................................... 209
Audio System(s)........................................... 274
Audio Steering Wheel Controls................. 334
Care of Your CD and DVD Player............. 337
Care of Your CDs and DVDs.................... 336
Navigation/Radio System,
see Navigation Manual.......................... 321
Radio with CD.......................................... 278
Radio with CD and DVD........................... 295
Rear Seat Audio (RSA)............................. 332
Rear Side Window Antenna...................... 337
Setting the Time................................276, 277
Theft-Deterrent Feature............................. 334
Understanding Radio Reception................ 335
XM™ Satellite Radio Antenna System....... 337
Automatic Headlamp System........................ 201
Automatic Transmission
Fluid......................................................... 445
Operation.................................................. 142
Autoride
®..................................................... 405
Auxiliary Roof Mounted Lamp Switch........... 203
B
Battery......................................................... 466
Run-Down Protection................................ 204
Before Leaving on a Long Trip..................... 380
Bench Seat, Split (60/40)............................... 20
Brake
Anti-Lock Brake System (ABS).................. 345
Emergencies............................................. 347
Parking..................................................... 151
System Warning Light............................... 232
Brake Pedal, Throttle.................................... 140
Brakes......................................................... 463
Braking........................................................ 344
Braking in Emergencies................................ 347
Break-In, New Vehicle.................................. 136
Bucket Seats, Rear........................................ 26
Bulb Replacement........................................ 478
Halogen Bulbs.......................................... 478
Headlamp Aiming...................................... 475
License Plate Lamps................................. 480
Replacement Bulbs................................... 481
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps..................................... 478
Buying New Tires......................................... 500
594

M
Maintenance Schedule
Additional Required Services..................... 557
At Each Fuel Fill....................................... 560
At Least Once a Month............................ 561
At Least Once a Year............................... 562
Introduction............................................... 552
Maintenance Footnotes............................. 558
Maintenance Record................................. 568
Maintenance Requirements....................... 552
Normal Maintenance Replacement Parts..... 566
Owner Checks and Services..................... 560
Recommended Fluids and Lubricants........ 564
Scheduled Maintenance............................ 555
Using........................................................ 553
Your Vehicle and the Environment............ 552
Malfunction Indicator Light............................ 236
Manual Seats................................................... 9
Memory Seat, Mirrors, and Pedals................. 13
Message
DIC Warnings and Messages.................... 254
Mirrors
Automatic Dimming Rearview with
Compass and Temperature Display........ 160
Automatic Dimming Rearview with
OnStar
®, Compass and Temperature
Display.................................................. 157Mirrors (cont.)
Outside Automatic Dimming Mirror............ 166
Outside Convex Mirror.............................. 166
Outside Curb View Assist Mirrors.............. 166
Outside Heated Mirrors............................. 167
Outside Manual Mirrors............................. 163
Outside Power Foldaway Mirrors............... 165
Outside Power Mirrors.............................. 164
Outside Trailer-Tow Mirrors....................... 163
MyGMLink.com............................................. 574
N
Navigation/Radio System,
see Navigation Manual.............................. 321
New Vehicle Break-In................................... 136
Normal Maintenance Replacement Parts...... 566
O
Odometer..................................................... 226
Odometer, Trip............................................. 226
Off-Road Driving........................................... 356
Off-Road Recovery....................................... 353
601
