2007 FORD FUSION (AMERICAS) Owners Manual

Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
193

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 10A Backup lamps, Electrochromatic
mirror
2 20A Horns
3 15A Battery saver: Interior lamps,
Puddle lamps, Trunk lamp, Power
windows
4 15A Parklamps, Side markers, License
plate lamps
5 — Not used
6 — Not used
7 — Not used
8 30A Rear window defroster
9 10A Heated mirrors
10 30A Starter coil, PCM
11 15A High beams
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
194

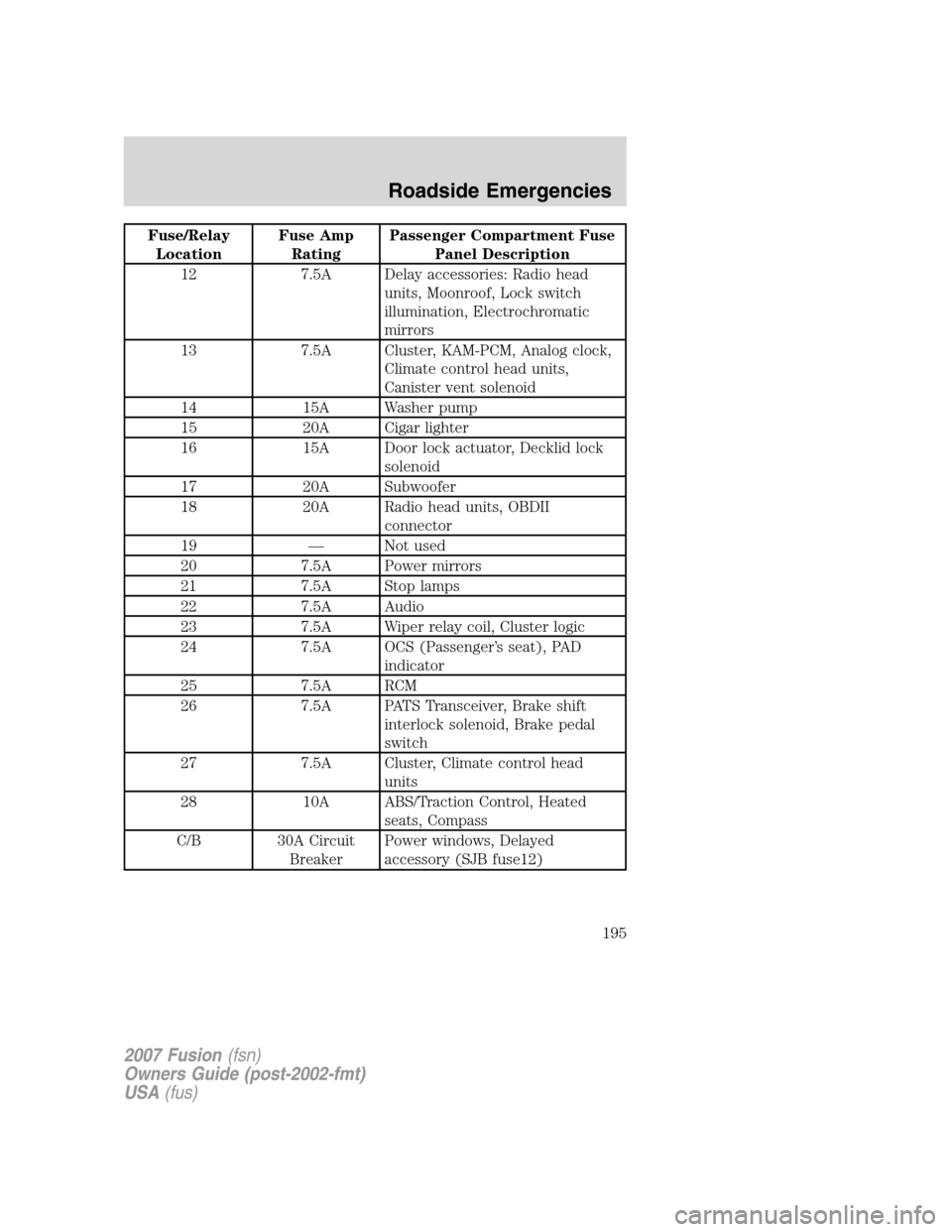

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
12 7.5A Delay accessories: Radio head
units, Moonroof, Lock switch
illumination, Electrochromatic
mirrors
13 7.5A Cluster, KAM-PCM, Analog clock,
Climate control head units,
Canister vent solenoid
14 15A Washer pump
15 20A Cigar lighter
16 15A Door lock actuator, Decklid lock
solenoid
17 20A Subwoofer
18 20A Radio head units, OBDII
connector
19 — Not used
20 7.5A Power mirrors
21 7.5A Stop lamps
22 7.5A Audio
23 7.5A Wiper relay coil, Cluster logic
24 7.5A OCS (Passenger’s seat), PAD
indicator
25 7.5A RCM
26 7.5A PATS Transceiver, Brake shift
interlock solenoid, Brake pedal
switch
27 7.5A Cluster, Climate control head
units
28 10A ABS/Traction Control, Heated
seats, Compass
C/B 30A Circuit
BreakerPower windows, Delayed
accessory (SJB fuse12)
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
195

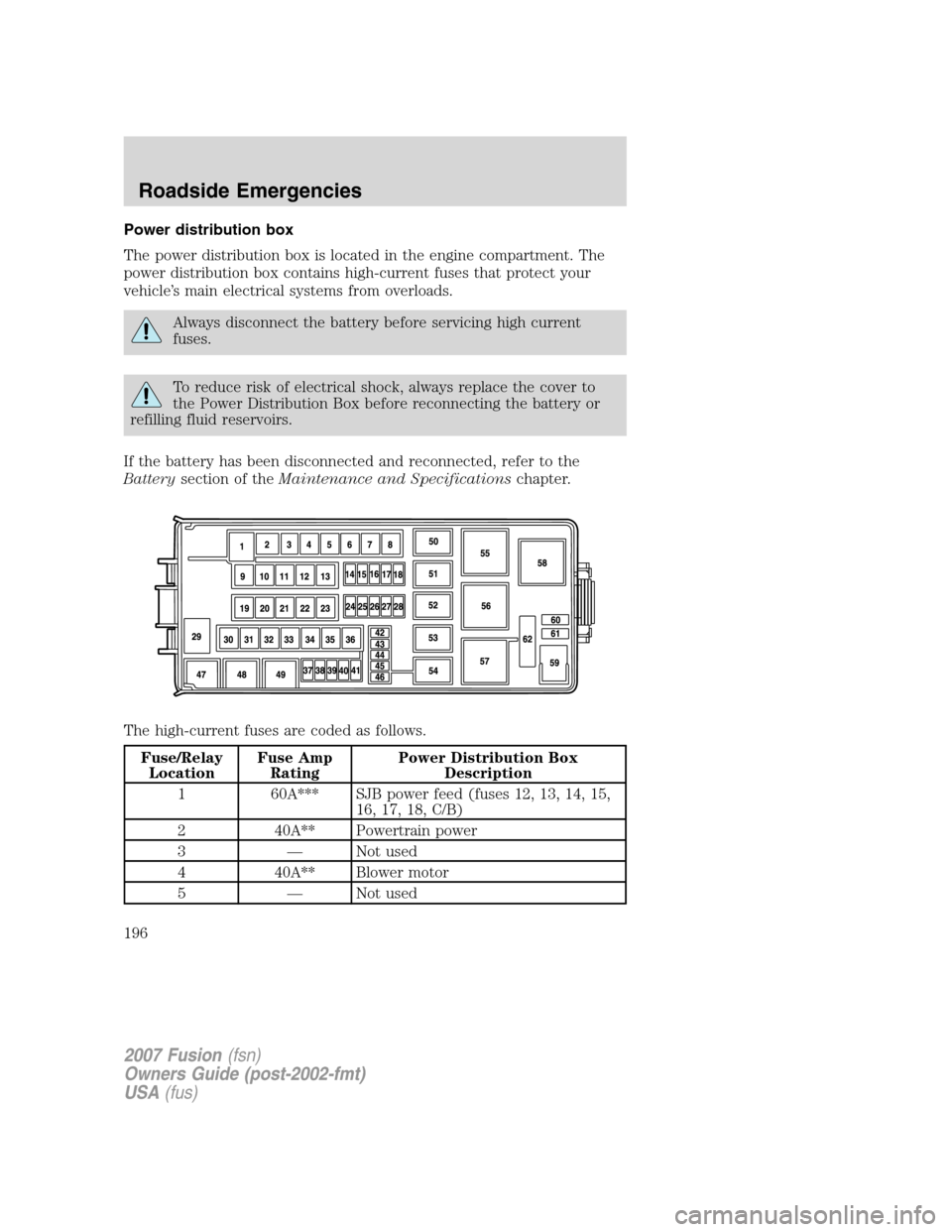

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 60A*** SJB power feed (fuses 12, 13, 14, 15,
16, 17, 18, C/B)
2 40A** Powertrain power
3 — Not used
4 40A** Blower motor
5 — Not used
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
196

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
6 40A**
Rear window defroster, Heated mirrors
7 40A** PETA Pump (PZEV engine only)
8 — Not used
9 20A** Wipers
10 20A** ABS Valves
11 20A** Heated seats
12 — Not used
13 — Not used
14 15A* Ignition switch
15 — Not used
16 15A* Transmission
17 20A* Console power point
18 10A* Alternator sense
19 40A** Logic feed to SJB (solid state devices)
20 — Not used
21 — Not used
22 — Not used
23 60A**
SJB power feed (fuses 1, 2, 4, 10, 11)
24 15A* Fog lamps
25 10A* A/C Compressor clutch
26 — Not used
27 — Not used
28 — Not used
29 60A*** Engine cooling fan
30 30A** Fuel pump relay feed
31 — Not used
32 30A** Driver power seat
33 20A** Moonroof
34 — Not used
35 — Not used
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
197

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
36 40A** ABS Pump
37 — Not used
38 — Not used
39 — Not used
40 — Not used
41 — Not used
42 15A* PCM non-emission related
43 15A* Coil on plug
44 15A* PCM emission related
45 5A*
PETA Pump feedback (PZEV engine
only)
46 15A* Injectors
47 1/2 ISO Relay Fog lamps
48 — Not used
49 — Not used
50 1/2 ISO Relay Wiper Park
51 1/2 ISO Relay A/C Clutch
52 — Not used
53 1/2 ISO Relay Wiper RUN
54 1/2 ISO Relay Transmission (I4 engine only)
55 Full ISO Relay Fuel pump
56 Full ISO Relay Blower motor
57 Full ISO Relay PCM
58 High Current
RelayPETA Pump (PZEV engine only)
59 — Not used
60 Diode Fuel pump
61 Diode Not used
62 Circuit
BreakerSpare
*Mini fuses **A1 fuses ***A3 fuses
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
198

CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Your vehicle may be equipped with a conventional spare tire that is
different in one or more of the following: type, brand, size, speed rating
and tread design. If this is the case, this dissimilar spare tire is still rated
for your vehicle loads (GAWR and GVWR).
The use of tire sealants may damage your tires.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
199

•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
For vehicles equipped with 4WD, it is not recommended that the vehicle
be operated in 4WD modes with a temporary emergency spare tire. If
4WD operation is necessary, do not operate above speeds of 10 mph
(16 km/h) or for distances above 50 miles (80 km).
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
2007 Fusion(fsn)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
200
